AD-310 Phase 7

Parts Manual

(with Tilt Options)

AmericanDryerCorporation

88Currant Road

FallRiverMA 02720-4781

Telephone: (508) 678-9000 / Fax: (508) 678-9447

E-mail:techsupport@amdry.com

ADCPartNo.450032

Retain This Manual In ASafe Place For Future Reference

American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is

properly maintained, it will provide many years of safe, efficient, and trouble-free operation.

ONLY qualified technicians should service this equipment.

OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with

the dryer.

The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.

We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make

changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or

discontinue models.

Important

For your convenience, log the following information:

DATEOFPURCHASE ____________________________ MODELNO. __________________________________________

RESELLER’SNAME _______________________________________________________________________________________

Serial Number(s) ________________________________________________________________________________________

________________________________________________________________________________________

Replacement parts can be obtained from your reseller or the ADCfactory. When orderingreplacementparts fromthefactory,

you can FAX your order to ADC at (508) 678-9447 or telephone your order directly to the ADC Parts Department at

(508)678-9000. Pleasespecify the dryer modelnumberand serialnumberinadditiontothe descriptionand partnumber, so

that your order is processed accurately and promptly.

The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite of the

various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.

AD-310 Tilt

“IMPORTANTNOTETOPURCHASER”

Informationmustbeobtainedfromyourlocalgassupplierontheinstructions

tobefollowedifthe user smells gas. Theseinstructionsmustbeposted in a

prominentlocation near thedryer.

FORYOUR SAFETY

Donot store or use gasolineor

otherflammablevaporsorliquids

inthevicinityofthisoranyother

appliance.

POURVOTRESÉCURITÉ

Nepasentreposer ni utiliser d’essence

nid’autres vapeursouliquides

inflammablesdanslevoisinagedecet

appareiloude yout autre appareil.

Table of Contents

FrontPanelAssembly

AutomaticDoor.......................................................................................................................... 4, 5

FrontPanelAssembly

ManualDoor.............................................................................................................................. 6, 7

RearPanelAssembly

1Door/ForwardTilt ....................................................................................................................... 8

RearPanelAssembly

1Door/2-WayTilt .......................................................................................................................... 9

RearPanelAssembly

2AutomaticDoors ................................................................................................................. 10, 11

RearPanelAssembly

2 Manual Doors..................................................................................................................... 12, 13

LeftLoadDoorAssembly

ManualDoor................................................................................................................................14

RightLoad DoorAssembly

ManualDoor................................................................................................................................15

LeftLoadDoorAssembly

AutomaticDoor...................................................................................................................... 16, 17

RightLoad DoorAssembly

AutomaticDoor...................................................................................................................... 18, 19

EndofCycleLightAssembly ................................................................................................................ 20

PneumaticAssembly

AutomaticDoor............................................................................................................................ 21

MagneticDoorSwitchAssembly .......................................................................................................... 22

LeftControl DoorAssembly

For 1 Door or 2 Door Models ..................................................................................................... 23

FrontControlDoorAssembly ......................................................................................................... 24, 25

RightRear Control DoorAssembly

2 Door Models ONLY ........................................................................................................... 26, 27

SidePanelAssemblies .......................................................................................................................... 28

LeftHandElectricalControlPanelAssembly

ForModels Mfd. withThermal-Magnetic Protection ONLY .............................................. 29, 30

RightHandElectricalControlPanel................................................................................................. 31, 32

BaseMainElectricalJunctionBoxAssembly

ForModels Mfd. withThermal-Magnetic Protection ONLY .............................................. 33, 34

IdlerShaft and Basket(Tumbler)Assembly ........................................................................................... 35

Basket(Tumbler)RetainingWheelAssembly ......................................................................................... 36

LintDrawer/BasketAssembly ............................................................................................................... 37

Temperature Sensor BracketAssembly ................................................................................................. 38

Basket(Tumbler)DriveShaftAssembly .......................................................................................... 39, 40

TiltSwitchAssembly ............................................................................................................................. 41

TiltPistonAssembly

2-WayTilt..................................................................................................................................... 42

PostAssembly ...................................................................................................................................... 43

DriveMotorAssembly.......................................................................................................................... 44

FanMotorAssembly

ForGas ModelsONLY ......................................................................................................... 45, 46

FanMotorAssembly

ForSteamModels ONLY ...................................................................................................... 47, 48

FrontGas BurnerAssembly ............................................................................................................ 49, 50

RearGas BurnerAssembly ............................................................................................................. 51, 52

SailSwitchAssembly ............................................................................................................................ 53

DirectSpark Ignition (DSI) ModuleAssembly....................................................................................... 54

GasPipingAssembly ................................................................................................................ 55, 56, 57

SteamCoilAssembly ...................................................................................................................... 58, 59

TiltingSteamPipingAssembly ................................................................................................... 60, 61, 62

PneumaticValveAssembly1AutoDoor/2-WayTiltw/OptionalSprinkler ...................................... 63, 64

PneumaticValveAssembly2AutoDoor/1-WayTiltw/OptionalSprinkler ...................................... 65, 66

AirJetAssembly................................................................................................................................... 67

OptionalSprinkler ControlPanel..................................................................................................... 68, 69

OptionalSprinklerAssembly ..................................................................................................... 70, 71, 72

OptionalSprinklerTemperature ProbeJunctionBoxAssembly .............................................................. 73

BasePanelAssemblies.................................................................................................................... 74, 75

GuardPanelAssemblies

2-WayTilt............................................................................................................................... 76, 77

GuardPanelAssemblies

1-WayTilt..................................................................................................................................... 78

SelectorSwitch,Nameplate,andMounting Base Chart ......................................................................... 79

RightRear/Front ControlPanel ............................................................................................................. 80

RightHandElectricalControlPanelChart ............................................................................................. 81

RightHand Base Electrical Panel and Left Hand Electrical PanelChart .................................................. 82

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

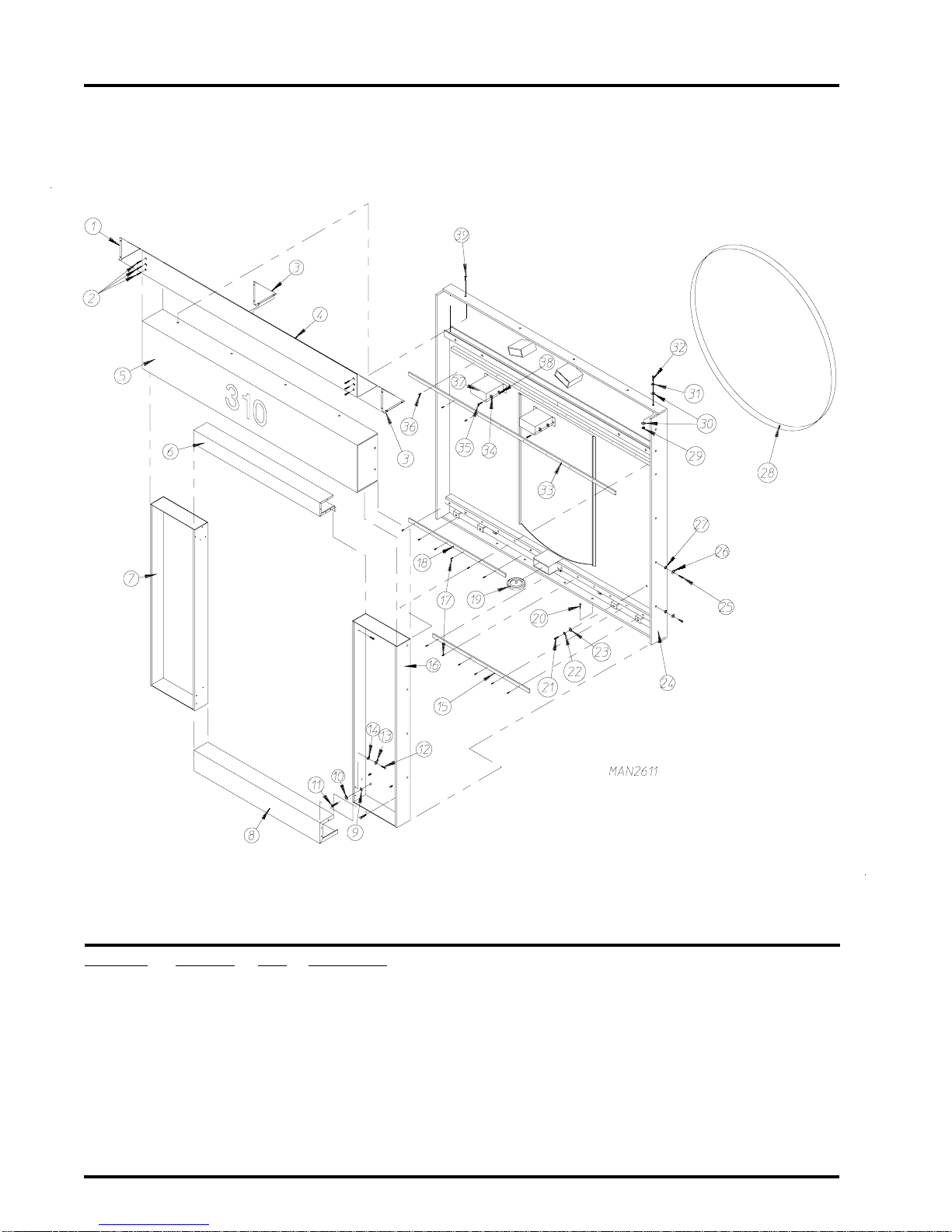

Front PanelAssembly

AutomaticDoor

Illus. No. Part No. Qty.Description

1* 332680 1 Left Gusset

(for gas models Only)

2 150522 15 1/4-20 x 1/2” Hex Washer Head Machine Screw

(for gas models Only)

3* 332681 2 Right Gusset

(for gas models Only)

4* 332679 1 Top Front Panel

(for gas models Only)

5* 826033 1 Upper Guard

Telephone: (508) 678-9000 Fax: (508) 678-9447

Front Panel Assembly (continued)

Illus. No. Part No. Qty.Description

6* 821239 1 MiddleGuard

7* 881117 1 Left Control Cabinet

8* 821285 1 Bottom Guard

9 153001 8 5/16” Flat Washer

10 153002 8 5/16” Lock Washer

11 150501 8 5/16-18 x 3/4” Hex Head Machine Bolt

12 150510 12 1/4-20 x 3/4” Hex Head Machine Bolt

13 153007 12 1/4” Lock Washer

14 153018 12 1/4” Flat Washer

15 170364 1 Bottom Door Track

16* 881116 1 Right Control Cabinet

17 154312 14 #10-32 x 3/4” Socket Head Cap Screw

18 170364 1 Bottom Door Track

19 -------- - Basket (tumbler) Retaining Wheel

(refer to Basket [Tumbler] Retaining Wheel Assembly on page 36)

20 150523 5 1/4-20 x 3/4” Hex Washer Machine Bolt

21 150617 8 3/8-16 x 1” Hex Head Bolt

22 153005 8 3/8” Lock Washer

23 153004 8 3/8” Flat Washer

24* 881109 1 Front PanelAssembly

25 150501 12 5/16-18 x 3/4” Hex Head Machine Bolt

26 153002 12 5/16” Lock Washer

27 153001 12 5/16” Flat Washer

28 116009 180 Felt (sold by the inch)

401010 1 Construction Mastic

29 152011 4 1/2-13 Hex Nut

30 153050 8 1/2 x 1-1/16” Flat Washer

31 153026 4 1/2” Lock Washer

32 150605 4 1/2-13 x 1-1/2” Hex Head Bolt

33 170365 1 Upper Door Track

34 153007 12 1/4” Lock Washer

35 152002 12 1/4-20 Hex Nut

36 154312 15 #10-32 x 3/4” Socket Head Cap Screw

37* 821244 2 Basket (tumbler) Retaining Wheel Cover

38 153018 12 1/4” Flat Washer

39 150523 5 1/4-20 x 3/4” Hex Washer Machine Bolt

* Specify color when ordering.

AutomaticDoor

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

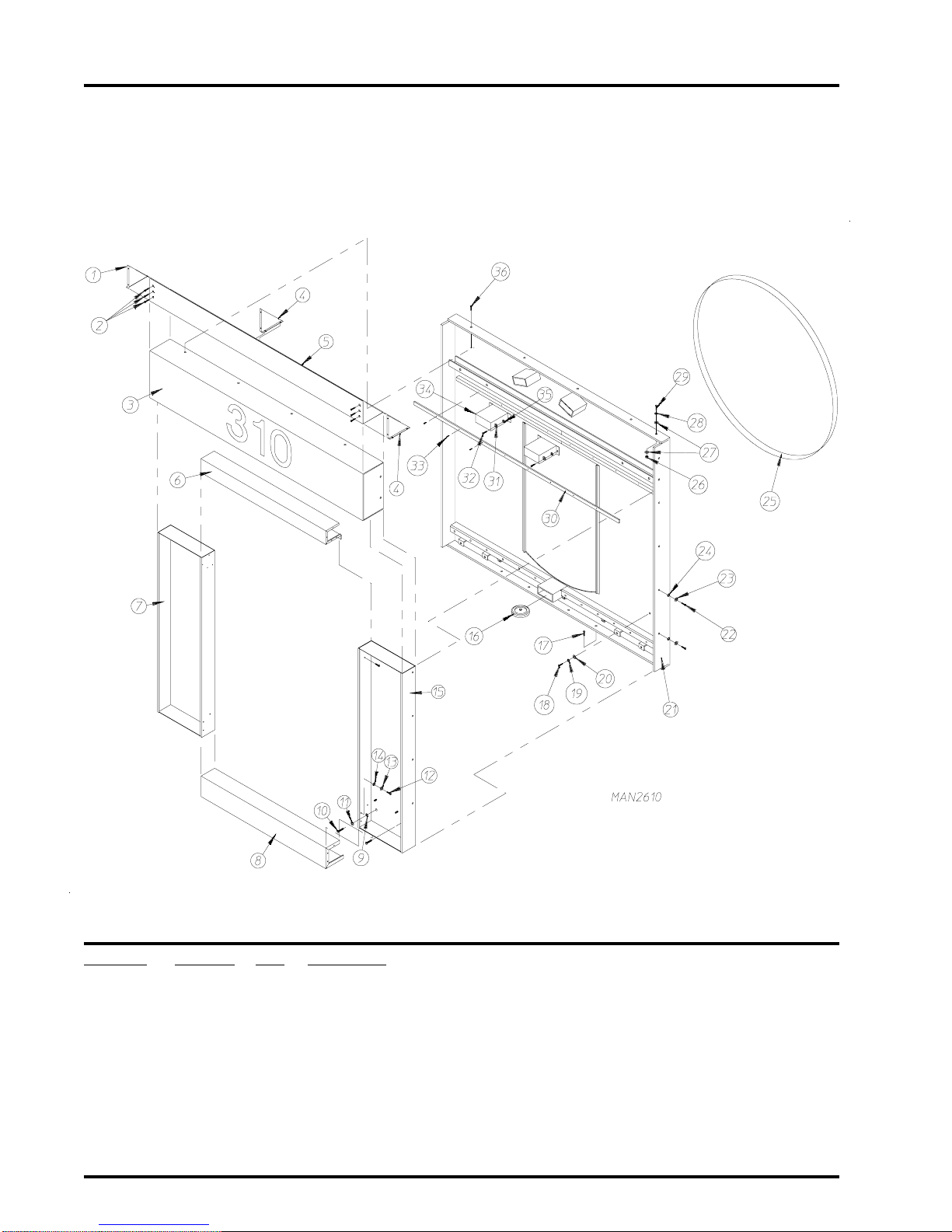

Front PanelAssembly

ManualDoor

Illus. No. Part No. Qty.Description

1* 332680 1 Left Gusset

(for gas models Only)

2 150522 15 1/4-20 x 1/2” Hex Washer Head Machine Screw

(for gas models Only)

3* 826033 1 Upper Guard

4* 332681 2 Right Gusset

(for gas models Only)

5* 332679 1 Top Front Panel

(for gas models Only)

Telephone: (508) 678-9000 Fax: (508) 678-9447

Front Panel Assembly (continued)

Illus. No. Part No. Qty.Description

6* 821239 1 MiddleGuard

7* 881117 1 Left Control Cabinet

8* 821285 1 Bottom Guard

9 153001 8 5/16” Flat Washer

10 150501 8 5/16-18 x 3/4” Hex Head Machine Bolt

11 153002 8 5/16” Lock Washer

12 150510 12 1/4-20 x 3/4” Hex Head Machine Bolt

13 153007 12 1/4” Lock Washer

14 153018 12 1/4” Flat Washer

15* 881116 1 Right Control Cabinet

16 -------- - Basket (tumbler) Retaining Wheel

(refer to Basket [Tumbler] Retaining Wheel Assembly on page 36)

17 150523 5 1/4-20 x 3/4” Hex Washer Machine Bolt

18 150617 8 3/8-16 x 1” Hex Head Bolt

19 153005 8 3/8” Lock Washer

20 153004 8 3/8” Flat Washer

21* 881108 1 Front Panel

22 150501 12 5/16-18 x 3/4” Hex Head Machine Bolt

23 153002 12 5/16” Lock Washer

24 153001 12 5/16” Flat Washer

25 116009 180 Felt (sold by the inch)

401010 1 Construction Mastic

26 152011 4 1/2-13 Hex Nut

27 153050 8 1/2 x 1-1/16” Flat Washer

28 153026 4 1/2” Lock Washer

29 150605 4 1/2-13 x 1-1/2” Hex Head Bolt

30 170365 1 Upper Door Track

31 153007 12 1/4” Lock Washer

32 152002 12 1/4-20 Hex Nut

33 154312 15 #10-32 x 3/4” Socket Head Cap Screw

34* 821244 2 Basket (tumbler) Retaining Wheel Cover

35 153018 12 1/4” Flat Washer

36 150523 5 1/4-20 x 3/4” Hex Washer Machine Bolt

* Specify color when ordering.

ManualDoor

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Rear PanelAssembly

Illus. No. Part No. Qty.Description

1* 821310 1 Bottom PanelAssembly

2 -------- - Basket (tumbler) Retaining Wheel

(refer to Basket [tumbler] Retaining Wheel Assembly on page 36)

3* 332787 1 Basket (tumbler) Retaining Wheel Guard

4 150301 6 #8-18 x 7/16” Phillips Pan Head TEK Screw

5 150523 32 1/4-20 x 3/4” Hex Washer Machine Bolt

6 332571 2 Rear Panel Reinforcement

7* 821312 1 Middle Back PanelAssembly

8 152004 14 5/16-18 Hex Nut

9 153002 14 5/16” Lock Washer

10 153001 28 5/16” Flat Washer

11 150625 14 5/16-18 x 1-1/4” Hex Head Bolt

12* 150301 8 #8-18 x 7/16” Phillips Pan Head TEK Screw

13* 821244 2 Basket (tumbler) Retaining Wheel Cover

14* 881118 1 Top Back Panel Assembly

* Specify color when ordering.

1Door/ForwardTilt

Andere Handbücher für AD-310

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere American Dryer Corp. Trockner Handbücher

American Dryer Corp.

American Dryer Corp. AD-410 Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. MLG-190DR Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. ML-55II Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. AD-670 Phase 7 Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. AD-100 Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. MLG-96 Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. AD-530 Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. ML-175 Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. Heat Reclaimer AD-170HR Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. AD-35i Administratorhandbuch

American Dryer Corp.

American Dryer Corp. AD-575 Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. AD-385 Administratorhandbuch

American Dryer Corp.

American Dryer Corp. AD-75T Administratorhandbuch

American Dryer Corp.

American Dryer Corp. AD-120ES II Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. Gas/Electric/Steam AD-75HS Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. Gas HSI - Phase 7/FSS AD-78 III Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. AD-15 Phase 7 Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. Hot Surface Ignition ADG-530HS Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. AD-30 (Export) Administratorhandbuch

American Dryer Corp.

American Dryer Corp. ML-410 Administratorhandbuch

American Dryer Corp.

American Dryer Corp. MLG-130DR (HSI) Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. AD-4545 Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. UD-80 Bedienungsanleitung

American Dryer Corp.

American Dryer Corp. Phase 7 Gas/Steam AD-464 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
