FEATURES

The AD1301 and AD1303 wedge ceiling

housings are designed to accommodate most

solid state camera and lens combinations.

The fully enclosed, low-profile design allows for

inconspicuous camera placement and excellent

protection, yet the camera is easy to install and

service. The all-metal construction enables the

housings to be used in plenum-rated ceilings.

The tamper resistant locking screws provide an

additional level of security.

The AD1301 and AD1303 are designed for

indoor use only.

AD1301 and 1303

INDOOR WEDGE CAMERA HOUSINGS

•Low-profile wedge shape

•Easy installation

•Suitable for installation

in open plenum ceilings

•All metal construction

•Tamper resistant

•Distortion free Lexan®

viewing window

www.americandynamics.net

SPECIFICATIONS

Model Numbers

AD1301 . . . . . . . . . . . . . . . . . . . . . .Camera housing, indoor, ceiling wedge,

231 mm (9.10 in) maximum camera/lens

size

AD1303 . . . . . . . . . . . . . . . . . . . . . .Camera housing, indoor, ceiling wedge,

304 mm (12.0 in) maximum camera/lens

size

Mechanical

Dimensions (H x W x D)

AD1301

Total . . . . . . . . . . . . . . . . . . . . . .165.1 x 120.7 x 295.3 mm

(6.6 x 4.75 x 11.63 in)

Above Ceiling . . . . . . . . . . . . . .76.2 x 85.7 x 231.8 mm

(3.0 x 3.38 x 9.13 in)

Below Ceiling . . . . . . . . . . . . . . .88.9 x 120.7 x 295.3 mm

(3.5 x 4.75 x 11.63 in)

AD1303

Total . . . . . . . . . . . . . . . . . . . . . .208 x 158.8 x 377.8 mm

(8.19 x 6.25 x 14.88 in)

Above Ceiling . . . . . . . . . . . . . .102 x 127 x 317.5 mm

(4.0 x 5.0 x 12.5 in)

Below Ceiling . . . . . . . . . . . . . . .106 x 158.8 x 377.8 mm

(4.25 x 6.25 x 14.88 in)

Construction

Back box . . . . . . . . . . . . . . . . . . .18 gauge (1.2 mm) steel

Housing . . . . . . . . . . . . . . . . . . .16 gauge (1.5 mm) steel

Viewing Window . . . . . . . . . . . . .6.35 mm (0.25 in) thick Lexan®

Housing Finish . . . . . . . . . . . . . . .Baked enamel texture

Color . . . . . . . . . . . . . . . . . . . . . .Beige

Unit Weight

AD1301 . . . . . . . . . . . . . . . . . . . .1.82 kg (4.0 lbs)

AD1303 . . . . . . . . . . . . . . . . . . . .3.75 kg (8.25 lbs)

Shipping Weight

AD1301 . . . . . . . . . . . . . . . . . . . .2.42 kg (5.3 lbs)

AD1303 . . . . . . . . . . . . . . . . . . . .4.35 kg (9.6 lbs)

Cable Entry . . . . . . . . . . . . . . . . . . .Four 1/2-inch electrical knockouts

Maximum Camera/Lens Size

AD1301 . . . . . . . . . . . . . . . . . . . .231 mm (9.10 in)

AD1303 . . . . . . . . . . . . . . . . . . . .304 mm (12.0 in)

Camera Mounting . . . . . . . . . . . .1/4-inch – 20

Optional Mounting Accessories

AD1301DCM . . . . . . . . . . . . . . . . .2' x 2' Drop Ceiling Mount for AD1301

AD1303DCM . . . . . . . . . . . . . . . . .2' x 2' Drop Ceiling Mount for AD1303

AD1303RK . . . . . . . . . . . . . . . . . . .Drop Ceiling Rail Kit for AD1301DCM

and AD1303DCM

AMERICAN DYNAMICS AD1301 AND AD1303 INDOOR WEDGE CAMERA HOUSINGS

VS264-02 01/03 L

Product specifications and availability subject to change without notice.

Certain product names mentioned herein may be trade names and/or registered

trademarks of other companies.

127 mm

(5.0 in)

102 mm

(4.0 in)

106 mm

(4.25 in)

158.8 mm

(6.25 in)

377.8 mm

(14.88 in)

317.5 mm

(12.5 in)

Front View Side View

Bottom View

85.7 mm

(3.38 in)

76.2 mm

(3.0 in)

88.9 mm

(3.5 in)

120.7 mm

(4.75 in)

295.3 mm

(11.63 in)

231.8 mm

(9.13 in)

Front View Side View

Bottom View

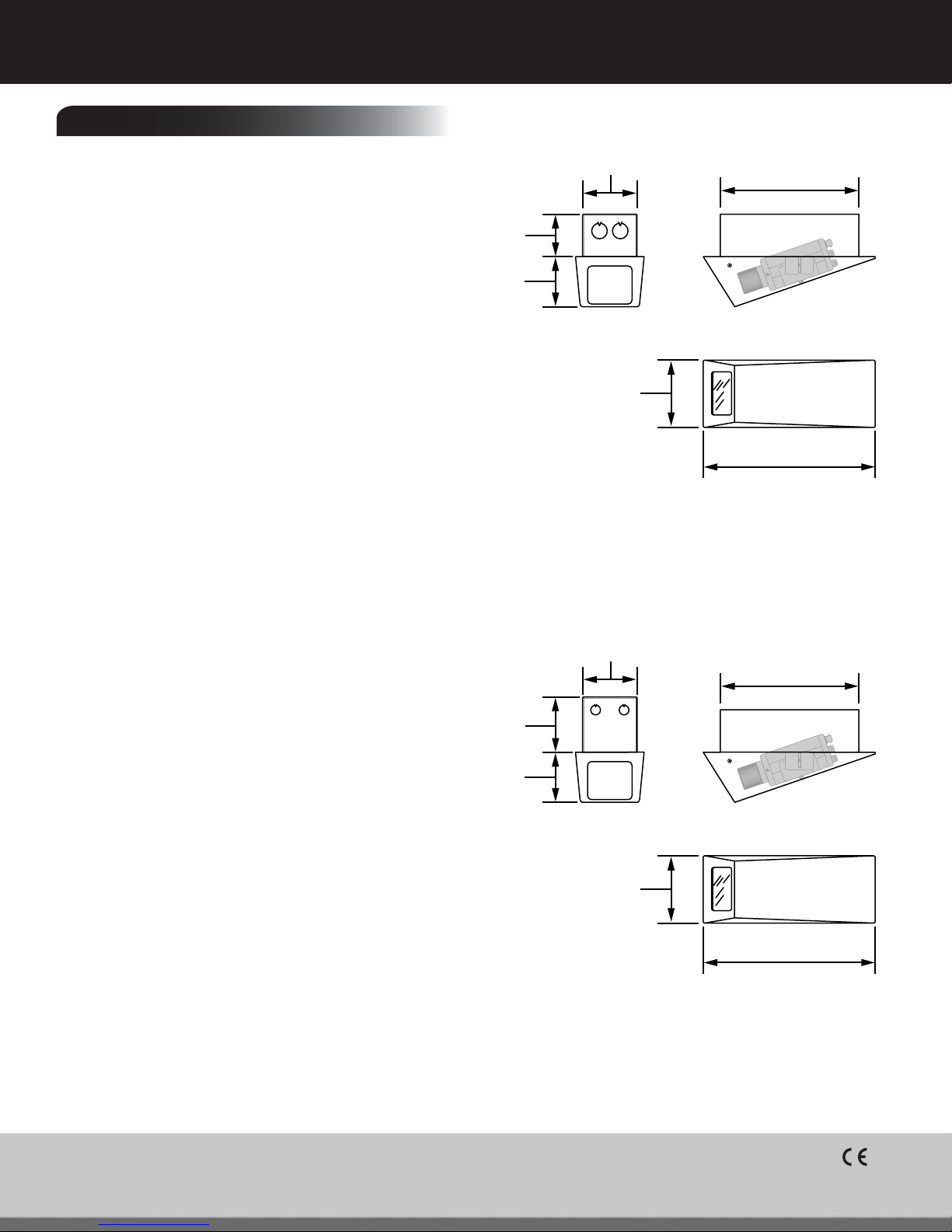

AD1301 Diagram

AD1303 Diagram
