American Standard Berwick Bedienungsanleitung
- 1 -
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
Thank you for selecting American Standard...
the benchmark of ne quality for over 140 years.
RECOMMENDED TOOLS
M965940 Rev. 1.0 (12/18)
ROUGHING-IN DIMENSIONS
Berwick®
Boulevard®
Pressure Balancing
Bath and Shower Trim Kit
INSTALLATION
INSTRUCTIONS
TU430507
TU430508
TU431507
TU431508
Plumbers’ Putty
or Caulking Adjustable Wrench Channel Locks
Phillips Screwdriver
• To assure proper positioning in relation to wall.
Note roughing-in dimensions.
Teon Tape Flat Blade Screwdriver
4" (102 mm)
BOTTOM OF TUB
74" FOR HEAD
CLEARANCE
(1880 mm)
18" OPTIONAL
(457 mm)
1/2" COPPER
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 80''
(1651 and 2032 mm)'
TOP OF TUB RIM
FINISHED WALL
1/2" NPT
(13 mm)
1-5/8" to 3-1/4"
(41 to 83 mm)
1-5/8" to 3-1/4"
(41 to 83 mm)
5-5/8" REF.
(143 mm)
4-3/4"
(120 mm)
8-3/8" REF.
(213 mm)
2-3/8" D.
(60 mm)
4-7/8" REF.
(124 mm)
7-1/4" DIA.
(184mm)
1-3/4
"
(44 mm)
2-3/4" MAX. (69 mm)
1-3/4" MIN. (45 mm)
CARTRIDGE INSTALLATION
1
1
2
6
5
3
4
UP
UP
To ensure that your installation proceeds smoothly-please
read these instructions carefully before you begin.
For use with shower heads rated at 4.9 L/min (1.3 gpm) or higher.
• Remove PLASTER GUARD (6)
(Keep it installed for thin wall Installation).
• Remove BONNET NUT (1) by unthreading it
Counter clockwise. Remove test CAP (2).
• Remove PROTECTIVE HOUSING (3) from
CARTRIDGE (4). Install with “UP” text on top.
• Reinstall BONNET NUT (1) onto VALVE BODY (5)
and tighten rmly with 12 Nm or 9 lbs/ft.
NOTE: Specied tightening torque
of BONNET NUT (1) is critical to
assure sealing function.
- 2 -
1
2
Figure 1.
Figure 3.
2
PLASTER
GUARD
Figure 2.
2
5
5
8
3
4
6
UP
UP
UP
1
7
H
C
OFF
2
2a
M965940 Rev. 1.0 (12/18)
• Figure 1. Push CAP (1) over VALVE CARTRIDGE (2) until
seated against stop.
• Figure 2. Make sure O-RING (6) is secure within
ESCUTCHEON HOLDER (3). Push ESCUTCHEON
HOLDER (3) onto CAP (1) and attach with LONG SCREWS (4).
Mount ESCUTCHEON SUPPORT (5) to ESCUTCHEON
HOLDER (3) with 4 SHORT SCREWS (8).
• Figure 3. Install ESCUTCHEON (7) onto CAP (1) and push
ush against nished wall. ESCUTCHEON (7) will snap t onto
ESCUTCHEON SUPPORT (5).
INSTALL VALVE TRIM (STANDARD WALL INSTALLATION)
INSTALL VALVE TRIM (THIN WALL INSTALLATION)
2
6
Figure 3.
Figure 2.
UP
2
3
4
5
3
2
M
9
1
0
7
5
0
M
9
1
0
7
5
0
1
Figure 1. 4
2
UP
1
H
C
OFF
Note: Plaster Guard will remain installed for
thin wall installation.
• Figure 1. Remove SCREWS (7), push CAP (1) over
VALVE CARTRIDGE (2) until seated against stop.
Note: Escutcheon Holder must be installed with number
facing out on bottom.
• Figure 2. Make sure O-RING (5) is secure within
ESCUTCHEON HOLDER (3). Push ESCUTCHEON
HOLDER (3) onto CAP (1) and attach with LONG SCREWS (4).
• Figure 3. Install ESCUTCHEON (6) onto CAP (1) and push
ush against nished wall. Escutcheon (6) will snap t onto
ESCUTCHEON HOLDER (3).
- 3 - M965940 Rev. 1.0 (12/18)
3INSTALL, TUB SPOUT, SHOWER HEAD,
SHOWER ARM WITH FLANGE
Note: Apply sealant or Teon Tape to shower arm.
• Remove PIPE PLUG and CAP (1, 2) from shower pipe
and tub ller pipe.
• Install SHOWER ESCUTCHEON (3) onto SHOWER
ARM (4). Apply sealant or Teon tape to threads on
both ends of SHOWER ARM (4) and thread longer
leg of SHOWER ARM (4) into shower elbow.
Thread SHOWER HEAD (5) onto SHOWER ARM (4).
• Install SLIP-ON TUB SPOUT (6). Tighten with
HEX WRENCH supplied.
Important: Do not overtighten Set Screw.
CAUTION Protect nish on SHOWER HEAD
and TUB SPOUT when installing.
5
4
• By restricting HANDLE rotation and limiting the amount of hot water
allowed to mix with the cold, the HOT LIMIT SAFETY STOP (1)
reduces risk of accidental scalding. To set the maximum hot water
temperature of your faucet valve, adjust the setting on the HOT LIMIT
SAFETY STOP (1).
• Turn CARTRIDGE STEM (2) to the OFF position (coldest setting) before
making adjustment to HOT LIMIT STOP (1). Pull forward and rotate
counterclockwise one number to limit hot water temperature.
Use NUMBERS (5) on CARTRIDGE (4) on HOT LIMIT STOP (1)
for indication.
• Hold ADAPTER (1) onto VALVE STEM (2) and install
ADAPTER SCREW (3) through ADAPTER (1) into
VALVE STEM (2).Tighten ADAPTER SCREW (3) to
secure ADAPTER (1) to VALVE STEM (2).
• Install HANDLE BASE (4) onto ADAPTER (1). Insert
SET SCREW (5) into HANDLE BASE (4). Align
HANDLE BASE (4) and tighten with HEX
WRENCH (6) supplied.
ADJUST HOT LIMIT STOP
INSTALL HANDLE
COLDER
(Larger Numbers)
1 2 3 4 5 6 7 8 9 10
HOTTER
(Smaller Numbers)
1 2 3 4 5 6 7 8 9 10
3
4
1
5
2
5
1
2
6
3
4
APPLY SEALANT OR
TEFLON TAPE TO THREADS
O-RING
HEX WRENCH
1-3/4"
(44 mm)
3
1
5
2
6
4
H
C
OFF
- 4 - M965940 Rev. 1.0 (12/18)
7CARE INSTRUCTIONS:
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
6
VALVE LEAKS WHEN SHUT OFF
• Remove CARTRIDGE, see STEP 1 and STEP 2 and REVERSE process.
• Clean SEALS on the side of CARTRIDGE. Clean inside sealing surface of VALVE BODY.
• Re-assemble CARTRIDGE. Install trim. Turn on water supply and check for leaks.

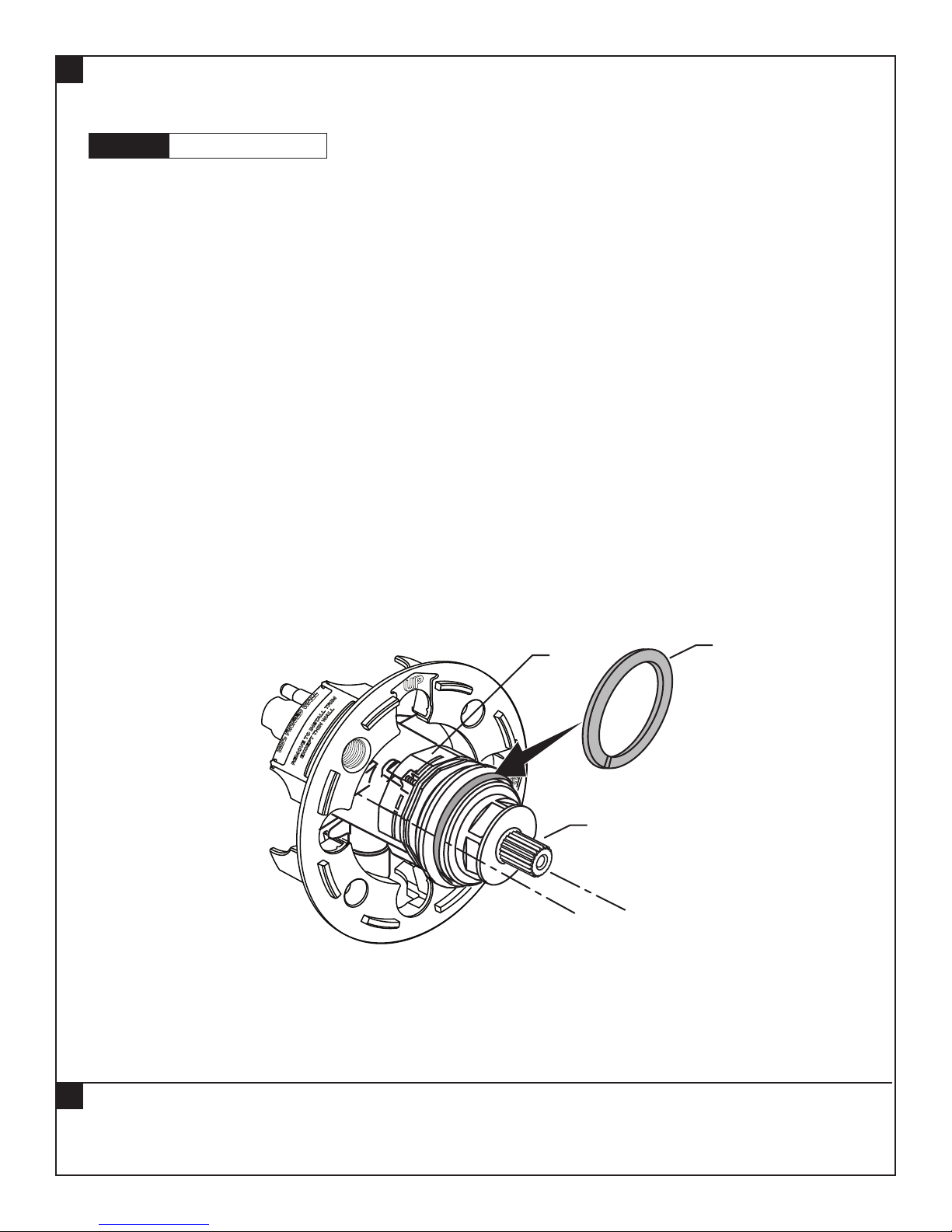

REPLACING CARTRIDGE
• To remove CARTRIDGE (1), install split WASHER (3) between the ridge on the cartridge and the bonnet nut.
(only supplied with replacement cartridge). as shown.
• Proceed to unthread BONNET NUT (2) counter clockwise.
Note: CARTRIDGE (1) should be pulling out while unthreading BONNET NUT (2).
• Upon removal of the old Cartridge, install a new cartridge and secure it with BONNET NUT (Hand tighten).
BACK TO BACK INSTALLATION
• NOTE: Must purchase specialized back to back cartridge. (Part number M970640-0070A)
• Remove CARTRIDGE (1) as detailed in steps above.
• Install back to back cartridge.
• Remove HANDLE (see step 3 and reverse).
• Remove ESCUTCHEON and CARTRIDGE CAP (see step 1 and reverse).
SERVICE
TO GAIN ACCESS TO VALVE FOR SERVICING
Figure 1.
1
3
2
CAUTION Turn off hot and cold water
supplies before beginning.
- 5 - M965940 Rev. 1.0 (12/18)

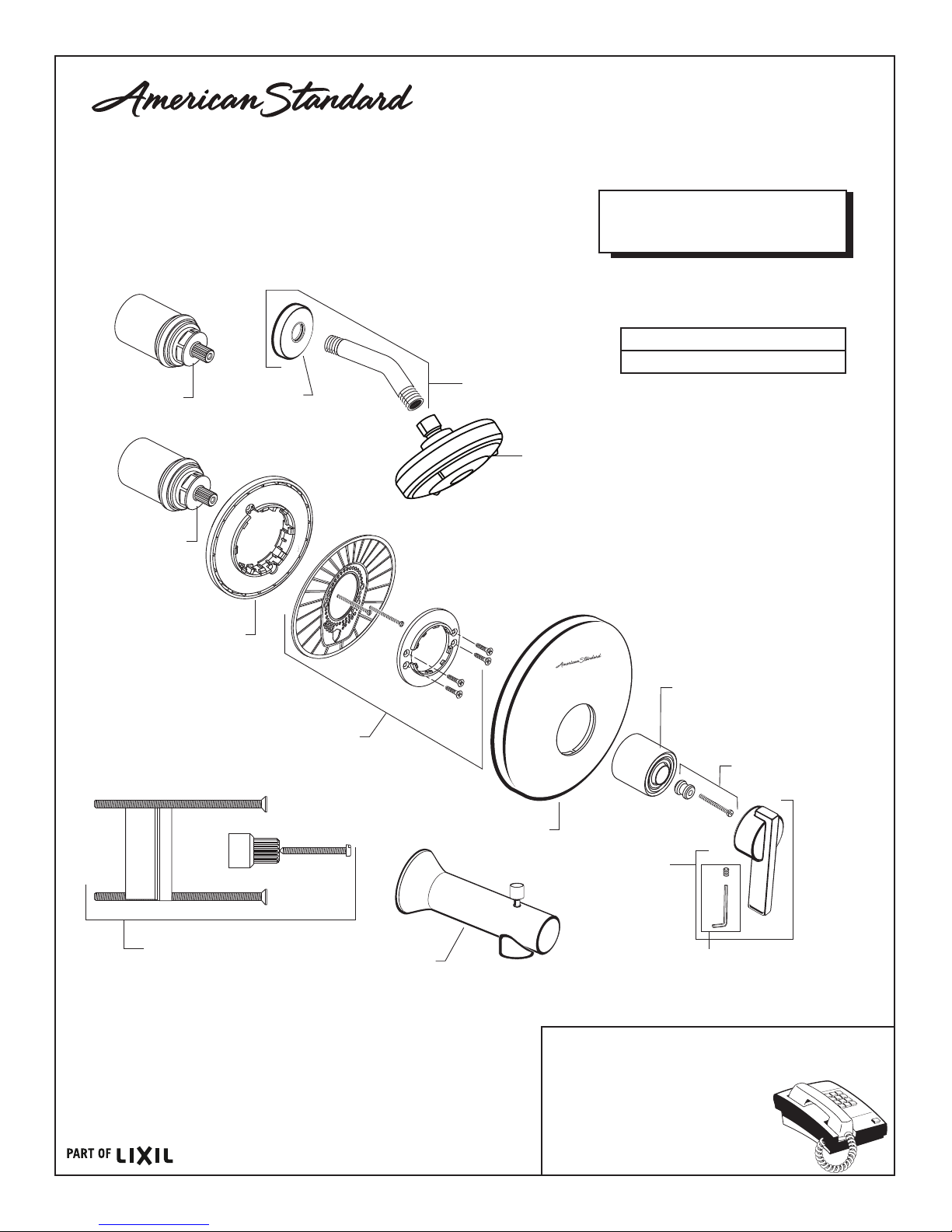

MODEL NUMBERS
HOT LINE FOR HELP
For toll-free information and answers to your questions, call:
1 (800) 442-1902
Mon. - Fri. 8:00 a.m. to 8:00 p.m. EST
Saturday 10:00 a.m. to 4:00 p.m. EST
IN CANADA 1-800-387-0369
(TORONTO 1-905-306-1093)
Weekdays 8:00 a.m. to 7:00 p.m. EST
IN MEXICO 01-800-839-1200
Replace the “YYY” with
appropriate nish code
POLISHED CHROME 002
BRUSHED NICKEL 295
8888743.YYY
DIVERTER SPOUT
(SLIP-ON)
A953876-YYY0A
ESCUTCHEON
M962642-0070A
ESCUTCHEON HOLDER
A912632-0070A
O-RING
1660652-YYY
SHOWER HEAD
(1.75 GPM)
M962493-YYY0A
SHOWER ARM & FLANGE
M970484-0070A
MOUNTING PLATE
EXTENSION
M970410-0070A
CARTRIDGE
M962848-YYY0A
HANDLE KIT
M907053-YYY0A
CARTRIDGE CAP
M970221-0070A
SCREW KIT
H
C
OFF
M970457-0070A
HANDLE ADAPTER KIT
PURCHASE SEPARATELY
M954805-YYY0A
DEEP ROUGH-IN KIT
PURCHASE SEPARATELY
M970640-0070A
BACK-TO-BACK
CARTRIDGE
Berwick® / Boulevard®
Pressure Balancing
Bath and Shower Trim Kit
TU430507 / TU430508
TU431507 / TU431508
