OWNERS MANUAL

Mainstream®60 x 32 Whirlpools

2948LC-RHO.020 / 2948LC-LHO.020

2949LC.020

INSTALLATION INSTRUCTIONS

Thank you for selecting American Standard – the benchmark of ﬁne quality for over 150 years. To ensure this

product is installed properly, please read these instructions carefully before you begin. Certain installations may

require professional help. Also be sure your installation conforms to local codes.

INSTALLATION PREPARATION

• Please unpack carefully and identify all parts needed for installation by using the Box Contents page as a

reference. Inspect the product and report any damages or missing parts immediately to customer care by

calling 800-442-1902.

• Mainstream Whirlpool dimensions are nominal and meant for a standard 60"(1524 mm) alcove. Alcove sizes

may vary based on stud and wall material thickness. Please double check your measurements prior to starting

your install.

• Wear protective equipment during installation to avoid injury.

• Please keep these instructions for after care and customer service details.

!WARNING: PRODUCT IS HEAVY AND REQUIRES TWO PEOPLE FOR INSTALLATION.

BEFORE YOU BEGIN

Inspect your product thoroughly before installing. Take extra care in handling surfaces

of the bath and use only non-abrasive cloths to avoid scratching. Observe all local plumbing

and building codes.

IMPORTANT SAFETY INSTRUCTIONS

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS

READ AND FOLLOW ALL INSTRUCTIONS!

!WARNING: Risk of personal injury. Do not permit children to use this unit without adult supervision.

!WARNING: Risk of personal injury. Do not operate this unit without the guard over the suction ﬁtting.

!WARNING: Risk of electric shock. Do not permit electrical appliances (hair dryer, telephone, radio, etc.)

within 60 inches (1524mm) of this unit.

!WARNING: Risk of hyperthermia and possible drowning. People using medications and/or having ad-

verse medical history should consult a physician before using this product.

!WARNING: Risk of personal injury. Do not overﬁll unit before entering. Entering tub when ﬁlled more than

2/3 can cause overﬂow and slippery conditions. Exercise caution when entering and exiting.

!WARNING: No Food or Alcoholic Beverages. Use of your bathtub immediately after meals is not

recommended. Avoid alcohol consumption before or during bathing. Alcoholic beverages can

cause drowsiness or hyperthermia resulting in loss of consciousness or even drowning.

!WARNING: Pregnancy. If you are or think you may be pregnant, consult your physician before using

the bathtub.

Never drop or insert any object into any opening.

Use this unit only for its intended use as described in this manual. Do not use any attachments not

recommended by American Standard.

The unit must be connected only to a supply circuit that is properly protected by a ground-fault

circuit-interrupter (GFCI). Such a GFCI should be provided by the installer and should be tested on a routine

basis. To test the GFCI, push the test button. The GFCI should interrupt power. Push the reset button. Power

should be restored. If the GFCI fails to operate in this manner, the GFCI is defective. If the GFCI interrupts power

to the bathtub without the test button being pushed, a ground current is ﬂowing, indicating the possibility of an

electric shock. Do not use this hydromassage bathtub. Disconnect the hydromassage bathtub and have the

problem corrected by a licensed electrician before using.

A pressure wire connector is provided on the exterior of the motor unit to permit connection of a no. 8 AWG

solid copper bonding conductor between this unit and all other electrical equipment and exposed metal in the

vicinity, as needed to comply with local requirements. To reduce the risk of an electric shock, connect this con-

nector to the grounding terminal of your electric service or supply panel with a conductor equivalent in size to

the circuit conductors supplying this unit.

SAVE THESE INSTRUCTIONS

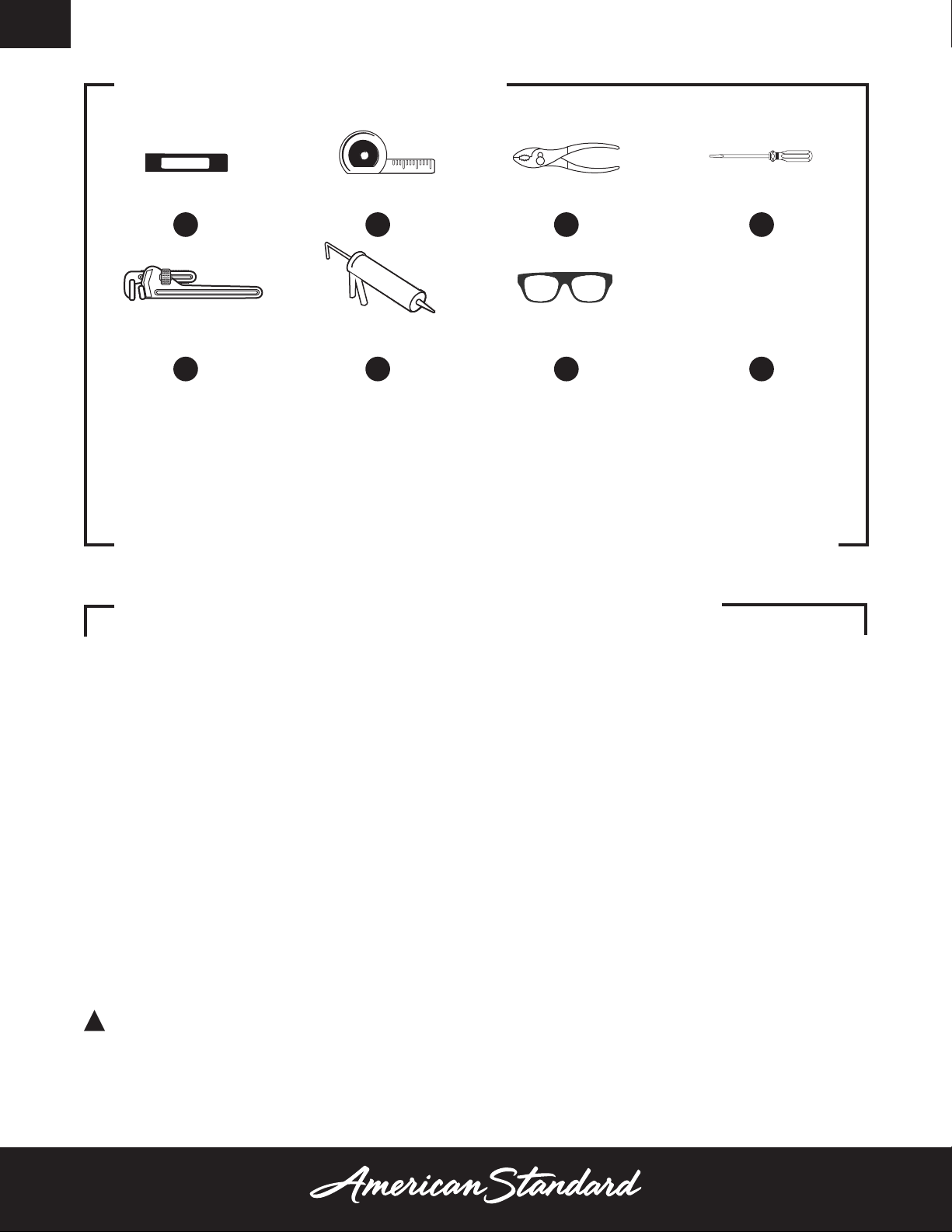

RECOMMENDED TOOLS AND MATERIALS

Level Tape Measure

Installation steps will indicate which tools should be used with asscociated letter

Slip Joint Pliers

Pipe Wrench

MATERIALS

Rooﬁng Nails

Putty

Caulking (waterproof)

1 x 4 Stringers

Drop Cloth

Cement, Plaster, Grout or Mortar

Caulking Gun Safety

Equipment

Standard

Woodworking Tools

Screwdriver

A B C

E F G H

GENERAL INSTALLATION INFORMATION

IMPORTANT

Carefully uncrate and inspect your new bath for any shipping damage. If such damage is found, report

it to your vendor immediately. After inspection and during installation, protect the bath from construction

damage. Before installation, and before enclosing with wallboard, tile, etc., the bath must be ﬁlled

with water and operated to check for leaks that may have resulted from shipping damage

or mishandling. Do not make modiﬁcations to the whirlpool system or remove pump from factory

mounting. This could adversely affect the safety and performance of the whirlpool and void the warranty.

Do not handle or move the whirlpool by the pump, motor, or piping system. Fittings are not provided with

the bath and must be ordered separately. Framing and enclosing materials are provided by others.

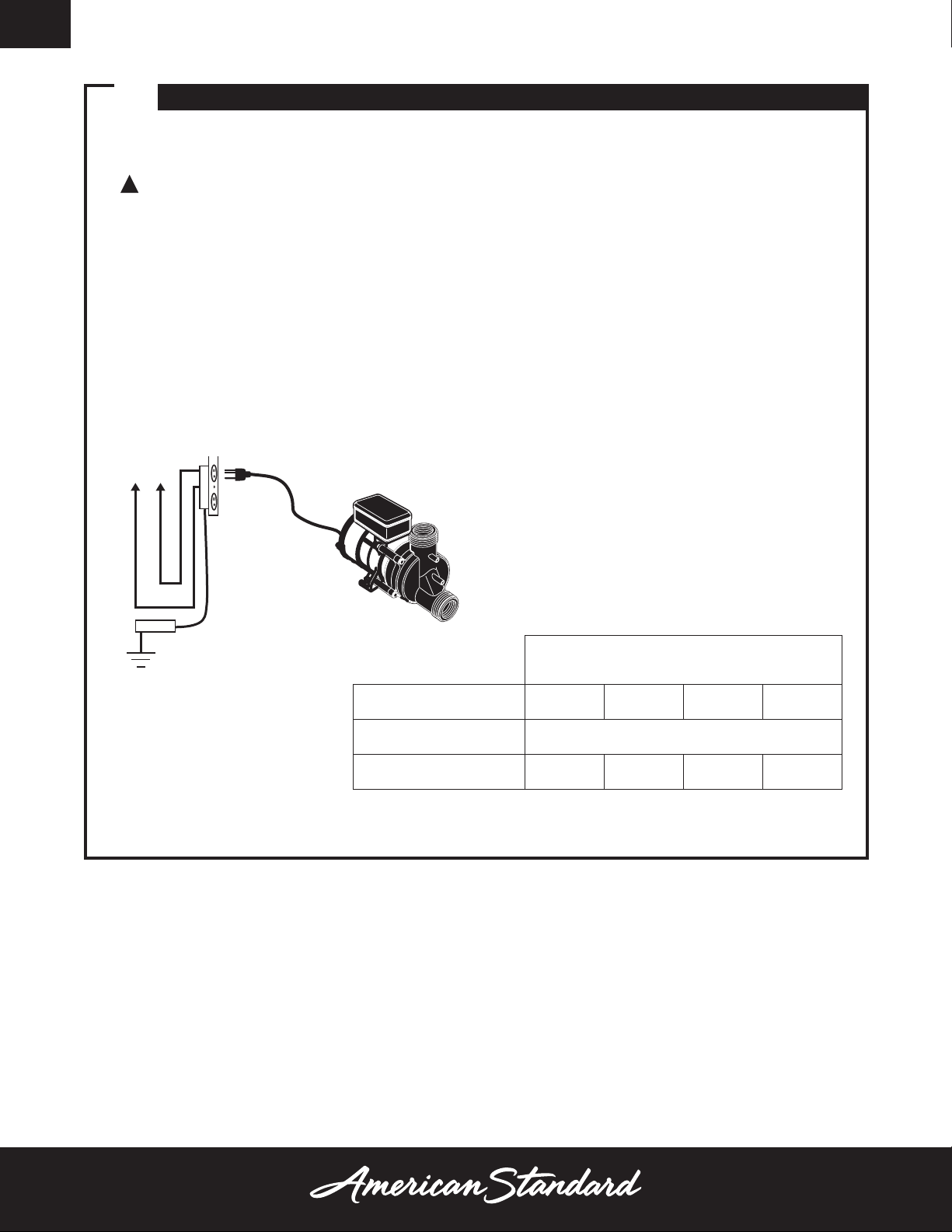

For electrical requirements, refer to section titled “Whirlpool Electrical Installation Instructions”.

Check for availability of optional American Standard wall tiling bead (required for recess installation).

Protect all ﬁnished surfaces of the whirlpool during construction and installation using a drop cloth.

!WARNING: DO NOT LIFT WHIRLPOOL BY THE PIPING HARNESS AT ANY TIME.

LIST OF OPTIONAL COMPONENTS

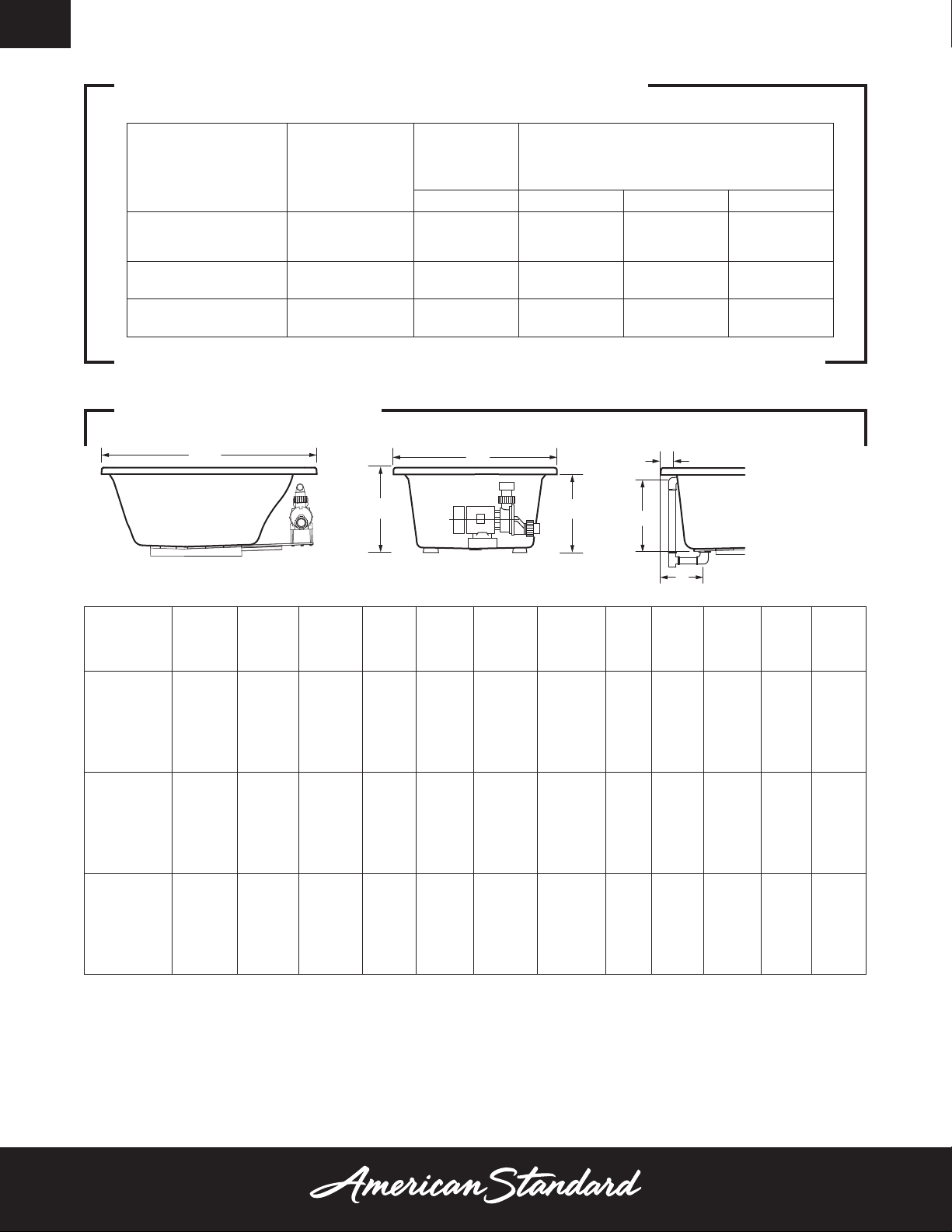

SPECIFICATIONS

Description Model Number

Required

Components

(Not Included)

Optional

Components

(Not Included)

Drain (White) Safe-T-Heater Apron Kit Tile Bead Kit

Mainstream®60 x 32

6 Jet Whirlpool, Drop-In 2949LC.020 1699500.020 9075.120.000 9260.018.020 751755-100

Mainstream 60 x 32

8 Jet Whirlpool, RHO 2948LC-RHO.020 1699500.020 9075.120.000 751755-100

Mainstream 60 x 32

8 Jet Whirlpool, LHO 2948LC-LHO.020 1699500.020* 9075.120.000 751755-100

Description Dimensions

L-W-H

Drain /

Overﬂow

Height to

Underside

of Deck: C

Cut Out

Pier

G x F

Rough-In

Recess

E x D

Tub Edge to

Centerline

Overﬂow: J

Weight with

Water / Floor

Product

Weight

Apron /

Mounting

Heater

Ready

for Field

Installation

Gallon to

Overﬂow

Whirlpool

Operating

Volume

2949LC.020

L1524 mm

(60")

W832 mm

(32-3/4")

H502 mm

(19-3/4")

A438 mm

(17-1/4")

B216 mm

(28-1/2")

C464 mm

(18-1/4")

1485 mm

(58-1/2")

794 mm

(31-1/4")

1529 mm

(60-

3/16")

794 mm

(31-1/4")

67 mm

(2-5/8")

524 lb.

(237 kg)

43 lb./sq.ft.

(213 kg/

sq.m)

65 lb.

(30 kg.)

Optional Optional 55 gal.

(208 l.)

47 gal.

(155 l.)

2948LC-RHO.020

L1524 mm

(60")

W813 mm

(32")

H521 mm

(20-1/2")

A485 mm

(19-1/8")

B266 mm

(10-1/2")

C515 mm

(20-1/4")

N/A 1529 mm

(60-

3/16")

774 mm

(30-1/2")

73 mm

(2-7/8")

675 lb.

(306 kg)/

54 lb./sq.ft.

(262 kg/

sq.m)

92 lb.

(42 kg.)

Included Optional 70 gal.

(265 l.)

39 gal.

(148 l.)

2948LC-LHO.020

L1524 mm

(60")

W813 mm

(32")

H521 mm

(20-1/2")

A485 mm

(19-1/8")

B266 mm

(10-1/2")

C515 mm

(20-1/4")

N/A 1529 mm

(60-

3/16")

774 mm

(30-1/2")

73 mm

(2-7/8")

675 lb.

(306 kg)/

54 lb./sq.ft.

(262 kg/

sq.m)

92 lb.

(42 kg.)

Included Optional 70 gal.

(265 l.)

39 gal.

(148 l.)

SIDE VIEW DRAIN / OVERFLOW

END VIEW

Table 1

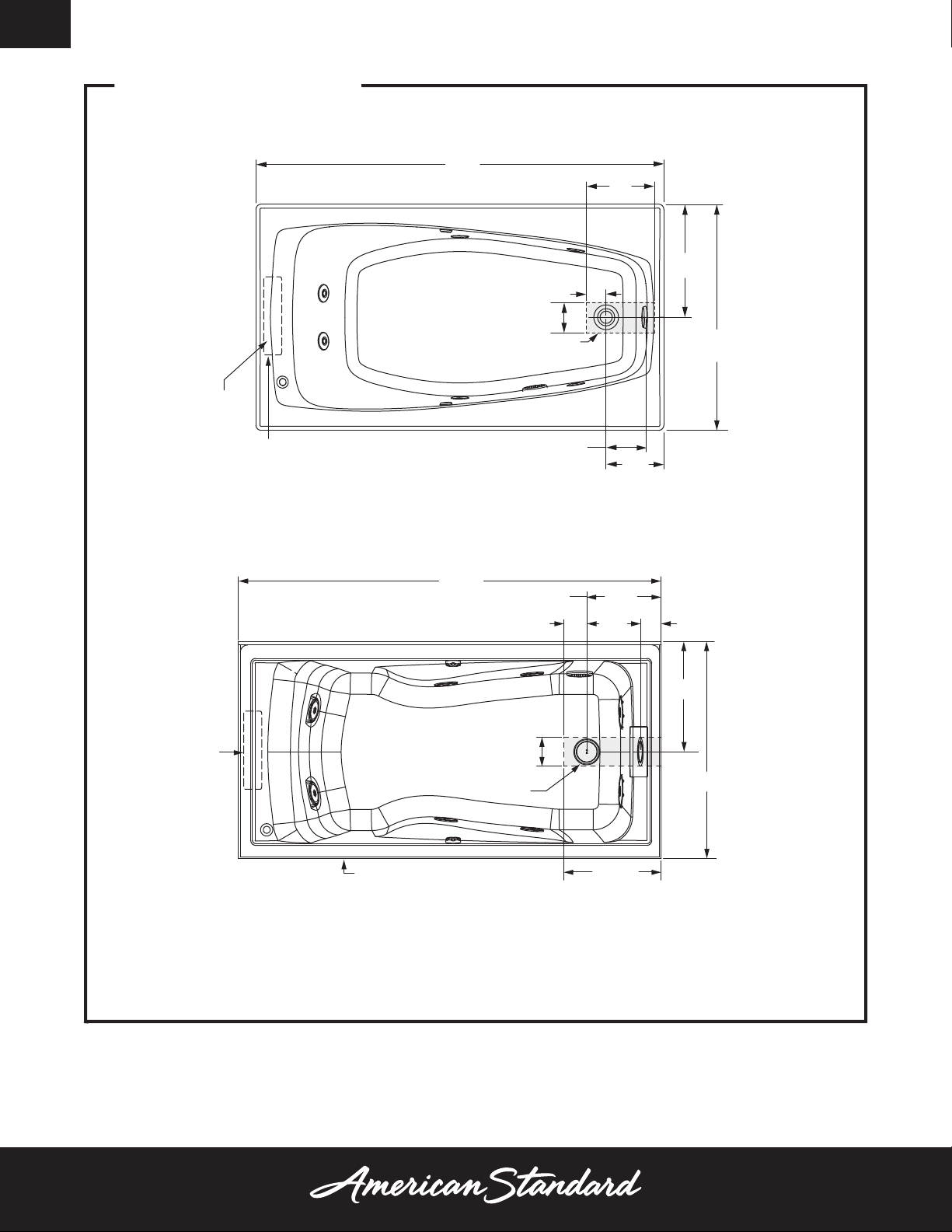

ROUGHING-INS

DIMENSIONS OF FIXTURES ARE NOMINAL AND MAY VARY WITHIN THE RANGE

OF TOLERANCES ESTABLISHED BY ANSI STANDARDS Z124.1 AND A112.19.7.

60"

(1524mm)

32"

(813mm)

7-1/2"

(191mm)

10-1/2"

(267mm)

(76mm) 2-7/8"

(73mm)

13-1/2"

(343mm)

16"

(406mm)

2948LC-RHO.020 Mainstream 60x32 8 Jet, Right Hand Outlet (Shown)

2948LC-LHO.020 Mainstream 60x32 8 Jet, Left Hand Outlet

(229mm)

PUMP

APRON IS PRIMARY

ACCESS OPENING FOR MODELS

RHO/LHO ONLY.

C/L OF DRAIN

OUTLET

CUT OUT IN FLOOR

FOR DRAIN

2949LC.020 Mainstream 60x32 8 Jet

60"

(1524mm)

32-3/4"

(832mm)

5-7/8"

(149mm)

12"

(305mm)

(229mm)

(76mm)

8-1/2"

(216mm)

C/L OF DRAIN OUTLET

16-1/2"

(419mm)

CUT OUT IN FLOOR

FOR DRAIN

PROVIDE

ACCESS TO

PUMP FOR

SERVICING

ON ALL

INSTALLATIONS

1INSTALLATION AND FRAMING INSTRUCTIONS

The variety of installations possible for this whirlpool may require framing procedures other than those shown.

Locate studs as needed. Ensure roughing-in dimensions are proper, plumb and square. Provisions must be

made in all installations for an access opening for servicing the pump and controls. It is strongly recommended

that an additional opening be provided for access to the drain components.

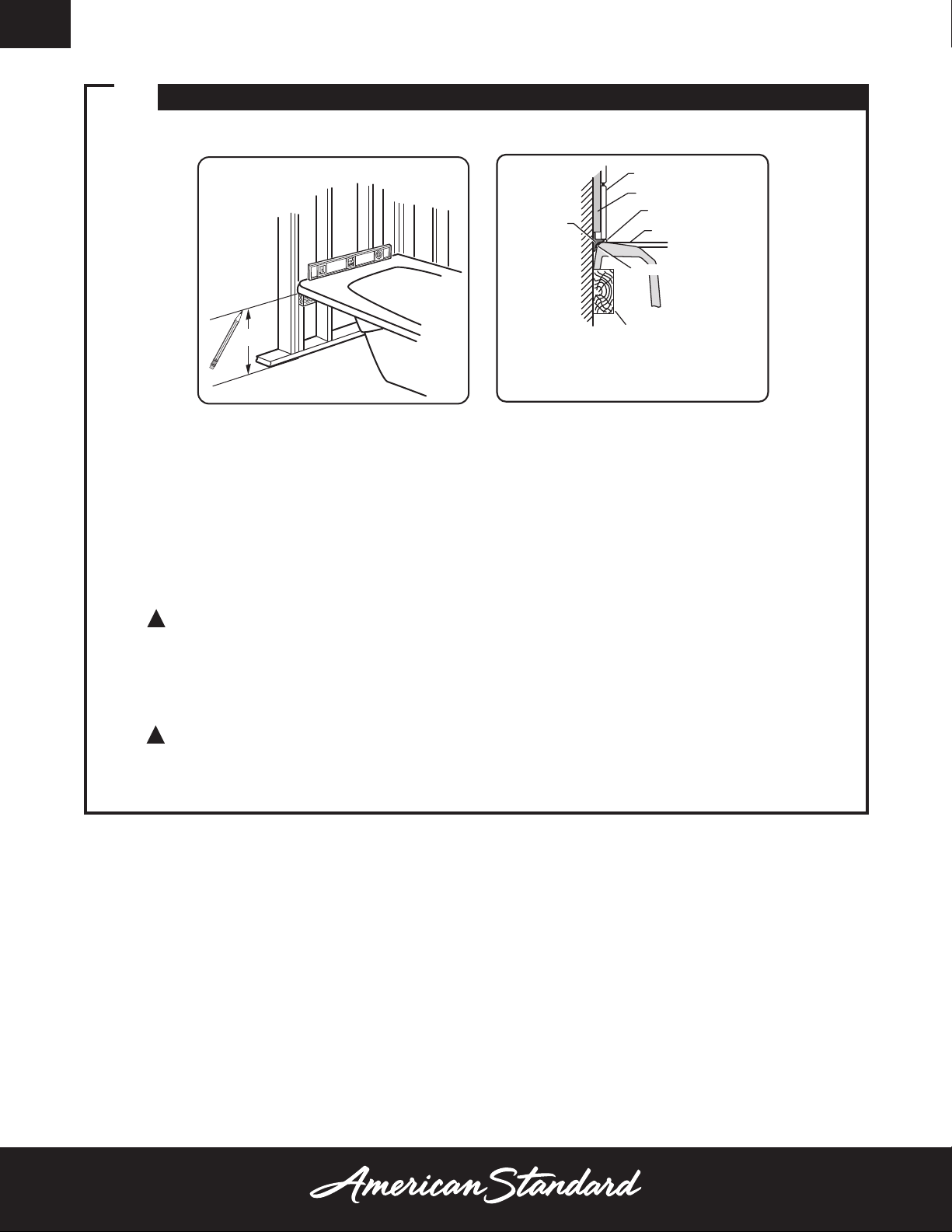

1a. Position the whirlpool into the installation opening and level the deck in both directions. On models

2948LHO/RHO, shim the integral support feet if necessary. Mark the ﬁnal position of the underside of

the deck by tracing a line on to the studs (see Figure 1).

1b. Remove the whirlpool and attach a 1 x 4 stringer to the studs, with the top of the stringer touching the

traced line.

!The rim of the bath must not support weight.

1c. Install drain components to the whirlpool following the drain installation instructions. Before replacing your

whirlpool for ﬁnal installation, be certain that an opening has been provided in the sub-ﬂoor for the drain.

See the roughing-in drawing and Table 1 for suggested opening size (shadowed) and location dimensions.

The drain/overﬂow of the bath extends below the bottom of the bath. Note that this requires a cutout in

the ﬂoor.

!The ﬂoor structure beneath the bath must be able to support a total weight of bath, water, and bather.

Refer to Table1 on page 5 under total weight for your model.

TYPICAL PIER TYPE INSTALLATION

AS DESIRED

CUTOUT

AS DESIRED

CUTOUT

(610 mm)

(305 mm)

MOUNTING

SURFACE

WATERPROOF

SEALANT

B AT H

TYPICAL RECESS INSTALLATION

(610 mm)

(305 mm)

LEVELING

STRINGERS

TILE

BEAD

STRIP

LEVELING STRINGER

1 x 4 (not for support)

B AT H

ADHESIVE

SEALANT

WALLBOARD

NOTE: Tile bead kit not included and

must be purchased separately.

TYPICAL INSTALLATION

FIGURE 1

ACCESS PANEL MUST BE LOCATED

ON THE SAME SIDE AS THE MOTOR.

ALLOW OPEN FRAMING ON PUMP/MOTOR

END FOR SERVICE.

ACCESS PANEL MUST BE LOCATED

ON THE SAME SIDE AS THE MOTOR.

ALLOW OPEN FRAMING ON

PUMP/MOTOR END FOR SERVICE.

FOR E & D DIMENSIONS SEE TABLE 1 ON PAGE 5. FOR G & F DIMENSIONS SEE TABLE 1 ON PAGE 5.

NOTE:

FRONT EDGE

OF BATH MUST

BE SUPPORTED BY

STUD WALL OR

AMERICAN STANDARD

APRON KIT

UNLESS AN ACCESS OPENING OF AT LEAST 12" X 24" (305 X 610mm)

IS PROVIDED, WARRANTY SERVICE WILL NOT BE PERFORMED.

UNLESS AN ACCESS OPENING OF AT LEAST 12" X 24" (305 X 610mm)

IS PROVIDED, WARRANTY SERVICE WILL NOT BE PERFORMED.

(EXCEPT 2948 WHERE APRON IS PRIMARY ACCESS OPENING)

ACCESS PANELS NOT REQUIRED

FOR BATH TUBS. ACCESS PANELS NOT REQUIRED

FOR BATH TUBS.

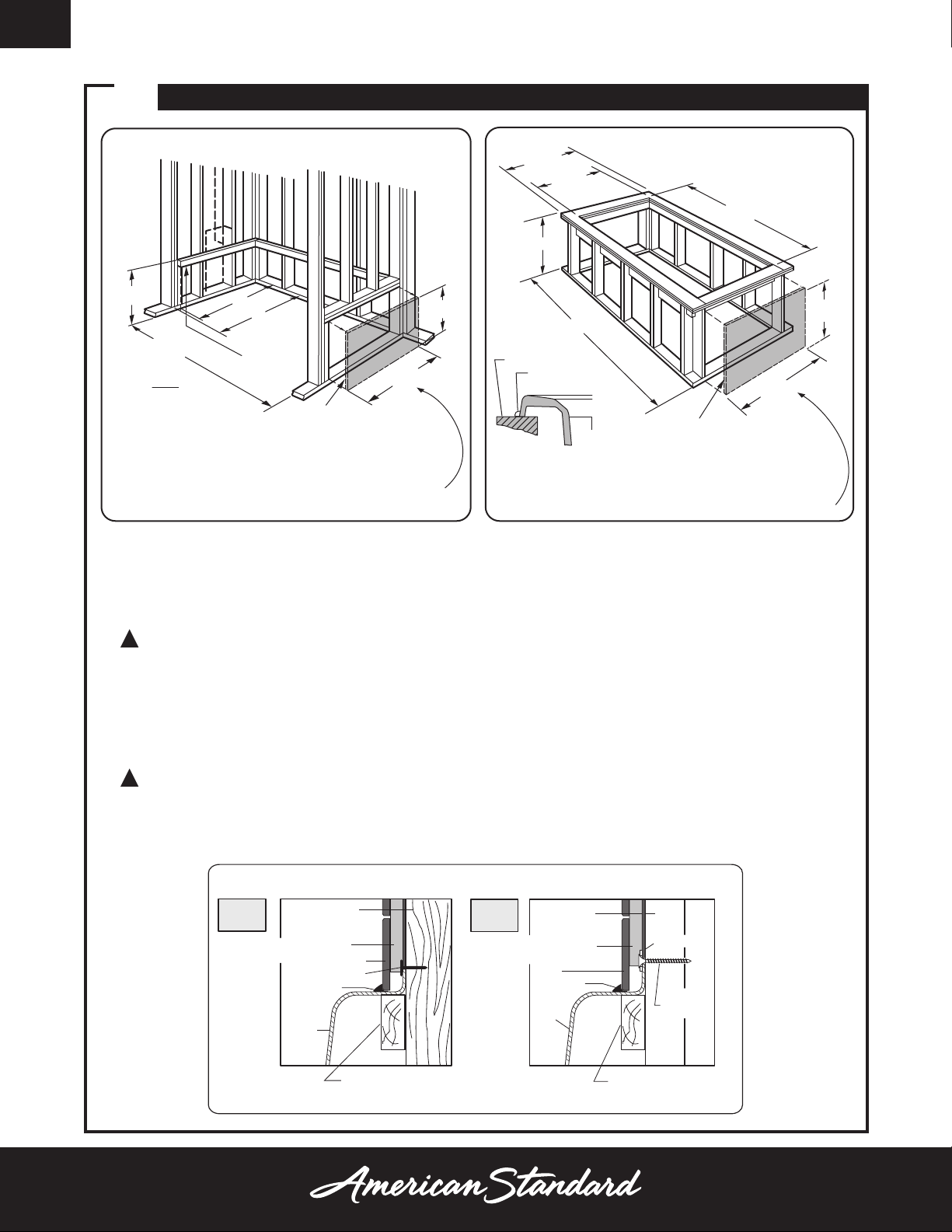

2INSTALLATION AND FRAMING INSTRUCTIONS

This bath must be supported along its entire bottom. Use mortar as bedding material (do not use sand or

foam). Apply enough mortar to support the complete bottom of the bath. After the mortar has been poured,

and before it sets, position whirlpool or bath within recess until the rim is leveled against the leveling stringers

(see “Typical Recess Installation”) shown above.

!The rim of the bath must not support weight. Allow the mortar material to completely harden before

applying weight to the rim or bottom of the bath. Any ﬁnish material such as tile or wall board must be

self-supporting if it contacts the deck of the bath.

2948LHO/RHO Replace whirlpool and re-shim the integral support feet, shimming the entire length of the

support feet. Secure the shims using construction adhesive, silicone, mortar or equivalent materials. While not

a necessity, the use of a foundation base consisting of cement, mortar, or grout will help provide a solid and

secure installation.

!The rim of the bath must not support weight. If foundation base is used, allow the bedding material to

completely harden before applying weight to the rim or bottom of the bath. Any ﬁnish material such as tile

or wall board must be self-supporting if it contacts the deck of the bath.

TYPICAL PIER TYPE INSTALLATION

AS DESIRED

CUTOUT

AS DESIRED

CUTOUT

(610 mm)

(305 mm)

MOUNTING

SURFACE

WATERPROOF

SEALANT

B AT H

TYPICAL RECESS INSTALLATION

(610 mm)

(305 mm)

LEVELING

STRINGERS

TILE

BEAD

STRIP

LEVELING STRINGER

1 x 4 (not for support)

B AT H

ADHESIVE

SEALANT

WALLBOARD

NOTE: Tile bead kit not included and

must be purchased separately.

TYPICAL INSTALLATION

FIGURE 1

ACCESS PANEL MUST BE LOCATED

ON THE SAME SIDE AS THE MOTOR.

ALLOW OPEN FRAMING ON PUMP/MOTOR

END FOR SERVICE.

ACCESS PANEL MUST BE LOCATED

ON THE SAME SIDE AS THE MOTOR.

ALLOW OPEN FRAMING ON

PUMP/MOTOR END FOR SERVICE.

FOR E & D DIMENSIONS SEE TABLE 1 ON PAGE 5. FOR G & F DIMENSIONS SEE TABLE 1 ON PAGE 5.

NOTE:

FRONT EDGE

OF BATH MUST

BE SUPPORTED BY

STUD WALL OR

AMERICAN STANDARD

APRON KIT

UNLESS AN ACCESS OPENING OF AT LEAST 12" X 24" (305 X 610mm)

IS PROVIDED, WARRANTY SERVICE WILL NOT BE PERFORMED.

UNLESS AN ACCESS OPENING OF AT LEAST 12" X 24" (305 X 610mm)

IS PROVIDED, WARRANTY SERVICE WILL NOT BE PERFORMED.

(EXCEPT 2948 WHERE APRON IS PRIMARY ACCESS OPENING)

ACCESS PANELS NOT REQUIRED

FOR BATH TUBS. ACCESS PANELS NOT REQUIRED

FOR BATH TUBS.

SUGGESTED WHIRLPOOL / BATH INSTALLATION METHOD

SECURE THE BATH TO THE STUDS AS SHOWN FOR WOOD OR STEEL STUD CONSTRUCTION.

TYPICAL FLANGE MOUNTING DETAIL

STUD

WATERPROOF DRYWALL

OR CEMENT BOARD

WATERPROOF DRYWALL

OR CEMENT BOARD

TILE

SEALANT

TUB

ROOFING NAIL

1 x 3 (25 x 76mm) WOOD

STRINGER FULL LENGTH

1 x 3 (25 x 76mm) WOOD

STRINGER FULL LENGTH

STEEL

STUD

WASHER

TILE

SEALANT

TUB

4" (102mm)

DRYWALL

SCREW

WOOD

STUDS

STEEL

STUDS

3WHIRLPOOL ELECTRICAL INSTALLATION INSTRUCTIONS

All wiring must be performed by a licensed electrician in accordance with the national electrical code and all

other applicable codes.

WARNING: When using electrical products, basic precautions should always be observed,

including the following:

3a. DANGER: RISK OF ELECTRIC SHOCK! Connect only to a circuit protected by a ground-fault

circuit interrupter.

3b. Grounding is required. The unit should be installed by a licensed electrician and grounded.

3c. Permit access for servicing motor as noted.

3d. All building materials and wiring should be routed away from the pump body and heater (if equipped).

GFCI CIRCUIT REQUIREMENTS:

The whirlpool should be installed on a 120 vac, 15 amp dedicated GFCI circuit.

The circuit should be hard-wired from the electrical power supply panel. The circuit must be a three (3) wire

circuit from the electrical supply panel. A grounded neutral wire and a third wire, earth ground, are essential.

Optional heater requires a separate 15 amp maximum GFCI circuit.

WIRE SELECTION GUIDE

Maximum distance from

fuse box to motor

Wire Length 50’ 100’ 150’ 200’

115V Power Line

Wire Size (AWG) 12 10 8 8

The sizes shown on this chart are recommendations for copper

conductors only. Always follow local and national electrical codes.

ELECTRICAL DIAGRAM

READ AND FOLLOW ALL INSTRUCTIONS

BLACK

WHITE

120 VAC

GND.

PUMP/MOTOR

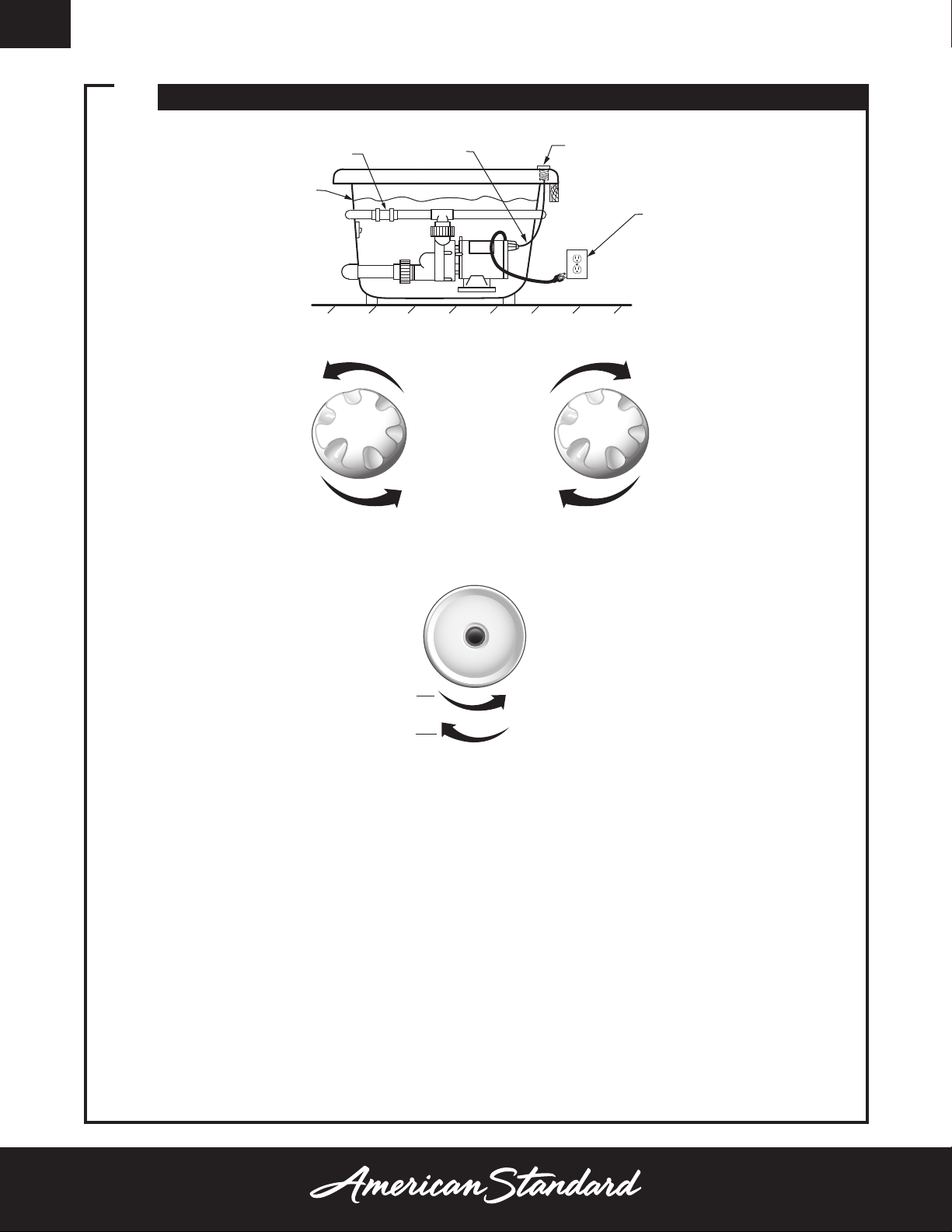

4FUNCIONAMIENTO

NOTE: Each whirlpool is shipped from the factory with an air actuator on/off switch and pump with attached

power supply cord. OPERATING THE SYSTEM WITHOUT WATER (DRY RUNNING) WILL CAUSE PUMP

DAMAGE AND VOID THE WARRANTY. Always ﬁll the whirlpool before operating the pump. The air switch is

mounted either on the deck or side wall of the tub.

4a. Fill the Whirlpool: Water level must be at least one inch (25mm) above the highest jet for proper

operation.(See diagram above)

Do not ﬁll whirlpool more than 2/3 full prior to the user completely immersing themselves into unit.

4b. Start Whirlpool: Push on center of button. Button will depress and whirlpool will start.

4c. Stop Whirlpool: Depress and release button and whirlpool will stop.

4d. Air Volume Control Adjustments: Water turbulence is determined by the amount of air mixed with the

water. Rotate the air volume control counterclockwise for more turbulence--clockwise for less.

4e. Adjustable Flow: The water ﬂow action may be adjusted from vigorous to soft by rotating

the nozzle counterclockwise for vigorous and clockwise for soft.

NOTE: You may balance the air volume control and nozzle adjustment for the most desirable condition.

OUTLET MUST BE

GFCI PROTECTED

(all heaters require separate GFCI)

AIR ACTUATOR SWITCH

(location varies with model)

AIR TUBING

WATER LEVEL

SAFE-T-HEATER

REMOVABLE BLANK

Air Volume Control Adjustments

Adjustable Flow

MORE AIR LESS AIR

Softer Massage

(counter-clockwise)

More Vigorous Massage

(clockwise)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere American Standard Badewanne Handbücher

American Standard

American Standard Green Tea Whirlpool and Bathing Pool... Bedienungsanleitung

American Standard

American Standard Colony Oval 1742 Series Bedienungsanleitung

American Standard

American Standard Colony Corner 1730.002 Bedienungsanleitung

American Standard

American Standard Ellisse 068916-YYY0A Bedienungsanleitung

American Standard

American Standard Virtuoso Elite Whirlpool 7236E Series Bedienungsanleitung

American Standard

American Standard Green Tea 3573.328 Bedienungsanleitung

American Standard

American Standard TOWN SQUARE 2748.XXXX SERIES Bedienungsanleitung

American Standard

American Standard Whirlpool and Bathing Pool 2732.002 Bedienungsanleitung

American Standard

American Standard Reminiscence 2908E Bedienungsanleitung

American Standard

American Standard Colony 2740 Series Bedienungsanleitung

American Standard

American Standard Town Square Whirlpool and Bathing Pool... Bedienungs- und Sicherheitshinweise

American Standard

American Standard Williamsburg Elite 2805E SERIES Bedienungsanleitung

American Standard

American Standard Savona Oval 2903.018 Bedienungsanleitung

American Standard

American Standard Spectra Bathtub 2696.102 Bedienungsanleitung

American Standard

American Standard Stratford Whirlpool 2470.028 Bedienungsanleitung

American Standard

American Standard Hampton 5' Drop-in Whirlpool 2425.018W Bedienungsanleitung

American Standard

American Standard Cadet Elite 2774E SERIES Bedienungsanleitung

American Standard

American Standard Cambridge 2460.028W Bedienungsanleitung

American Standard

American Standard Hampton Integral Apron Whirlpool 2425.118W Bedienungsanleitung

American Standard

American Standard Savona Corner Whirlpool 2902.028 Bedienungsanleitung

American Standard

American Standard Heritage Whirlpool 2805.XXXW Bedienungsanleitung

American Standard

American Standard Green Tea 3571.328 Bedienungsanleitung

American Standard

American Standard Green Tea 5' x 42" Premium Air Bath 3574.328 Bedienungsanleitung

American Standard

American Standard ELJER 015-0005 Bedienungsanleitung

Beliebte Badewanne Handbücher anderer Marken

Agua

Agua BARTOLI-66 Bedienungsanleitung

PAA

PAA PRELUDE Bedienungsanleitung

BETTE

BETTE SILHOUETTE Bedienungsanleitung

Kohler

Kohler K-820-GC Kurzanleitung

Oliveri

Oliveri Naples Bedienungsanleitung

Lyons

Lyons Elite ETLxx663219 Series Bedienungsanleitung

Woodbridge

Woodbridge BJ500 Montageanleitung

Whirlpool

Whirlpool Ariel ARL-702 Bedienungsanleitung

TEIKO

TEIKO EXCELLENT DUO Bedienungsanleitung

Kohler

Kohler K-1111-H2 Kurzanleitung

agape

agape MARSIGLIA AVAS1075 Bedienungsanleitung

Kohler

Kohler K-1151 Montageanleitung

Kohler

Kohler K-1158 Kurzanleitung

Kohler

Kohler K-1244 Montageanleitung

Kallista

Kallista P50045-G5 Montageanleitung

Kohler

Kohler K-1164-HB Kurzanleitung

Kohler

Kohler Hourglass K-1209-LA Kurzanleitung

Ariel

Ariel AM Series Bedienungsanleitung
