Installation Instructions

Certied to comply with ASME A112.19.2

NOTE TO INSTALLER: Please give this manual to the customer after installation.

To learn more about American Standard Selectronic®Products visit our website at: www.americanstandard-us.com

or e-mail us at: CRTTEAM@americanstandard.com

For Parts, Service, Warranty or other Assistance,

please call (844) CRT-TEAM / (844) 278-8326 (In Canada: 1-800-387-0369)

(In Toronto Area only: 1-905-306-1093)

Ultima™Selectronic®

Battery Powered

Toilet Flush Valve, Piston-Type

MODEL NUMBERS

606B.111 606B.121 606B.161 606B.721 606B.761

Exposed Flush Valve

for 1-1/2"Top Spud Bowls

CAUTION: Use only American Standard supplied

transformers and cable sets. Using non-AS supplied

cables, or cutting, splicing or modifying any components

will void the warranty.

COVER PLATE

(Required for Front Installation Only)

M965644 EN REV. 2.7 (2/22)

Product to be used with WaterSense Certied Fixture with

the same rated ush volume.

2M965644 EN REV. 2.7 (2/22)

Thank you for selecting American-Standard...the benchmark of ne quality for over 100 years.To ensure that your

installation proceeds smoothly--please read these instructions carefully before you begin.

Remove the Flush Valve items from the carton.The illustration below shows all items after they have been

removed from the carton. Some items may be packaged partially assembled to other items.

UNPACKING All American Standard Products Are Water Tested At Our Factory.

Some Residual Water May Remain In The Valve During Shipping.

1. Installation Instructions

2. Flush Valve Body Assembly

3. Vacuum Breaker Tube

4. Spud Coupling Nut and Washers

5. Spud Flange

6. Wall Escutcheon

7. Cover Tube

8. Sweat Adapter

9. Stop Valve

DO NOT REMOVE PROTECTIVE FILM FROM SENSOR

EYE UNTIL INSTALLATION IS COMPLETE.

POWER KIT - SOLD SEPARATELY

Hard-Wire AC

Power Kit

(PK00.HAC)

COVER PLATE

(Required For

Front Installation

Only)

Multi-AC

Power Kit

(PK00.MAC)

Installation Instructions

NOTETO INSTALLER: Please give this manual to the customer after installation.

Tolearn more about American Standard Selectronic®Productsvisit our website at: www.americanstandard-us.com

or e-mail us at: CRTTEAM@americanstandard.com

For Parts, Service,Warranty or other Assistance,

please call (844) CRT-TEAM/ (844) 278-8326 (In Canada: 1-800-387-0369)

(InToronto Area only: 1-905-306-1093)

MODEL NUMBERS

6067.111 6067.121 6067.161 6067.721 6067.761

6068.111 6068.121 6068.161 6068.721 6068.761

Exposed Flushometer

for 1-1/2"Top Spud Bowls

CAUTION:Use only American Standard supplied

transformers and cable sets.Using non-AS supplied

cables, or cutting,splicing or modifying any components

will void the warranty.

COVER PLATE

(Required for FrontInstallation Only)

Ultima™Selectronic®

Toilet Flush Valve, Piston-Type

CARE INSTRUCTIONS:

DO: CLEAN THE PRODUCT WITH CLEAR WATER, DRY WITH A SOFT COTTON FLANNEL CLOTH.

DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS,

OR A CLOTH WITH A COARSE SURFACE.

Roughing-in Dimensions (Front Installation Shown)

Right or Left Hand Installation

See (Section 5) for converting Flush

Valve to Left Hand Installation.

1. Installation Instructions

2. Flush Valve Body Assembly

3. Vacuum Breaker Tube

4. Spud Coupling Nut and Washers

5. Spud Flange

6. Wall Escutcheon

7. Cover Tube

8. Sweat Adapter

9. Stop Valve

GENERAL DESCRIPTION:

SELECTRONIC®PROXIMITY TOILET

FLUSH VALVE for 1-1/2"Top Spud Fixtures

M965644 EN REV. 2.7 (2/22)

CAUTION: Use only American Standard supplied

transformers and cable sets. Using non-AS supplied

cables, or cutting, splicing or modifying any components

will void the warranty.

SEE DETAIL “A”

*Note: The Critical Line (-C-L-) on Vacuum

Breaker must typically be 6"(152mm) above

fixture. Consult Codes for details.

406 mm

(16")

292 mm

(11-1/2")

*-C-L-

-C-L-

114 mm

(4-1/2") 86 mm

(3-3/8)

73 mm

(2-7/8")

DETECTION ZONE:

400 - 800 mm (15-3/4" – 31-1/2")

(FACTORY SETTING: 600 mm (23-5/8")

(1" NPT)

FINISHED WALL

51 mm (2") HOLE

FOR CONDUIT

MANUAL

OVERRIDE

BUTTON

305 mm MAX.

(12" MAX.)

TOP OF

FIXTURE

152 mm MIN.

(6") MIN. 170 mm MAX.

(6-11/16") MAX.

108 - 134 mm

(4-1/4" – 5-1/4")

15˚

FINISHED TILE WALL

FINISHED PLASTER WALL

DETAIL “A”

4"(102 mm) SQ. x 3-1/2"(89 mm) DEEP ELECTRICAL BOX

Hubbel-RACO #256 OR EQUAL (BY CONTRACTOR).

4"(102 mm) SQ. BOX DEVICE COVER (PLASTER RING).

3/4"(19 mm) HIGH Hubbel-RACO #779 OR EQUAL

(BY CONTRACTOR).

NOTE: INSTALL PLASTER RING SO THAT SCREW

HOLES ARE ON THE LEFT AND RIGHT SIDE OF BOX.

4M965644 EN REV. 2.7 (2/22)

RECOMMENDED TOOLS; Fig. 2.

1. Teon Tape

2. Flat Blade Screwdriver

3. Adjustable Wrench

4. Tape Measure

5. Hacksaw

6. Tubing Cutter

7. File

8. For Sweat Connection; Solder and Torch

9. 2.5 mm Hex Wrench

10. 1.5 mm Hex Wrench

PRIOR TO INSTALLATION

Note: Prior to installing the Selectronic™Flush

Valve the following items must be installed.

1. Toilet

2. Drain line

3. Water supply line

IMPORTANT:

• All plumbing and electrical wiring should be

installed in accordance with applicable codes

and regulations.

• The use of water hammer arrestors is strongly

recommended for commercial applications. All piping

behind the walls should be properly secured and

fastened.

• Water supply lines must be sized to provide an

adequate volume of water for each xture.

• Flush all water lines prior to operation. Dirt and debris

can cause ush valve to run continuously.

• With the exception of Stop Valve Inlet, DO NOT

use pipe sealant or plumbing grease on any

valve component or coupling!

• Protect the chrome or special nish on the Flushometer.

DO NOT USE toothed tools on nished surfaces to install

or service these valves. Also see “Care and Cleaning”

section of this manual.

• This product contains mechanical and/or electrical

components that are subject to normal wear. These

components should be checked on a regular basis and

replaced as needed to maintain the valve’s performance.

Fig. 2

123

7 9 10

10'

5M965644 EN REV. 2.7 (2/22)

1INSTALL SWEAT ADAPTER; Fig. 3

Note: Install Optional Sweat Adapter (Supplied) for

copper pipe supply line.

1. Measure the distance (A) from the nished wall to the

center of the inlet spud on the xture.

2. Cut the supply pipe 1-1/4" (A-B=C) shorter than the

measurement taken in Step 1. File any rough edges off

the end of the supply pipe.

3. Clean the end of the supply pipe. Push the threaded

Adapter until it is seated against the internal stop.

Sweat the Adapter to the pipe.

2INSTALL COVER TUBE, WALL

ESCUTCHEON and STOP VALVE; Fig. 4

1. Measure from nished wall to rst thread of Adapter

or threaded supply pipe (dimension “X”). Cut

COVER TUBE (1) to length (X). Apply Teon Tape to

the threaded end of the Adapter or supply pipe.

2. Push WALL ESCUTCHEON (2) onto the COVER TUBE (1).

Slide both onto the SUPPLY PIPE (3).

3. Push the COVER TUBE (1) in to expose the threads of

the supply pipe. With a wrench, thread the STOP VALVE (4)

onto the SUPPLY PIPE (3). Align and tighten.

4. Pull COVER TUBE (1) against STOP VALVE (4) and

push WALL ESCUTCHEON (2) against nished wall.

INSTALL VACUUM BREAKER

TUBE; Fig. 5

1. Place the SPUD FLANGE (1) over the spud on

the Fixture.

2. Place FRICTION WASHER (3) and SEAL WASHER

(4) inside SPUD COUPLING NUT (2) and thread

onto Spud. Do not tighten fully.

3. Insert the VACUUM BREAKER TUBE (5) into the

SPUD COUPLING NUT (2) and push it down.

Note: If cutting VACUUM BREAKER TUBE (5) to size,

note that Critical Line (C/L) on Vacuum Breaker

must typically be 6"(152mm) above xture. Consult

Code for details.

CAUTION Turn water supplies off before

beginning

CENTER LINE OF

FIXTURE SPUD

FINISHED WALL

FILE EDGES

SOLDER

ADAPTER

Fig.3

ADAPTER

32mm

(1-1/4")

(A-B)= B

CLEAN

Fig. 4

TEFLON TAPE

FINISHED WALL

1-1/2" TOP SPUD

Fig. 5

FLUSH VALVE INSTALLATION

6M965644 EN REV. 2.7 (2/22)

4FLUSH OUT SUPPLY LINES; Fig. 6

1. Remove STOP VALVE COVER (1) from STOP VALVE (2).

2. Open STOP VALVE (2) with a at blade screwdriver.

3. Tu r n on water supply to ush line of any debris or

sediment.

4. Close STOP VALVE (2) and replace STOP VALVE

COVER (1).

5LEFT OR RIGHT HAND

INSTALLATION; Fig. 7

The unit is shipped with the adjustable tailpiece on

the right side. If needed, the orientation can be

modied by following the steps below.

1. Loosen SET SCREW (1) with 2.5mm Hex Wrench (4)

in back of FLUSH VALVE COVER (2).

2. Rotate FLUSH VALVE COVER (2) to the right and lift off.

3. Rotate FLUSH VALVE BODY (3) 180˚

4. Replace COVER (2) and rotate until key engages.

Tighten SET SCREW (1).

6INSTALL FLUSH VALVE; Fig. 8, 8a

1. Insert ADJUSTABLE TAILPIECE (1) into the STOP

VALVE (2). Lubricate the O-RING (3) with water if

necessary. Lightly tighten COUPLING NUT (4). Fig. 8.

Important: Do not use lubricants (other than water) or

any type of thread sealing paste or tape.

2. Align the FLUSH VALVE BODY (5) directly above the

VACUUM BREAKER TUBE (7) and VACUUM BREAKER

COUPLING NUT (6). Fig. 8a.

Note: There is a +13mm, -6mm (+1/2, -1/4) tolerance for

the 121mm (4-3/4) dimension.

3. Pull the VACUUM BREAKER TUBE (7) up to meet the threaded FLUSH VALVE BODY (5), hand tighten the VACUUM

BREAKER COUPLING NUT (6). Align all components of the ush valve assembly. Fig. 8a.

4. Lightly tighten the COUPLING

NUT (4) connection rst,

then the VACUUM BREAKER

COUPLING NUT (6) and

nally the SPUD COUPLING

NUT (8). Once alligned

correctly, use a wrench to

tighten couplings to make

water tight connections.

Fig. 8a.

CLOCKWISE CLOSES

STOP VALVE

COUNTER-CLOCKWISE

OPENS STOP VALVE

REMOVE COVER

Fig. 6 2

Fig. 7

KEY

180˚

121mm,+13mm, -6mm

(4-3/4)(+1/2, -1/4)

Fig. 8a

Fig. 8

7M965644 EN REV. 2.7 (2/22)

8a INSTALL CONDUIT,

ESCUTCHEON AND SENSOR

CABLE; Fig. 10

1. Drill a 2"diameter hole (shown in Fig. 10) in the nished

wall for the CONDUIT (2).

2. Pull 27" EXTENSION CABLE (3 ) through CONDUIT (2).

3. Slide ESCUTCHEON (1) onto CONDUIT (2).

4. For front installation, connect the 10' EXTENSION

CABLE (4) to the 27" EXTENSION CABLE (3). Secure

this connection with the CONNECTOR LOCKING

DEVICE (5) and place inside electrical box.

5. Slide ESCUTCHEON (1) tight against nished wall and

secure by tightening SET SCREW (6).

ELECTRICAL INSTALLATION

REMOTE INSTALLATION FOR POWER SUPPLY

Mount a 4"x 4"x 2-1/2"(102 x 102 x 64 mm),

ELECTRICAL BOX (1) (by others) within 10'

from the installed ush valve. See Fig. 10.

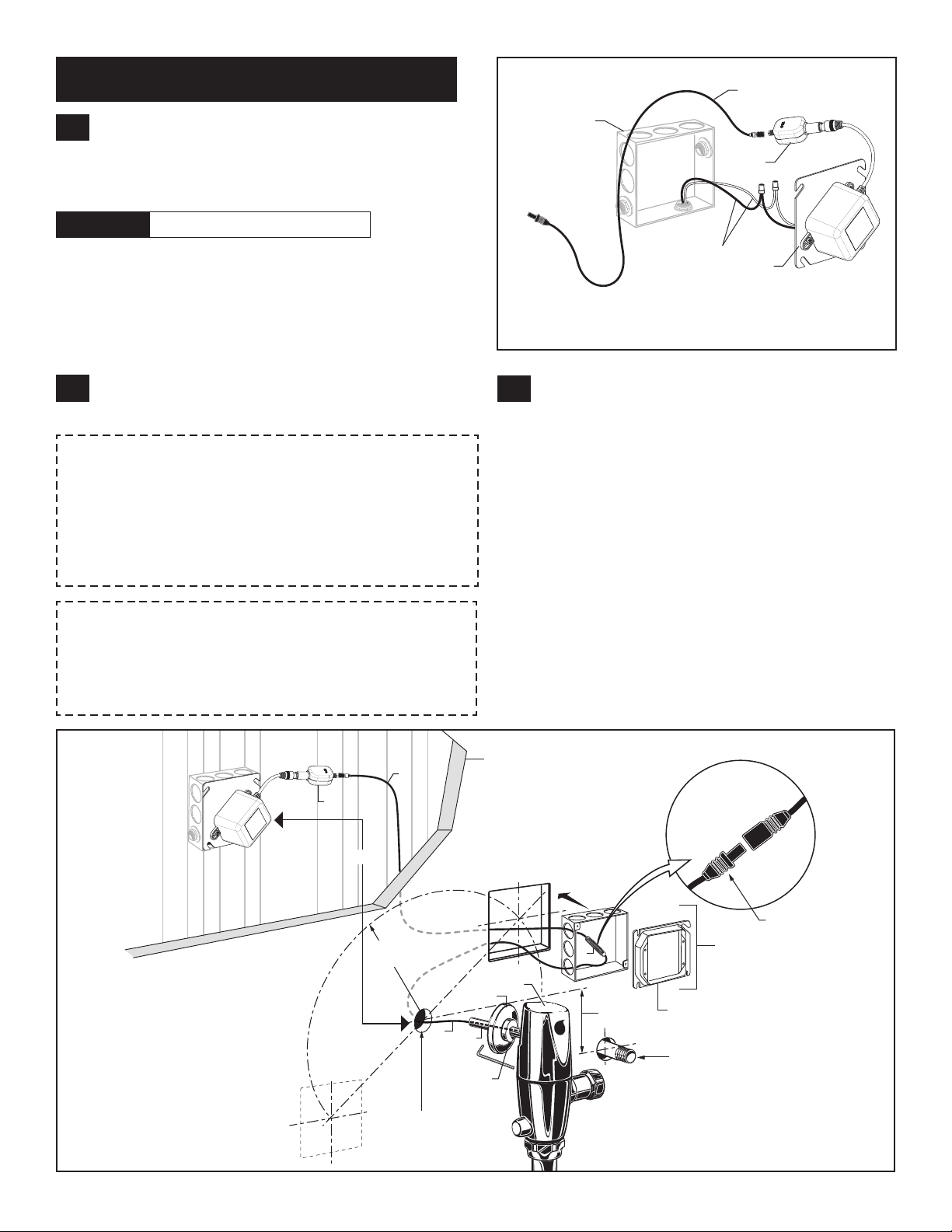

INSTALL ELECTRICAL BOX

(BY OTHERS); Fig. 10

FRONT INSTALLATION (with optional cover plate)

Note: The ELECTRICAL BOX (1) can be installed in

any location along the marked arc.

Cut a 105 x 105 mm (4-1/8"x 4-1/8") opening in nished

wall for ELECTRICAL BOX (1) (by others) and follow

installation template provided in box. See Fig. 10.

Fig. 9

BLACK & WHITE

POWER

CONNECTIONS

10' EXTENSION

NOTE: AC Transformer must be installed on the outside of

the Electrical Box.

10'

Finished Wall

SUPPLY

(3/4"NPT)

86mm

(3-3/8")

SMALL END

(51mm) 2" DIA.

HOLE FOR

CONDUIT

305mm

(12"MAX.)

Fig.10 (TOP SPUD FIXTURE ILLUSTRATED)

INSTALL POWER SUPPLY AND

MAKE ELECTRICAL CONNECTIONS;

Fig. 9 (remote and front installation)

1. Connect Black and White power connections to AC

TRANSFORMER (1). Mount AC TRANSFORMER (1)

onto ELECTRICAL BOX (2).

2. Connect the 10' EXTENSION CABLE (sold seperately)

to the CONVERTER (7).

CAUTION Ensure that the line power to bathroom

is OFF prior to making connections.

Electrical Box (by others) is only

required for Front Installation.

8M965644 EN REV. 2.7 (2/22)

CAUTION: Use only American Standard supplied transformers

and cable sets. Using non-AS supplied cables, or cutting,

splicing or modifying any components will void the warranty.

Fig.10b

*MAXIMUM OF 15 UNITS PER TRANSFORMER.

10' MAXIMUM CABLE LENGTH BETWEEN UNITS.

Unit #1 Unit #2 Unit #3

Already installed

(See electrical installation

instructions, page 5)

BLACK & WHITE

POWER

CONNECTIONS

8b MULTI-AC VERSION (DAISY-CHAIN); Fig. 10b.

Important:All cover plates must be removed before beginning to make daisy-chain connections.

Note: For Unit #1 electrical instructions, refer to section #7 & #8a (page 5).

For subsequent Units, refer to section #7 (page 5), as well as instructions below...

1. Connect one end of the 27"EXTENSION CABLE (1) to one of the two available terminals on the one end of the

Y-ADAPTER (2).

2. Take the 10' EXTENSION (3) and connect one end to the single terminal of Y-ADAPTER (2), and

the other end to available terminal of the previous unit’s Y-ADAPTER (2a).

3. Repeat process for each subsequent unit.

4. Place Y-ADAPTERS (2) into respective electrical box.

5. Reconnect the rst unit’s Y-ADAPTER (2a) to power supply once all daisy-chain unit connections have been made.

CAUTION Ensure that the line power to bathroom

is OFF prior to making connections.

9M965644 EN REV. 2.7 (2/22)

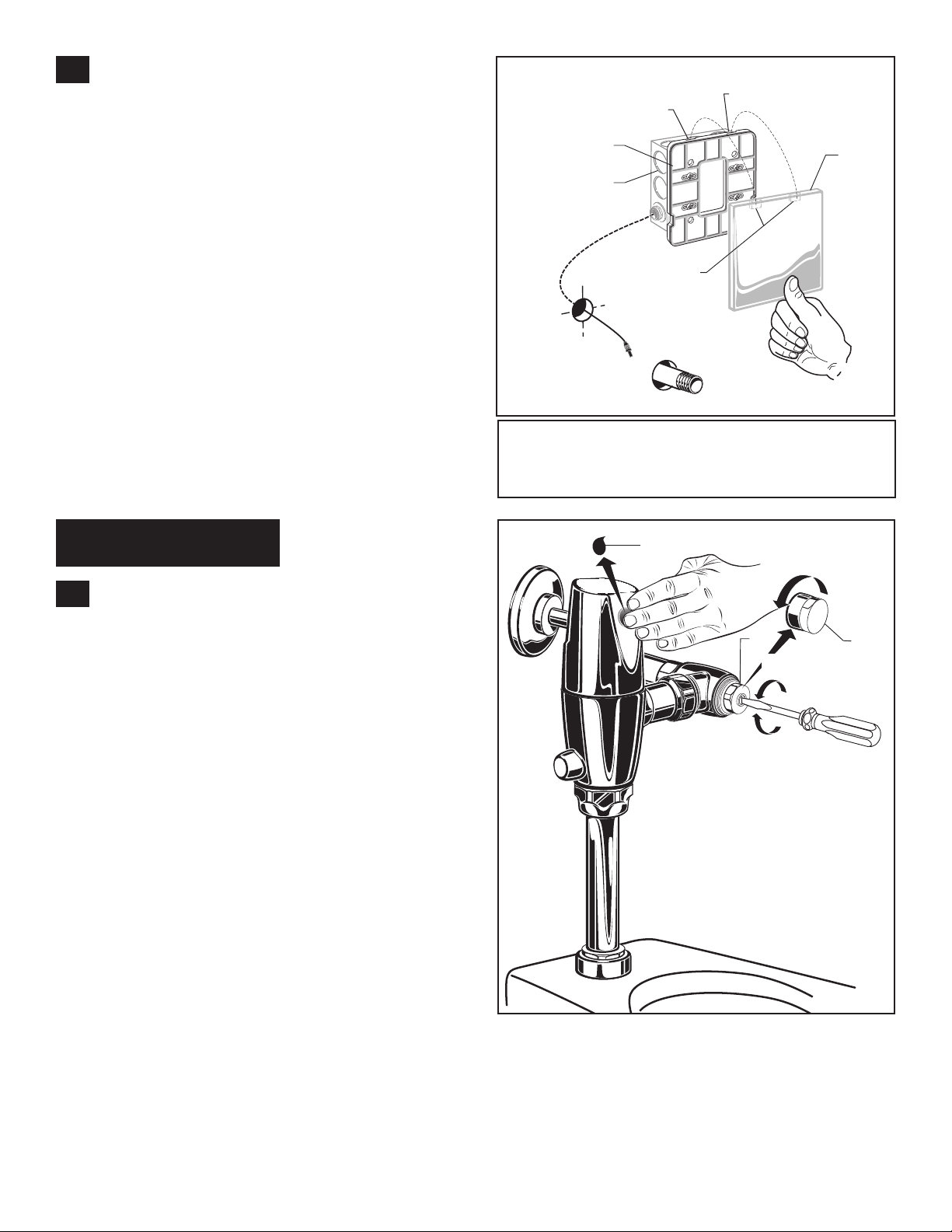

AADJUST STOP VALVE; Fig. 12

IMPORTANT: To avoid overowing, the STOP

VALVE (3) must never be opened to the point

where the ow from the valve exceeds the

draining ability of the xture.

1. After installation is complete, peel off the PROTECTIVE

FILM (1) from the sensor. Standing to one side, block the

sensor with your hand for 10 seconds.

Remove your hand and listen for audible“click”from

within the valve.

2. Remove STOP VALVE COVER (2) from STOP VALVE (3).

Turn on water supply 1/4 turn to 1/2 turn (CCW) and test

for leaks.

Note: Unit may ush for approximately 5 to 10 sec. when

water is rst turned on. If ow persists, turn water off and

repeat step #1 above.

3. Actuate the FLUSH VALVE:

A) Cover sensor with hand for 10 seconds.

NOTE: Stand outside of sensor detection area.

B) Remove hand from sensor detection area; unit will

ush in approximately 3 seconds.

4. Adjust STOP VALVE (3) after each ush until the stated

ush volume is achieved, no splashing occurs and the

xture is properly cleansed.

5. When adjustment is complete, replace STOP VALVE

COVER (2) and tighten to ensure vandal-resistance.

Fig. 12

CLOCKWISE CLOSES

STOP VALVE

COUNTER-CLOCKWISE

OPENS STOP VALVE

REMOVE COVER

MAINTENANCE

COVER PLATE FRAME AND

COVER PLATE INSTALLATION

(front installation); Fig. 11

1. After power supply is remotely installed and wire

connections are completed, install the COVER PLATE

FRAME (1) onto the ELECTRICAL BOX (2).

2. Install the two tabs on the back side of the COVER PLATE

(3) into the two Slots located on the top edge of the

COVER PLATE FRAME (1). Push on bottom until it snaps

into place.

CAUTION: Use only American Standard supplied transformers

and cable sets. Using non-AS supplied cables, or cutting,

splicing or modifying any components will void the warranty.

Fig.10a

TABS

SLOT

Fig. 9

BLACK & WHITE

POWER

CONNECTIONS

10' EXTENSION

Fig. 11

10 M965644 EN REV. 2.7 (2/22)

Fig. 14

1" - 2" (30 - 50 mm)

BLINKING LED

DETECTION ZONE

400 TO 800 mm (15-3/4"x 31-1/2")

(Factory Setting: 600 mm (23-5/8")

Fig. 13

BSET DETECTION RANGE

(if Required); Fig. 13 & 14

Note: The detection distance is preset and ideal for most

installations. Should an adjustment be required, follow the

steps below.

1. To remove the COVER PLATE (1), insert WIRE KEY (2)

(supplied) into the two holes located at the bottom of the

COVER PLATE (1). Push the WIRE KEY (2) up until it

releases the bottom clips. Pull the bottom edge away

and lift the COVER PLATE (1) off. Fig. 13.

2. Remove the connections from the CONNECTOR LOCKING

DEVICE (5). Disconnect the 27" EXTENSION CABLE (3)

from the 10' EXTENSION CABLE (4), and reconnect.

Note: You have 5 seconds to begin entering the program

code after power connection is made.

3. While the SENSOR CONTROL LED (1) is blinking

slowly, place your hand 1 to 2 in. (30-50 mm.) in front of

the sensor. Fig. 14.

4. When the LED (1) stops blinking and stays “ON”, move

your hand to the desired position from sensor and hold in

place until the LED (1) begins to blink again.

Note: Detection Zone is 400 - 800 mm (15-3/4"x 31-1/2").

(Factory Setting: 400 mm (15-3/4")

5. Once the SENSOR CONTROL LED (1) begins to blink

again, remove your hand from the detection zone. When

the ashing stops, the detection distance is set.

6. Actuate the FLUSH VALVE:

A) Cover sensor with hand for 10 seconds.

NOTE: Stand outside of sensor detection area.

B) Remove hand from detection area; unit will

ush in approximately 3 seconds.

Andere Handbücher für SELECTRONIC 606B.111

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere American Standard Steuereinheit Handbücher

American Standard

American Standard R129 Bedienungsanleitung

American Standard

American Standard SELECTRONIC 605XTMV1070 Bedienungsanleitung

American Standard

American Standard SELECTRONIC 6066.111 Bedienungsanleitung

American Standard

American Standard 7017 Series Bedienungsanleitung

American Standard

American Standard ACONT401AN21MA Bedienungsanleitung

American Standard

American Standard Ultima 6147SM Bedienungsanleitung

American Standard

American Standard SELECTRONIC 6067.111 Bedienungsanleitung

American Standard

American Standard SELECTRONIC 6065.521 Bedienungsanleitung

American Standard

American Standard BORNEO Bedienungsanleitung

American Standard

American Standard 6047.800 Bedienungsanleitung

American Standard

American Standard 50A65-475 Bedienungsanleitung

American Standard

American Standard SELECTRONIC 6590.525 Bedienungsanleitung

American Standard

American Standard Ultima Selectronic 6064.013 Bedienungsanleitung

American Standard

American Standard Ultima 6145SM Bedienungsanleitung

American Standard

American Standard R127 Bedienungsanleitung

American Standard

American Standard BAYSPEK047A Montageanleitung

American Standard

American Standard R110 Bedienungsanleitung

American Standard

American Standard 6045.101 Bedienungsanleitung

American Standard

American Standard AccuLink Platinum 1050 Bedienungsanleitung

American Standard

American Standard R910 Flash Bedienungsanleitung

American Standard

American Standard R111 Bedienungsanleitung

American Standard

American Standard Selectronic 606B.X10 Bedienungsanleitung

American Standard

American Standard 6047.8 Series Bedienungsanleitung

American Standard

American Standard Ultima 6045.051 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
