Amica OKC613RB Bedienungsanleitung
OKC613RB
OKC613RW
INSTRUCTION MANUAL - KITCHEN EXTRACTOR HOOD EN 6
Before using the appliance, please carefully read this manual!
BEDIENUNGSANLEITUNG - KAMINHAUBE DE 16
Bitte lesen Sie diese Anleitung vor der Installation des Kaminhaube
durch!
NOTICE D’UTILISATION – HOTTE ASPIRANTE FR 26
La hotte ne doit être utilisée qu’après avoir pris connaissance de la présente
notice d’utilisation
GEBRUIKSAANWIJZING - AFZUIGKAP NL 36
Gebruik de afzuigkap pas nadat u deze handleiding hebt doorgelezen.
INSTRUKCJA OBSŁUGI - OKAP NADKUCHENNY PL 46
Okapnależyużywaćdopieropoprzeczytaniutejinstrukcji
NÁVOD K OBSLUZE - KUCHYŇSKÉHO ODSAVAČE CZ 56
Odsavačpoužívejteteprvepopřečtenítohotonávodu!
NÁVOD NA OBSLUHU - KUCHYNSKÉHO ODSÁVAČA SK 66
Odsávačpoužívajteibapoprečítanítohtonávodu!
2
3
min 650mm
Gas cookers
min 650mm
Gas cookers
min 450mm
Electrical
cookers
1a 1b 1c
2
4
3
5
4
5
6
6
TABLE OF CONTENTS
GUIDELINES CONCERNING THE SAFETY OF USE 7
INSTALLATION 11
OPERATION AND MAINTENANCE 13
ENVIRONMENTAL PROTECTION 15
WARRANTY AND AFTER-SALE SERVICES 15
You are now a user of a kitchen extractor hood. This hood has been designed and manufactured spe-
cially with a view to satisfying your expectations and it will certainly constitute a tting element of a
modern kitchen. The modern structural solutions and the newest technologies used in production of this
hood guarantee its high effectiveness and good appearance.
Please read these instructions carefully before installing the hood. They will help you avoid mistakes
during installation and operation of the hood.
We wish you a lot of satisfaction from choosing our kitchen extractor hood.
DEAR CUSTOMER!
THANK YOU FOR PURCHASING AN APPLIANCE
Symbols appearing in these instructions have the following meaning:
This indicates actions than must not be
performed by the user.
Risks resulting from improper operation
of the appliance. Activities that must be
performed by a qualied technician.
Important information concerning proper
operation of the appliance and your perso-
nal safety.
Tips on how to use the appliance.
i
Information on how to protect the environ-
ment.
The appliance is intended for household
use only.
The manufacturer reserves the right to
introduce changes which do not affect the
operation of the appliance.
7
GUIDELINES CONCERNING THE SAFETY OF USE
i
lThe manufacturer will
accept no responsibility
for any damage due to
installation or operation
not conforming to these
instructionsi
lCooker hood is desi-
gned to remove cooking
odours. Do not use co-
oker hood for other pur-
poses.
lConnect the cooker
hood operating in
extraction mode to a
suitable ventilation duct
(do NOT connect the
cooker to smoke or ue
gas ducts, which are in
use). It requires installa-
tion of the air extraction
duct to the outside. The
duct length (typically
120 or 150mm in diame-
ter) should not exceed
4-5 m. The air exhaust
duct is also required for
telescopic and under
furniture cooker hoods
operating in air recircu-
lation mode.
lCooker hood operating
in air recirculation mode
requires the installation
of an activated charcoal
lter. In this case, instal-
ling an extractor duct is
not required, however it
is recommended to in-
stall an air guide vane.
(chimney cooker hoods
only).
i
lThe cooker hood featu-
res independent lighting
and exhaust fan that
can be operated at one
of several speeds.
lDepending on the type,
the hood is designed to
be permanently atta-
ched to a vertical wall
over a gas or electric
stove (chimney and
universal hoods); on
the ceiling over a gas
or electric stove (island
hoods); on the vertical
built in furniture over
a gas or electric stove
(telescopic and built-in
hoods). Before instal-
ling, make sure that the
wall/ceiling structure is
strong enough to su-
spend the hood. Some
hoods are very heavy.
8

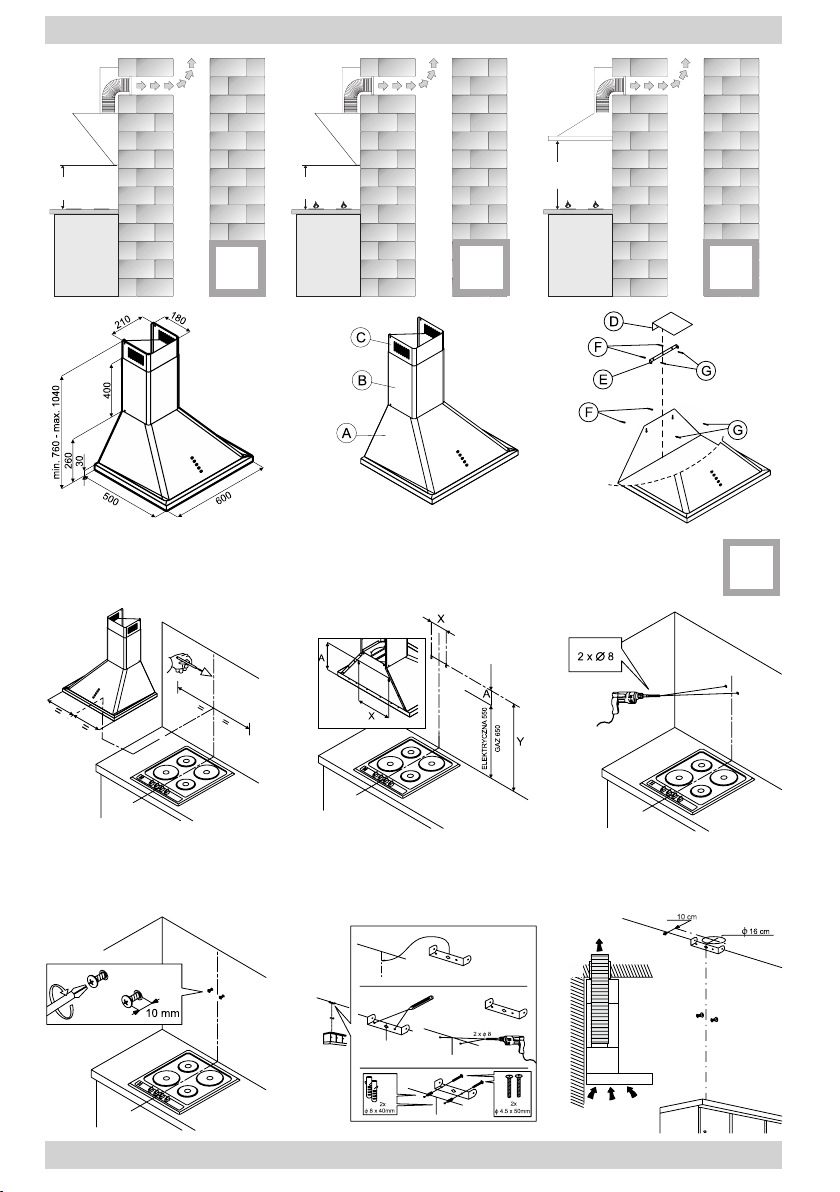

lFor details of the instal-
lation distance above an
electric hob please re-
fer to product technical
sheet If the installation
instructions of the gas
cooker specify a greater
distance, this must be
taken into account (Fig.
1a/b/c).
lDo not leave an open
ame under the hood.
When the pots are re-
moved from the burner,
set the minimum a-
me. Always make sure
that the ame does
not extend outside the
pot, because it causes
unwanted loss of ener-
gy and a dangerous
concentration of heat.
lAny food cooked in
fat shall be constantly
monitored, since over-
heated fat can ignite
very easily.
lPull the plug of the
power cord from a wall
socket before any lter
cleaning or repair op-
eration.
l The textile grease l-
ter should be replaced,
and the aluminium lter
should be cleaned at
least every one month
in connection with the
existing re danger
(saturated fat is very
ammable).
lIf any other non-electric
devices are used in the
same room as the hood
(e.g. liquid fuel ovens,
ow-through or volu-
metric water heaters), it
is necessary to provide
appropriate ventilation
(air supply). Safe op-
eration is possible when
during simultaneous op-
eration of the hood and
combustion devices de-
pendent on air supply
the negative pressure
of not more than 0.004
milibar is maintained
at the location of these
devices inside the room
(this point does not ap-
ply when the hood is
used as an odour ab-
sorber).
lDo not abut against the
hood
GUIDELINES CONCERNING THE SAFETY OF USE
9
lThe hood should be
frequently cleaned in-
side and on the outside
surfaces (at least once
a month). See “Clean-
ing section” in this man-
ual.
lIf the power wire gets
broken, it should be re-
placed with a new one in
a specialist repair shop.
lMake sure the ap-
pliance can be easily
disconnected from the
mains, either by pulling
the plug out of the mains
socket, or by switching
the two-pole switch off.
lThis appliance is not
intended for use by per-
sons (including children)
with reduced physical,
sensory or mental capa-
bilities, or lack of expe-
rience and knowledge,
unless they have been
given supervision or
instruction concerning
use of the appliance by
a person responsible for
their safety.
lChildren should be su-
pervised to ensure that
they do not play with the
appliance.
lCheck if the voltage
indicated on the rating
plate corresponds to
the local power supply
parameters.
lBefore installing un-
wind and straighten the
power cord.
lWarning! The pack-
aging materials (poly-
ethylene bags, small
pieces of foamed poly-
styrene etc.) should be
kept away from children
while unpacking.
lNOTE: Before con-
necting the hood to
the mains power sup-
ply always check that
the power cord is prop-
erly installed and is not
trapped by the appli-
ance. It is recommend-
ed to make sure the
hood operates correctly
before installation.
lNever use the hood wi-
thout effectively moun-
ted grating!
l The aming of foods
beneath the hood itself
is severely prohibited.
lWith regards to the
technical and safety
measures to be adop-
ted for fume discharging
it is important to closely
follow the regulations
provided by the local
authorities.
GUIDELINES CONCERNING THE SAFETY OF USE
10
lWARNING! Failure
to install the screws or
xing device in accor-
dance with these in-
structions may result in
electrical hazardsii
GUIDELINES CONCERNING THE SAFETY OF USE
