Amica ASC420WH/1 Bedienungsanleitung

TYPE

10147.3eETsDbHaScJQaW

10147.3eETsDbHaScJQaS

10147.3eETsDbHaScJQaXSp

MODEL

ASC420WH/1

ASC420BL/1

ASC420SS/1

INSTRUCTION MANUAL

BUILT-IN ELECTRIC OVEN

IO-CBI-1337 / 8506495

(06.2019 / v2)

DEAR CUSTOMER,

The oven is exceptionally easy to use and extremely ecient. After reading the instruction

manual, operating the oven will be easy.

Before being packaged and leaving the manufacturer, the oven was thoroughly checked with

regard to safety and functionality.

Before using the appliance, please read the instruction manual carefully.

By following these instructions carefully you will be able to avoid any problems in using the

appliance.

It is important to keep the instruction manual and store it in a safe place so that it can be

consulted at any time.

It is necessary to follow the instructions in the manual carefully in order to avoid possible

accidents.

Caution!

Do not use the oven until you have read this instruction manual.

The oven is intended for household use only.

The manufacturer reserves the right to introduce changes which do not aect the

operation of the appliance.

TABLE OF CONTENTS

Safety instructions ............................................................................................................. 4

Description of the appliance ............................................................................................. 8

Operation........................................................................................................................... 10

Baking in the oven – practical hints ............................................................................... 16

Test dishes ........................................................................................................................ 19

Cleaning and maintenance.............................................................................................. 21

Installation instructions................................................................................................... 24

Specications ................................................................................................................... 28

SAFETY INSTRUCTIONS

Warning: The appliance and its accessible parts

become hot during use. Care should be taken to

avoid touching heating elements. Children less than 8

years of age shall be kept away unless continuously

supervised.

This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children

shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without

supervision.

During use the appliance becomes hot. Care should

be taken to avoid touching heating elements inside

the oven.

Accessible parts may become hot during use. Young

children should be kept away.

Warning: Do not use harsh abrasive cleaners or

sharp metal scrapers to clean the oven door glass

since they can scratch the surface, which may result

in shattering of the glass.

SAFETY INSTRUCTIONS

● Ensurethatsmallitemsofhouseholdequipment,includingconnectionleads,do

nottouchthehotovenastheinsulationmaterialofthisequipmentisusuallynot

resistant to high temperatures.

● Donotleavetheovenunattendedwhenfrying.Oilsandfatsmaycatchredue

to overheating or boiling over.

● Donotputpansweighingover15kgontheopeneddooroftheoven.

● Donotuseharshcleaningagentsorsharpmetalobjectstocleanthedoorasthey

can scratch the surface, which could then result in the glass cracking.

● Donotusetheovenintheeventofatechnicalfault.Anyfaultsmustbexedby

anappropriatelyqualiedandauthorisedperson.

● Intheeventofanyincidentcausedbyatechnicalfault,disconnectthepowerand

report the fault to the service centre to be repaired.

● Therulesandprovisionscontainedinthisinstructionmanualshouldbestrictly

observed. Do not allow anybody who is not familiar with the contents of this instruc-

tion manual to operate the oven.

● Theappliancehasbeendesignedonlyforcooking.Anyotheruse(forexample

forheating)doesnotcomplywithitsoperatingproleandmaycausedanger.

Warning:Ensurethattheapplianceisswitchedo󰀨

before replacing the lamp to avoid the possibillity of

electric shock.

You should not use steam cleaning devices to clean

the appliance.

Using energy in a respon-

sible way not only saves

money but also helps the

environment. So let’s save

energy! And this is how you

can do it:

Do not uncover the pan too often

(a watched pot never boils!).

Do not open the oven door unnecessarily

often.

 Switch o󰀨 the oven in good time and

make use of residual heat.

For long cooking times, switch o󰀨 heating

zones5to10minutesbeforenishingcook-

ing. This saves up to 20% on energy.

Only use the oven when cooking larger

dishes.

Meat of up to 1 kg can be prepared more

economically in a pan on the cooker hob.

Make use of residual heat from the

oven.

If the cooking time is greater than 40 minutes

switch o󰀨 the oven 10 minutes before the

end time.

Important! When using the timer,

set appropriately shorter cooking

times according to the dish being

prepared.

Make sure the oven door is properly

closed.

Heat can leak through spillages on the door

seals. Clean up any spillages immediately.

Do not install the oven in the direct

vicinity of refrigerators/freezers.

Otherwise energy consumption increases

unnecessarily.

HOW TO SAVE ENERGY

During transportation, protec-

tive packaging was used to

protect the appliance against

any damage. After unpacking,

please dispose of all elements

of packaging in a way that will

not cause damage to the environment.

All materials used for packaging the appli-

ance are environmentally friendly; they are

100% recyclable and are marked with the

appropriate symbol.

Caution! During unpacking, the packag-

ing materials (polythene bags, polystyrene

pieces, etc.) should be kept out of reach of

children.

UNPACKING DISPOSAL OF THE APPLIANCE

Old appliances should not sim-

ply be disposed of with normal

household waste, but should

be delivered to a collection and

recycling centre for electric and

electronicequipment.Asymbol

shown on the product, the in-

struction manual or the packaging shows that

it is suitable for recycling.

Materials used inside the appliance are

recyclable and are labelled with information

concerning this. By recycling materials or

other parts from used devices you are making

asignicantcontributiontotheprotectionof

our environment.

Information on appropriate disposal centres

for used devices can be provided by your

local authority.

DESCRIPTION OF THE APPLIANCE

Function Selector

Control

Thermostat Control

Thermostat Lamp L

Electronic

Programmer

SPECIFICATIONS OF THE APPLIANCE

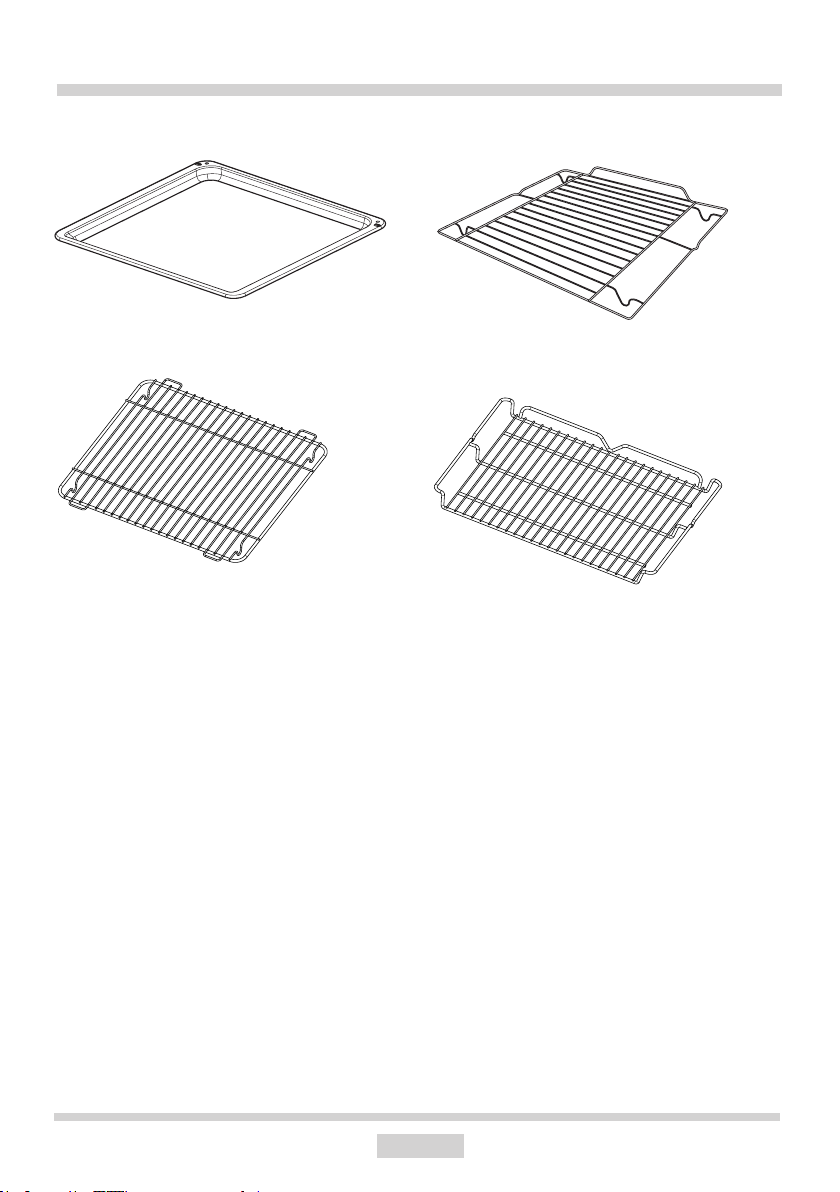

Cookerttings:

Baking tray

*All images are for indication only; please refer to your individual unit for actual item.

Grill Rack

Grill grate

(drying rack)

Wire Shelf

Important!

Inovens equippedwith the electronic pro-

grammer, the time “0.00”willstartashing

in the display eld upon connection to the

power supply.

The programmer should be set with the

current time. (See Electronic programmer ). If

the current time is not set operation of the

oven is impossible.

OPERATION

Before using the appliance for the

rst time

Important!

To clean the oven, only use a cloth

well rang out with warm water to

which a little washing-up liquid has

been added.

First start – preliminary cleaning

To remove residues of fat and oil accumulated

during the manufacturing process and dust

accumulated during storage and transport,

the preliminary cleaning of the equipment

should be carried out. This way our health

is protected and tasty cakes and roasts are

provided.

Caustic agents and abrasive powders

should be avoided as they can damage

the surface.

Preliminary heating

1. Remove packaging elements from the

oven chamber.

2. Turn on ventilation in the room or open a

window.

3. Start the oven at the temperature of 2500C.

4. Heat the oven for around 30 minutes.

The smell that is emitted during the rst

heating of the oven is connected with

vapouring of residues of fat and oil used to

protect the oven for the time of storing.

The oven is equipped with a retractable

knobs. In order to select a function do the

following:

1. Gently press and release a knob which

will pop out,

2. Turn the oven functions selection knob to

the desired function.

Symbols printed around the knob indicate

available oven functions.
