AMP®LOW VOLTAGE LANDSCAPE LIGHTING

AMP®27W RGBCW LED Flood Light with Yoke Mount (Dimmable)

ITEM: AFL-4033

INSTALLATION & MAINTENANCE GUIDE

1-813-978-3900 • Mon-Fri 9am-6pm (EST)

IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION

INSTALLATION & MAINTENANCE GUIDE

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation, operation

maintenance or mounting situations.

1. Make sure the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or

more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that

are suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or ﬁtting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

IMPORTANT SAFETY INSTRUCTIONS

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

LIGHTED LAMP IS HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire ﬁtting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

AMP®27W RGBCW LED Flood Light - AFL-4033

813.978.3900 • [email protected]om • www.amplighting.com

PACKAGE CONTENTS

PARTS REQUIRED

813.978.3900 • [email protected]om • www.amplighting.com

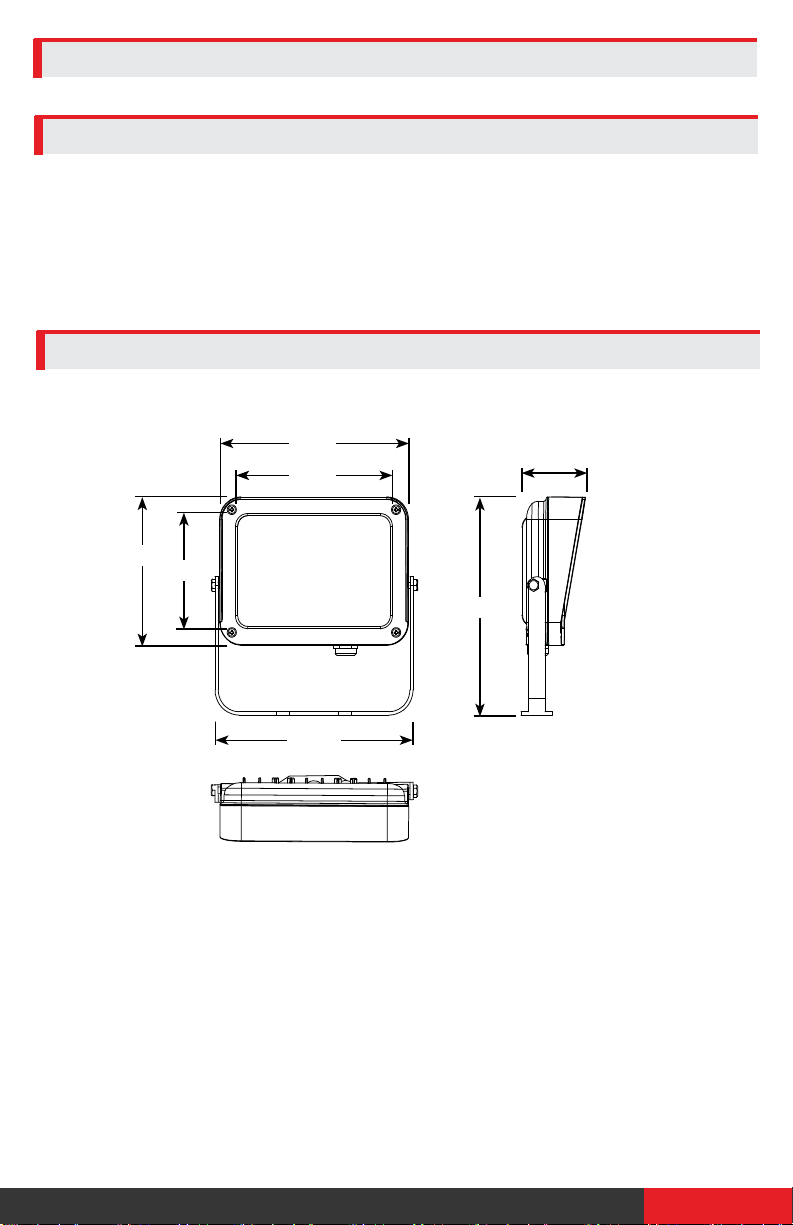

PRODUCT DIMENSIONS

A. (1) Fixture Body

A. (1) Mounting Accessory

B. (1) Coupler

C. (1) Remote

D. (1) Hex Nut

E. (2) AAA Batteries

7.48”

7.12”

5.77”

4”

5.35”

7.87”

2.22”

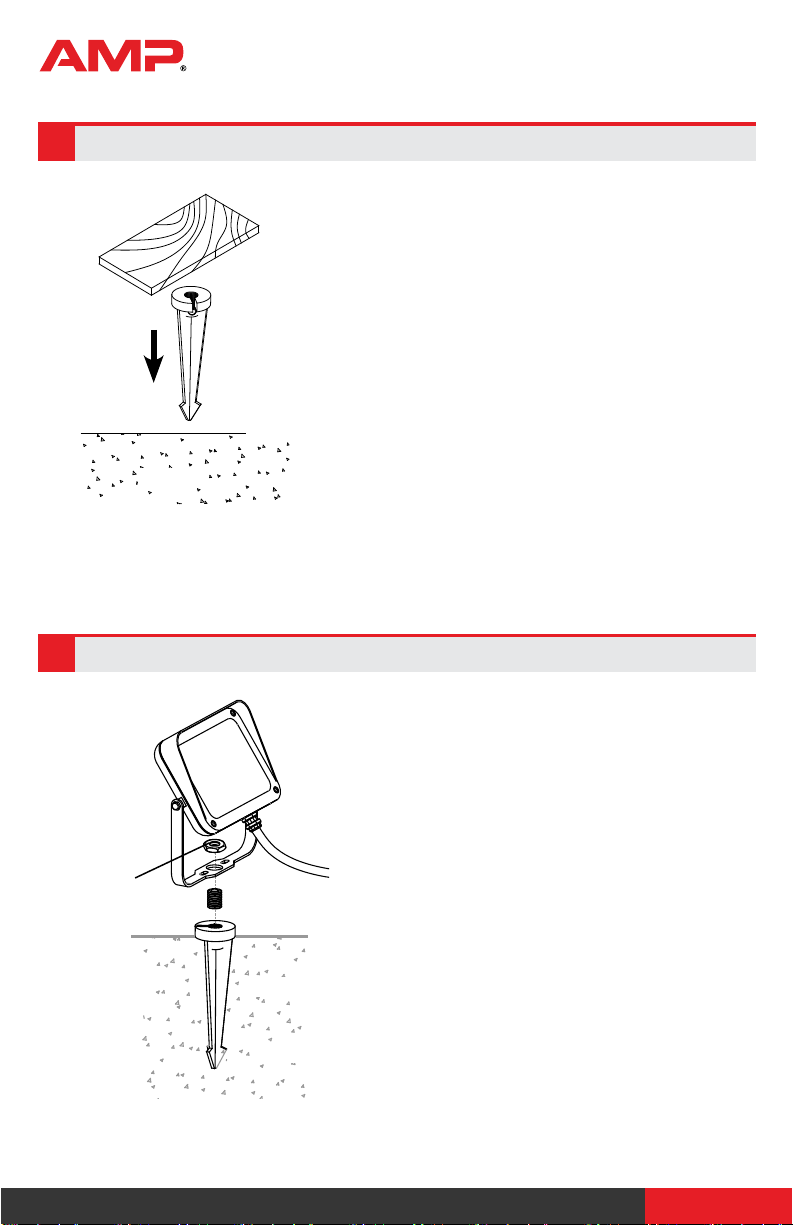

INSTALL STAKE

INSTALL FIXTURE BODY TO STAKE

INSTALLATION & MAINTENANCE GUIDE

AMP®27W RGBCW LED Flood Light - AFL-4033

813.978.3900 • [email protected]om • www.amplighting.com

Determine the desired

location for mounting the

stake. Hammer the stake

into the ground until ﬂange

of stake is ﬂush to grade. To

avoid damage to the stake,

place a board on top of the

stake while hammering.

Note: If the ground is hard

and the stake is difﬁcult to

install, make a crosscut in the

ground using a ﬂat shovel.

Soil

Ground

Bored

Stake

Thread the coupler onto

the stake. Place the yoke

mount of the ﬁxture body

over the coupler and

secure with the hex nut.

Fixture Body

Ground

Supply Wire

Coupler

Yoke Mount

Hex Nut

Soil

Stake

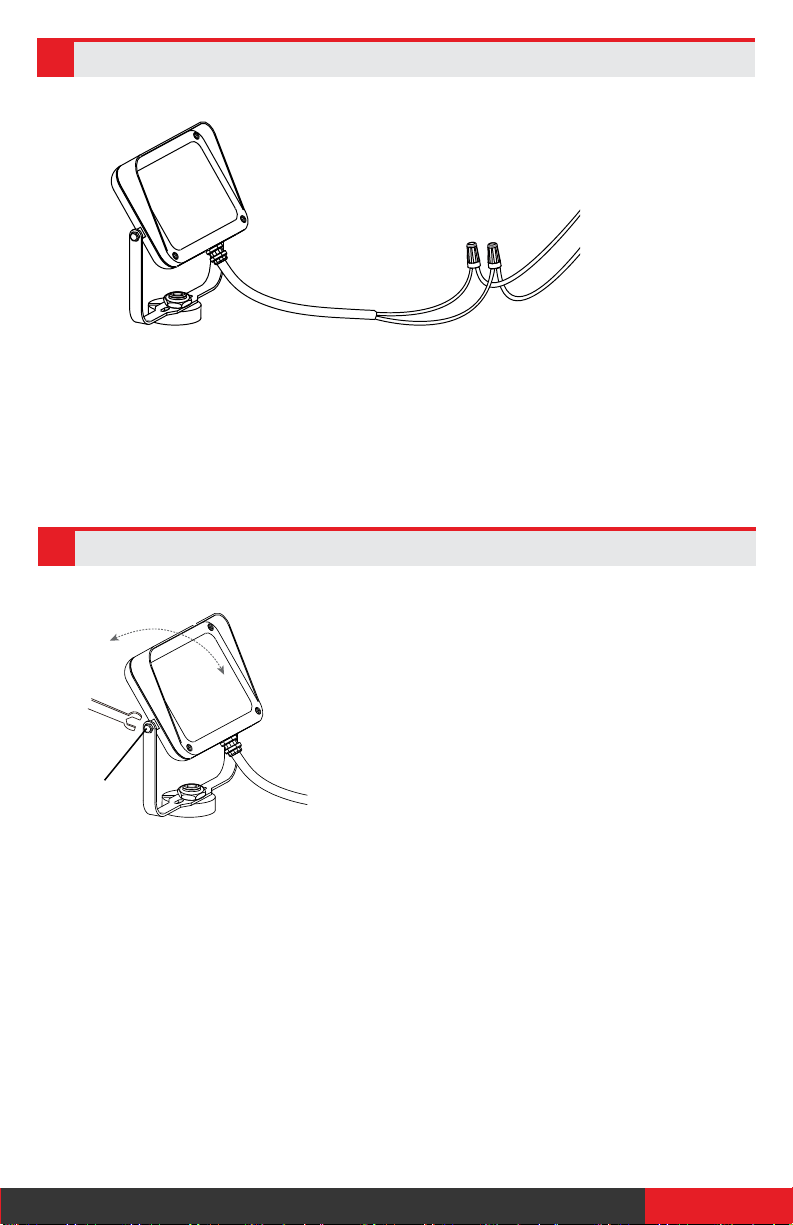

WIRE CONNECTIONS

ADJUST FIXTURE BODY DIRECTION

813.978.3900 • [email protected]om • www.amplighting.com

Strip both leads from the ﬁxture wires. Using two UL listed wire

connectors (sold separately), connect the leads from the ﬁxture

wires to the main supply cable leads.

Fixture Body

Fixture Wire

Wire Connector

Main Supply Wire

ROTATE Adjust the ﬁxture body to

the desired orientation and

tighten the screws with the

wrench.

After installation,

A. Check to make sure the ﬁxture is mounted properly.

B. Check to make sure the wires are connected properly.

Last, turn on the power and check if the lighting ﬁxture works. If

not, turn off the power and contact your local electrician.

Fixture Body

Wrench

Screw

INSTALLATION & MAINTENANCE GUIDE

AMP®27W RGBCW LED Flood Light - AFL-4033

813.978.3900 • [email protected]om • www.amplighting.com

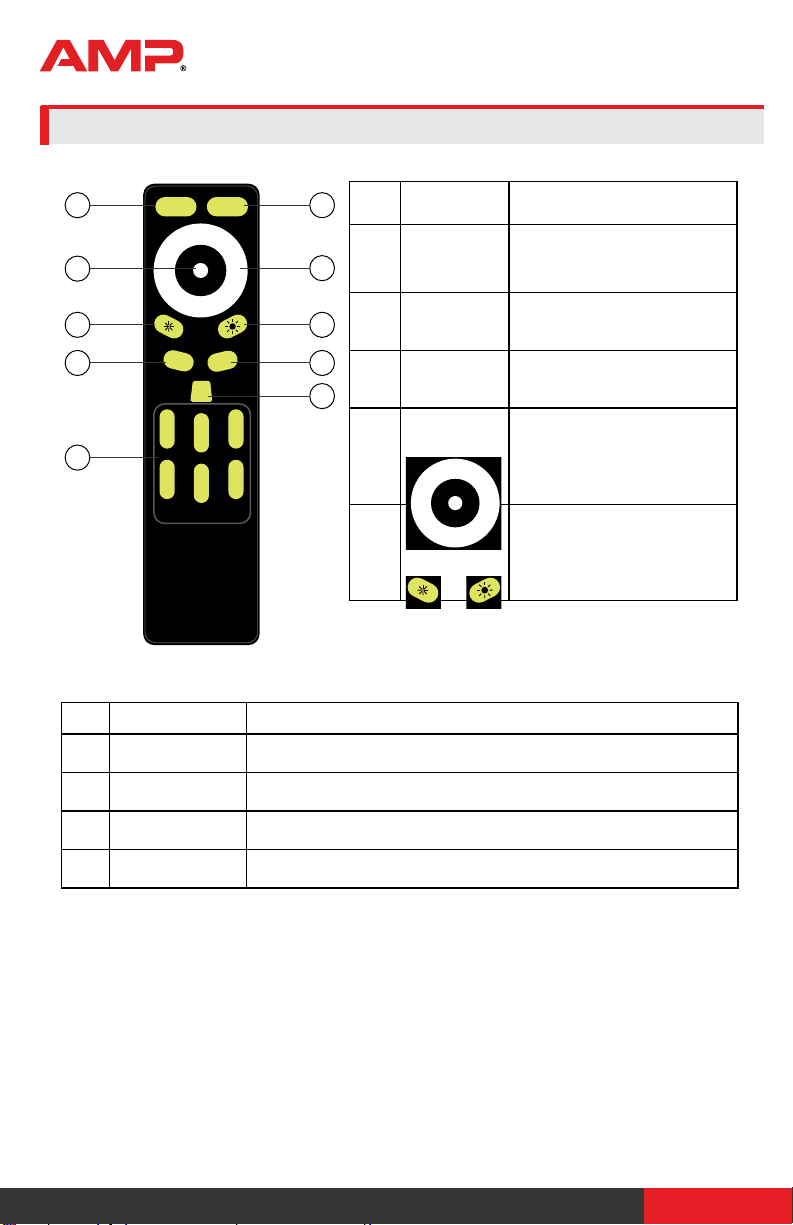

REMOTE CONTROLLER INSTRUCTIONS

No. Button

Name Function Description

1 ALL ON

Turns on all lights which are

controlled by this remote that

are within range.

2 ALL OFF

Turns off all lights which are

controlled by this remote that

are within range.

3 Indicator

Illuminates red when any

button is pressed to indicate

signal transmission.

RGB color wheel. Touch the

desired color to change the

light xture within the selected

zone and within range to that

color.

5,6

Decrease or increase the

light xture brightness on the

selected zone and within range

by pressing the corresponding

button.

No. Button Name Function Description

7 W Adjusts the light to a warmer color temperature (CCT). Short press

for increments, long press for continuous adjustment.

8 C Adjusts the light to a cooler color temperature (CCT). Short press for

increments, long press for continuous adjustment.

9CCT Color temperature (CCT) selector. Toggles though 2200K-2700K-

3000K-4000K CCT when pressing.

10 ZONE

1,2,3,4,5,6

Zone selection button. Press to select desired zone.

ALL ON ALL OFF

1 3

ZONE

CCT

ON OFF

1 3

ZONE

CCT

ON OFF

1 3

ZONE

CCT

ON OFF

1 3

ZONE

CCT

813.978.3900 • [email protected]om • www.amplighting.com

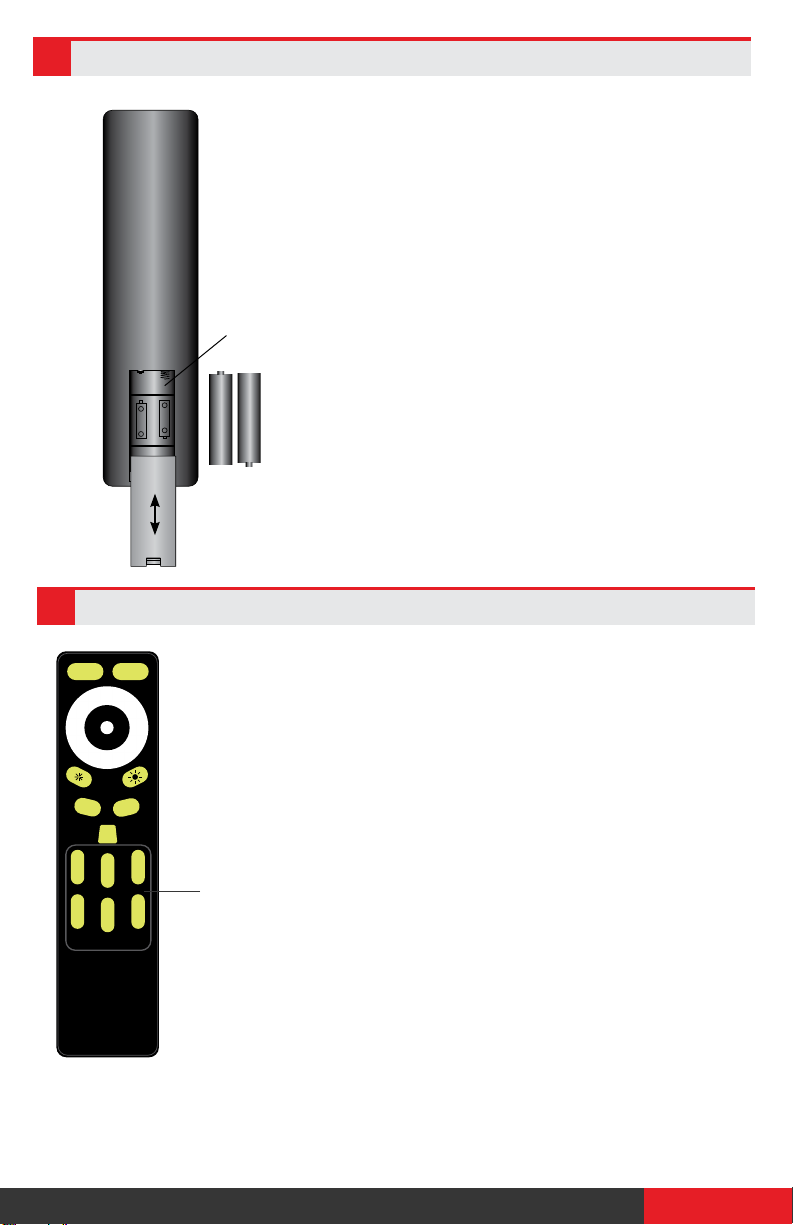

INSTALL AAA BATTERIES

Back of Remote

Controller

Battery

Compartment

Battery Cover

AAA Battery

(Sold Separately)

Open the battery cover, install

two AAA 1.5V batteries into

the battery compartment.

Pay attention to the “+”/“-”

polarities of the battery when

installing. Always reinstall the

battery cover after installing

AAA 1.5V batteries.

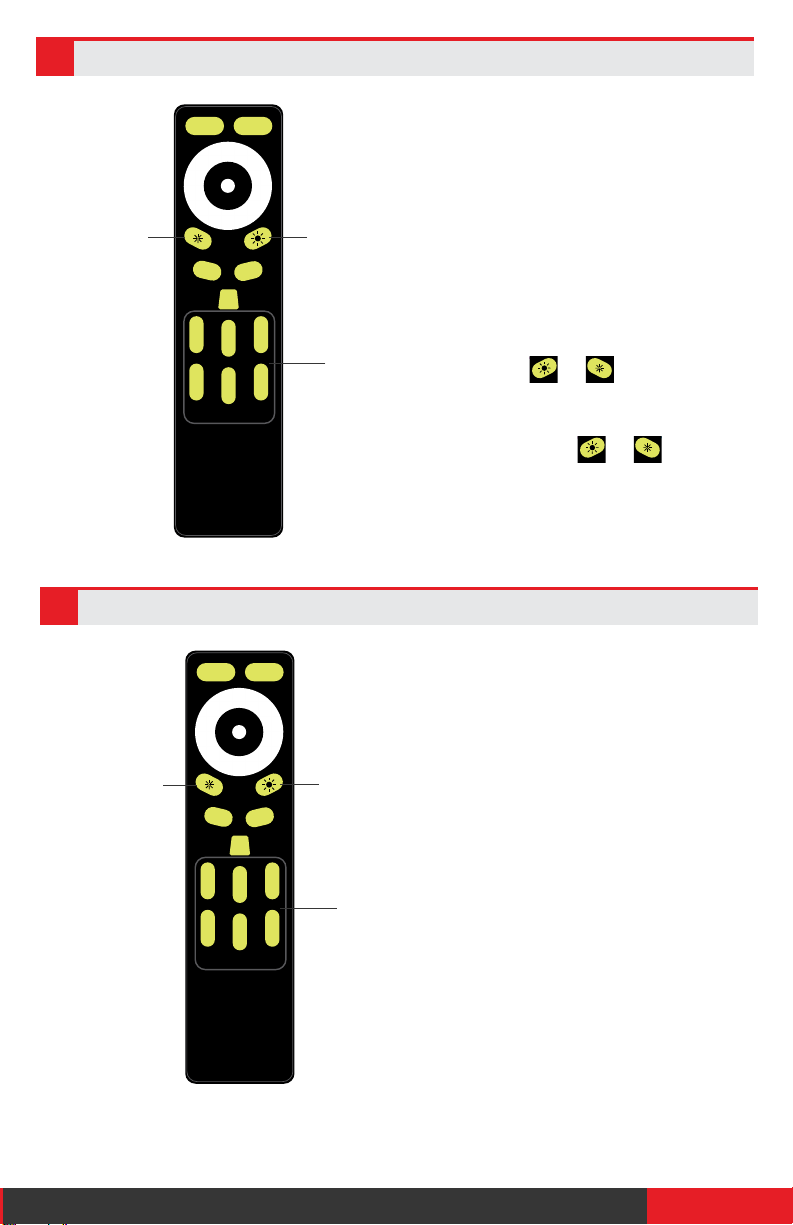

PAIR CODES

ALL ON ALL OFF

1 3

ZONE

CCT

ZONE

All products default to a factory setting.

The lights must be paired by the remote

controller before using them.

1. Install light(s).

2. Power the light(s) on. The light(s) will

blink between warm and cool light

for 30 seconds indicating pairing

mode.

3. While the light(s) are in pairing mode,

press the desired zone number on

the remote once to pair the light

ﬁxture(s) with that zone. Cool white

light (4000K) will ﬂash three times

indicating that the ﬁxture is paired

successfully with the zone. The

light(s) will turn to warm white light

(2200K).

INSTALLATION & MAINTENANCE GUIDE

AMP®27W RGBCW LED Flood Light - AFL-4033

813.978.3900 • [email protected]om • www.amplighting.com

PAIR CODES (CONTINUED)

1. Using the same process you can pair additional ﬁxtures to

the same or different zones.

Note:

1. Please ensure light(s) are within range of the remote

controller.

2. If zone pairing fails, power the light(s) OFF and ON, then

repeat the above steps.

3. If pairing operation is not completed within 30 seconds,

the lights will return to their default static cool white

CCT (4000K). Once in this state, whenever the light(s) are

powered OFF and back ON, the light(s) will re-initiate pairing

mode for 30 seconds. This process will continue until pairing

is successful.

4. The RF bulb(s) or ﬁxture(s) can be paired with a maximum

of 4 remote controllers. Power the light(s) OFF and ON and

within 30 seconds the bulbs and ﬁxtures can be paired with

another remote controller by pressing the desired zone

number. The ﬁxture will ﬂash cool white light (4000K) once

after successful pairing. The bulb(s) or ﬁxture(s) can be

controlled by any of the paired remote controllers.

5. If more than four remote controllers are paired to the lights

successfully, the ﬁrst remote controller will be unpaired

automatically. Only the last four remote controllers are

functional.

813.978.3900 • [email protected]om • www.amplighting.com

ADJUST BRIGHTNESS

ADJUST COLOR TEMPERATURE

ALL ON ALL OFF

1 3

ZONE

CCT

ZONE

Brightness

Increase

Brightness

Decrease

1. Select the desired lights by

pressing the zone to which

they have been assigned.

2. Press the brightness increase

button to increase the light

brightness, or press the

brightness decrease button to

decrease the light brightness.

Note:

1. Press the

ON OFF

1 3

ZONE

CCT

ON OFF

1 3

ZONE

CCT

button

once and the brightness will

adjust one level.

2. Long press the

ON OFF

1 3

ZONE

CCT

ON OFF

1 3

ZONE

CCT

button, and the brightness will

gradually increase or decrease

until the button is released.

ALL ON ALL OFF

1 3

ZONE

CCT

ZONE

Warm Light

Button

Cool Light

Button

1. Select the lights by pressing

the zone they are in.

2. Press the warm light button or

cool light button to the desired

color temperature.

Note:

1. Press the warm light button

or cool light button once, the

color temperature will adjust

to the next level.

2. Long press the warm light

button or cool light button,

the color temperature will

gradually increase or decrease

until the button is released.

INSTALLATION & MAINTENANCE GUIDE

AMP®27W RGBCW LED Flood Light - AFL-4033

813.978.3900 • [email protected]om • www.amplighting.com

QUICK COLOR TEMPERATURE ADJUSTMENT

ADJUST COLOR

ALL ON ALL OFF

1 3

ZONE

CCT

ZONE

CCT

Button

The preset color temperatures of the

CCT button are 2200K, 27000K, 3000K

and 4000K.

1. Select the lights by pressing the

zone they are in.

2. Press the CCT button to adjust

the lights through 2200K-2700K-

3000K-4000K color temperatures.

ALL ON ALL OFF

1 3

ZONE

CCT

RGB

Palette

Warm Light

Button

Cool Light

Button

Use the RGB Palette wheel to

select colored light modes and

“W”, “C”, or “CCT” buttons to

select white light modes.

1. For white light, press

the warm light button

or cool light button to

adjust the white light color

temperature.

2. For color light, touch the

RGB palette wheel to adjust

the light color.

Inhaltsverzeichnis

Andere AMP Landschaftsbeleuchtung Handbücher

AMP

AMP APL-3037 Bedienungs- und Sicherheitshinweise

AMP

AMP MagnumPro ASM-2407 Bedienungs- und Sicherheitshinweise

AMP

AMP Mini PinnaclePro MR11 Bedienungs- und Sicherheitshinweise

AMP

AMP HydraPro AWL-5006 Bedienungs- und Sicherheitshinweise

AMP

AMP AAL-1049 Bedienungs- und Sicherheitshinweise

AMP

AMP G2 EcoPro Bedienungs- und Sicherheitshinweise

AMP

AMP Pro Junction Hub Bedienungs- und Sicherheitshinweise

AMP

AMP EquaPro Brass Black Flood Light Bedienungs- und Sicherheitshinweise

AMP

AMP StoutPro PAR36 G2 Brass Black Flood Light Bedienungs- und Sicherheitshinweise

AMP

AMP AWL-5012 Bedienungs- und Sicherheitshinweise

Beliebte Landschaftsbeleuchtung Handbücher anderer Marken

Intex

Intex SL1006 Bedienungsanleitung

LED Group

LED Group ROBUS R2IN13W Bedienungsanleitung

Patriot Lighting

Patriot Lighting 343-1484 Bedienungsanleitung

Hess

Hess SERA G: SERA S Bedienungsanleitung

LIGMAN

LIGMAN JET 44 Bedienungsanleitung

LIGMAN

LIGMAN MALTA 1 Bedienungsanleitung

Cooper Lighting

Cooper Lighting MCGRAW-EDISON WBG Bedienungsanleitung

Cooper Lighting

Cooper Lighting Invue 42 - 175W Bedienungsanleitung

Saxby Lighting

Saxby Lighting Islay 68784 Handbuch

LIGMAN

LIGMAN EU-10016-3 Bedienungsanleitung

Cooper Lighting

Cooper Lighting McGraw-Edison ZD Credenza Bedienungsanleitung

LIGMAN

LIGMAN KI-60475 Bedienungsanleitung

Cooper Lighting

Cooper Lighting Generation CLB25MWW5C373 Bedienungsanleitung

Malibu Boats

Malibu Boats CL905K Bedienungsanleitung

LIGMAN

LIGMAN NYB-30161 Bedienungsanleitung

LIGMAN

LIGMAN SI-80021 Bedienungsanleitung

Volt

Volt 2-in-1 Tiki-Brass Torch Light Bedienungsanleitung

Malibu Boats

Malibu Boats CM110P Bedienungsanleitung
