Anago KST Series Bedienungsanleitung

OPERATING MANUAL

ANAGO Knife Sharpness Tester (KST) Series

KST200e Standard

KST300e Standard

Version 5.0

April 2021

WARRANTY INFORMATION

Anago warrants that the products supplied are fit for purpose and free from defects for a period of

twelve (12) months from the date of delivery.

All other guarantees, warranties and representations in relation to the products or their supply implied

by law or otherwise are excluded except to the extent that Anago cannot lawfully exclude them.

Anago will not be liable, whether pursuant to this warranty or otherwise;

a. For any direct or indirect consequential loss (including loss of business or profits) incurred by

the customer, as a result of breach of the warranty or any defect in the product;

b. For fair wear and tear or wilful or accidental damage to the product;

c. For any damage cause by abnormal use or failure to properly maintain or service the product.

Anago’s liability to the customer, whether pursuant to this warranty or otherwise, is limited to the

value of the product and Anago may, at its option, either:

a. Repair any defective product; or

b. Replace any defective product; or

c. Pay to the customer the price the customer paid to Anago for the product.

Anago will not have any liability to the customer, whether pursuant to this warranty or otherwise, or

any defect in the product or other claim unless:

a. The customer notifies Anago of the defect or claim within 14 days of the customer becoming

aware of the defect or claim; and

b. The customer allows Anago to fully investigate the defect or claim.

DO NOT RETURN THIS PAGE TO ANAGO

Please fill in the fields below and retain with your purchase documentation for reference purposes.

Model No. _______________________

Serial No. _______________________

Date of Purchase _______________________

FOR ALL PRODUCT AND WARRANTY ENQUIRIES

EMAIL [email protected]

CONTENTS

Frequently Asked Questions .................................................................................................................. 3

1. Introduction .................................................................................................................................... 5

Anago Limited ......................................................................................................................... 5

Safety ...................................................................................................................................... 6

2. Initial setup ..................................................................................................................................... 6

Software Installation ............................................................................................................... 6

Test Media .............................................................................................................................. 7

Connecting to a PC or Laptop ................................................................................................. 8

Operating Modes .................................................................................................................... 8

Calibration ............................................................................................................................... 9

Operation ...................................................................................................................................... 12

3.1. Basic Operations ................................................................................................................... 12

3.2. Keypad Functions .................................................................................................................. 13

3.3. Rapid Clamp .......................................................................................................................... 14

3.4. Running a Test ....................................................................................................................... 16

Test Results ................................................................................................................................... 18

4.1. PC Mode ................................................................................................................................ 18

4.2. Stand-Alone Mode ................................................................................................................ 21

Data management ........................................................................................................................ 22

5.1. Viewing Previous Results ...................................................................................................... 22

5.2. Editing Test Information ....................................................................................................... 24

5.3. Exporting Test Results ............................................................................................................. 0

5.4. Backing up, Restoring and Importing Data ........................................................................... 25

Troubleshooting and maintenance .............................................................................................. 26

6.1. Caring for Your Machine ....................................................................................................... 26

6.2. Spare Parts ............................................................................................................................ 27

6.3. Software Updates ................................................................................................................. 27

6.4. Machine Components ........................................................................................................... 28

6.5. Specifications ........................................................................................................................ 30

FREQUENTLY ASKED QUESTIONS

How do I set up the Knife Sharpness Tester?

 We supply a laminated A3 Quick Start Guide with pictures and simple-to-follow

instructions. Follow this guide for initial setup.

 We recommend establishing an in-house Anago Champion. This person can be trained

at the commissioning session and becomes a key contact for our Service Technician.

How do I get the best results from our knife testing?

 Each test will provide an immediate visual result on the sharpness of the knife.

 Connect the KST to a PC with the included PC software, this will allow you to save the

test data for further analysis.

 Most sites choose to use Anago Analytics that allows individuals/ shifts/ plants the

ability to develop a more in depth understanding of how knife sharpness is progressing

corresponding to productivity/safety intentions within the organization.

What is included with my Sharpness Tester?

 Knife Sharpness Tester

 Operating Manual

 USB Cable

 Power Cable

 Quick Start Guide

 Calibration Mass

 USB flash drive (with included software and manuals)

 Access to Service Support line.

 1-year warranty against any manufacturing defects.

What are the ongoing operational costs?

 Anago Test Media consumable is required to run tests. One box of Test Media (5 rolls)

will run approximately 625 tests, depending on knife length (approx. 125 tests per roll).

 Anago’s optional online Analytics has a monthly subscription cost per site.

 For US-based customers, we recommend an annual ½ day onsite visit from our Service

Technician (flat rate of USD$500, plus travel costs, plus any parts not covered by

warranty).

 Anago genuine Test Media will ensure your machine runs efficiently and can be

purchased from [email protected].

Who do I talk to when I have a problem?

 We have a dedicated support line directly to the engineers. This can be done through

email ([email protected]) or by skype/ phone 352-397 2858.

 For US-based customers, we also have our service technician based in Missouri for site

visits. He can spend time with your Anago Champions, diagnosing issues, completing

service work and helping to train employees in sharpness management.

 Check out our YouTube channel for frequently requested video tutorials

Can I get a Technician to visit?

 Please contact our support team at [email protected] to see if there is an available

technician in your area.

1. INTRODUCTION

Thank you for buying an Anago Knife Sharpness Tester.

You now own the world’s best system for accurately, objectively and repeatedly testing and

auditing blade sharpness.

Sharp blades can be dangerous when handled without cut-resistant or cut-proof gloves.

With the Anago KST200e and KST300e series of sharpness analyzers you can now;

 Test and record the sharpness of blades

 Evaluate edge life

 Analyze and compare blade sharpness between people, departments and facilities

 Graph sharpness results in an easy-to-read format

 Export sharpness test results

 Control the quality of sharpness at your facility

Anago Limited

Anago Limited is a technology company based in Hamilton, New Zealand. Established in 2001, Anago

specializes in products that improve safety and production performance, primarily in the food

processing industry. Anago invented and commercialized the world’s leading knife sharpness testing

technology.

Anago Knife Sharpness Testers (KST’s) have been instrumental in the improvement of knife sharpness

levels and the optimization of sharpening methods throughout the United States, Australasia, and

Europe. Within food processing companies, these improvements have directly resulted in increases

in production yield and output as well as reduced musculoskeletal disorders amongst workers.

Anago also provides customised sharpness testing technology and consulting services to specialist

blade manufacturers (including the medical industry), processors and researchers.

Anago knife and blade sharpness testing technology is represented and serviced globally by Anago

direct and through a distributor and service agent network. Please contact Anago to find your nearest

representative.

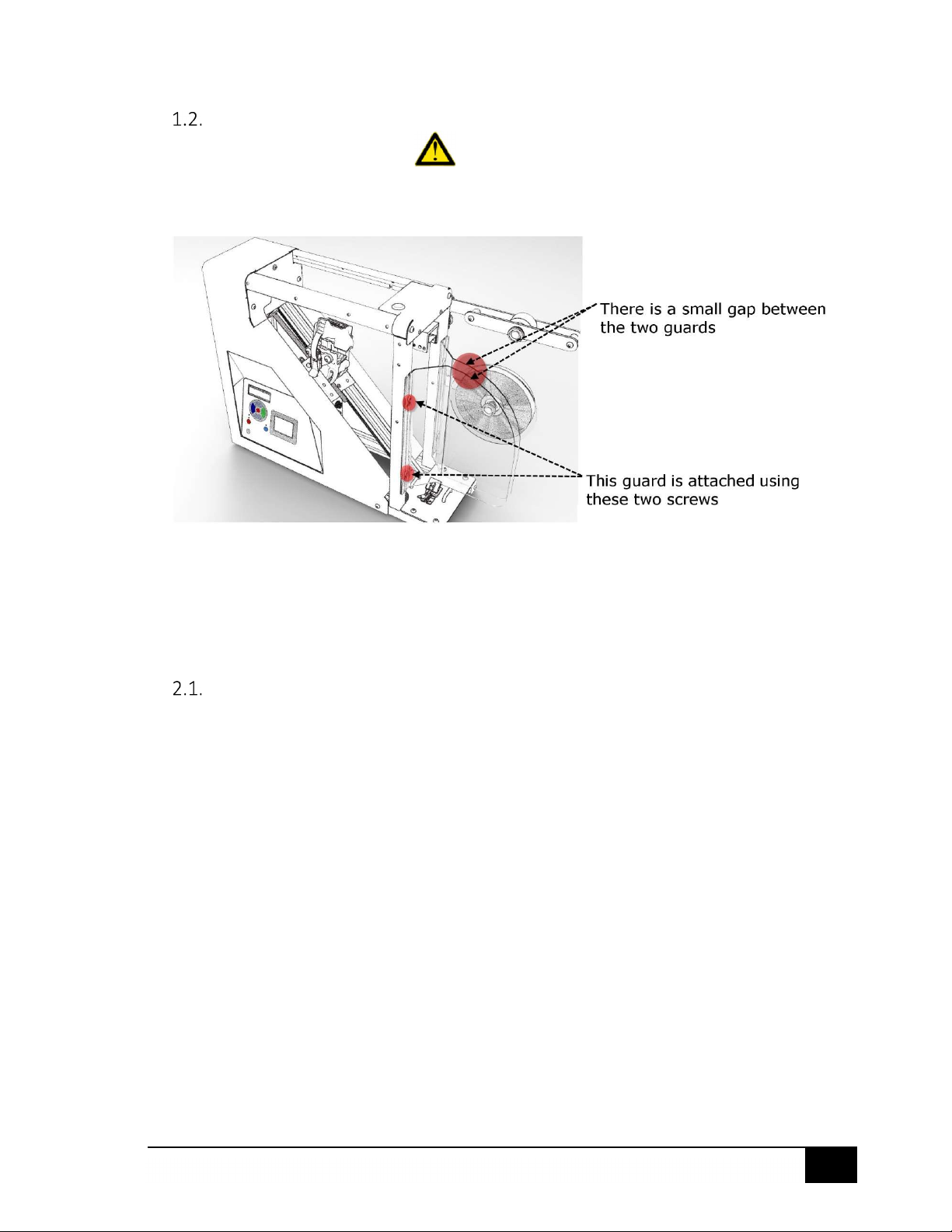

Safety

IMPORTANT

It is highly recommended that the operator wears appropriate cut-resistant or chain mail gloves

when loading and unloading blades into the Anago KST.

Keep the guard screen installed securely during use.

At all times, ensure care is taken

when handling blades.

2. INITIAL SETUP

Software Installation

 Ensure you are logged on with a username that has administrator privileges. This must be

done before new programs can be installed

 Plug the provided Anago USB flash drive into a USB port on the PC / Laptop



The setup program should run automatically. If it doesn’t, navigate to the Anago KST

Setup.exe file. Right-click and choose “Run as administrator”

 Follow all prompts from the installation guide

 After Installation, select the program from the Start Menu: AnagoSharp

 You will be prompted to install a license – this is the license.xml file on the supplied USB. If

you already own a KST, fill out the information to receive a license

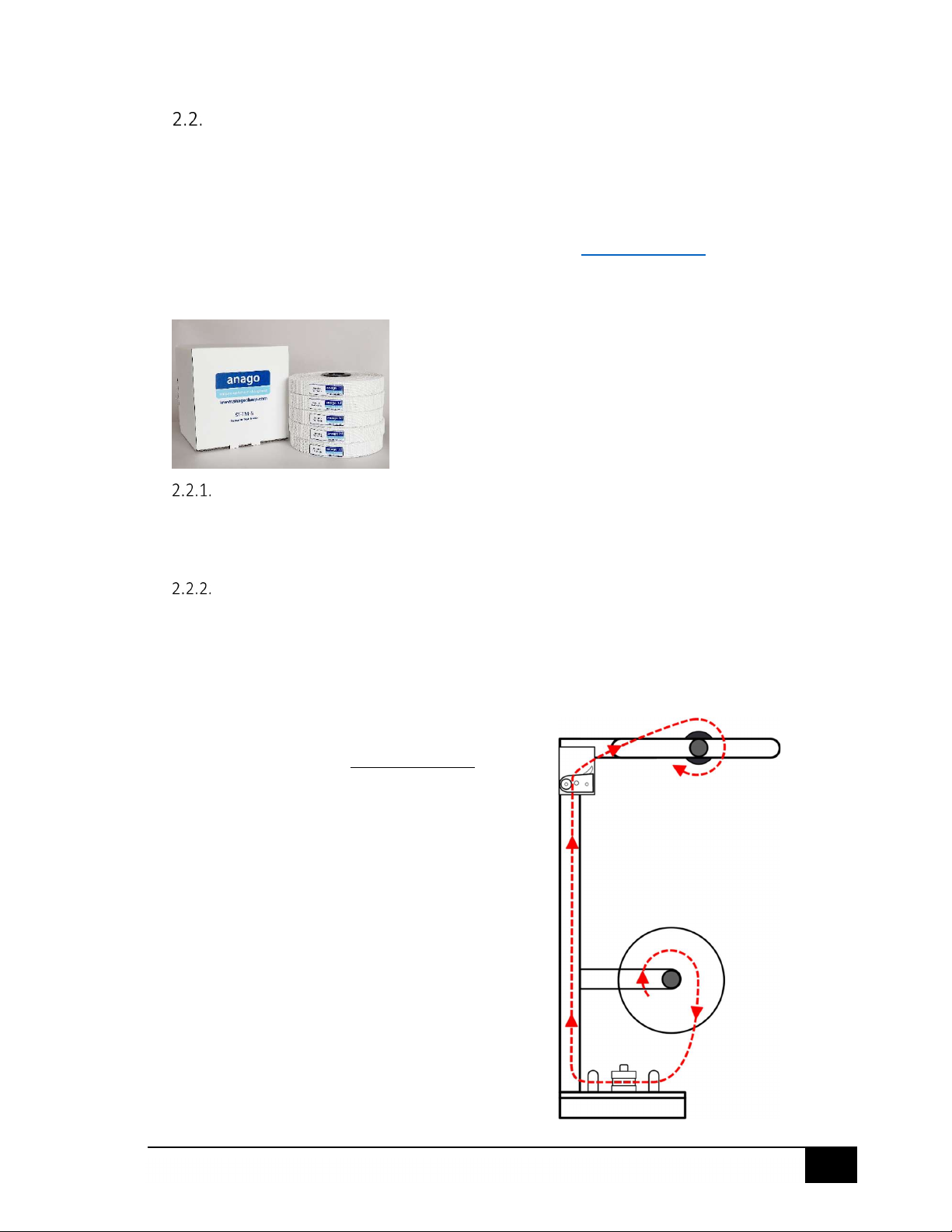

Test Media

The Anago KST comes with ST-TM-5 Sharpness Test Media already loaded.

To ensure the best results, always operate your KST with genuine Anago test media. Other

counterfeit brands have been shown to cause inconsistencies and errors while tensioning, leading

to less accurate results. All purchase orders should go through [email protected].

Name: Anago Sharpness Test Media (box of 5 rolls)

Part Code: ST-TM-5

Removing the used roll of test media

 Remove the top and bottom brackets

 Release the top self-locking clamp, remove the used test media and the black media core

 Remove the used fabric from the core. The core can now be reused

Loading the new roll of test media

 Take out the new test media roll and unwind about a meter of test media (sufficient that it

can be thread from bottom to top)

 Thread the new media through as shown in red

 At the top, insert the media into the perpendicular slot in the black media core

 Re-attach the top and bottom brackets

Ensure the media is loaded in a clockwise direction on the top

roller.

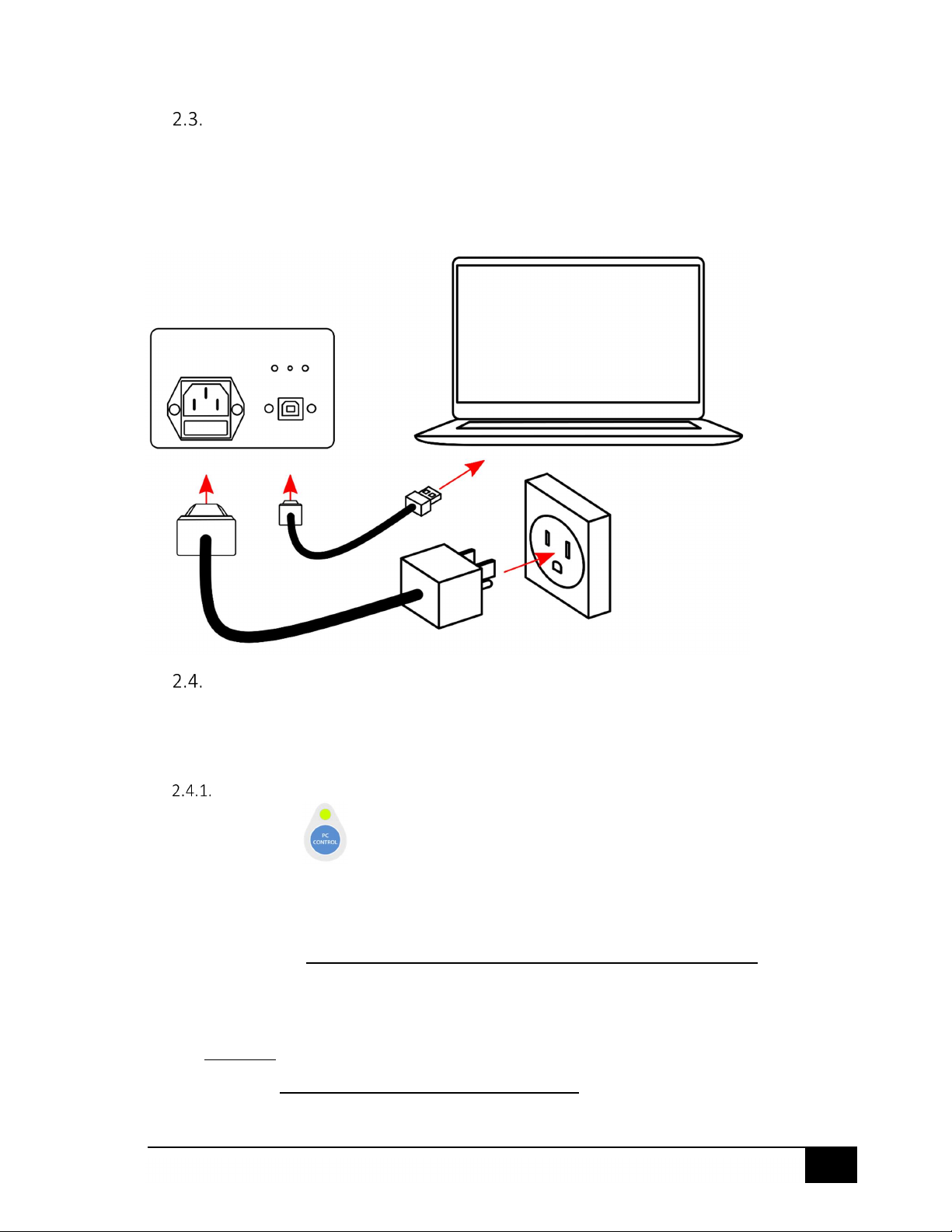

Connecting to a PC or Laptop

Connect the KST as follows:

 USB (Type A) male into an available USB port on the laptop / PC

 USB (Type B) male into the USB port on the side of the KST

Operating Modes

The Anago KST has two operating modes: PC-Control mode and Local mode. These modes have

different functions to fulfil different requirements.

Switching between PC-Control and Local Modes

Press the PC CONTROL button on the keypad to switch between operating modes.

The PC-Control indicator will light up when the KST is in PC Control Mode.

When in Local (Manual) Mode:

 The KST will not respond to any motion commands from an attached PC / Laptop.

 All motion control (including running a test) will need to be performed on the keypad

 The KST will calculate the score locally and display the results on the LED display screen

 The LCD display will show “Manual” at the bottom right hand corner

When in PC-Control Mode:

 The KST can be controlled by an attached PC / Laptop, or by the keypad

 The KST will not calculate or display the score locally

 Test results will be transferred to the connected PC

 The LCD display will show “PC-Ctrl” at the bottom right hand corner

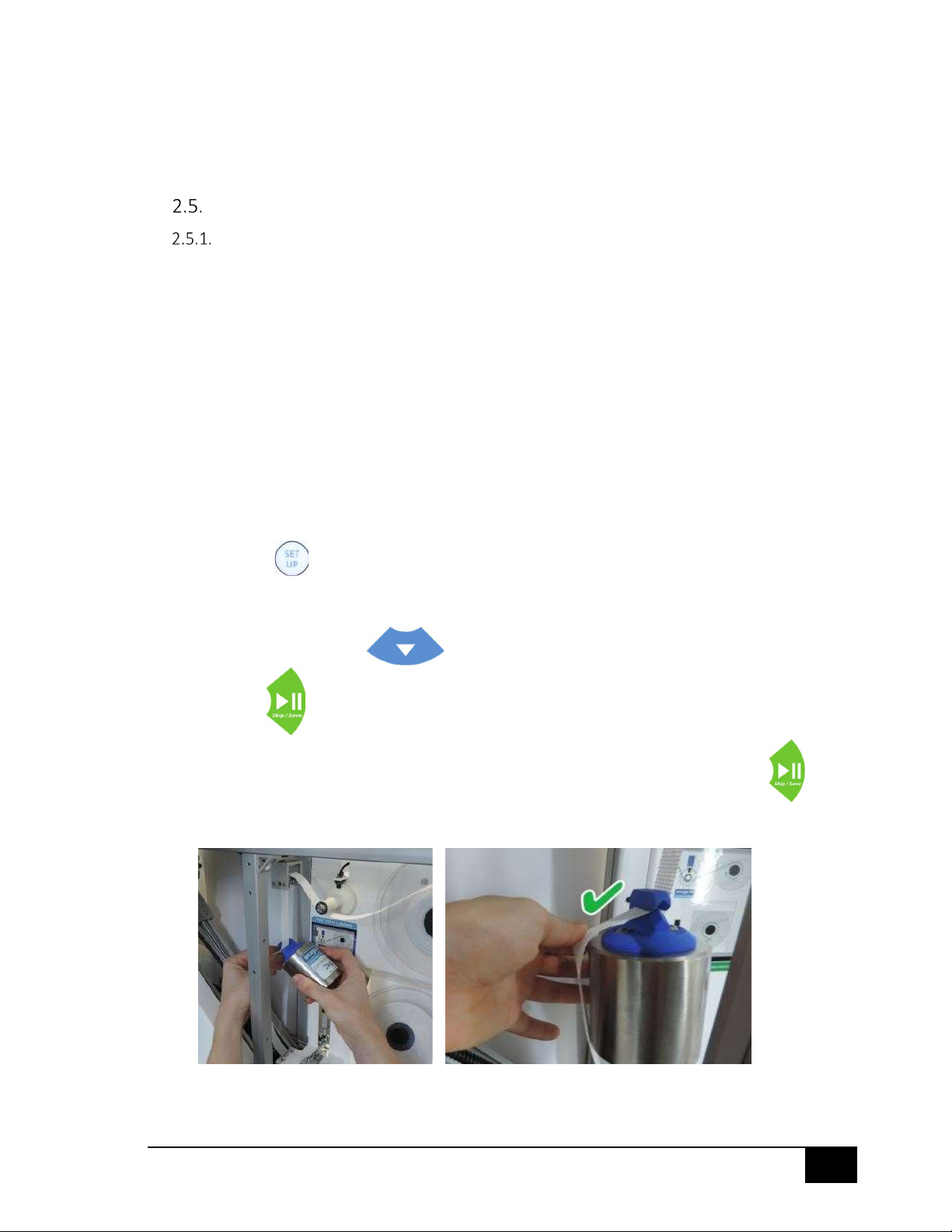

Calibration

Load Cell Calibration

The calibration process requires the use of the standard 2kg calibration mass shipped with the Anago

KST.

Calibration

Calibration is performed by Anago prior to shipment; however, we recommend recalibrating:

 Before using the KST for the first time

 Every 1 to 2 weeks during normal operations

 Whenever the KST200e/300e may have suffered significant vibration (e.g. during transport or

from a knock)

 After particularly blunt knives have been tested

Setting Calibration

 Turn the KST on using the Power button

 Ensure the guards are closed

 Press Setup on the keypad

 Check that the LCD screen displays ‘Setup Menu’

 Press Down until the screen displays ‘Calibration’

 Press Run to select ‘OK’ and enter into the calibration sub-menu

 Ensure the test media is loose and with the screen displaying ’Zero Load’ press the Run

button to save the new “Zero Load” calibration setting

 With the screen displaying ‘2kg Load’, hang the calibration mass onto the test media

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere anago Prüfgeräte Handbücher

anago

anago TST Series Bedienungsanleitung

Beliebte Prüfgeräte Handbücher anderer Marken

SMART

SMART KANAAD SBT XTREME 3G Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies BERT Serial Bedienungsanleitung

Agilent Technologies

Agilent Technologies N3280A Bedienungsanleitung

Vernier

Vernier Go Direct Voltage Bedienungsanleitung

Lifeloc

Lifeloc R.A.D.A.R. Bedienungsanleitung

Fluke

Fluke T5-600 Bedienungs- und Montageanleitung

Mercury

Mercury TSL01 Bedienungsanleitung

MAHA

MAHA MBT Series Bedienungsanleitung

Fuji Electric

Fuji Electric P-61 Bedienungsanleitung

ETC

ETC SealerAtor Bedienungsanleitung

Skyfine

Skyfine ETHYWAY V2 Bedienungsanleitung

Appion

Appion G5 Twin Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 8159-0112A Bedienungsanleitung

BW Technologies

BW Technologies MicroDock II Bedienungsanleitung

Sun Nuclear

Sun Nuclear 1027 Bedienungsanleitung

Biomark

Biomark HPR LITE READER Bedienungsanleitung

Hioki

Hioki 3169-20 Bedienungsanleitung

Ashcroft

Ashcroft ATE-100 Bedienungsanleitung

anago KST Series Bedienungsanleitung

Beliebte Prüfgeräte Handbücher anderer Marken
