ADIS16COM1/PCBZ Breakout Board Wiki Guide

OVERVIEW

The ADIS16COM1/PCBZ provides a breakout function for the ADIS16000CMLZ, which pairs with the

ADIS16229AMLZ to provide the sensor, signal processing and transceiver function for a wireless

vibration sensing system.

Here is a picture of the contents that come with the ADIS16COM1/PCBZ.

ADIS16COM1/PCBZ MOUNTING HOLES

The ADIS16COM1/PCBZ provides 4 mounting holes that line up with mounting “A” Labeled holes on

the EVAL-ADIS and supports the following products: ADIS16000AMLZ ADIS16229AMLZ products.

Please see the following picture for device mounting hole locations.

Rev 29 Aug 2013 21:21 | Page 2

EVAL-ADIS Mounting

Use the M2x0.4x6mm machine screws (provided in pink bag ANALOGKIT2) for mounting the

ADIS16COM1/PCBZ to the EVAL-ADIS and set their torque for 20 inch-ounces. The red-highlights in the

top-view picture illustrate the location of the mounting holes.

ADIS16000 Mounting on ADIS16COM1/PCBZ

Use the M3x0.5x12mm machine screws and M3x.5x Hex nuts with the M3 washers optional(provided

in pink bag ANALOGKIT2) for mounting ADIS16000AMLZ product to the ADIS16COM1/PCBZ and set

their torque for 20 inch-ounces. The red-highlights in the top-view picture illustrate the location of the

mounting holes for these products. Attach the 16 pin ribbon cable included with the EVAL-ADIS to

connect the J1 connectors. For high-vibration environments, consider using more than 2 screws, per

AN-1045

Rev 29 Aug 2013 21:21 | Page 3

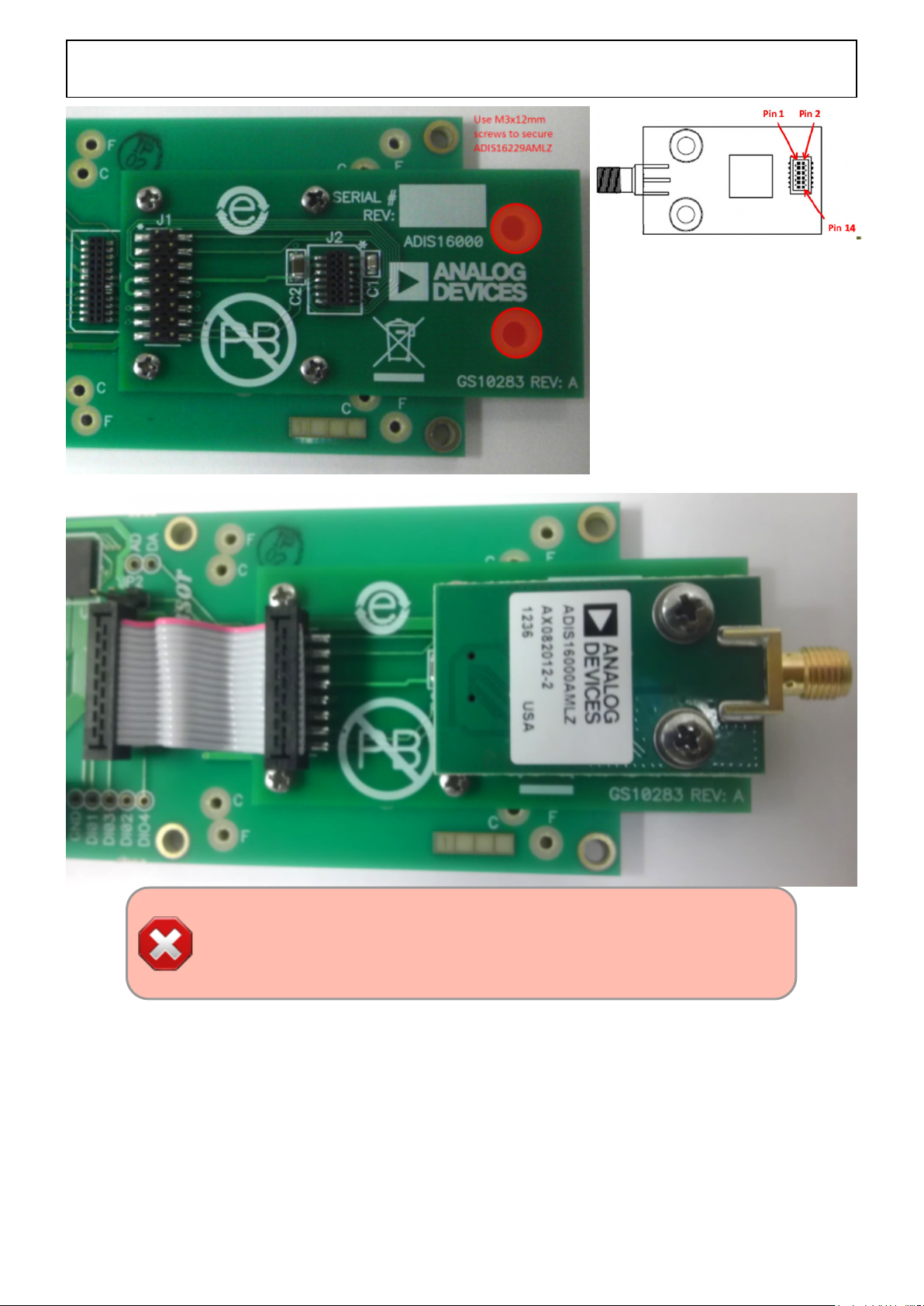

WARNING: Make sure that the connector pins are in alignment with J1 on the

EVAL-ADIS and J1 on the ADIS16COM1/PCBZ, before pressing it into place.

Rev 29 Aug 2013 21:21 | Page 4

Here is a close-up view, which shows a few slides of the correct connector alignment .

Rev 29 Aug 2013 21:21 | Page 5
