EV-SC594-SOM ® Manual

Revision 1.0, April 2021

Part Number

82-EV-SC594-SOM-01

Analog Devices, Inc.

One Technology Way

Norwood, MA 02062-9106

without prior, express written consent from Analog Devices, Inc.

Disclaimer

Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Ana-

log Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its

use; nor for any infringement of patents or other rights of third parties which may result from its use. No license is

granted by implication or otherwise under the patent rights of Analog Devices, Inc.

Trademark and Service Mark Notice

The Analog Devices logo, Blackfin, Blackfin+, SHARC, SHARC+, CrossCore, VisualDSP++, EZ-KIT, EZ-Extend-

er, and EngineerZone are registered trademarks of Analog Devices, Inc.

All other brand and product names are trademarks or service marks of their respective owners.

Regulatory Compliance

The EV-SC594-SOM evaluation board is designed to be used solely in a laboratory environment. The board is not

intended for use as a consumer-end product or as a portion of a consumer-end product. The board is an open sys-

tem design, which does not include a shielded enclosure and, therefore, may cause interference to other electrical

devices in close proximity. This board should not be used in or near any medical equipment or RF devices.

The EV-SC594-SOM evaluation board contains ESD (electrostatic discharge) sensitive devices. Electrostatic charges

readily accumulate on the human body and equipment and can discharge without detection. Permanent damage may

occur on devices subjected to high-energy discharges. Proper ESD precautions are recommended to avoid perform-

ance degradation or loss of functionality. Store unused boards in the protective shipping package.

EV-SC594-SOM ® Manual ii

Contents

Preface

Purpose of This Manual................................................................................................................................. 1–1

Manual Contents ........................................................................................................................................... 1–1

Technical Support.......................................................................................................................................... 1–2

Supported Integrated Circuit ......................................................................................................................... 1–2

Supported Tools............................................................................................................................................. 1–3

Product Information...................................................................................................................................... 1–3

Analog Devices Website.............................................................................................................................. 1–3

EngineerZone ............................................................................................................................................. 1–3

Using the Board

Product Overview .......................................................................................................................................... 2–1

Package Contents........................................................................................................................................... 2–3

Default Configuration ................................................................................................................................... 2–3

CrossCore Embedded Studio (CCES) Setup .................................................................................................. 2–4

Debug Interface ............................................................................................................................................. 2–4

Board Power .................................................................................................................................................. 2–4

Power-On-Self Test........................................................................................................................................ 2–5

Example Programs ......................................................................................................................................... 2–5

Reference Design Information ....................................................................................................................... 2–5

IS25LP512M - 512M-bit Serial Flash Memory with Dual and Quad SPI ..................................................... 2–5

IS25LX256 - 256M-bit Serial Octal Flash Memory ....................................................................................... 2–6

IS43TR16512BL - 1Gx8, 512Mx16 8Gb DDR3 SDRAM ...........................................................................2–6

LT8636 - 42V, 5A/7A Peak Synchronous Step-Down Silent Switcher with 2.5µA Quiescent Current .......... 2–7

LTC3307A - 5V, 3A Synchronous Step-Down Silent Switcher in 2mm × 2mm LQFN ................................. 2–7

LTC3310S - 5V, 10A Synchronous Step-Down Silent Switcher 2 in 3mm × 3mm LQFN ............................ 2–8

ADP151 - Ultralow Noise, 200 mA, CMOS Linear Regulator ..................................................................... 2–8

EV-SC594-SOM ® Manual iii

STUSB4500 - USB 3.0 Power Delivery......................................................................................................... 2–9

Hardware Reference

System Architecture ....................................................................................................................................... 3–1

Software-Controlled Switches (SoftConfig).................................................................................................... 3–2

Overview of SoftConfig.............................................................................................................................. 3–3

SoftConfig on the Board............................................................................................................................. 3–6

Programming SoftConfig Switches............................................................................................................. 3–6

Switches......................................................................................................................................................... 3–9

Boot Mode Select ( SW1 )........................................................................................................................... 3–9

Reset Pushbutton ( SW2 )......................................................................................................................... 3–10

Jumpers ....................................................................................................................................................... 3–10

Power ( JP1 )........................................................................................................................................... 3–10

LEDs ........................................................................................................................................................... 3–10

Fault ( LED1 ) .......................................................................................................................................... 3–11

Power ( LED3 ) ........................................................................................................................................ 3–11

GPIO ( LED2, LED4, LED5 ) ............................................................................................................ 3–11

Reset ( LED6 ).......................................................................................................................................... 3–12

Connectors .................................................................................................................................................. 3–12

JTAG ( P1 ).............................................................................................................................................. 3–13

MicroUSB Connector ( ) .......................................................................................................................... 3–13

USB Type C Connector ( P3 ).................................................................................................................. 3–14

SoM Interface Connection ( J1,J2 and J3 )...................................................................................... 3–14

iv EV-SC594-SOM ® Manual

1 Preface

Thank you for purchasing the Analog Devices, Inc. System-on-Module (SoM) EV-SC594-SOM evaluation board.

The EV-SC594-SOM primarily hosts the ADSP-SC594 audio processor, 8 Gbit of ISSI DDR3 memory, a 512 Mbit

Quad SPI FLASH, voltage regulation, a FTDI UART to USB interface, and a high speed external connector array

that contains all of the peripheral I/O signals. Through the high speed external connector array, the EV-SC594-SOM

is intended for use with a growing family of SoM carrier products that contain a variety of peripherals to support

different applications. The SoM carrier base products that exist today are the EV-SOMCRR-EZKIT and EV-

SOMCRR-AUTO .

The CrossCore Embedded Studio®(CCES) software development tool chain is required for a full evaluation of this

hardware platform. The EV-SC594-SOM can also be used in a limited standalone mode while not plugged into a

SoM Carrier such as the EV-SOMCRR-EZKIT or EV-SOMCRR-AUTO . The standalone mode is useful for evaluat-

ing the CCES Software Development Tools and benchmarking software algorithms that do not require peripheral

I/O.

The evaluation board is designed to be used in conjunction with the CrossCore Embedded Studio®2.10.0+ devel-

opment environment for advanced application code development and debug, with features that enable the ability to:

•Create, compile, assemble, and link application programs written in C++, C, and assembly

•Load, run, step, halt, and set breakpoints in application programs

•Read and write data and program memory

•Read and write core and peripheral registers

Purpose of This Manual

This manual provides instructions for installing the product hardware (board). This manual describes operation and

configuration of the board components and provides guidelines for running code on the board.

Manual Contents

The manual consists of:

•Using the board

Preface

EV-SC594-SOM ® Manual 1–1

Provides basic board information.

•Hardware Reference

Provides information about the hardware aspects of the board.

•Bill of Materials

A companion file in PDF format that lists all of the components used on the board is available on the website

at http://www.analog.com/EV-SC594-SOM .

•Schematic

A companion file in PDF format documenting all of the circuits used on the board is available on the website

at http://www.analog.com/EV-SC594-SOM .

Technical Support

You can reach Analog Devices technical support in one of the following ways:

•Post your questions in the processors and DSP support community at EngineerZone®:

http://ez.analog.com/community/dsp

•Submit your questions to technical support directly at:

http://www.analog.com/support

•E-mail your questions about processors, DSPs, and tools development software from CrossCore Embedded Stu-

dio or VisualDSP++®:

If using CrossCore Embedded Studio or VisualDSP++ choose Help > Email Support. This creates an e-mail to

processor[email protected] and automatically attaches your CrossCore Embedded Studio or Visu-

alDSP++ version information and license.dat file.

•E-mail your questions about processors and processor applications to:

processor[email protected]

•Contact your Analog Devices sales office or authorized distributor. Locate one at:

http://www.analog.com/adi-sales

Supported Integrated Circuit

This evaluation system supports the Analog Devices ADSP-SC594 IC.

Technical Support

1–2 EV-SC594-SOM ® Manual

Supported Tools

Information about code development tools for the EV-SC594-SOM evaluation board and ADSP-SC59x product

family is available at:

http://www.analog.com/EV-SC594-SOM

Product Information

Product information can be obtained from the Analog Devices website and the online help system.

Analog Devices Website

The Analog Devices website, http://www.analog.com, provides information about a broad range of products - ana-

log integrated circuits, amplifiers, converters, transceivers, and digital signal processors.

To access a complete technical library for each processor family, go to http://www.analog.com/processors/techni-

cal_library. The manuals selection opens a list of current manuals related to the product as well as a link to the

previous revisions of the manuals. When locating your manual title, note a possible errata check mark next to the

title that leads to the current correction report against the manual.

Also note, MyAnalog.com is a free feature of the Analog Devices website that allows customization of a web page to

display only the latest information about products you are interested in. You can choose to receive weekly e-mail

notifications containing updates to the web pages that meet your interests, including documentation errata against

all manuals. MyAnalog.com provides access to books, application notes, data sheets, code examples, and more.

Visit MyAnalog.com to sign up. If you are a registered user, just log on. Your user name is your e-mail address.

EngineerZone

EngineerZone is a technical support forum from Analog Devices, Inc. It allows you direct access to ADI technical

support engineers. You can search FAQs and technical information to get quick answers to your embedded process-

ing and DSP design questions.

Use EngineerZone to connect with other DSP developers who face similar design challenges. You can also use this

open forum to share knowledge and collaborate with the ADI support team and your peers. Visit http://

ez.analog.com to sign up.

Supported Tools

EV-SC594-SOM ® Manual 1–3

2 Using the Board

This chapter provides information on the major components and peripherals on the board, along with instructions

for installing and setting up the emulation software.

Product Overview

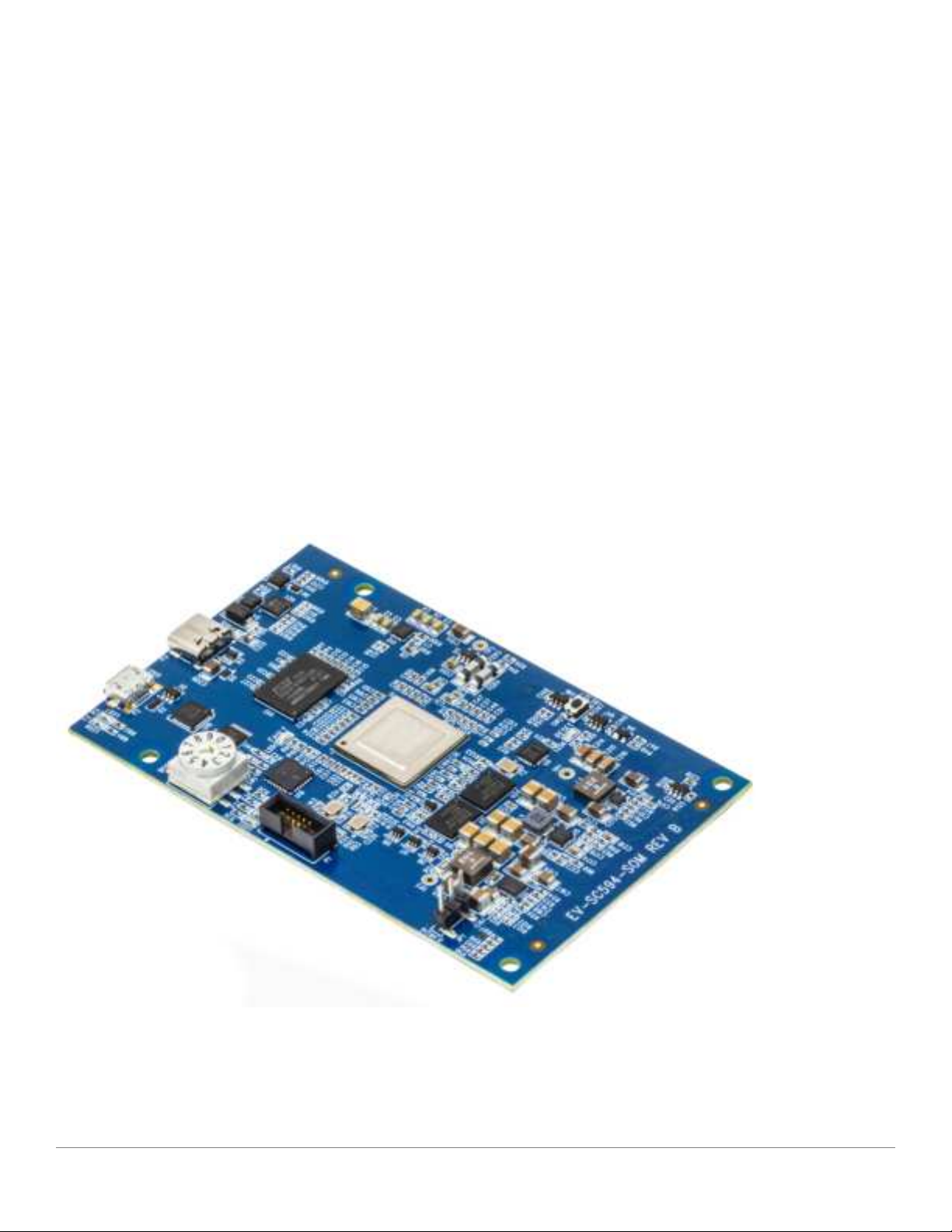

Below is an image of the EV-SC594-SOM board.

Figure 2-1: Board View

The board features:

Using the Board

EV-SC594-SOM ® Manual 2–1

•Analog Devices ADSP-SC594 processor

•Dual SHARC+ Cores

•ARM A5 Core

•400 ball BGA

•25 MHz oscillator

•DDR3 Memory

•512Mx16 bit (8Gbit )

•ISSI IS43TR16512BL-125KBL

•1.35V

•SPI Flash Quad (SPI2) Memory

•512Mbit

•ISSI IS25LP512M - 512M-bit Serial Flash Memory with Dual and Quad SPI

•Single/Dual/Quad SPI

•SPI Flash Octal (OSPI) Memory

•256Mbit

•ISSI IS25LX256 - 256M-bit Serial Octal Flash Memory

•Single/Octal SPI

•Debug Interface (JTAG)

•JTAG 10-pin 0.05” header

•LEDs

•Eight LEDs: one power (green), one board reset (red), three general-purpose (amber), one fault (red) and

two UART leds (amber)

•Pushbuttons

•One pushbutton, RESET

•SoM Interface Connector

•DAI

•SPORT

•SPI

•UART

Product Overview

2–2 EV-SC594-SOM ® Manual

•TWI

•Link Port

•GPIO

•MLB

•RESET

•GND/3.3V/5V/12V output

Package Contents

Your EV-SC594-SOM package contains the following items.

•EV-SC594-SOM board

Contact the vendor where you purchased your EV-SC594-SOM evaluation board or contact Analog Devices, Inc. if

any item is missing.

Default Configuration

The EV-SC594-SOM board is designed to run as a standalone unit.

The Default Hardware Setup figure shows the default settings for jumpers and switches and the location of the

jumpers, switches, connectors, and LEDs. Confirm that your board is in the default configuration before using the

board.

Default Config

Package Contents

EV-SC594-SOM ® Manual 2–3

Inhaltsverzeichnis

Andere Analog Devices Hauptplatine Handbücher

Analog Devices

Analog Devices AD9694 Administratorhandbuch

Analog Devices

Analog Devices EVAL-ADAQ4001 Bedienungsanleitung

Analog Devices

Analog Devices EV-ADF4356SD1Z Bedienungsanleitung

Analog Devices

Analog Devices ADSP-BF535 EZ-KIT Lite Bedienungsanleitung

Analog Devices

Analog Devices EVAL-AD5678DBZ Bedienungsanleitung

Analog Devices

Analog Devices DC2874A-A Kurzanleitung zur Einrichtung

Analog Devices

Analog Devices ADRF5515A-EVALZ Bedienungsanleitung

Analog Devices

Analog Devices EVAL-AD2437A1MZ Bedienungsanleitung

Analog Devices

Analog Devices ADF4355-2SD1Z Bedienungsanleitung

Analog Devices

Analog Devices EVAL-ADXRS290Z-M Bedienungsanleitung

Analog Devices

Analog Devices ADuC7026 Bedienungsanleitung

Analog Devices

Analog Devices iCoupler ADuM6010EBZ Bedienungsanleitung

Analog Devices

Analog Devices ADP5588 Bedienungsanleitung

Analog Devices

Analog Devices ADSP-21369 EZ-KIT Lite Bedienungsanleitung

Analog Devices

Analog Devices ADP5350CP-EVALZ Bedienungsanleitung

Analog Devices

Analog Devices ADXRS800 Bedienungsanleitung

Analog Devices

Analog Devices EVAL-ADMV4640 Bedienungsanleitung

Analog Devices

Analog Devices AD8338-EVALZ Bedienungsanleitung

Analog Devices

Analog Devices UG-189 Bedienungsanleitung

Analog Devices

Analog Devices EVAL-AD7766EDZ Bedienungsanleitung

Analog Devices

Analog Devices EVAL-ADN4693E-1 Bedienungsanleitung

Analog Devices

Analog Devices DC2875A Kurzanleitung zur Einrichtung

Analog Devices

Analog Devices EVAL-ADV8005-SMZ v Bedienungsanleitung

Analog Devices

Analog Devices UG-061 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
