DEMO MANUAL DC2583A

Description

LT4294, LT4321

IEEE 802.3bt Powered Device

Demonstration circuit 2583 is an IEEE802.3bt (Draft 2.3)

compliant Power over Ethernet (PoE) powered device

(PD). It features the LT

4294 PD interface controller and

the LT4321 PoE ideal diode bridge controller.

The LT4294 provides IEEE 802.3af (PoE, Type 1),

IEEE802.3at (PoE+, Type 2) and IEEE802.3bt (PoE++,

Type 3 and 4) compliant interfacing. It utilizes an external,

low RDS(ON) (57mΩ typical) N-channel FET for the hot

swap function to improve efficiency. Additional features

include power good (PWRGD) and T2P output indica-

tors for interfacing with downstream electronics. The

PWRGD output indicates the PD controller is ready to

provide power to the downstream load. This signal can be

used to enable an isolated power supply. The T2P output

indicates the available power from the power sourcing

L, LT, LTC, LTM, Linear Technology, LTPoE++ and the Linear logo are registered trademarks of

Analog Devices, Inc. All other trademarks are the property of their respective owners.

BoarD photo

equipment (PSE) to the downstream load. This signal can

be used to limit the load and prevent overloading the PSE.

The LT4321 controls eight low RDS(ON) (57mΩ typical)

N-channel FETs to further improve end-to-end power

delivery efficiency and ease thermal design. This solu-

tion replaces the eight diodes typically found in a passive

PoE rectifier bridge.

The DC2583A accepts up to 71W of delivered power from

a PSE via the RJ45 connector (J1) or a local 48V DC

power supply using the auxiliary supply input. When both

supplies are connected, the auxiliary supply input has

priority over the PoE input.

Design files for this circuit board are available at

http://www.linear.com/demo/DC2583A

Top Side Bottom Side

dc2583af

DEMO MANUAL DC2583A

typical performance characteristics

Figure 1. Thermal Pictures (Conditions: VPORT = 41.2V, VOUT = 40.8V, IOUT = 1.72A)

Figure 2. Efficiency (End-to-End)

performance summary

Specifications are at TA= 25°C

PARAMETER CONDITIONS MIN TYP MAX UNITS

Port Voltage (VPORT) At RJ45 37 57 V

Auxiliary Voltage From AUX+ to AUX– Terminals 37 57 V

Efficiency VPORT = 48V, IOUT = 1.2A 99.2 %

T2P Switching Frequency 840 Hz

Top Side Bottom Side

LOAD CURRENT (A)

0.3

0.6

0.9

1.2

1.5

1.8

98.4

98.7

99.0

99.3

99.6

EFFICIENCY (%)

DC2583 F02

dc2583af

DEMO MANUAL DC2583A

Quick start proceDure

Power Over Ethernet (PoE) Input

1. Disconnect auxiliary supply if it is connected to AUX+

and AUX– inputs of the DC2583A.

2. Refer to Figure 3 to evaluate the DC2583A with a

DC/DC converter. If a resistive or an active load is

used to evaluate the DC2583A, use the setup diagram

as shown in Figure 4.

3. Default class shunt positions are at JP1 and JP2 on

the DC2583A board. Choose a power level from Table

1 and select the corresponding shunt positions.

Table 1. Single-Signature Classification Codes, Power

Levels and Jumper Selection

PD CLASS

ALLOCATED CLASS

POWER AT THE PD INPUT RCLASS JUMPERS

0* 13W JP1 JP2

1 3.84W JP3 JP4

2 6.49W JP5 JP6

3 13W JP7 JP8

4 25.5W JP9 JP10

5 40W JP11 JP12

6 51W JP13 JP14

7 62W JP15 JP16

8 71W JP17 JP18

*Class 0 is not defined for 802.3bt PDs.

4. Connect the output of the IEEE 802.3bt compliant PSE

(see note) to the RJ45 connector (J1) of the DC2583A

using a CAT5e or CAT6 Ethernet cable.

5. After connection has been established, verify that the

LED (D3) is lit. This indicates the PSE has successfully

detected and powered the PD.

6. Verify T2P response with a digital multimeter or an

oscilloscope. The T2P response for the type of PSE

connected to the DC2583A is provided in Table 2.

Note:An 802.3bt PSE has not yet been released. In

the interim, an LTPoE++

compliant PSE (DC1814A-D)

may be used to provide power to the DC2583A. The

LTPoE++ classification will not be 802.3bt compli-

ant, but the PSE will provide a compatible detection

and power output. Specifically, the T2P output of

the DC2583A is different from the behavior stated in

Table2 and will indicate connection to a Type 2 PSE.

Otherwise PD behavior will be unaffected.

Table 2. T2P Response

PSE T2P RESPONSE

NEGOTIATED PD

INPUT POWER

IEEE

Logic High 13W

Logic Low 25.5W

50% Logic High/50% Logic Low,

Toggle at 840Hz (typical)

51W

75% Logic High/25% Logic Low,

Toggle at 840Hz (typical)

71W

LTPoE++, 90W Logic Low 71W

dc2583af

DEMO MANUAL DC2583A

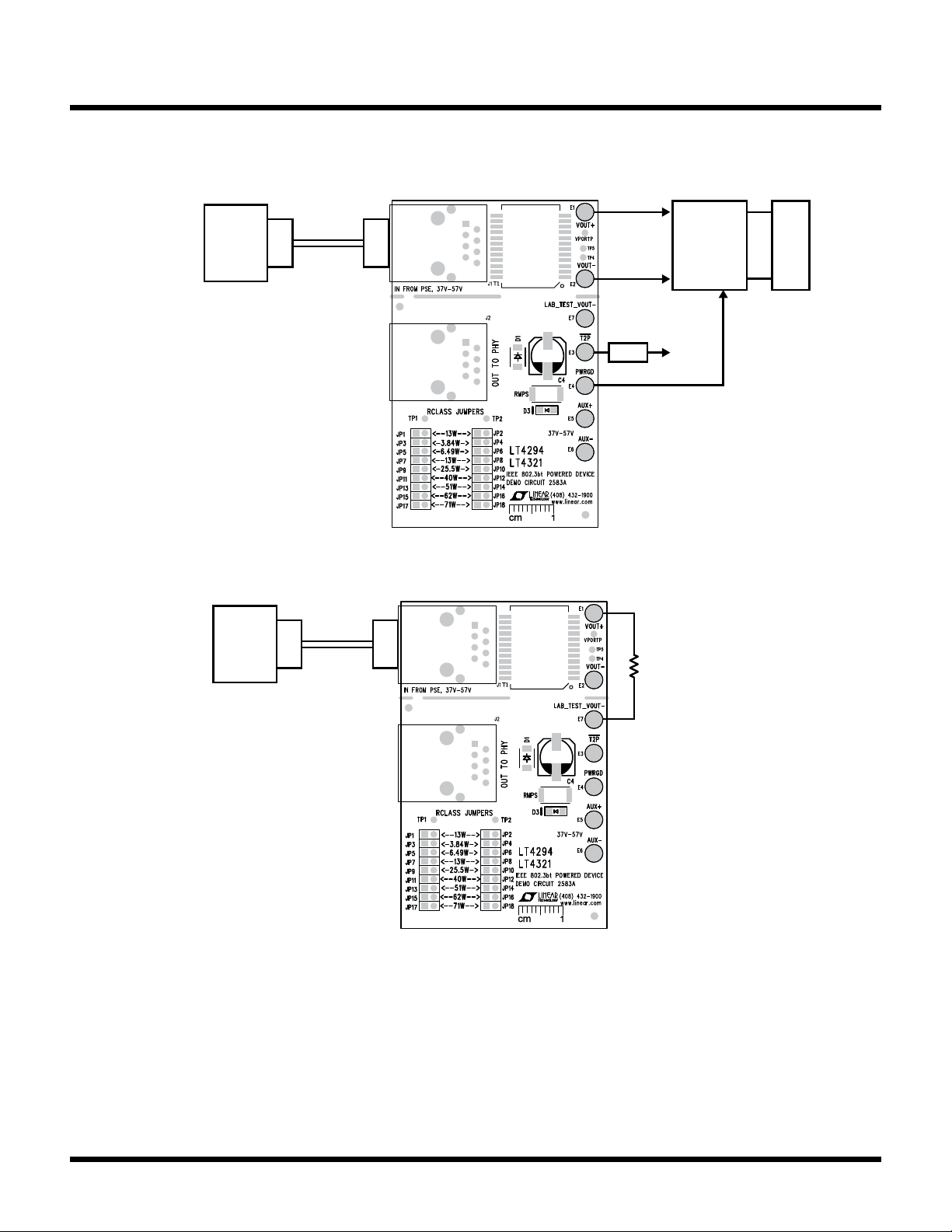

Figure 3. Setup Diagram for DC2583A with a DC/DC Converter, a Microprocessor and an IEEE 802.3bt PSE

Figure 4. Setup Diagram for DC2583A with a Resistive or an Active Load

Quick start proceDure

DC2583 F03

OPTO

IEEE 802.3bt

PSE LOAD

RJ45 RJ45

CAT5e

CAT6 CABLE

VIN

–ENABLE

PSE TYPE

(TO µP)

DC/DC

CONVERTER

DC2583 F04

IEEE 802.3bt

PSE

RJ45 RJ45

CAT5e

CAT6 CABLE

USE LAB_TEST_VOUT–

CONNECTION FOR

RESISTIVE OR ACTIVE LOAD

RESISTIVE OR

ACTIVE LOAD

dc2583af

DEMO MANUAL DC2583A

Quick start proceDure

Auxiliary Supply Input

1. Place and connect test equipment as shown in Figure 5.

2. Turn down the electronic load to a minimum value and

turn off the electronic load.

3. Connect the output of the auxiliary supply to the

DC2583A as shown in Figure 5. Turn on the auxiliary

supply and set its current limit to 2A. Then increase its

output voltage to 48V.

4. Once the LED (D3) on the DC2583A is lit, check the

output voltage using a voltmeter. Output voltage should

be within 37-57V.

5. Verify T2P response with an oscilloscope as shown

in Figure 5. The T2P response during auxiliary power

operation is provided in Table 3.

Figure 5. Setup Diagram for Auxiliary Supply Input

LOAD

DC2583 F05

OPTO

VIN

–

+AUXILIARY

DC POWER

SUPPLY

–

ENABLE

PSE TYPE

(TO µP)

DC/DC

CONVERTER

Table 3. T2P Response During Auxiliary Power Operation

PD CLASS T2P RESPONSE

0–4 Logic Low

5–8 75% Logic High/25% Logic Low,

Toggle at 840Hz (typical)

dc2583af

DEMO MANUAL DC2583A

parts list

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 2 C1, C5 CAP., 0.047µF, X7S, 100V, 10%, 0603 TDK, C1608X7S2A473K080AB

2 0 C2 CAP., OPTION, 0402 OPT

3 1 C3 CAP., 0.047µF, X7R, 100V, 10%, 0805 AVX, 08051C473KAT2A

4 1 CG1 CAP., 1000pF, X7R, 2000V, 10%, 1808 TDK, C4520X7R3D102K130KA

5 4 CT1, CT2, CT3, CT4 CAP, CER, X7R 0.01µF 200V 10%, 0805 AVX, 08052C103KAZ2A

6 1 D2 DIODE, TVS, 58V, 600W, SOD128 NEXPERIA, PTVS58VP1UTP

7 1 D1 DIODE, SCHOTTKY, 100V, 3A NEXPERIA, PMEG10030

8 1 J1 CONN., MOD. JACK, FEMALE, 2.54mm, 8TERMINAL, 1 PORT,

R/A THRU-HOLE

STEWART CONNECTOR, SS-7188S-A-NF

9 2 Q1, Q11 MOSFET, N-CH, 100V, 36.6mΩ, 30A, 91W, LFPAK33 NEXPERIA, PSMN040-100MSE

10 8 Q3, Q4, Q5, Q6, Q7, Q8,

Q9, Q10

MOSFET, N-CH, 100V, 71mΩ, 18A, 65W, LFPAK33 NEXPERIA, PSMN075-100MSE

11 1 R9 RES., 174k, 1%, 0603 NIC, NRC06F1743TRF

12 1 R10 RES., 52.3k, 1%, 0603 NIC, NRC06F5232TRF

13 2 R11, R18 RES., 0Ω, 1/10W, 0603 VISHAY, CRCW06030000Z0EA

14 1 R12 RES., 8.2Ω, 1/5W, 5%, 0805 NIC, NRC10J8R2TRF

15 1 R13 RES., 3.3k , 1/10W, 5%, 0603 VISHAY, CRCW06033K30JNEA

16 2 R14, R15 RES., 100k, 1/10W, 5%, 0603 VISHAY, CRCW0603100KJNEA

17 0 R16, R17 RES., OPT, 0805 OPT

18 2 RC1, RC6 RES., 1.00k, 1/8W, 1%, 0805 VISHAY, CRCW08051K00FKEA

19 2 RC2, RC8 RES., 140Ω, 1/8W, 1%, 0805 VISHAY, CRCW0805140RFKEA

20 2 RC3, RC10 RES., 76.8Ω, 1/8W, 1%, 0805 VISHAY, CRCW080576R8FKEA

21 2 RC4, RC12 RES., 49.9Ω, 1/8W, 1%, 0805 VISHAY, CRCW080549R9FKEA

22 1 RC5 RES., 34.8Ω, 1/8W, 1%, 0805 VISHAY, CRCW080534R8FKEA

23 1 RC7 RES., 37.4Ω, 1/8W, 1%, 0805 VISHAY, CRCW080537R4FKEA

24 1 RC9 RES., 46.4Ω, 1/8W, 1%, 0805 PANASONIC, ERJ-6ENF46R4V

25 1 RC11 RES., 64.9Ω, 1/8W, 1%, 0805 VISHAY, CRCW080564R9FKEA

26 1 RC13 RES., 118Ω, 1/8W, 1%, 0805 VISHAY, CRCW0805118RFKEA

27 4 RT1, RT2, RT3, RT4 RES., 75Ω, 1/10W, 5%, 0603 VISHAY, CRCW060375R0JNEA

28 1 T1 TRANSFORMER, ETHERNET, 749022016 WURTH ELEKTRONIK, 749022016

29 0 T4 (ALTERNATE) TRANSFORMER, ETHERNET, EPG4260S-LF PCA EPG4260S-LF

30 0 T4 (ALTERNATE) TRANSFORMER, ETHERNET, ETH1-460LD COILCRAFT ETH1-460LD

31 1 U1 I.C., IEEE 802.3bt PD CONTROLLERS, DFN10, 3mm x 3mm LINEAR TECH., LT4294IDD#PBF

32 1 U2 I.C., PoE IDEAL DIODE BRIDGE CONTROLLER, QFN16-UF,

4mm x 4mm

LINEAR TECH., LT4321IUF#PBF

dc2583af

DEMO MANUAL DC2583A

parts list

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Hardware: For Demo Board Only

1 1 C4 CAP., ALUM. ELECT., 22µF, 100V, 20% SUN ELECTRONIC, 100CE22BS

2 1 CG2 CAP., 1000pF, X7R, 2000V, 10%, 1808 TDK, C4520X7R3D102K130KA

3 1 D3 LED, GREEN, 560nm, 3x2mm, 1206 ROHM, SML-010FTT86L

4 1 D4 DIODE, 12V, 200mW, SOD-323 DIODES INC, MMSZ5242BS-7-F

5 7 E1, E2, E3, E4, E5, E6, E7 TURRET, 0.094" MTG. HOLE MILL-MAX 2501-2-00-80-00-00-07-0

6 1 J2 CONN., MOD. JACK, FEMALE, 2.54mm, 8TERMINAL, 1 PORT,

R/A THRU-HOLE

STEWART CONNECTOR, SS-7188S-A-NF

7 18 JP1-JP18 CONN., HEADER, 1X2, 2mm SULLINS, NRPN021PAEN-RC

8 1 R19 RES., 30k, 1/10W, 5%, 0603 VISHAY, CRCW060330K0JNEA

9 1 RMPS1 RES., 3.0k, 2W, 1%, 2512 TE CONNECTIVITY 35213K0FT

10 4 RT5, RT6, RT7, RT8 RES., 75Ω, 1/10W, 5%, 0603 VISHAY, CRCW060375R0JNEA

11 2 XJP1, XJP2 SHUNT, 2mm SAMTEC, 2SN-BK-G

12 1 PCB, DC2583A DEMO CIRCUIT 2583A

13 2 STENCILS, DC2583A (TOP & BOTTOM) STENCIL DC22583A

dc2583af

DEMO MANUAL DC2583A
