Analog way Picturall Series Bedienungsanleitung

Front and back rack mount

Picturall Series Media Servers

Two rack kits are supplied with the device:

• Front ears (Ref: 180469)

• Rear rack mount rail (Ref: 180489)

(Compable with the following devices: Twin, Quad, Pro and Uncompressed)

SCREWS SUPPLIED

16 x M4x10

CAUTION!

Mounng using only the front rack ears is sucient for xed installaons. Addional

support, such as the rear rack support or slide rails, is required for mobile applicaons,

and recommended for all.

To install the front ears:

1. Screw the ears on each side of the device using two M4x10 screws per side (M4x10 screws included in the

package).

2. Place the unit into the rack and screw the ears on the rack (screws not provided).

CAUTION!

Make sure to provide an adequate venlaon for the device. When installing it into

the rack, make sure no venlaon holes are blocked. The air intakes by the front panel

and exhausts by the back of the unit.

Make sure that the rails will pass through the back ears by the minimum of 15mm/

0,59 inch

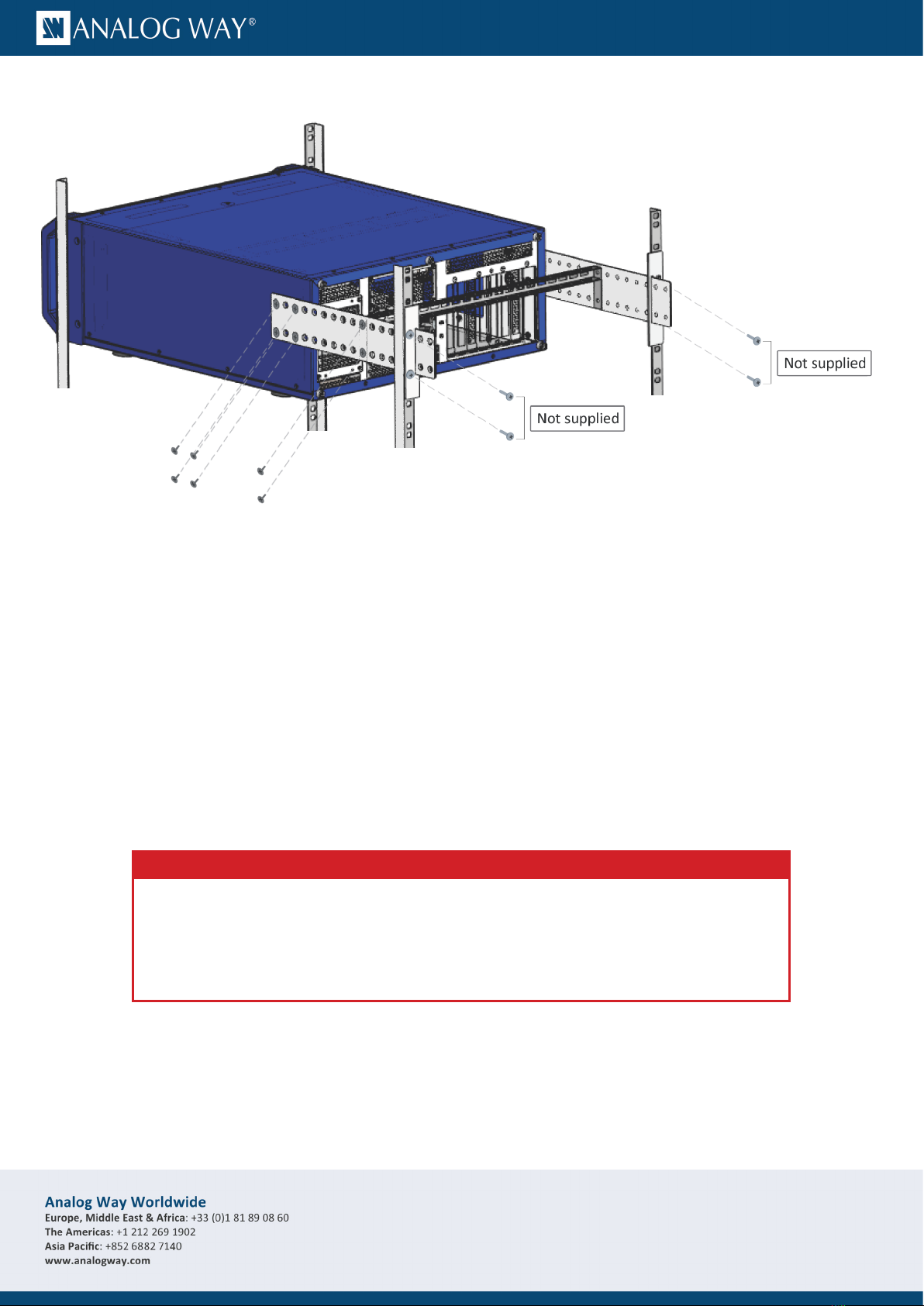

To install the rear rack rail:

Once the unit is installed into the rack.

1. Locate the four holes on each side of the device where the screws can be put into.

2. Use four M4x10 screws to x the rear rail on each side of the device.

3. To screw the rail to the rack, screw two screws on each side of the rail (screws not provided).

4. Install the lacing bar between the two rails using two M4x10 screws. Choose the right distance according

to the cable posion.

5. If needed, use e cables to maintain the video cables on this lacing bar.
