Andersen Electric NORDIC 1421 Bedienungsanleitung
IMPORTANT NOTE:
Read this manual before operation and installation.
The air-to-air heat pump must be installed correctly by an authorised electrical engineer in accordance
with Danish legislation - including the Danish Executive Order on High Voltage Appliances (Stærk-
strømsbekendtgørelsen) and the EU Machinery Directive. Pipe and connection work must be carried
out by an authorised KMO engineer.
Failure to follow these installation instructions correctly may result in serious damage to property or
personal injury.
Retain this manual for later.
08/2021
NORDIC – WALL SPLIT
Manual for installation and operation of air conditioners
2
www.andersen-electric.com
Safety .......................................................................................................3
Specications and features ......................................................................7
LED screen - indoor unit ...........................................................................8
Automatic restart and emergency button ..................................................9
Device specications and features .........................................................10
Adding coolant.........................................................................................15
Before installing ......................................................................................16
Installation - Indoor unit ...........................................................................18
Installation - Outdoor unit ........................................................................22
Information for the installation engineer .................................................24
Maintenance............................................................................................28
Troubleshooting.......................................................................................29
3
www.andersen-electric.com
The severity of potential property damage or personal injury is classied as either
WARNING! or CAUTION!
WARNING! This symbol indicates
the possibility of personal injury or
loss of life.
CAUTION! This indicates that
there is a risk of damage to equip-
ment or other serious consequences.
Operation
• This device may only ever be
used by children aged 8 years
and over, by persons with re-
duced physical, sensory or mental
abilities or lack of experience
and knowledge if they have been
trained or instructed in the safe
operation of the device by a per-
son who is responsible for their
safety, and understands the dan-
gers involved.
• Children must not play with the
device.
• Cleaning and maintenance un-
dertaken by the user must not be
undertaken by children (EN stand-
ard requirement).
• Children must be supervised to
ensure that they do not play with
the device (IEC standard require-
ment).
• In case of nuisances or irregular-
ities, such as a smell of burning,
immediately switch off the unit
and turn off the power supply.
Call your dealer for instructions on
how to handle the issue.
• Do not insert hands, ngers or
other objects into the openings on
the device.
• Do not use ammable sprays
such as hairspray, varnish or paint
near the unit. This may cause re
or burns.
• Do not use the air conditioner in
locations near ammable gases.
The gases emitted can accumu-
late around the device and cause
explosion.
• Do not use your air conditioner in
a wet room, such as a bathroom
or utility room. Exposure to water
can cause a short circuit in the
electrical components.
Safety
4
www.andersen-electric.com
• Avoid extended direct exposure to
cold air from the air conditioner.
• If the air conditioner is to be used
with gas burners or other heating
appliances, the room must be
thoroughly ventilated in order to
avoid lack of oxygen in the room.
Cleaning and maintenance
• Turn off the unit and disconnect
the power supply before cleaning.
Failure to do so may result in
electric shock.
• Do not clean the air conditioner
using large amounts of water.
• Do not clean the air conditioner
using ammable cleaning agents/
chemicals.
• Turn off the air conditioner and
switch off the power if you do not
intend to use it for an extended
period of time.
• Make sure that condensed water
can drain from the device without
obstruction.
• Do not touch the air conditioner
with wet hands. This may result in
electric shock.
• Do not use the device for any-
thing other than its intended pur-
pose.
• Do not crawl onto/place objects
on top of the outdoor unit.
• Do not run the air conditioner
for extended periods of time with
Safety
doors or windows open, or if the
humidity level is very high.
Electrical warnings
• Only use the power cable spec-
ied. If the cable is damaged, it
must be replaced by the manu-
facturer, its service centre or an
authorised refrigeration engineer
to avoid any risk.
• The product must be earthed dur-
ing installation, otherwise electric
shock may occur.
• All electrical work must be car-
ried out in accordance with local/
national regulations, statutes and
standards. Improper electrical
connections can cause over-
heating as well as re or electric
shock. All electrical connections
must be made in accordance with
the diagram of electrical connec-
tions which can be found on the
panels on the indoor and outdoor
units.
• All wiring must be arranged cor-
rectly to ensure that the cover for
the controller card can be closed
properly. Failure to close the
5
www.andersen-electric.com
controller card cover properly can
lead to corrosion, heating of the
connection points on the terminal,
ignition or electric shock.
Installation warnings
• Installation must be performed by
an authorised refrigeration engi-
neer.
• Installation must be performed in
accordance with the installation
instructions. Improper installa-
tion may cause leakage, electric
shock or re.
• Contact an authorised refrig-
eration engineer for repairs or
maintenance of this unit. This unit
must be installed in accordance
with national wiring regulations in
Denmark.
• Only use accessories, parts, and
specied parts for installation. Us-
ing non-standard parts can cause
leakage, electric shock or re and
may lead to the unit failing.
• Install the device on a rm surface
that can support the weight of the
device.
• Do not install the device in a loca-
tion that may be exposed to am-
mable gas leaks. If ammable gas
accumulates around the device,
this may cause a re.
• Do not turn on the power supply
until all work is completed.
• Moving and relocation of the air
conditioner must be carried out by
an authorised refrigeration engi-
neer.
• Install drainage pipes in accord-
ance with the instructions in this
manual. Improper drainage can
cause damage to your home and
property.
Safety
6
www.andersen-electric.com
CAUTION!
Fluorinated gases
• This air conditioner contains uor-
inated greenhouse gases. For
specic information on the type
and volume of gas, please refer to
the type plate on the device itself.
• Installation, service, maintenance
and repair of this unit must be
performed by an authorised refrig-
eration engineer.
• Removal and recycling of the
product must be performed by an
authorised refrigeration engineer.
• Record all leakage checks that
are carried out.
Coolant
• If ammable coolant is being
used, the unit must be kept in a
well-ventilated area where the
size of the room corresponds
to the area specied for recom-
mended operation:
• Nordic art. no.: 1401, room area
above 4 m2.
• Nordic, art. no.: 1402, room area
above 4 m2.
• Nordic art. no : 1403, room area
above 15 m2.
• Reusable mechanical connections
and are ttings are not permitted
indoors.
EU guidelines for disposal
The label on the product or its
accompanying documentation indi-
cates that electrical and electronic
equipment must not be mixed with
general household waste.
Proper disposal of this
product (Electrical &
Electronic Equipment)
This device contains coolant and
other potentially hazardous materi-
als. Special collection and treatment
is required by law when disposing
of this device. Do not dispose of
this product as household waste or
general waste.
• Dispose of the unit at a designat-
ed local electrical waste collection
point.
Safety
7
www.andersen-electric.com
Specications and features
CAUTION: The illustrations in this manual are for explanatory purposes only.
Front panel Air lter
Terminal box
cover
Classication
marking
Classication
marking
Terminal box
cover
Gas valve
Fluid valve
Classication
marking
Exhaust grate
Remote control
LED screen/
Signal receiver Deectors
Air direction
lamellae (slats)
Indoor unit
Outdoor unit
Air lter
Deector manual
control
8
www.andersen-electric.com

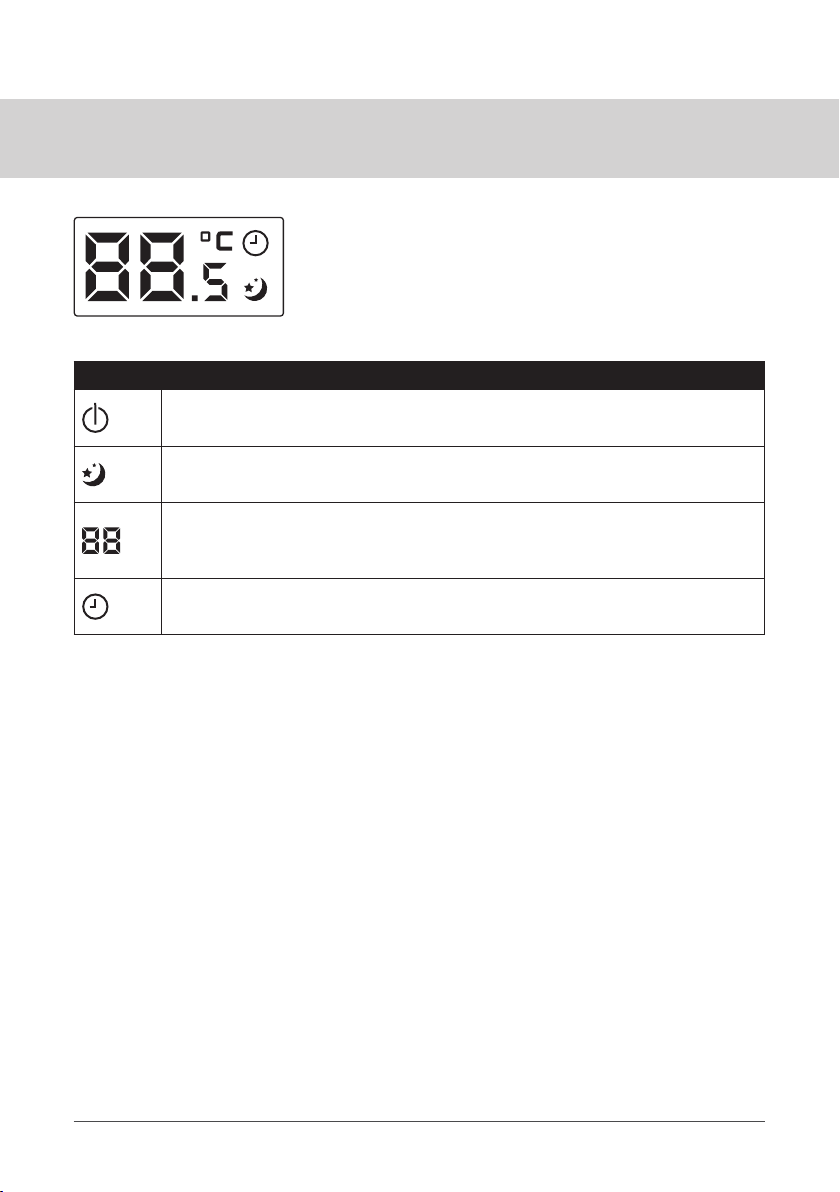

Symbol Function
This symbol appears when the device is switched on
SLEEP mode indicator
Temperature display - Illuminates when the timer is on and the air conditioner
is running
Error Code - Displays the technical error code in the event of a malfunction.
TIMER mode indicator
LED screen - indoor unit
The temperature shown on the inside of the heat pump is the desired tempera-
ture that the heat pump is trying to achieve. The temperature on the display may
deviate from the actual room temperature due to external inuences such as
sunlight, insulation, other sources of heat etc.
9
www.andersen-electric.com
Automatic restart and emergency button
Automatic restart function
The air conditioner is precongured for
the automatic restart function. In the
event of a sudden power failure, the
unit remembers the settings from be-
fore the power failure. When the power
supply is restored, the unit automati-
cally restarts and applies all previous
settings that are stored in the memory
function.
To deactivate the AUTO RESTART
function:
1.Turn off the air conditioner and
switch off the power.
2.Press and hold the emergency but-
ton while turning on the power.
3.Hold down the emergency button for
more than 10 seconds until you hear
four short beeps from the unit. The
AUTO RESTART function is now
disabled.
4.To activate the AUTO RESTART
function, follow the procedure above
until you hear three short beeps from
the unit.

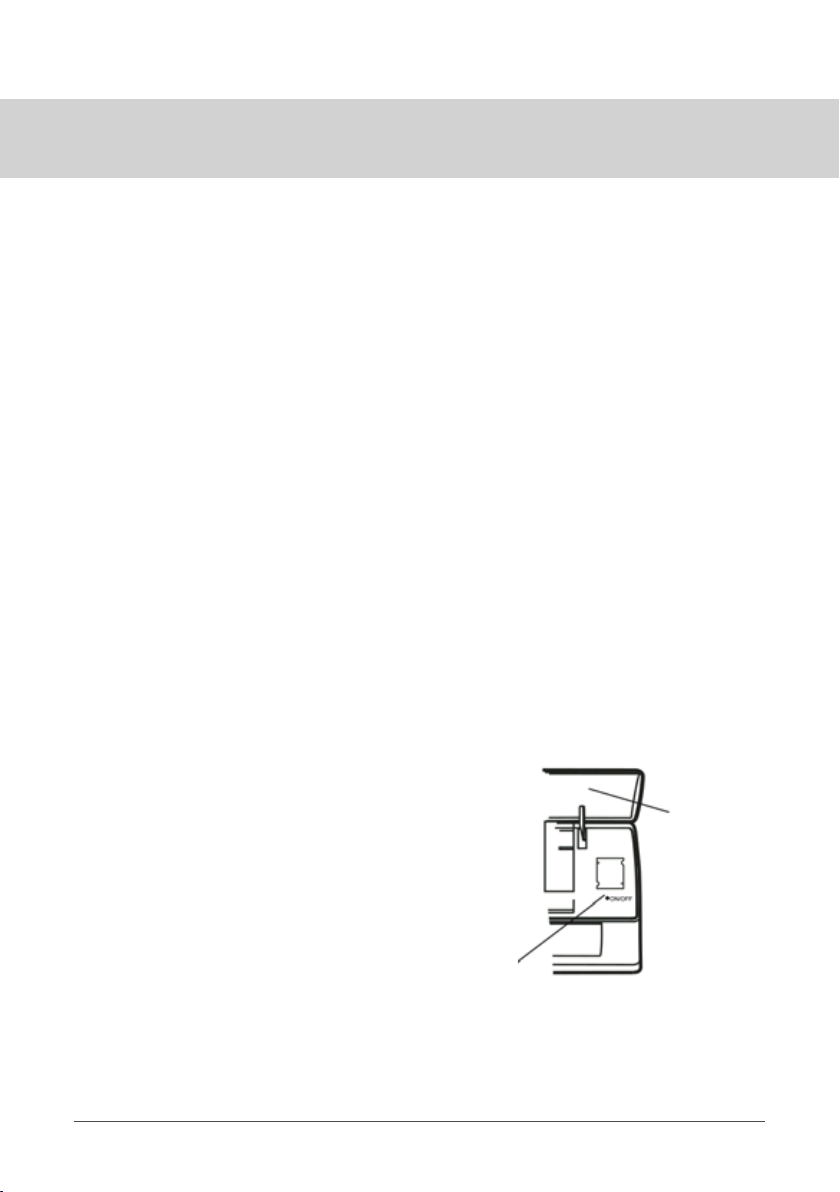

Emergency button
If the remote control does not work or
needs maintenance:
Open and lift the front panel at an an-
gle where you can reach the emergen-
cy button.
1.Pushing the emergency button once
(one beep) results in forced COOL-
ING
2.Two presses of the emergency but-
ton within 3 seconds (two beeps)
result in forced HEATING.
3.To switch off the unit, simply press
the button again (one long single
beep).
4.After 30 minutes of forced operation,
the air conditioner automatically
starts operating in 23°C COOL mode
with automatic fan speed.
Emergency
button
Front panel
10
www.andersen-electric.com
Device specications and features
The air sucked out of the fan comes
from the grate and ows through the
lter. It is then cooled/dehumidied or
heated up by the heat exchanger.
The direction of the air exhaust is driv-
en up and down by motorised lamellae
and is moved manually to the right and
left by the vertical deectors.
Filter
Heat
ex-
changer
Fan
Deectors must only be adjusted
when the device is switched off.
Airow swing control
• The air exhaust ow is distributed
around the room evenly.
• There is an optimal setting for the air
direction.
The ( )button activates lamella
movement. The airow is directed up
and down alternately. This guarantees
even distribution of air within the room.
• In COOL mode, the lamellae must be
adjusted horizontally.
• In HEAT mode, the lamellae must be
adjusted vertically, as hot air tends to
rise.
The deectors are set manually and
are located under the lamellae. These
allow you to direct the airow to the
right or left.
Dieses Handbuch passt für folgende Modelle
2
Inhaltsverzeichnis
Andere Andersen Electric Klimaanlage Handbücher
