ANSMANN W3 Bedienungsanleitung
Instruction Manual Content
SAFETY PRECAUTIONS
DO NOT OPERATE YOUR SYSTEM IF SOMEONE ELSE IS ON YOUR
FREQUENCY AT THE SAME TIME.
YOUR MODEL CAN CAUSE SERIOUS DAMAGE OR INJURY SO PLEASE
USE CAUTION AND COURTESY AT ALL TIME.
DO NOT EXPOSE THE RADIO SYSTEM TO WATER OR EXCESSIVE
MOISTURE.
PLEASE WATER PROOF THE RECEIVER AND SERVOS BY PLACING
THEM IN A WATER TIGHT RADIO BOX WHEN OPERATING R/C BAST
MODELS.
IF YOU HAVE LITTLE OR NO EXPERIENCE OPERATING R/C MODELS, WE
STRONGLY RECOMMEND YOU TO SEEK THE ASSISTANCE OF EXPERIENCED
MODELERS OR YOUR LOCAL HOBBY SHOP FOR GUIDANCE
1. Safety Precautions --------------------------------------------------------------------02
2. Before Operating ----------------------------------------------------------------------03-06
3. Initial Setup -----------------------------------------------------------------------------07
4. Transmitter
--------------------------------------------------------------------------
---08-12
5. Function Guide ------------------------------------------------------------------------13
6. References -----------------------------------------------------------------------------14-15
2
ENGLISH
Transmitter
Model: MX-3 Sport
Modulation: FM/PPM
Power supply: 8 AA alkaline dry cells DC 12 V or
8 cell NiCd pack
Weight: 405 gm
Frequencies: 40 MHz (-) frequencies
Receiver:
Model: 40 MHz (-)
Modulation: FM/PPM
Intermediate frequency: 455 KHz
Power supply: DC 4.8 ~ 6.0 V
Weight: 19 gm
Servo:
Power supply: DC 4.8 ~ 6.0 V
03
3
ENGLISH
BEFORE OPERATING
3CH
SWITCH
Steering Dual Rate (DT3)
(See Page 7 for the operating instructions)
Throttle ATL
(DT4)
(See Page 7 for the
operating instructions)
Throttle Trim (DT2)
(See Page 7 for the operating instructions)
4
ENGLISH
BEFORE OPERATING
When D/R Steering or Throttle ATL value is less 100% , the digital trim adjustments may
affect servo travel end point.
5
ENGLISH
BEFORE OPERATING
6
ENGLISH
BEFORE OPERATING
7
ENGLISH
INITIAL SETUP
8
ENGLISH
TRANSMITTER FUNCTIONS
Pressing and holding the "+" or "-" key for more than 1 second
will increase the speed of value change
Adjustmemt buttons - Use "+" and "-" keys for changing values

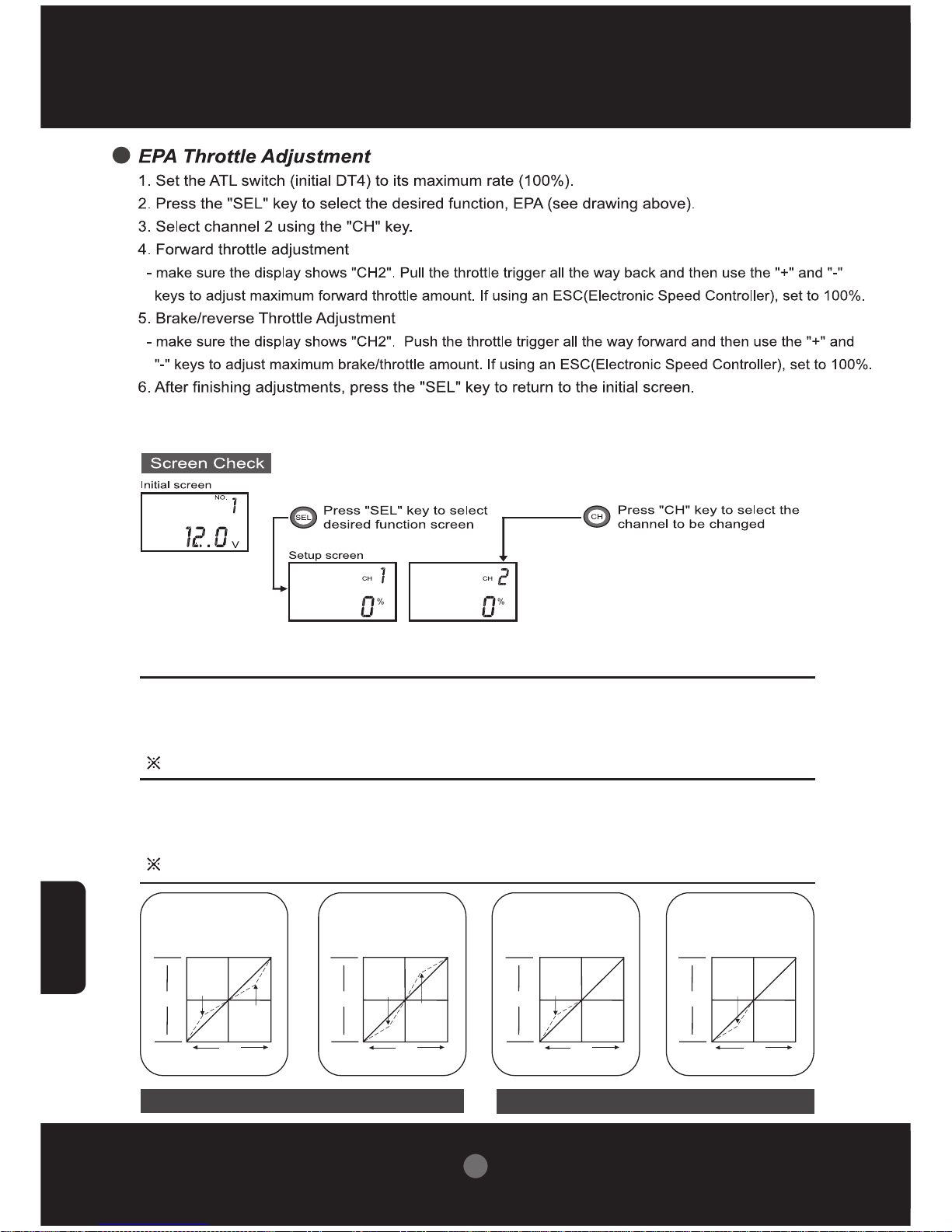

EPA should be used when adjustments are being made to left/right
steering angle and throttle high/brake side during linkage setup.
EPA adjusts the maximum angle causing a different turning radius.
End Point Adjustment
EPA is used to adjust the maximum servo travel for each channel.
Always check linkages while adjusting EPA.
Adjustadle Throttle Limiter
ALT trim adjusts the amount of overall brake throw the model will have.
Thus when adjusting throttle using EPA , the ALT must be considered.
EPA range
- 0 - 120% for each channel and direction
Left side steering
Warning
The servo may malfunction and the model may lose control if unreasonable force is applied to the servo
horn during steering operaton.
Warning!
Do not over apply EPA as this will cause binding
to occur and will result in servo failure.
Maximum EPA value at the contact point
Right side steering. Forward side throttle
return to the initial screen.
Brake side throttle
9
ENGLISH
TRANSMITTER FUNCTIONS
EXP EXP
EXP range
0-( ) 100% for each channel
Adjustment buttons-use "+" or "-" keys for changing values
EXP Steering Adjustment
1. Press the "SEL" key to select the desired function. EXP (see drawing above)
2. Select channel 1 using the "CH" key.
3. Use the "+" and "-" keys to adjust the EXP value.
4. After finishing adjustments , press the "SEL" key to return to the initial screen.
Steering EXP will work in both left and right directions.
EXP Steering Adjustment
1. Press the "SEL" key to select the desired function. EXP (see drawing above)
2. Select channel 2 using the "CH" key.
3. Use the "+" and "-" keys to adjust the EXP value.
4. After finishing adjustments , press the "SEL" key to return to the initial screen.
Throttle EXP only works in forward directions.
+
-
0
0
0
0
0
0
0
F-100F-100L-100
L-100
R-100
R-100
0
Positive Throtte EXP
Slower servo movement
in center, fasrer after
EXP percentage
Positive Steering EXP
Slower servo movement
in center, fasrer after
EXP percentage B 100R 100B 100
B 100
F 100F 100
L 100
L 100
Servo Movement
Servo Movement
Servo Movement
Servo Movement
Trigger movementTrigger movementWheel MovementWheel Movement
Negative Throttle EXP
Faster servo movement
in center, slower after
EXP percentage
Negative Steering EXP
Faster servo movement
in center, slower after
EXP percentage
EXP Steering EXP Throttle
EXP adjustment
EXP is used to adjust the central servo travel value for each channel (Chl or Ch2 )
10
ENGLISH
TRANSMITTER FUNCTIONS
