Antrax SeriBox Bedienungsanleitung

antrax Datentechnik GmbH

[email protected]

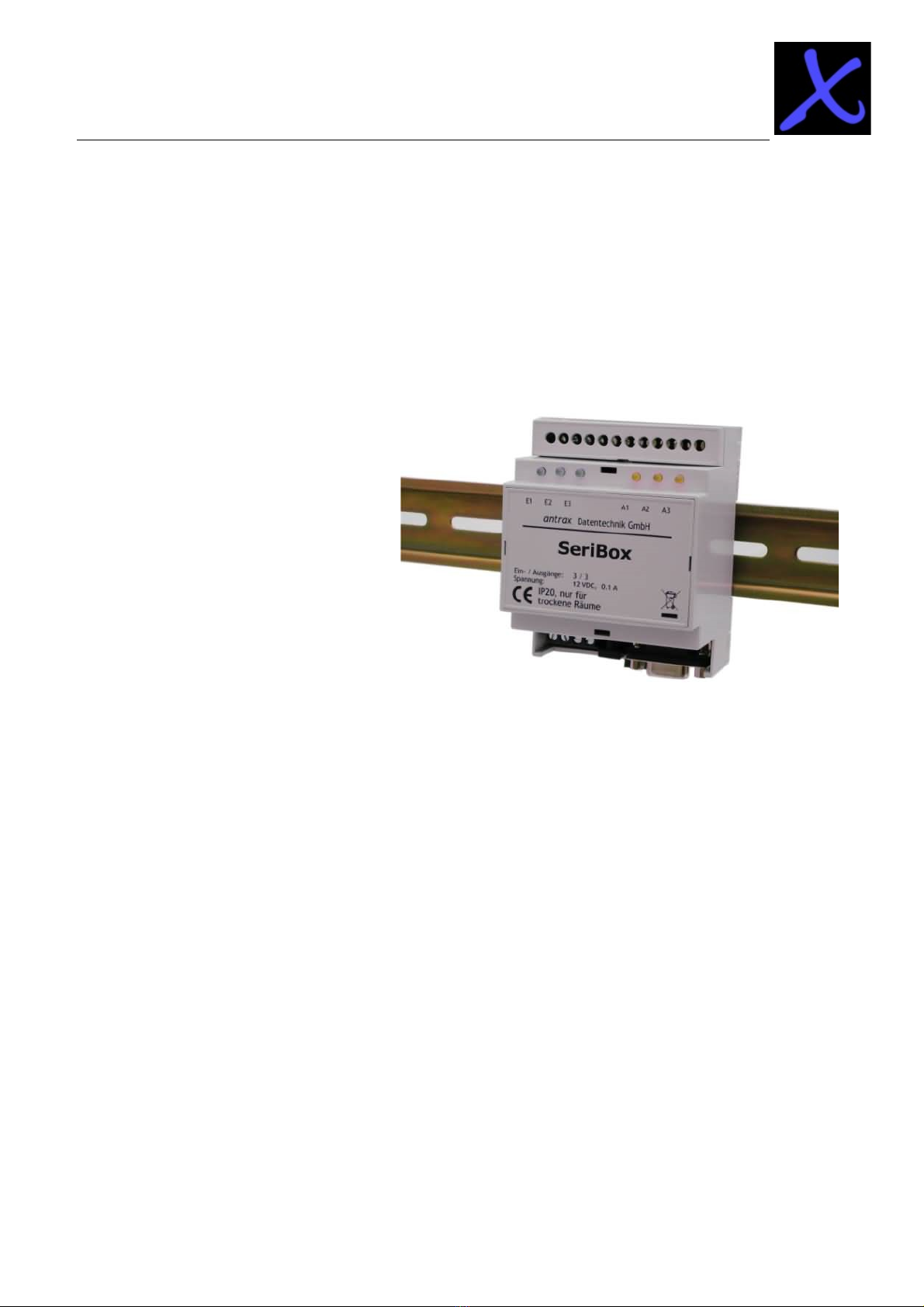

SeriBox

- Interface box with serial or USB interface

- PC connection / Read IN and OUT signal information

- x INput (TTL level / floating contact)

- x OUTput (relay contact)

Manual

Firmware V2.1 - 22.08.2008

antrax Datentechnik GmbH
[email protected] - www.antrax.de
Contents
General                                                                                                           .................................................................................................
Using the SeriBox                                                                                         ................................................................................
Scope of delivery                                                                                              ....................................................................................   4
Hardware                                                                                                     ...........................................................................................   4
Technical Features                                                                                            ..................................................................................   4
General                                                                                                        .............................................................................................   4
Power Supply                                                                                                ......................................................................................   4
Input circuit                                                                                                  .......................................................................................   4
Output circuit                                                                                               .....................................................................................   5
Interface                                                                                                      ............................................................................................   5
CE-Marking                                                                                                   ........................................................................................   5
Screw clamp connections                                                                                  .........................................................................   6
Srew clamp connections                                                                                    ..........................................................................   8
INputs                                                                                                          ...............................................................................................   8
OUTputs                                                                                                       ............................................................................................   8
Supply voltage                                                                                              ....................................................................................   9
Serial interface                                                                                             ...................................................................................   9
Operation                                                                                                        ..............................................................................................   9
General                                                                                                        .............................................................................................   9
Installation                                                                                                 .......................................................................................   10
Initial operation                                                                                          .................................................................................   10
Installation                                                                                                     ..........................................................................................   11
Control by PC software                                                                                .......................................................................   11
Parameter                                                                                                  ........................................................................................   12
General command processing                                                                          .................................................................   14
Commands                                                                                                 .......................................................................................   14
- 2 -
Hasenbrink 4,  2052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628

antrax Datentechnik GmbH

[email protected] - www.antrax.de

General

The SeriBox is connected to a serial interface (RS-2 2) and allows switching ON and OFF of

three low-power relays or reading of three digital signals (TTL level or any floating contact) on

this interface.

Before first use of the SeriBox, please read this instruction manual carefully. It contains

information for the correct use and contains important tips for the installation of the SeriBox.

The manufacturer does not accept any liability due to improper use of the unit. In this case all

guarantee claims are invalid.

Using the SeriBox

The SeriBox is designed for

•for switching of resistive loads up to a maximum current of 1000mA at a maximum

voltage of 24V per output

•detection of switching states with TTL level or floating switches

in dry, closed residential and office workplaces, or control cabinets. Rules and regulations

governing the connection and use of electronic devices and their security regulations must be

followed.

Safety Instructions

Only use the SeriBox indoors and do not subject the unit to moisture or humidity.

Only clean the exterior of the SeriBox with a dry cloth.

Only load the output circuits of the SeriBox to their mentioned capacity limits.

An overload can lead to the SeriBox being destroyed.

Do not use the SeriBox in areas used by children.

Do not use the SeriBox if one or several parts (case, cable, plug) are damaged

or damage may be caused by its location (e.g. falling down).

The SeriBox may only be repaired by authorized service personnel.

Only connect electrical appliances that have no limit to their switched-on time (i.e. all

connected electrical appliances must be able to take continuous current without

sustaining damage in the case of a default to the permanently "ON" position.).

- -

Hasenbrink 4, 2052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628

antrax Datentechnik GmbH

[email protected] - www.antrax.de

Scope of delivery

ardware

Everything there? Delivery of a SeriBox unit contains:

•the SeriBox

•optional: power supply

•optional: connector plug

•this manual

Technical Features

General

•Protective Class: IP20, only in dry rooms

•the current switching state of the IN- and OUTputs are signalled by green or yellow

LEDs

•optional: integrated signal button

•top-hat rail housing, width 4M (= 71mm), colour grey

•all connections via screw clamp connections or SUB-D

•Ambient temperature 0 ... +40°C

•Storage temperature -10 ... +70°C

•UL-listed:

•housing (NORYL UL 94 V-0)

•Relay (Meder, UL listed)

•PCB (FR4, 94 V-0)

•Standard components

Power Supply

•Power supply: 7...24 VDC, connection via screw clamps 21+22 (see below)

•Output voltage: 5 VDC, connection via screw clamps 2 +24 (optional, see below)

Input circuit

•Connection via screw clamps 1+2, +4 and 5+6

•Option 1. : Control by remote TTL level (1 = signal-plus, 2 = GND)

•Option 2. : Via floating contact (1 = signal, 2 = GND), Signal input is used for remote

switching on GND potential

•Switching state is signalled via green LED for each channel

- 4 -

Hasenbrink 4, 2052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628

antrax Datentechnik GmbH

[email protected] - www.antrax.de

Output circuit

• individual OUTput circuits (connections via screw clamps 7+8, 9+10 and 11+12)

•Maximum switching capacity: 10W

•Maximum switching voltage: 200VDC

•Maximum switching current: 1000mA

•Switching state is signalled via yellow LED for each channel

Interface

•Serial interface (RxD, TxD, GND), 9600,8,N,1 - no handshake

•9pol.-SUB-D - connector (male, standard configuration)

•Connection to PC via standard extension or connection lead

CE-Marking

In accordance with the Low Current and EMV Guidelines.

- 5 -

Hasenbrink 4, 2052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628

antrax Datentechnik GmbH

[email protected] - www.antrax.de

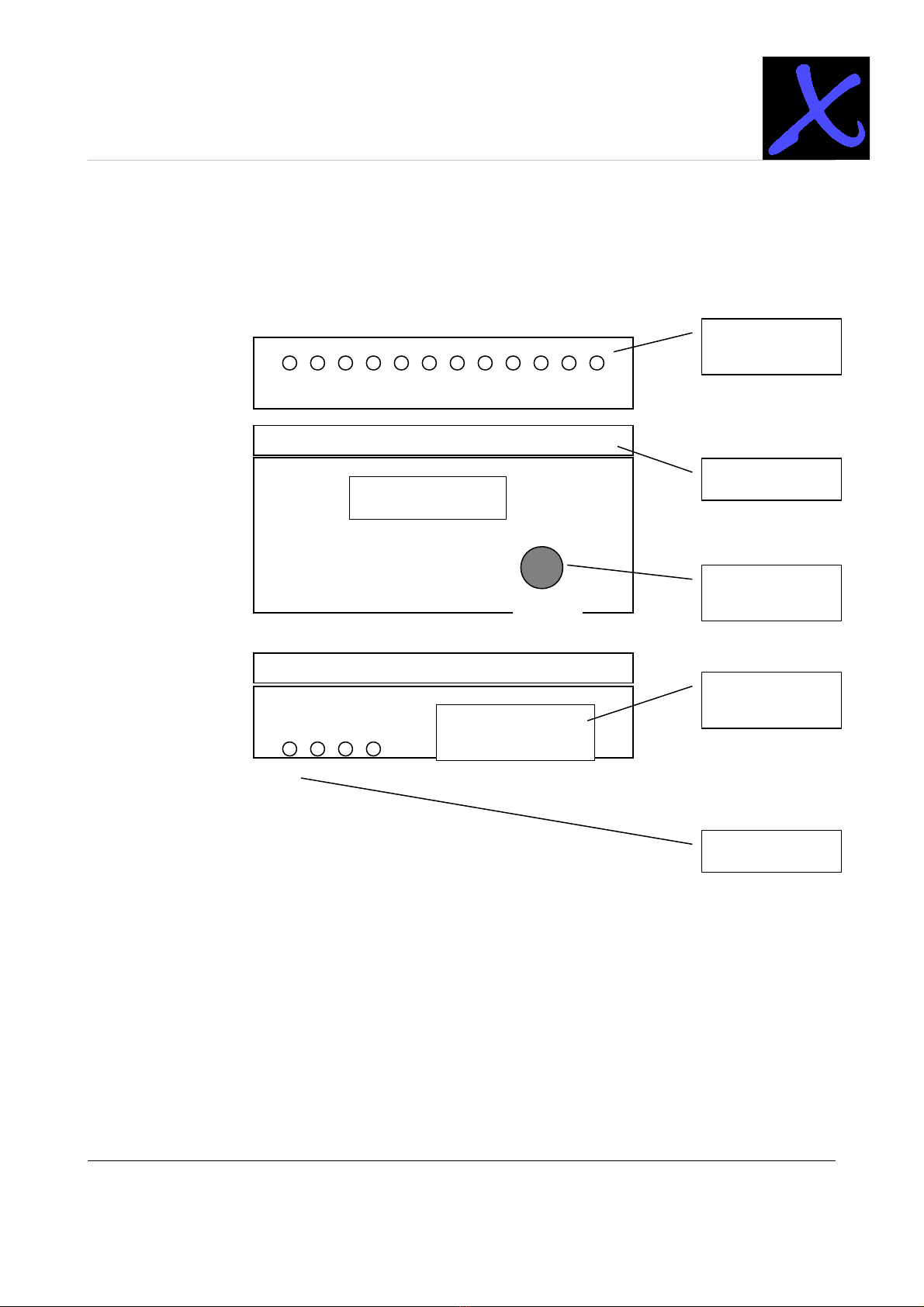

Screw clamp connections

- 6 -

Hasenbrink 4, 2052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628

1 2 3 4 5 6 7 8 9 10 11 12

21 22 23 24

9pol. SUB-D

IN- and OUTputs

Si nal button

(only optional)

Serial interface

Power supply

Si nal lamps

TEST

SeriBox

antrax Datentechnik GmbH

[email protected] - www.antrax.de

Upper row of contacts, numbering from left to right:

Contact Description

1 Input 1: Signal

2 Input 1: GND

Input 2: Signal

4 Input 2: GND

5 Input : Signal

6 Input : GND

7 Output circuit 1 (potential free): 1A

8 Output circuit 1 (potential free): 1B

9 Output circuit 2 (potential free): 2A

10 Output circuit 2 (potential free): 2A

11 Output circuit (potential free): A

12 Output circuit (potential free): A

- 7 -

Hasenbrink 4, 2052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628

antrax Datentechnik GmbH

[email protected] - www.antrax.de

Screw clamp connections

INputs

The Inputs 1 – on the contacts 1+2, +4 and 5+6 can be operated in two different modes:

-Control via remote TTL level (control as for example for a 5V electroluminescent

diode)

-via a floating contact (e.g. the signal input is remotely drawn to GND potential)

The relevant distinction is done automatically, no additional settings have to be executed.

OUTputs

The outputs consist of a floating relay contact. Please note that power shall never exceed a

value of 1000mA.

Caution: Also switching of 'harmless' signal circuits, may cause large current pikes, when for

example capacitors are loaded/unloaded. There is a risk of melting of the relay contacts, that

then can not open any more!

Lower row of contacts, Numbering from left to right:

Contact Description

21 Supply voltage: +7...24V (Input)

22 Supply voltage: 0V

2 Output voltage: +5V (optional)

24 Output voltage: 0V (optional)

Connector Description

SUB-D,

9pol.,

male

Serial interface

- 8 -

Hasenbrink 4, 2052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628

antrax Datentechnik GmbH

[email protected] - www.antrax.de

Supply voltage

The supply voltage may vary in the range of 7...24V (DC), whereas smaller values should be

favoured. A supply voltage of 9V or 12V is recommended.

Serial interface

For connecting the SeriBox to a PC a standard extension or connection lead shall be used.

Operation

General

The SeriBox is connected to a serial interface (RS-2 2) and allows switching ON and OFF of

three low-power relays or reading of three digital signals (TTL level or any floating contact) on

this interface.

Control through PC is done with clear text command (interface parameter: 9600,8,N,1) so

any standard terminal program can be used for operating the SeriBox. For easy control you

also may want to use the AntraxServiceSoftware (ASS.EXE), that you can easily download

from our website (www.antrax.de/de/ass.html).

Changes to the inputs or pushing of the signal button are reported to the PC.

Behaviour of the SeriBox may be largely determined by means of parameters. These

settings are stored in the internal, non volatile configuration memory.

- 9 -

Hasenbrink 4, 2052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628

antrax Datentechnik GmbH

[email protected] - www.antrax.de

Installation

Initial operation

Action Reaction

Install all cabling (supply

voltage, input signals, output

signals)

Switch ON supply voltage Starting sequence:

-the LED will flash in sequence from left

to right

-after that all LEDs flash one time

-optionally (parameter 2) all outputs

remain switched OFF or are set back to

the last switching state before power-

OFF

-optionally(parameter ) the start intro is

sent via the serial interface

Commands and parameters can

be set

Changes to the inputs Optionally (parameter 1) all changes to the

inputs via the serial interface are reported with:

INP1=0

INP1=1

INP2=0

INP2=1

INP =0

INP =1

When confirming with the integrated button the

SeriBox reports with:

BUTTON=0

BUTTON=1

- 10 -

Hasenbrink 4, 2052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628
