AnyTone ARES II Bedienungsanleitung
A2.230222
Qixiang Electron Science & Technology Co.,Ltd.
www.anytone.net
ARES II
Instruction Manual
CONTENTS
FUNCTIONS & FEATURES..................................................................1
STANDARD ACCESSORIE..................................................................2
OPTIONAL ACCESSORIE ....................................................................2
INSTALLATION.....................................................................................2
GETTING ACQUAINTED......................................................................6
HOW TO USE YOUR RADIO ...............................................................8
SLIDE SWTICH.....................................................................................9
FUNCTION MENU ..............................................................................10
ERROR CODE ....................................................................................11
SPECIFICATIONS...............................................................................11
1
FUNCTIONS & FEATURES
PA/FM/AM/USB/LSB mode
Weather Channel 150-170MHz programmable(Optional)
CTCSS/DCS Code
PWR, RX RSSI S-Meter
PC programmable
Echo Function
SQ, ASQ Function
RF Gain Adjustment
Mike Gain Adjustment
RF PWR Adjustment
Programmable RB
NB/ANL Function
Offset Function
Beep Voice Prompt
+10KHz Function
TOT Function
HI-CUT Function
Busy channel lock
Monitor
LED Brightness Adjustment
SWR Protection
Voltage Protection
VOX Function
2

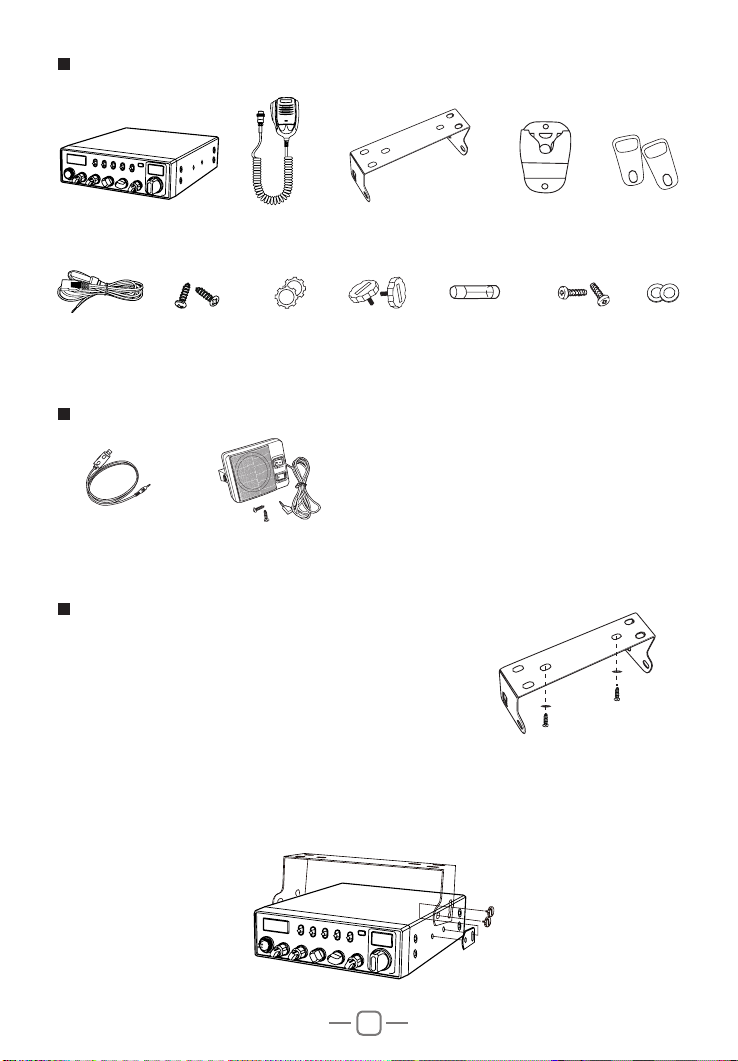

STANDARD ACCESSORIES
OPTIONAL ACCESSORIE
INSTALLLATON
Radio
Screws for
bracket
DC Power
Cable
USB Programming
Cable
External Speaker
Self-tapping
Screws
Microphone
Pads for
bracket
PadsAdjusting
screws
Microphone
Hanger
Mounting Bracket Non-slip
Mat
Spare Fuses
(10A,250V)
Choose the most appropriate setting from a simple and
practical point of view. Your radio should not interfere
with the driver or crash the driver's knee or leg when
rush brake.
1. Using the self-tapping screws and pads(2 sets) to x
the bracket.
2. Put the Non-slip mat on the 2 ends of the bracket and put in the radio. Then insert
the adjusting screws and check careful each screws, make sure the screws and
machine will not loose when the car shaking.
3. Choose suitable angle by the 3 screw holes in the two ends of bracket.
3
TX
PWR
+30dB
23 4
9
753
1
1
TX
PWR
+30dB
23 4
9
753
1
1

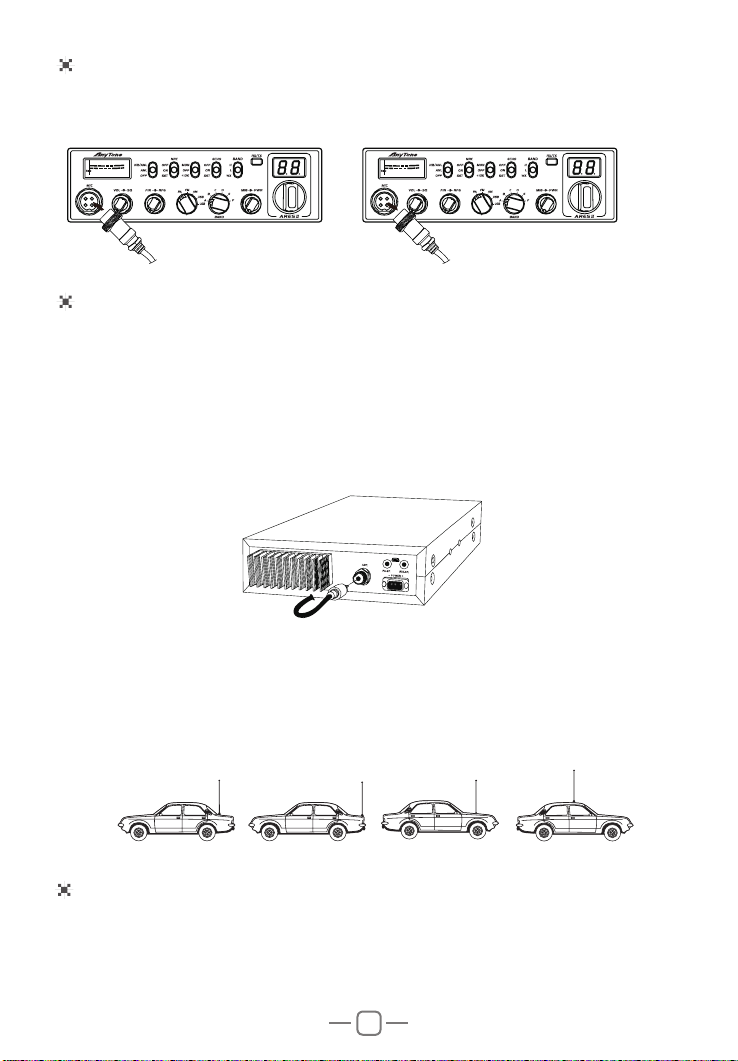

Microphone connection
1. Plug microphone connector into jack.
2. Pull on the screw for microphone connector.
ANTENNA INSTALLATION
POWER CONNECTION
Before using this radio, please install a high efficent and harmonious adjusted
CB antenna, suitable antenna type and correct installation will bring excellent
communication.
To match with the radio, the antenna and cable shall with characteristic impedance of
50ohm, or the antenna system will not efcient enough and will disturb TV, radio or other
electronics.
1. Screw the antenna connector into the antenna jack.
2. Grounding the antenna system to ensure best performance of this radio.
This radio adopt 13.8V power supply, never connect it to 24V battery, And the 13.8V car
battery shall with sufcient current, or the LCD will become dark and Transmit power
will drop down.
3. The position of antenna can be put as following example:
WARNING:
▲ Connect antenna rstly before transmiting, or it might damage the radio.
▲ To avoid the risk of fire, electric shock, radio damage, all base station shall
equip of lightning protector
▲ Be sure choose a matching antenna, you may enquiry our dealers.
4

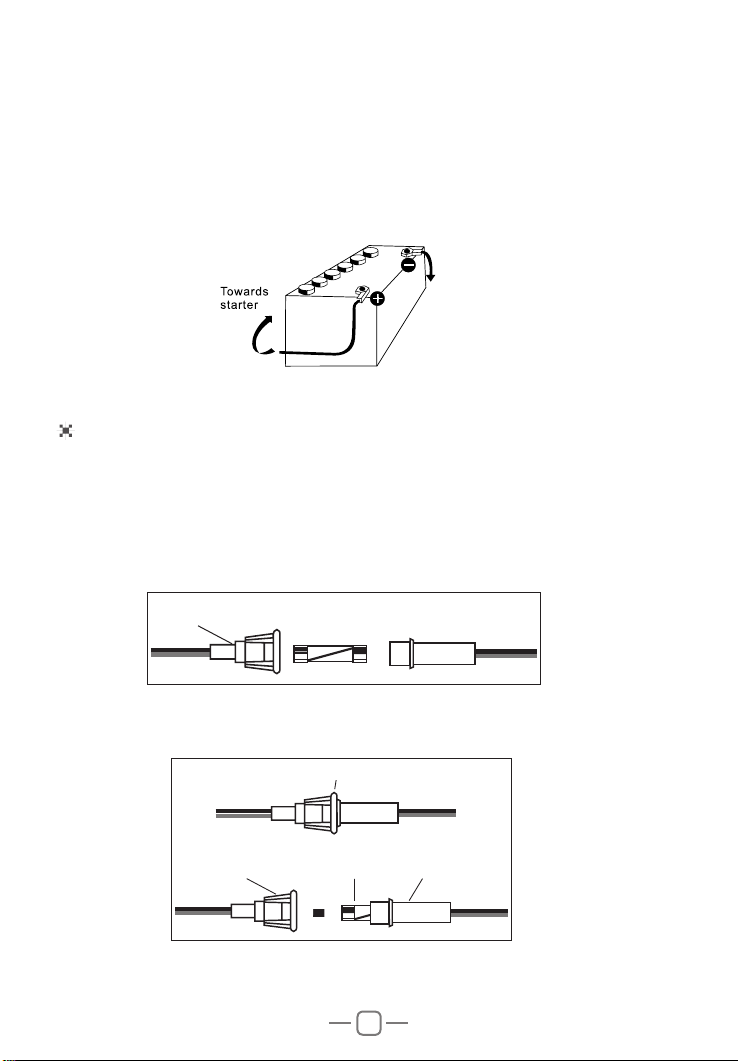

1. Connect positive red power cable with the + terminal of the battery.
2. Connect negative black power cable with the - terminal of the battery.
3. Connect the DC power cable to the transceiver's power supply connector.
▲ We suggest not use cigar lighter as it often bring down the voltage.
▲ Locate the power cable away from high temperature, moisture, portre and cable
insulator.
▲ Use a full power cable even it is longer than need, do not take off the fuse holder
from the cable.
Connected
to chassis
Replacing Fuse
This radio adopt 10A, 250V fuse.
If the fuse blows, determine the reason, then correct the problem.
After the problem is resolved, replace the fuse. If newly installed fuses continue to
blow, disconnect the power cable and contact your autho-rized dealer or an authorized
servicecenter:
1. Pull the two fuse cover in difference direction and open it.
,
IN-LINE
FUSE HOLDER
2. Replace the broke fuse with good one, and close the fuse holder.
3. Be sure to use suggested fuse, or it might damage the radio.
FUSE
IN-LINE
FUSE HOLDER
IN-LINE
FUSE HOLDER
IN-LINE
FUSE HOLDER
10A 250V FUSE
5

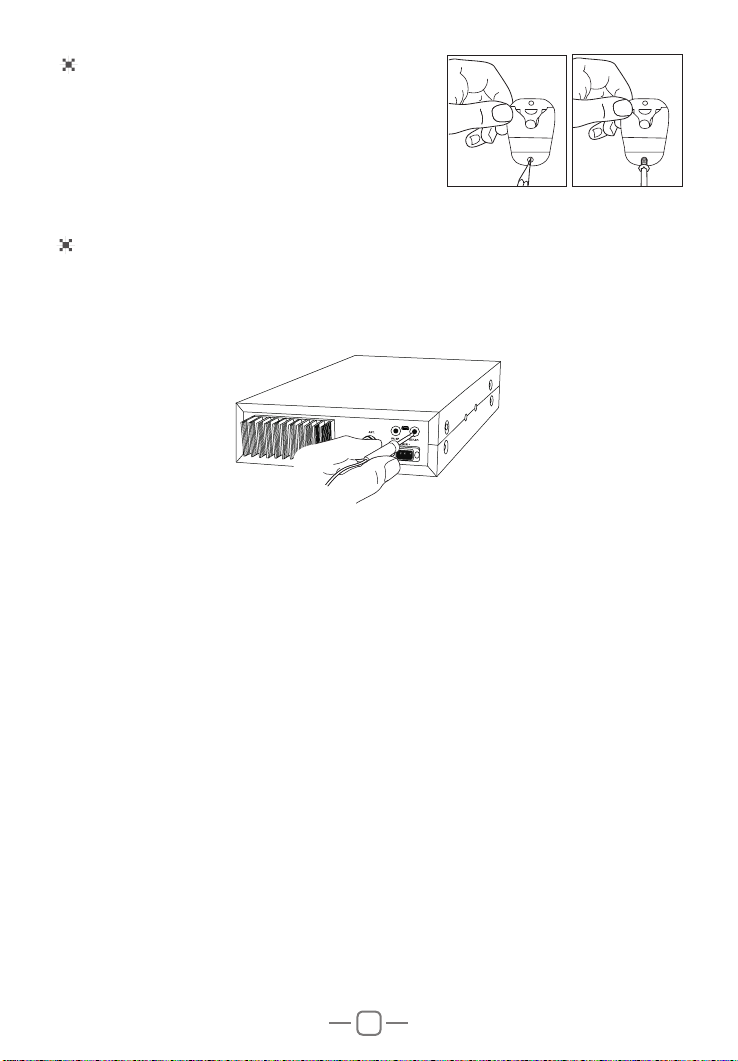

Install External Speaker
If use an external speaker, please choose 8ohm speaker with 3.50mm mono band
(doulbe cable) plug.
1. Locate the external speaker in a suitable place.
2. Plug into the speaker jack.
Install Microphone Hanger
Choose a ideal location which will not interfere
the driver. Using supplied self-tapping screws and
pads(2 sets) to x the hanger.
6
TX
PWR
+30dB
23 4
9
753
1
1

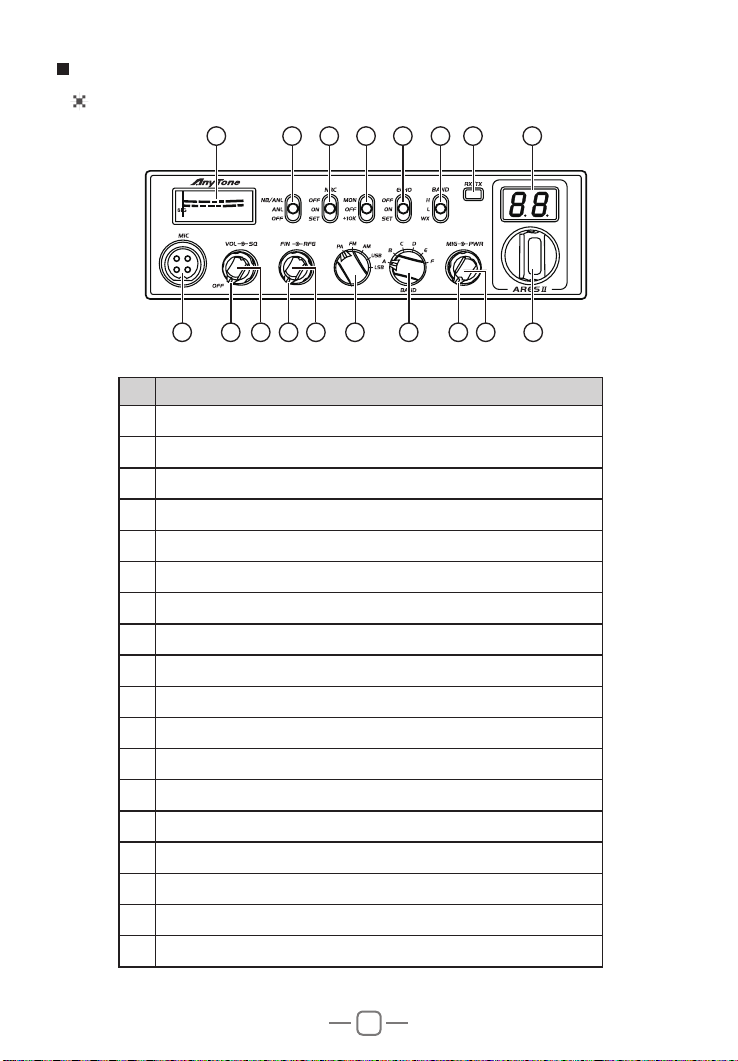

GETTING ACQUAINTED
Front Panel
No. Functions
1S-Meter
2Control NB/ANL function on/off
3
4Control Monitor/10K on/off
5
6 Choose H and L band group
7 TX/RX indicator
8 Channnel display
9 Mike connector
10 Power on/off volume level control
11 Squelch level control
12 SSB frequency FINE function
13 Control RF gain level
14 Choose PA/FM/AM/USB/LSB mode
15 Choose working band
16
17
18 Channel Switch
9 10 12 14 1513 1711 16 18
8761 2 3 4 5
