Anzzi BYNE Series Bedienungsanleitung

INSTALL GUIDE

Model#

SH-AZ013

BYNE SERIES

PERFECTION IS OUR TRADITION™

v2.0516

Parts List Pg. 1

Before You Start Pg. 2

Spec Drawing Pg. 3

Installation Pg. 4

Care & Maintenance Pg. 13

Warranty Pg. 14

Registration Final Page

TABLE OF CONTENTS

YOUR REVIEWS MATTER!

For more information please call 1-844-44-ANZZI

or email us at [email protected]

The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI

product for years to come! In the meantime let us know about your experience? We would love

to hear your thoughts from the packaging to the quality and function of the product.

Leave a review on www.ANZZI.com/reviews and let everyone know how satisfied you are with

ANZZI!

Also, we humbly request submitting as many pictures as possible along with your review.

Millions of shoppers will want to know about your experience with our products. Don’t just tell

but show, too!

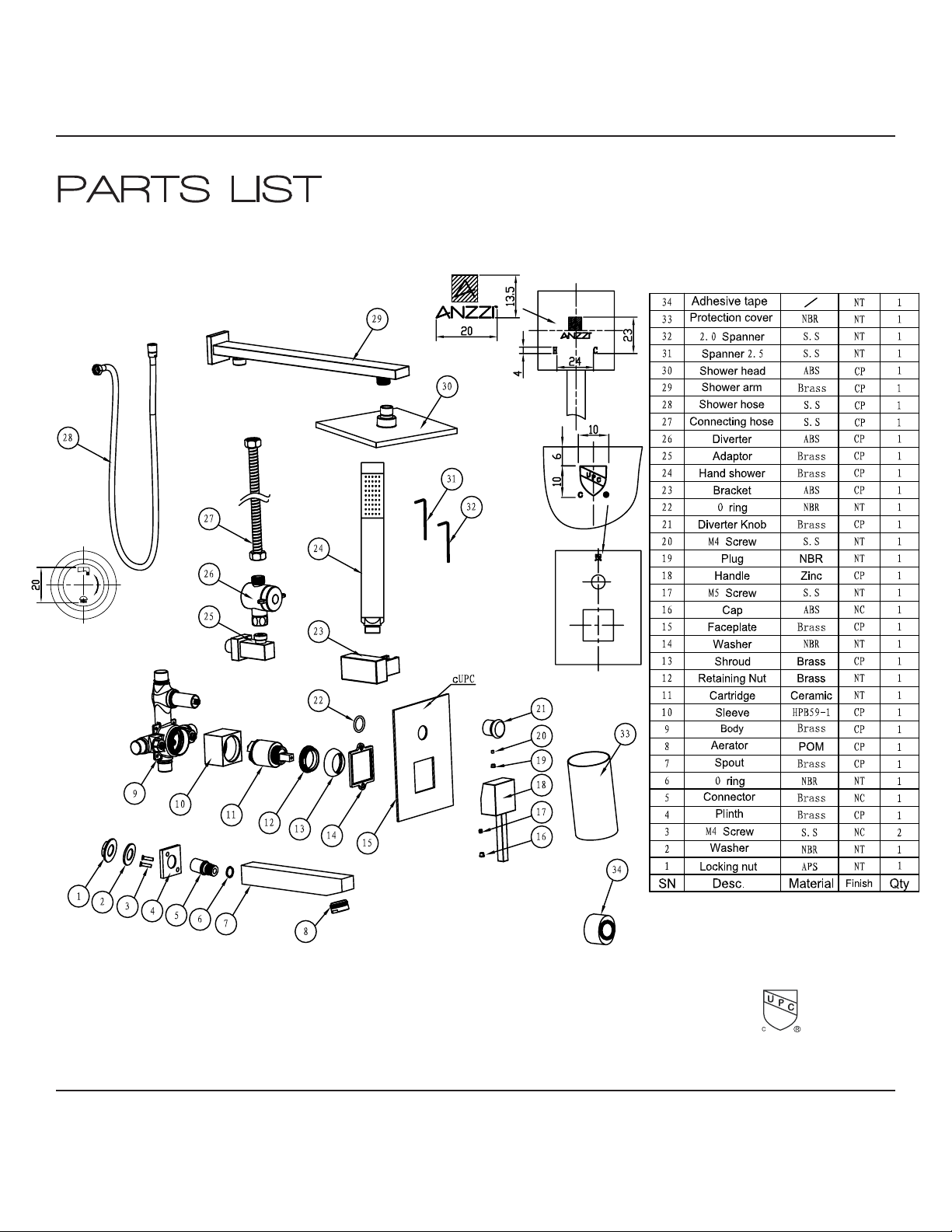

PARTS LIST

PERFECTION IS OUR TRADITION™

pg. 1

ASME A112.18.1/CSA B125.1

PERFECTION IS OUR TRADITION™

pg. 2

For any questions or concerns contact

our dedicated technical support team

at 1-844-44-ANZZI.

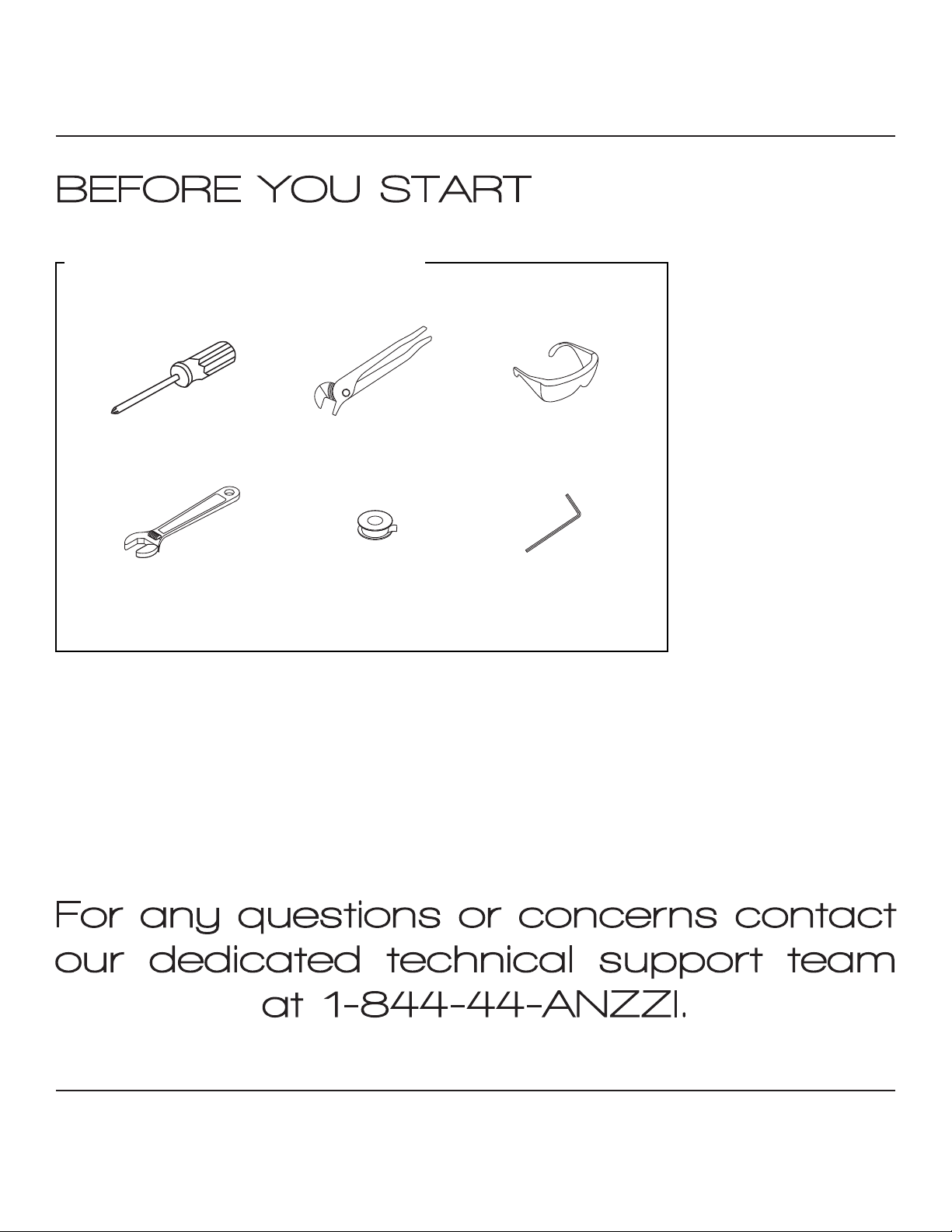

BEFORE YOU START

Screwdriver Channel Locks

Adjustable Wrench Allen key

Goggles

Teflon tape

Recommended Items

ATTENTION: Please read all instructions thoroughly

including all warnings, attentions and notes before

beginning installation.

PERFECTION IS OUR TRADITION™

pg. 3

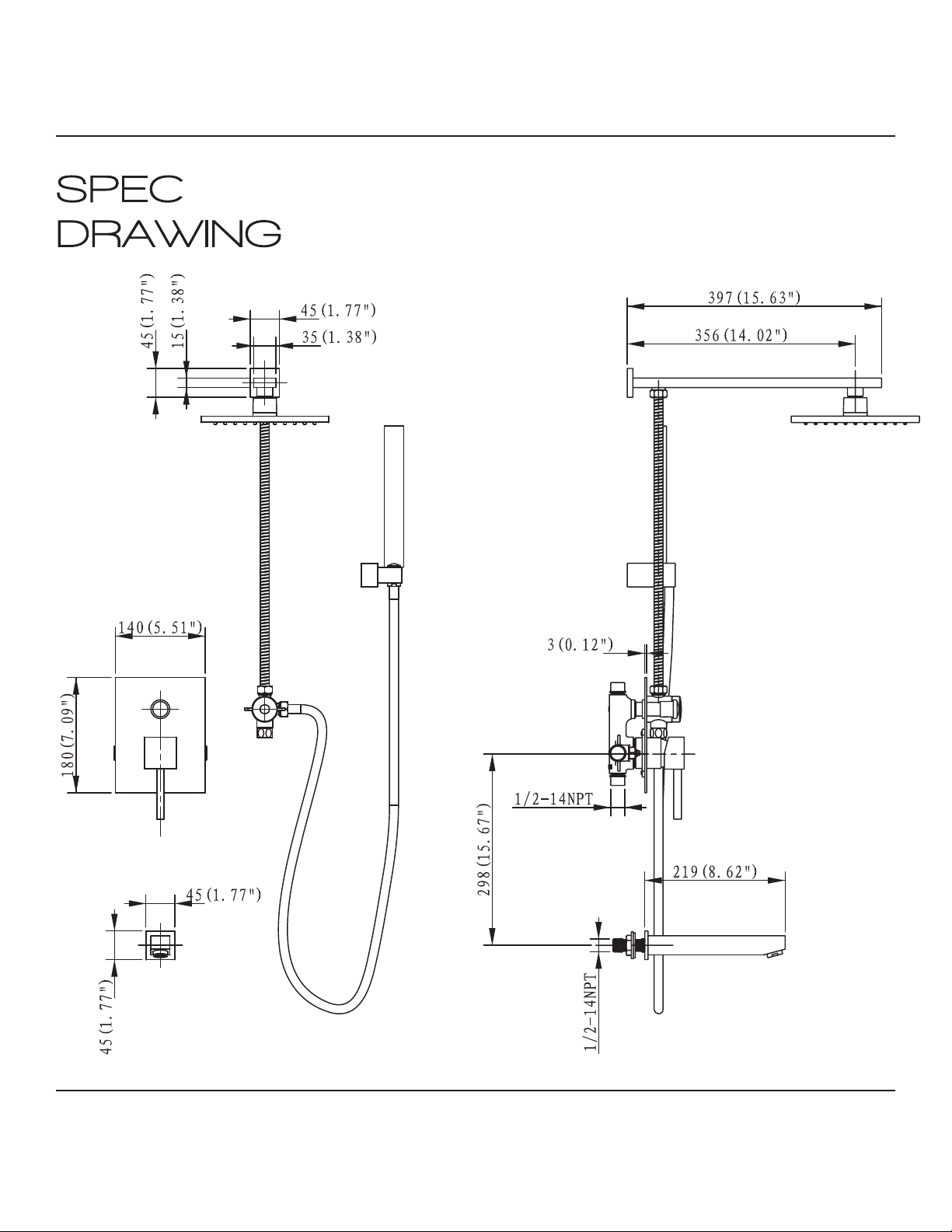

SPEC

DRAWING

[inches]

Figure 1

INSTALLATION

PERFECTION IS OUR TRADITION™

pg. 4

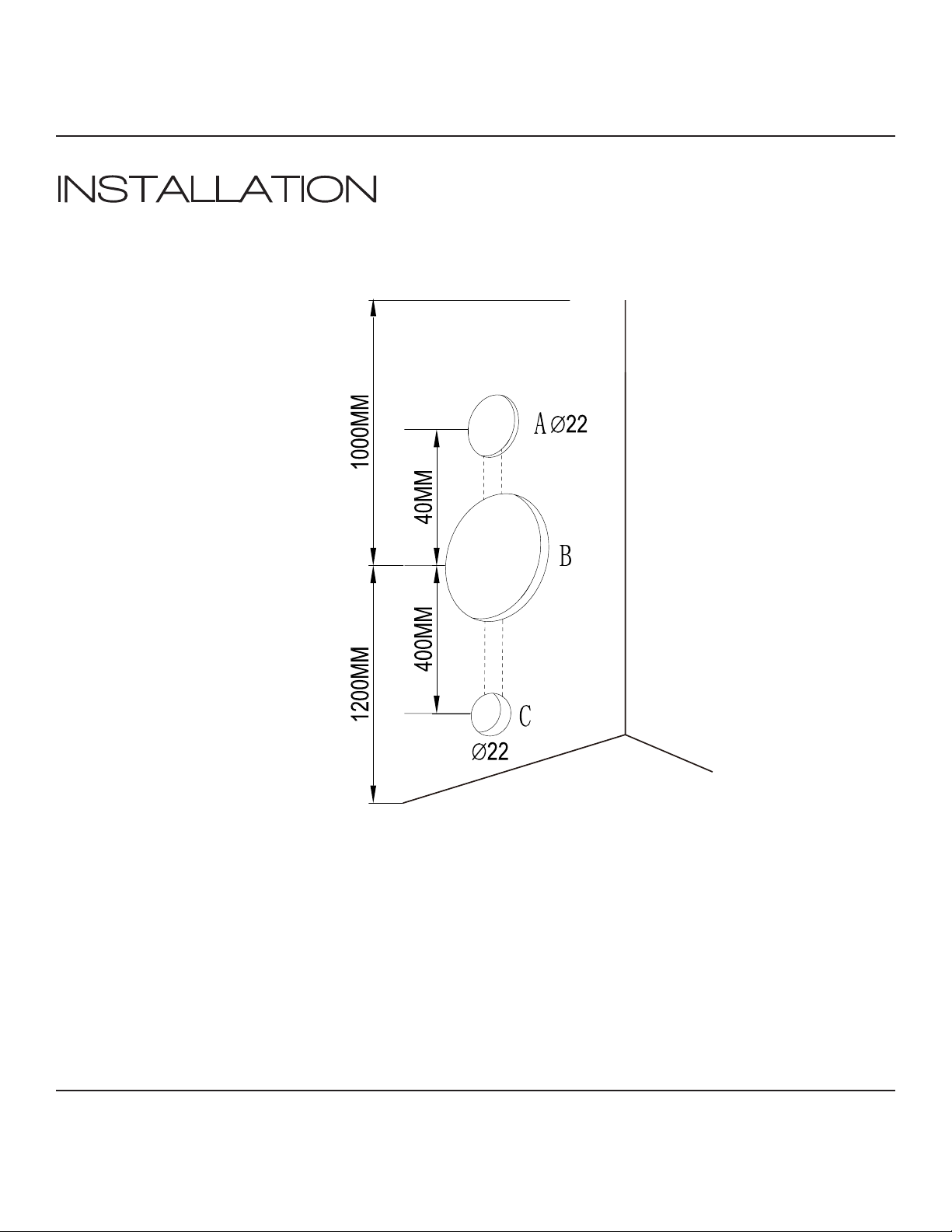

Drill holes according to the drawing shown.Step 1A

Figure 2

INSTALLATION

PERFECTION IS OUR TRADITION™

pg. 5

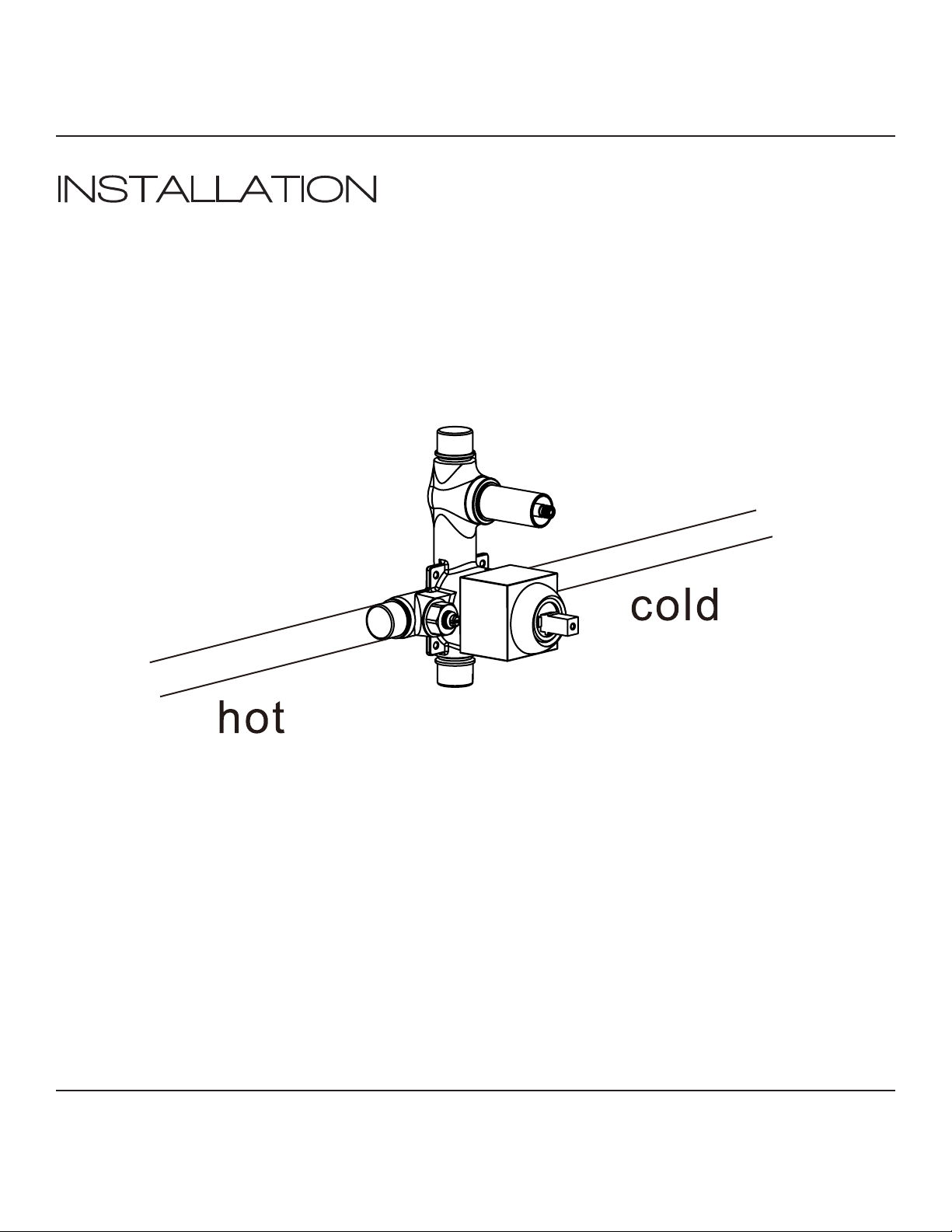

Connect plumbing supply lines to the facuet valve as shown.

Make sure the hot and cold supply lines are connected to the pertaining sides.

Step 2A

Step 2B

Figure 3

INSTALLATION

PERFECTION IS OUR TRADITION™

pg. 6

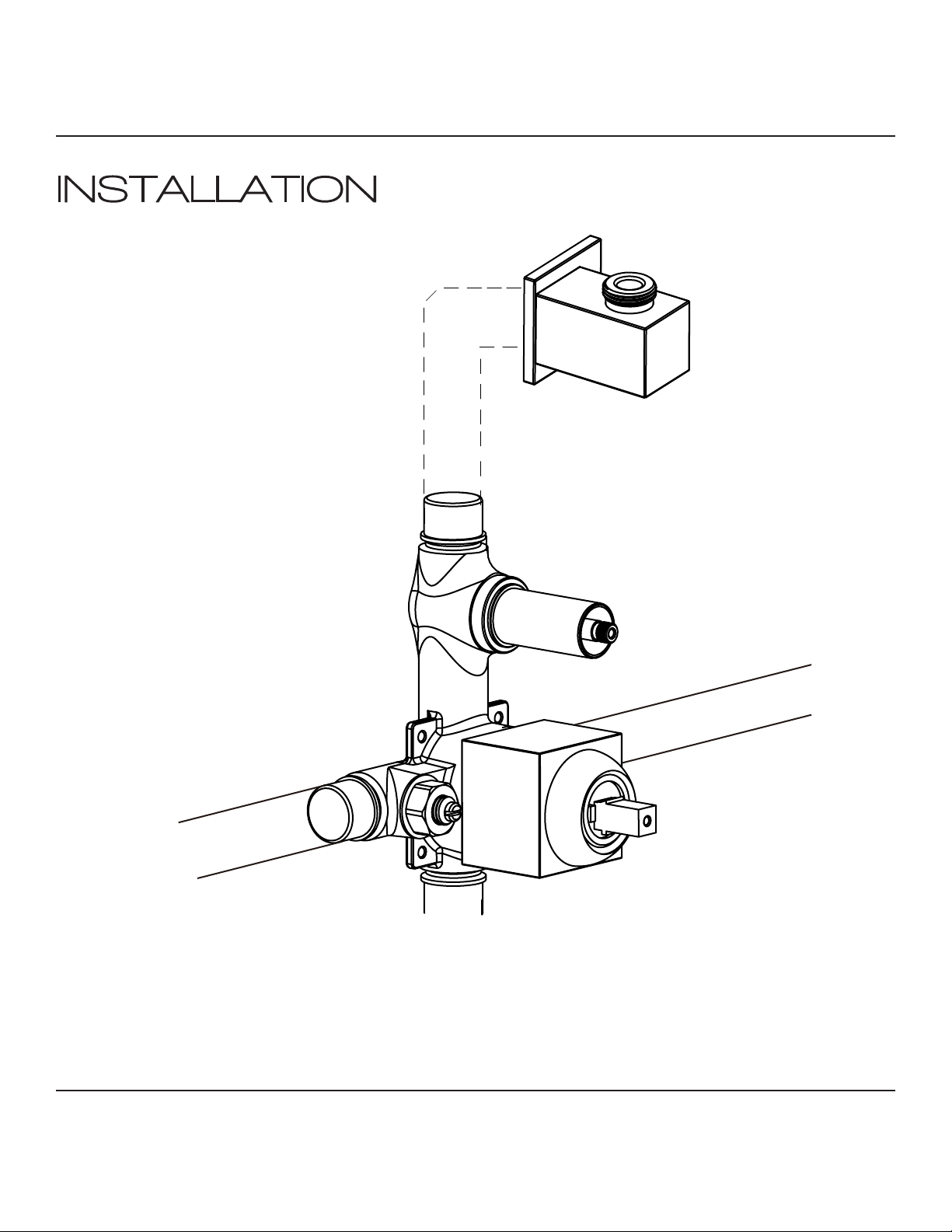

Add Teflon tape and screw the diverter adapter to the pipe ran from above the faucet valve.Step 3A

Figure 4

INSTALLATION

PERFECTION IS OUR TRADITION™

pg. 7

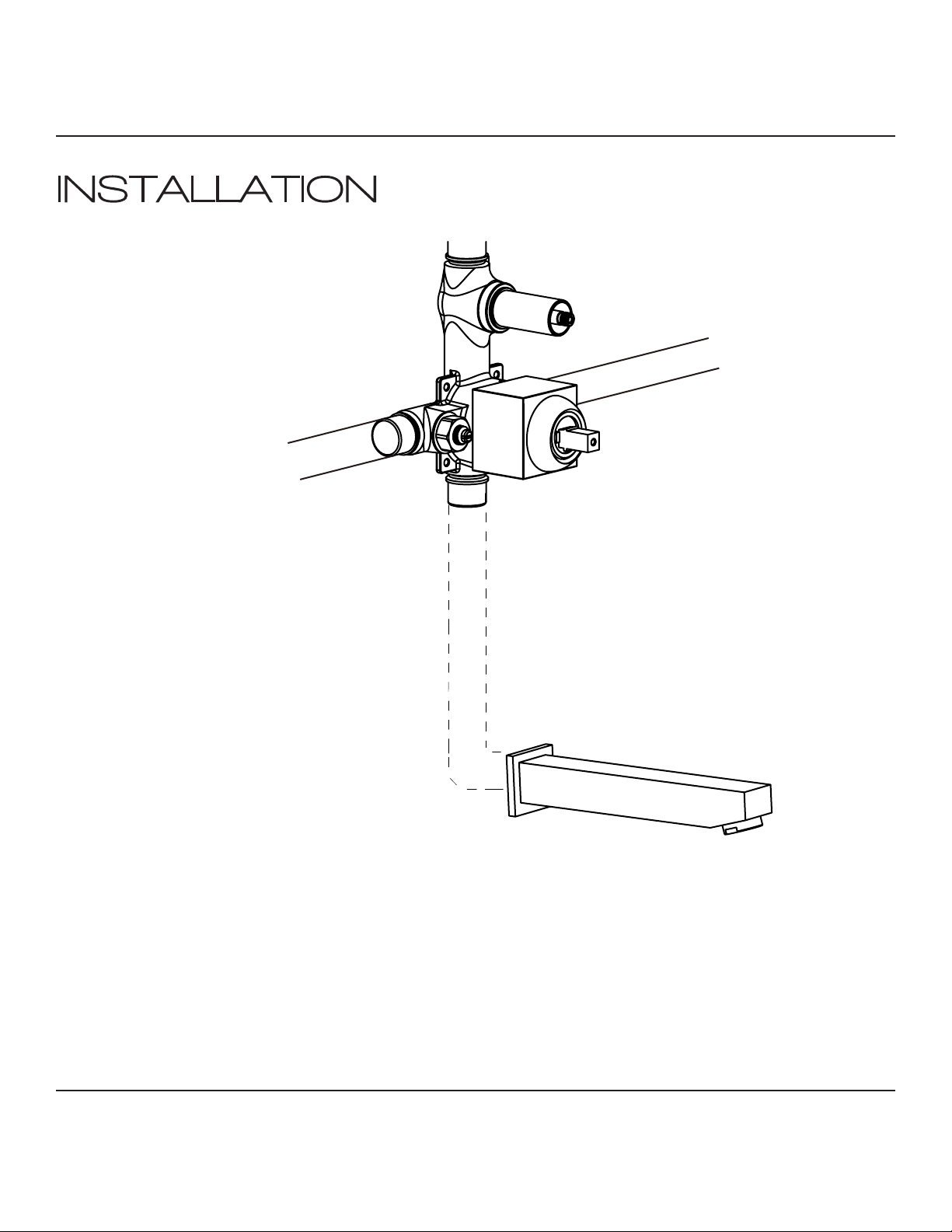

The spout comes with a male thread adapter that can be used or removed depending on

existing connections.

Apply Teflon tape to the pipe connections and screw the spout onto the pipe.

Step 4A

Step 4B

Figure 5 Figure 6

INSTALLATION

PERFECTION IS OUR TRADITION™

pg. 8

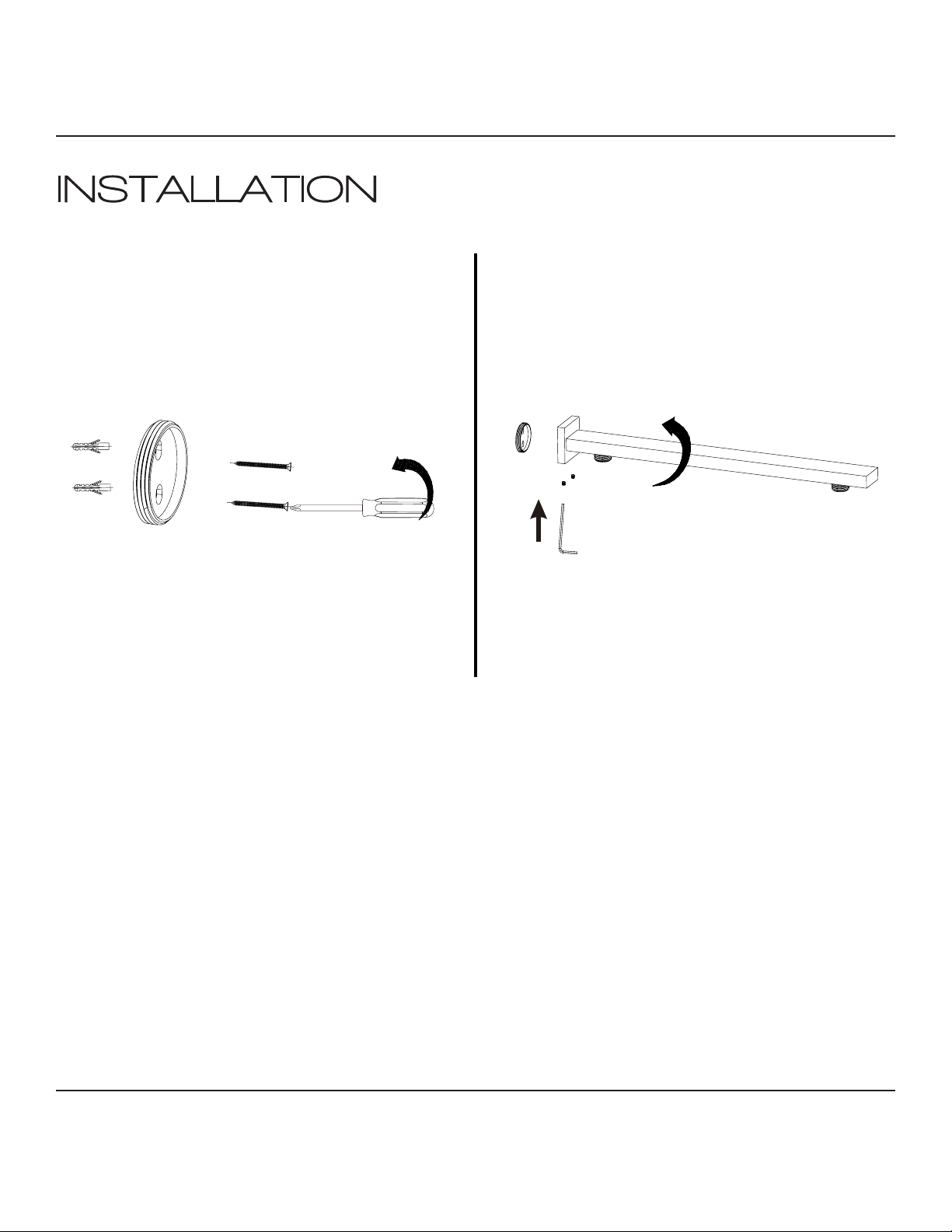

Separate the rear anchor for the shower arm.

Place the anchor in the desired position.

Pre-drilled the holes to insert the wall anchors.

Secure the shower arm anchor with the (x2) screws supplied using a Philips screwdriver.

Install the shower arm to the anchor until it’s tighten in the upright position.

Then, secure it using the (x2) set screws provided.

Step 5A

Step 5B

Step 5C

Step 6A

Step 6B
