Service Manual
LE32M3571/91
(32C1-DVB)
Product Specification Sheet (P1-4)

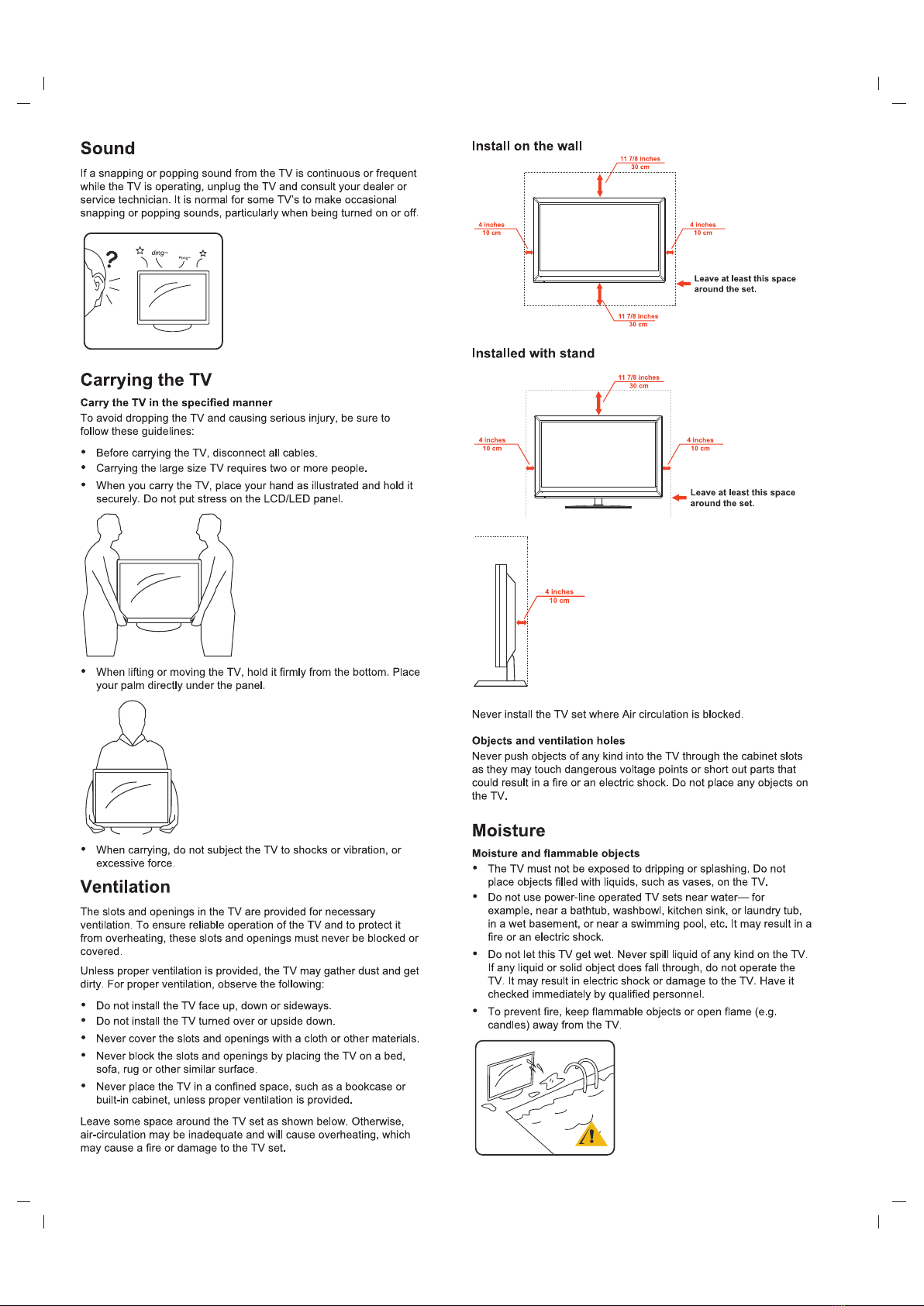

User Manual part (P5-21)
Factory Mode(P22-23)
Software Upgrades (P24)
Troubleshooting Procedure (P25-29)
Circuit Diagrams (P30-37)
Product Specification Sheet
Key feature
Product Specification Sheet Tooling----32C1
Country MEA
Series 3571
Series name
LE32M3571/91
Picture/Display
RC Type 7601-33E432-0144A1C1
Platform/Chipset T5C1-3463 DVB-T2
CPU MSD3463GS 800MHz
GPU N/A
EMMC(Embedded Multi Media Card) (ROM) N/A
DDR (Double Data Rate) (RAM:(random access memory)) 128MB
Panel
Diagonal Screen Size 31.5"
Backlight Type (Panel Supplier) DLED
1st source (panel) BOE
Perfect Motion Rate (PMR) (Perfect Picture Index -PPI) 200
Panel Resolution 1366*768
Panel Frequency (Native) (Panel refresh rate) 60HZ
Chasis Frequency 60HZ
Brightness (Home Vivid Mode) cd/m² Min:200cd/m2， Typ:240cd/m2
Panel contrast ratio 1200:1
Aspect ratio 16:9
Response Time (ms) (G to G , typ. ms) 8ms
Viewing Angle - H (L+R) (typ. Degree,CR≧20) H
Viewing Angle - V (typ. Degree,CR≧20) V
178°/178°
Analog + PWM dimming PWM
Color Gamut NTSC 62%
Dynamic backlight control N/A
Local Dimming N/A
Dynamic contrast (3* CR) 3600:1
Color Temperature Standard, Warm, Cool
Resolution
PQ engine (philips ) Digital Crystal Clear
Supported Display Resolution (Computer Inputs) ( VGA
format)
720*400@70HZ
640*480@60HZ
800*600@60HZ
1024*768@60HZ
1360*768@60HZ
Supported Display Resolution (Video Inputs)
HDMI
480i, 480p,576i,
576p,720p,1080i,1080p(24/25/30/
50/60Hz)
Brightness (Shop Vivid mode: 10% boost) YES(1% boost)
Active Control (Shop mode control) N/A
Natural Motion/Perfect Natural Motion N/A
"UHD Display" - logo (Industry) N/A
10-bit color support N/A
Sound Quality
Mono/Stereo/Virtual Surround Mono/Stereo/Virtual Surround
Output Power (10% THD) RMS (RMS Watts) 12W
Speaker configuration 6W+6W
Speaker system (Number of on board Speakers ) 2.0
Speaker type built-in(normal)
1
Sound Quality Auto Volume Levelier / Auto Volume Levelier + N/A
Dolby Digital DecoderType(DD/DD+) DD
DTS Studio Sound N/A
DTS 2.0+ Digital out N/A
SPL (>= 84dB @ 2m) 78dB @ 2m
Acoustic frequence range
(160~8K HZ<=16dB)
160~8K HZ<=16dB
Software function
Hotel mode (Simple) YES
PLL Digital Tuning NA
Source detection NA
Child lock with code YES
Teletext YES
Sleep Timer YES
EPG YES
OTA /OAD YES
Wifi Display Miracast
NA
Initial setup OSD (OOBE) YES
Channel and source edit/skip channel
NA
Last status( Ac on/off )
NA
Multimedia Applications
Video Playback Formats MPEG-1/MPEG-2/MPEG-4 H.264
FLV/RV8/RV9/RV10
Subtitles Formats Support
SRT、ASS
Music Playback Formats
MP3，AAC
Picture Playback Formats
JPG、JPEG、BMP、PNG
Pause TV/USB recording (PVR) YES
Time shift YES
PIP/POP NA
USB USB2.0(*1)
USB Harddisk Format (Power) FAT/NTFS (500mA)
Connectivity (I/O)
Connections
I/O port to be clearly indicated TV*1/USB*1/VGA*1
/HDMI*2/AV-IN*1/Earphone*1
Playback (HD/SD)@24p/50/60
Component (HD/SD)@24p/50/60 60P
HDMI Number 2
HDMI 1 HDMI 1.4/up to 2k@60hz
4：4：4down
HDMI 2 HDMI 1.4/up to 2k@60hz
4：4：4down
HDMI 3 NA
HDMI 4 NA
HDCP v2.2 (on HDMI 2.0 port) YES
HDMI ARC HDMI-2
PC input (VGA) VGA
AV （input）YES
Headphone YES
Video and Audio out NA
Digital audio out (SPDIF)
co-axial/Optical NA
RJ45 NA
DLNA/ Certification NA
WiFi NA
EasyLink (HDMI-CEC) YES
Antenna Tuner /Satellite tuner Antenna Tuner(down)
Wireless connections N/A
Wi-Fi Band Concurrent N/A
Bluetooth for subwoofer/RC (do not claim commercially) N/A
MHL(Version ) HDMI-1
2
ID Spec
Operating power consumption 55W (max.)
Standby power [Watt] <o.5W
AC switch NA
Ambient temperature 5℃-40℃
Net Weight (Product unit only) ( W/O STAND ; W/
Stand))
W/O 3.8KG
W/ 3.9KG
Gross weight (Product in Packaging)
5.3KG
Dimensions (w, h, d) - unit without stand
732*432*76mm
Dimensions (w, h, d) - unit with stand
732*475*192mm
Box Dimensions (w, h, d) (Carton)
835*514*140mm
Colour - (Leading edge) NA
Wall mounting spec./screw type (X*Y) 100*100mm
Local Keyboard 1 Joystick
table Stand /Stand type (Swivel/non Swivel) non Swivel
OSD and Smart TV
OS Version NA
Customize Launcher NA
Customize Browser NA
Customize application for TV NA
APP store NA
Neflix NA
OpenGL ES 2.0 NA
Keyboard and Mouse support NA
Voice control NA
Portal NA
Help(e-manual) NA
UI & Interaction 2K16 UI
Screen Format Adjustments 4:3,16:9,film,PC Mode(HDMI)
e-Sticker N/A
Channel Scanning (Australia/NZ) N/A
Time Zone (Australia/NZ) N/A
Cold boot to broadcast(<30s) N/A
Cold boot to online dashboard (<30s) N/A
Warm boot to broadcast (<3s) N/A
Warm boot to online dashboard (<3s) N/A
UI Languages English,French,Portuguese,
German,
Arabic,Brazilian Portuguese,
CloudTV app content in search and Dashboard (on TV) N/A
Firmware Upgradeable YES
Smart TV N/A
Software Platform (OSD display) YES
UI Resolution 720P
Memory size to install apps N/A
Extendable USB storage for App Download N/A
DLNA 1.5 - DMR, DMP (Support w/o certifi.) N/A
Preinstalled my Apps (help/日曆/計算機)N/A
Broadcast/Certification
Broadcast:
(DVB-T/T2/C/C2/S/S2/ISDB-T/DTMB/ISDB-T Ginga)
DVB-T2
broadcast Analog (NTSC/PAL/SECAM) PAL SECAM
Nicam (APMEA) YES
Video Playback(NTSC/SECAM/PAL) PAL SECAM
HBBTV 1.5 N/A
HBBTV 2.0 N/A
Power/Material
PVC / BFR Free YES
Mercury Free N/A
Cabinet Resin ABS
ECO Mode YES
3
Power/Material Mains Power AC 100-240V 50/60Hz
Standby Power <0.5W
Green packaging (Non-EPS) YES
Light Sensor NA
Picture Mute (For Radio) SCREEN OFF NA
non-EU Energy Label - Standby Label (A/B/C) NA
Certification
Dolby Digital/Dolby Digital Plus/Dolby Pulse YES
DTS 2.0+ Digital out N/A
DTS Premium Sound N/A
DivX N/A
WMA N/A
Wi-Fi N/A
HDMI YES
Accessory
RC RC-E43
DFU (DFU / EDFU) 紙本
QSG YES
YpbPr extension wire NA
L/R extension wire NA
AV extension wire NA
RC with Batteries YES
Maincord (Power cord) NA
Warranty card N/A
Safety Legal Leaflet (EU) - 3D Health Advise and Ukraine
requirement
N/A
Table Stand YES
4
5
6
7
8
9
