Service Manual

LE40M1571

(40L82F-DVB)

Product Specification Sheet (P1-3)

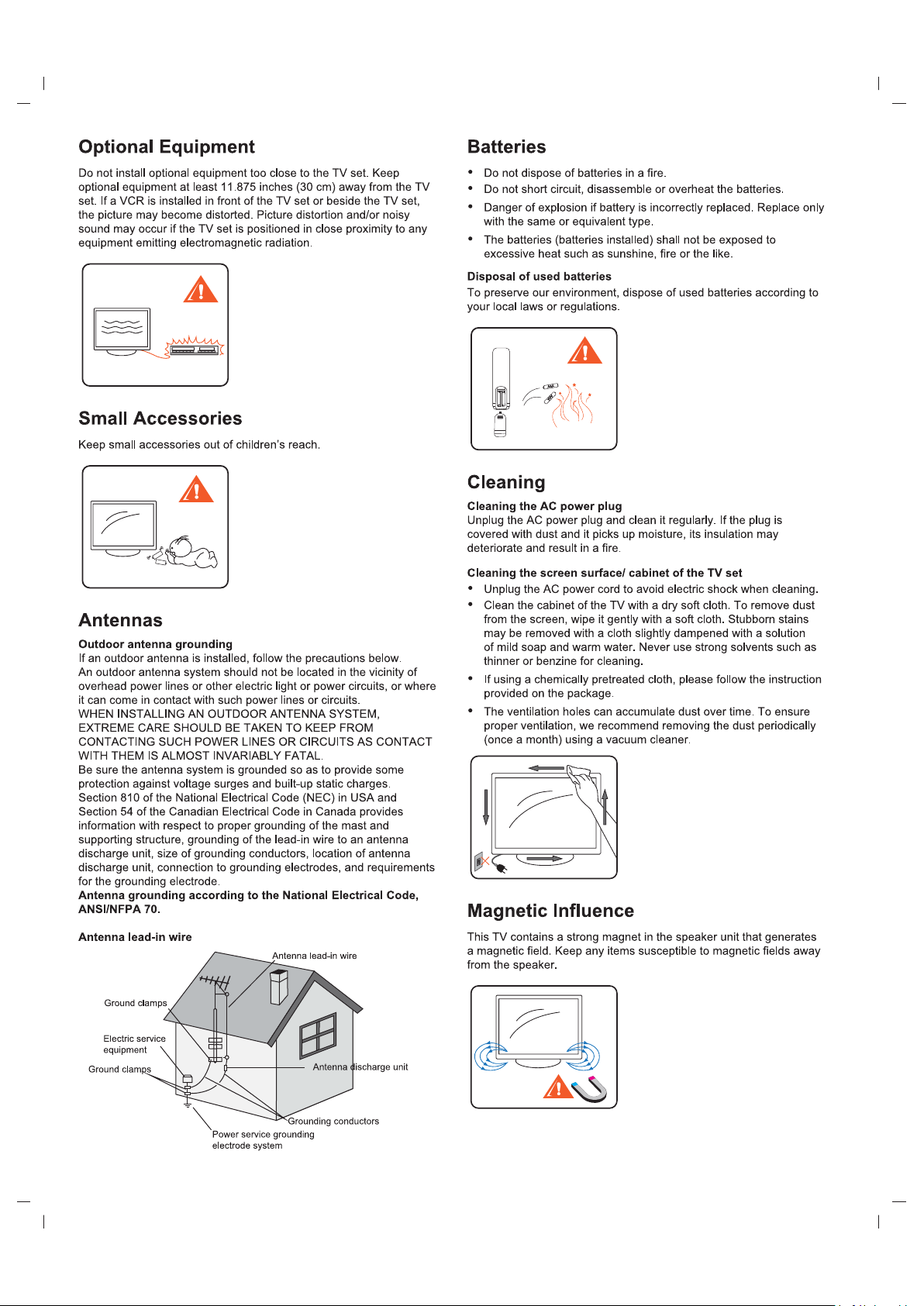

User Manual part (P4-21)

Factory Pattern Adjustment(P22-23)

Troubleshooting Procedure (P24-28)

Software Upgrades (After Service (P29-3 ))

Circuit Diagrams (P - )

Product Specification Sheet

40" FHD DLED DTV (40L82F-DVB)

Series name LE40M1571

Platform/Chipset T4C1-3463 DVB-T2

Processor type (CPU) / GPU

Picture/Display

RC TBC

Backlight Type (Panel Supplier) DLED

Diagonal Screen Size 39.5”

Perfect Motion Rate

Panel Frequency (Native) 60HZ

Chasis Frequency 60HZ

Backlight Dimming PWM

Scanning Segments (amount) 48.25--863.25MHZ

Panel Resolution 1920*1080

Aspect ratio 16:9

Brightness (Home Vivid Mode) cd/m² Min:180cd/m2,Typ:210cd/m2

(LCM:Min:220cd/m2,Typ:260cd/m2)

Panel contrast ratio 5000:1

Viewing Angle - H (L+R) 176°

Viewing Angle - V 176°

Response Time (ms) 8.5ms

Analog + PWM dimming YES

2D/3D Logic (2D/3D Active/3D Passive ) 2D

Color Gamut NTSC 65%

PQ engine Digital Crystal Clear

Supported Display Resolution (Computer

Inputs)

720*400@70HZ

640*480@60HZ

800*600@60HZ

1024*768@60HZ

1360*768@60HZ

1280*720@60HZ

1280*960@60HZ

1280*1024@60HZ

1600*900@60HZ

1920*1080@60HZ

Supported Display Resolution (Video Inputs) 480i, 480p,576i,

576p,720p,1080i,1080p(24/25/30/50/60Hz)

Brightness (Shop Vivid mode: 10% boost) YES(1% boost)

Sound (TV)

Sound (Internal)

Output Power (10% THD) RMS 12W

Speaker configuration 6W+6W

Speaker system 2.0

Speaker type built-in(normal)

Auto Volume Levelier / Auto Volume Levelier +

YES

Sound Claim (Incredible Surround/Cinema

Surround/Clear Sound/AmbiwOOx/3D

Movie/Incredible Surround 3D)

N/A

Bass (Bass control/DBE/Ultra Bass/Ultra Bass

II )

N/A

Wireless Sound Interface N/A

Dolby Digital DecoderType YES

Design Specs

Stand type (Swivel/non Swivel) Metal Bridge

I/O port to be clearly indicated TV*1/USB*1/VGA*1

/HDMI*2/YPBPR*1/AV-IN*1/Earphone*1

Local Keyboard YES

Philips wordmark logo AOC

Leading Edge #7

Vesa Wall Mount Compatible YES

Compatible Wall Mount 100mm×200mm

Connectivity (I/O)

HDMI Number HDMI1.4(*2)

HDMI 1.4a HDMI(Under-out)

HDMI 2.0 N/A

HDMI/DVI YES

HDMI ARC HDMI-2

EasyLink (HDMI-CEC) YES

CVBS (EU/Latam) Connections *1

Audio L/R in *1

CI+ slots N/A

Antenna *1

USB USB2.0(*1)

USB Harddisk Format (Power) FAT/NTFS (500mA)

VGA YES

VGA/DVI Audio Input share AV audio input

Digital audio out (SPDIF) N/A

Headphone *1

Ethernet-LAN RJ-45 N/A

Service Connector VGA connectable

HDCP v2.2 (on HDMI 2.0 port) N/A

MHL (HDMI+power+return channel) YES

UI & Interaction

Ux (Basic: without Dashboard, Advanced: with

Dashboard)

Basic

Text Entry (Basic : Text Entry via HID and/or

On-screen Keyboard)

Basic

Screen Format Adjustments 4:3,16:9,film,PC Mode(HDMI)

Dual Screen (TV and TeleText) N/A

Teletext YES

8 Days Electronic Program Guide YES

Live Setting Assistant (include PQ level) N/A

Signal Strength Indication YES

Pause TV/USB recording (PVR) YES

UI Languages English， Malaysia, Indonesian, Thai,

Vietnamese,Chinese

Memory Profile (DRAM) 128M

Shopmode 2015 YES

CloudTV app content in search and Dashboard

(on TV)

N/A

Firmware Upgradeable YES

Multimedia Applications

Video Playback Formats MPEG-2/MPEG-4 /H.264

Subtitles Formats Support SRT、ASS

Music Playback Formats MP3，AAC

Picture Playback Formats JPEG、BMP、PNG

Broadcast/Certification

DVB-T/T2 YES

DVB-C2 N/A

Analog (LATAM/APMEA) PAL SECAM

Sustainability/Power

Cabinet Resin ABS

Mains Power AC 100-240V 50/60Hz

Standby Power <0.5W

Off Mode Power <0.5W

On Mode Power (Consumption Power) 75W (max.)

Auto Switch-Off Timer YES

Green packaging (Non-EPS) YES

Accessory

Accessory Bag YES

Mains Cord (EU/UK/Brazil/APMEA ) YES

Remote Control + 2x Philips Batteries YES

Printed QSG YES

EDFU (APMEA) YES

Safety Legal Leaflet (EU) - 3D Health Advise

and Ukraine requirement

N/A

Philips Warranty Leaflet YES

Optional accessories

Dimensions (WxHxD)

Unit with stand 904x569x227mm

Unit without stand 904x521x82mm

Carton 1015x622x150mm

Wall-mount 100mm×200mm

Weight

Product without Stand 6.2Kg

Product with Stand 6.5Kg

Product in Packaging 8.5Kg
