APAC Opto Electronics APH44030 Bedienungsanleitung
Pico Projector
Owner’s Manuel
Please read this owner’s manual carefully before operating the unit.
- 1 -
TABLE OF CONTENTS
1. Introduction…………………………………………..2
2. Safety precautions………………………………….3
3. Package contents…………………………………...5
4. Product overview……………………………………6
5. How to use the projector……………….………11
6. Troubleshooting..……………………………………23
7. Specifications………………………………………….25
- 2 -
LCOS projector technology
Latest LED technology
4:3 aspect ratios and 640X480 VGA resolution
Built in stereo speaker
Built in high capacity battery
Support a wide range of media formats
Introduction
- 3 -
Please read this manual carefully before using your projector and
keep the manual handy for future reference.
1. Turn off the machine before cleaning.
2. Use normal glass cleaner and a soft cloth to clean.
3. Operate in low light conditions for best effect
4. If the projector is not to be used for an extended period of
time, disconnect the plug from the power outlet.
5. Use only authorized parts and accessories.
1. Do not obstruct the vents.
2. Do not submerse your projector in liquid.
3. Do not place any liquids on top of your projector.
4. Do not operate under the following conditions：
—Too hot, cold, or humid environments
—Dusty and dirty environments.
—Near strong magnetic fields.
—Under direct sunlight.
Do：
Safety Precautions
Do not：
- 4 -
1. Do not look into the lens while the projector is on. Serious
damage to your eyes could result.
2. Use appropriate power supply.
3. Dropping or jarring your projector can damage internal
components.
4. Do not attempt any repair yourself.
Safety Certification：UL、CE、CCC, BSMI
Warning：
- 5 -
Make sure your box contains everything listed. If any pieces are
missing, contact your dealer.
Standard Accessories：
1. Power adaptor
2. Projector
3. AV cable
4. USB cord
5. Tripod
6. Remote control
7. Owner’s manual
Optional Accessories：
1. iPad/iPhone out line
2. USB to mini USB converter
3. Micro SD 2G
4. Micro SD 4G
Package contents
- 6 -

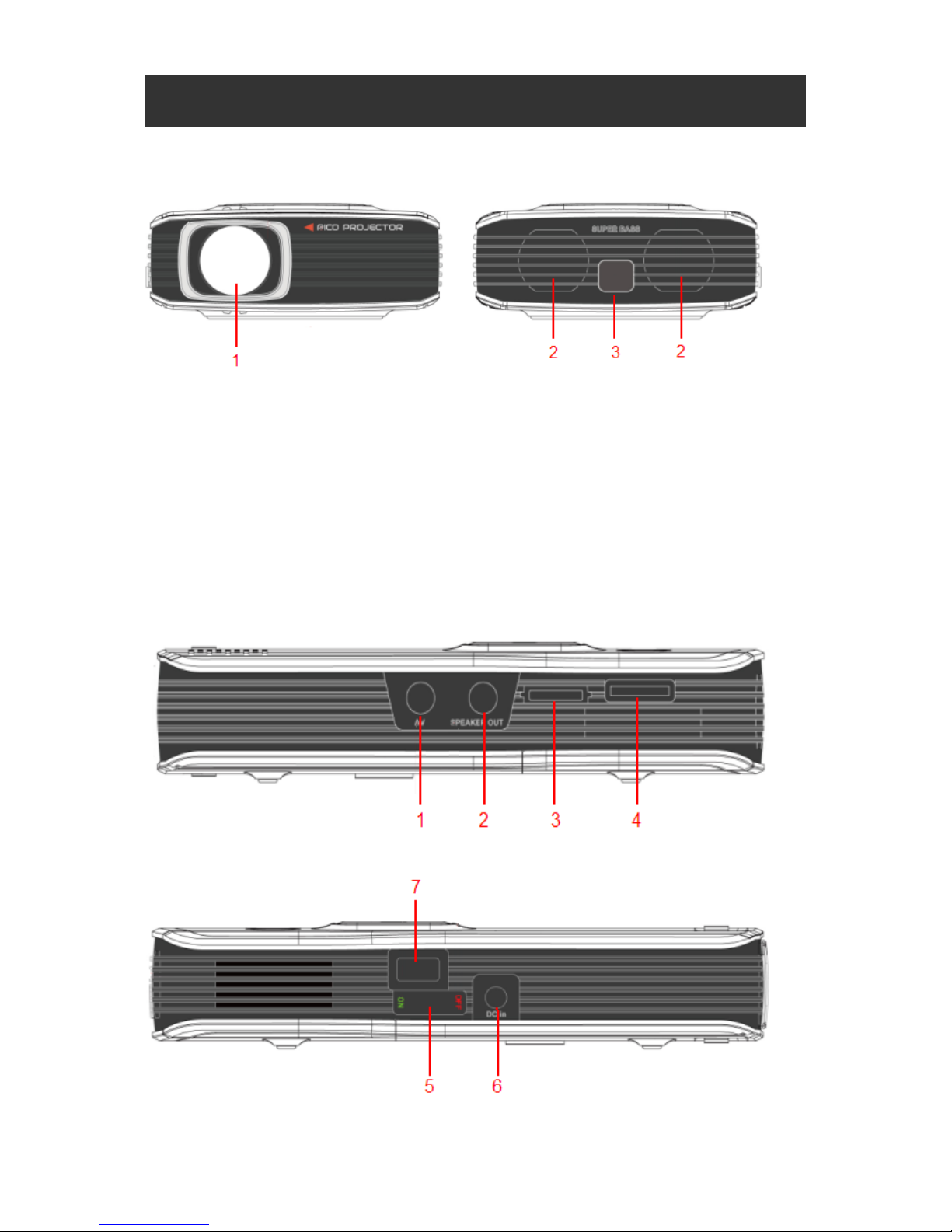

Front/Back view
1. Lens 2. Speaker
3. Infrared receiver
Left/Right view
Product Overview
- 7 -
1. AV in 2. SPEAKER OUT
3. Volume knob 4. TF card slot
5. ON/OF 6. DC IN
7. USB port

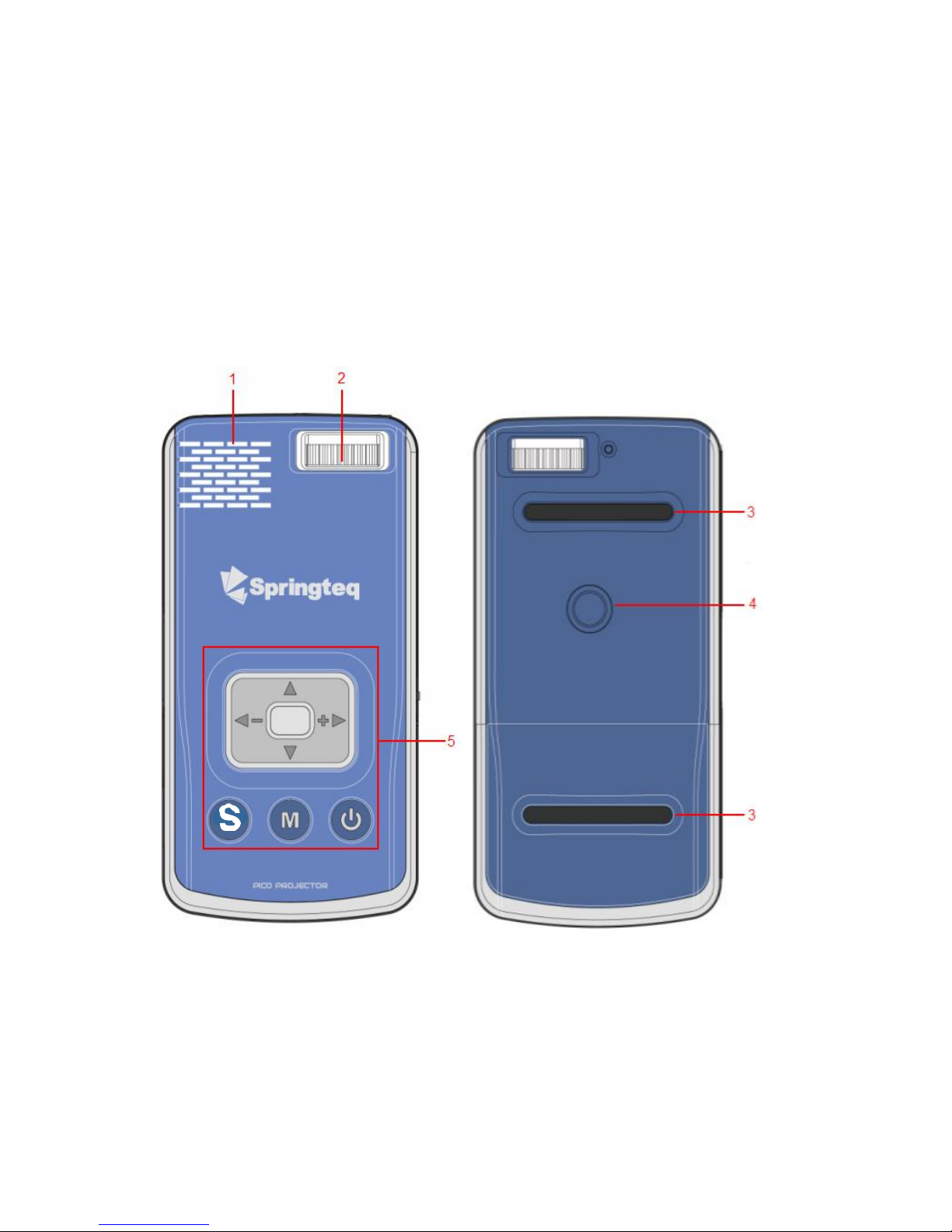

Top/Bottom view
1. Vent 2. Focus ring
3. Plastic protection pad 4. Tripod Mount
5. Control panel.
- 8 -
: press for 2 seconds to turn on/off
: Return to previous menu
: Switch between AV/PMP
: Up/play the previous file
: Down/play the next file
: Left/rewind/turn the picture counter clock wise
: Left/forward/turn the picture clock wise
ENTER: Confirm/Start/Slide mode

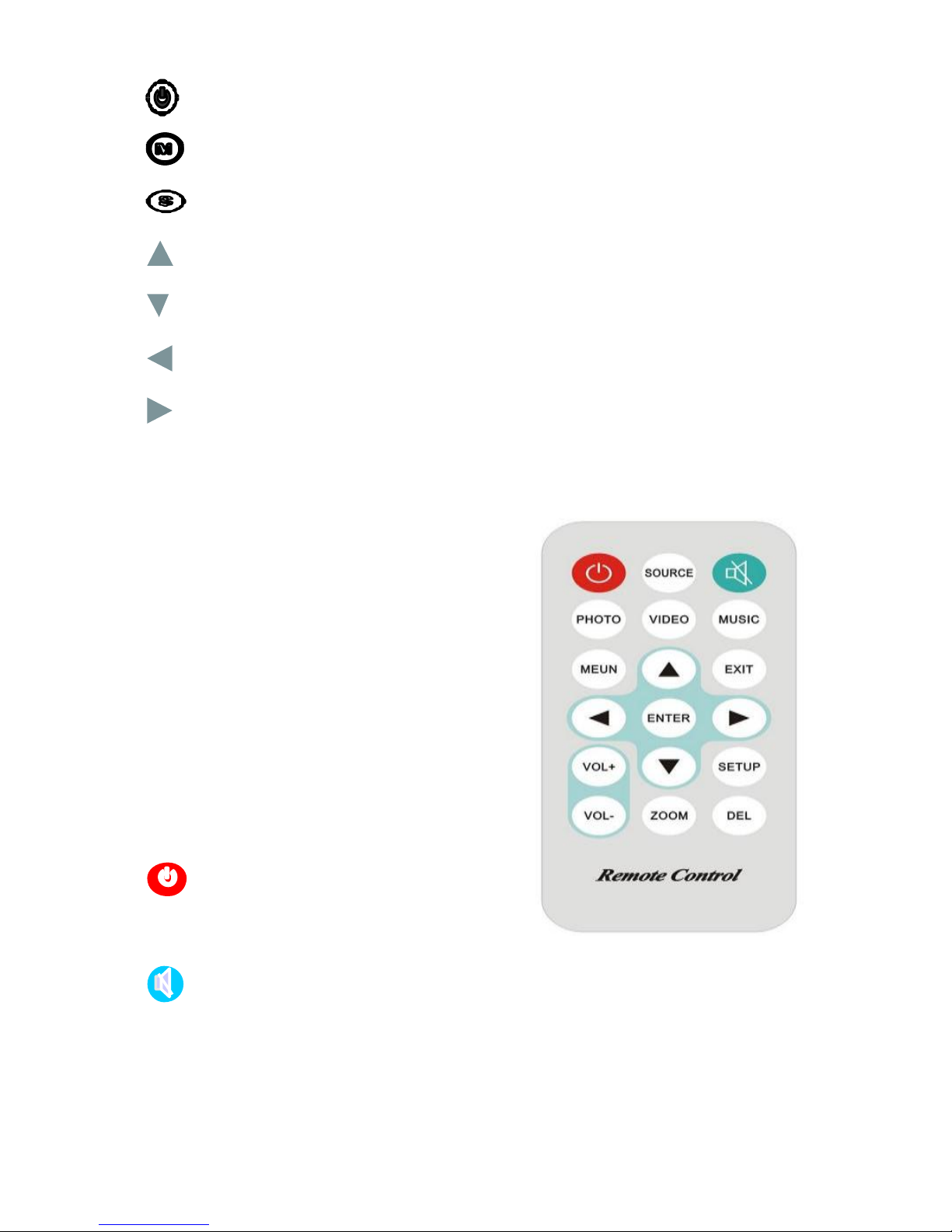

Remote control
This projector comes with an
infrared remote control, please
take off the battery protection slip
before usage.
Functions are as follows：
: Turn off
SOURCE: Switch between AV/PMP
: Mute on/off
PHOTO : Slide mode
VIDEO : Video mode
- 9 -
MUSIC : Music mode
MENU : PMP menu
EXIT : back to the previous menu
/ : Up/Down in menu, Next/previous music,
Video or picture
/: Left/Right in menu, rewind/fast forward in music and
video mode, turn the picture in picture mode.
ENTER : confirm/execute the selection, pause/play in video
and music mode, single picture or slideshow in picture mode.
VOL± : volume control
SETUP : back to PMP main menu
ZOOM : Zoom 125%/150% /175% /200% /225% /250%
DEL : Delete current picture in slide mode
