AppyGarden Edge 2 Plus Benutzerhandbuch
1
Edge 2 Plus
Electronic Hose Faucet Timer
Setup Manual
Ideal for:
✓Lawns
✓Gardens
✓Shrubs
✓Allotments
✓Patios
✓Pots
✓Holiday watering
Note: Actual product colour may vary by region.
To be used outdoors, with cold water only. Horizontal or inverted installation is prohibited.
Note: Avoid exposing the product to frost as damage will occur.
2
INTRODUCTION
Thank you for selecting the Edge 2 Plus Electronic Hose Faucet Timer. The Edge 2
Plus combines the simplicity of mechanical switches with the accuracy of digital
electronics to give you a versatile and easy to program product. This Manual
provides guidelines and precautions for use of this Product. For the best
application performance of this Product, please read this Manual carefully before
use and keep it for further reference. The Company reserves the right to update
and modify the design specifications and the contents of this Manual without prior
notice.
We hope that you will be delighted with our products. However, if you have any
questions, feedbacks, or suggestions, please contacts us via the following e-mail:
info@appygarden.com
3
CONTENTS
PAGE
Features
4
Additional Features
4
Components
5
Installation Instructions
6
How to set the current time
7
How to modify the programs of Stations 1 and 2
8
How to manually turn off the Product during a watering cycle
10
How to set and change manual watering mode
11
How to set, change or turn off the rain delay timer
13
Product precautions
14
Troubleshooting
15
Maintenance
16
Warranty card
17
4
FEATURES
We have packed many useful and beneficial features in an attractive and easy to
program LCD layout.
•Two outlet ports for additional watering options.
•2 independent programs per outlet for more watering flexibility.
•Detachable electronic fascia to enable you to program inside at your
convenience.
•Install quickly with ergonomically designed swivel which connects to the
faucet (no tools required).
•The timer also has a Rain Delay AND Manual Cycle function to save water.
•Large Easy-to-read digital display.
•Operating pressure range from 20 PSI and up to Maximum of 150 PSI.
•Range 1 minute to 360 minutes.
•Interval Programming-Water every 1 hour to 24 hours, then go from 1 day
to 15 days maximum cycle time.
•The timer shows time left on current watering schedule and time until the
start of the next cycle time.
•Rain delay options of 1-2 days.
ADDITIONAL FEATURES
•Diaphragm valve for improved performance and longevity.
•Operates with 2*AA batteries.
•Low Battery indicator.
5
Components
Hose Tap Connection:
3/4”Internal thread and built-in
metal filter.
Display Screen:
Large LCD display
Operation Buttons:
Turn/OK dial
+/− buttons
Water Outlets:
3/4”External thread
6
INSTALLATION INSTRUCTIONS
Connect the product using
the hose tap connection to
the corresponding faucet.
Connect the first hose to the
leftmost water outlet, this will
become Station 1. Use an
adapter or PTFE tape if
required.
Connect the second hose to
the rightmost water outlet,
this will become Station 2.
Use an adapter or PTFE tape
if required.
Remove the face by simply
pulling it out of the product.
The battery compartment is
located behind the face of
the product.
Open the battery compartment
and insert two 1.5V AA alkaline
batteries, ensuring correct
polarity. Close the battery
compartment, ensuring that
the arrows are aligned
together.
Return the face to the body
of the product by pushing it
into the product, ensuring
that the electrical
connections align together.
7
OPERATION INSTRUCTIONS
Note: A symbol will be used to represent flashing in the instructions.
For ease of programming the face of the product can be removed from the body.
How to set the current time:
Note: the time on the Edge 2 Plus does not automatically change during the summer daylight
saving time and may therefore require manual changing.
From the main menu turn
the middle dial until only the
time is flashing in the top left
corner of the LCD screen.
Press the middle dial down to
start adjusting the time.
To adjust the hour, ensure
that the hours are flashing
and turn the middle dial until
the correct hour appears.
Press the middle dial down to
move onto the minutes.
To adjust the minutes,
ensure that the minutes are
flashing and turn the middle
dial until the correct minutes
appear.
Press the middle dial to
confirm the time and return
to the main menu.
8
How to modify the programs for Station 1 and Station 2:
From the main menu, turn
the middle dial until the
required program and
station are selected and
flashing.
Press the middle dial to begin
customizing the program.
Turn the middle dial to select
ON or OFF, depending on
whether the program is
required or not.
Press the middle dial to
move onto the required
start of the watering cycle
(START TIME).

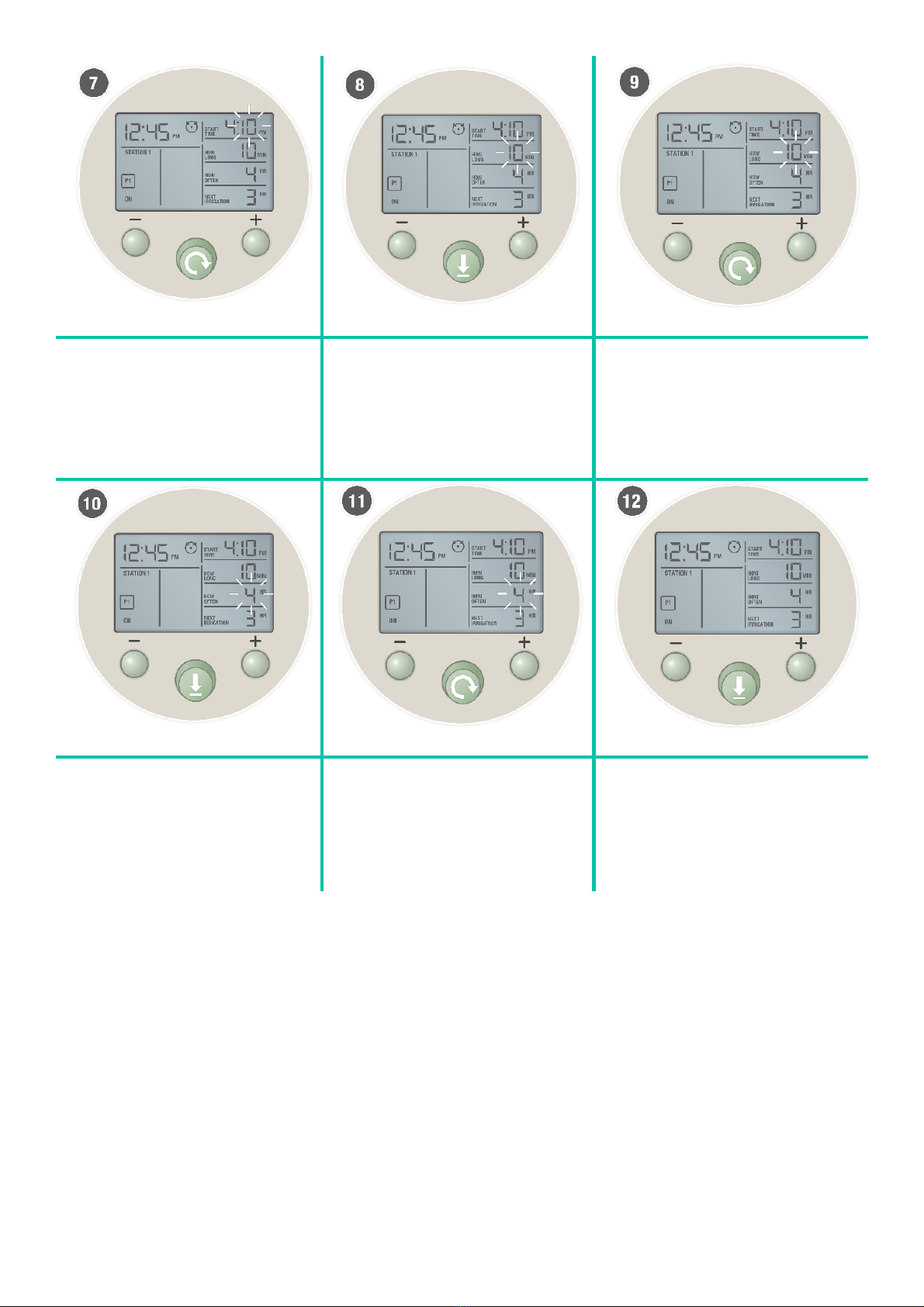

Ensure that the hours are
flashing and modify the hours
by turning the dial, until the
required hour appears. Note:
take care that AM or PM are
set correctly.
Press the middle dial to
confirm and to move onto the
minutes.
9
Ensure that the minutes are
flashing and modify by
turning the middle dial, until
the required minutes
appear.
Press the middle dial to
confirm and to move onto
the duration of the watering
cycle (HOW LONG).
Turn the middle dial to select
the duration of the irrigation
cycle. NOTE: there is a 6-hour
limit.
Press the middle dial to
confirm the duration and to
move onto the time
between watering cycles
(HOW OFTEN).
Turn the middle dial to select
the time between watering
cycles. NOTE: there is a 15-
day limit.
Press the middle dial to
confirm the time between
watering cycles and to move
onto the main menu.
10
How to manually turn off the Product during a watering cycle:
During a watering cycle the current time will appear in the top left corner, and the station and
program will appear in the top right corner. A faucet symbol will appear under the
corresponding station, alongside the corresponding program, which will be flashing. The time
remaining will also appear flashing below the top right corner.
During a watering cycle,
press the button on the left
of the middle dial, displaying
a (−) sign. This should cause
ON to start flashing on the
LCD screen in the top right
corner, as well as a flashing
hand next to the faucet
symbol. This indicates that
manual watering mode is on.
Turn the dial until OFF
appears flashing instead of
ON.
Press the middle dial to
confirm turning the cycle off.
