APsystems ECU-C Zigbee Kurzanleitung
English – Q1 2021
Caution: Features are unavailable to residential split phase
Product Overview
Installation
ECU-C configuration
Product Overview
Features are not available on NA split phase
Collection and transmission of inverter data
Real time monitoring of each inverter
Adapted to EU single or 3 phase
Built-in WiFi
Zigbee communication
Rail din mounted
Metering Function (Electricity data monitoring)
0 Export function
Redundant Energy Control
Energy Communication Unit with advanced functions
Power Interface
NA 3 phase systems :
208 or 277Y/480V
L1/L2/L3/N/PE
Network
Interface
Reset
Button
WiFi
antenna
Production
CT(s)
Consumption
CT(s)
ZigBee
antenna
Redundant
Energy
Control
Status led
50m max
open field
=
good signal
100 inverters per ECU
ZigBee
relay
bad com
long distance
obstacles
move Zigbee antenna of the ECU to a better location using
extension cable for WiFi antenna 2.4GHz
with SMA connectors male / female
(not provided by APsystems)
If the antenna is installed outside not protected from the rain
change if for an appropriate version :
WiFi antenna 2.4GHz outdoor
(not provided by APsystems)

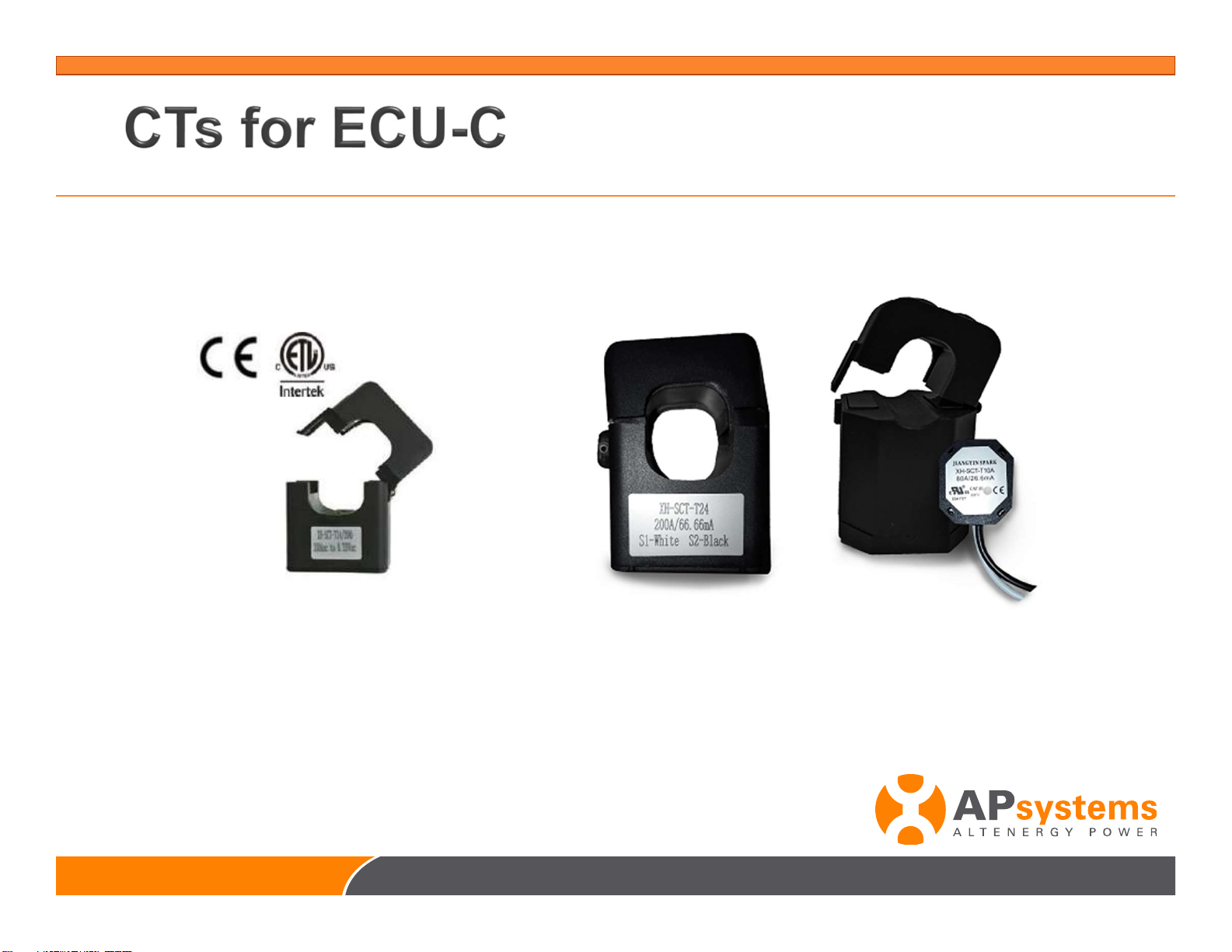

80A or 200A
Production Consumption
