Aqua-Hot WORK READY WR13000 Bedienungsanleitung

( -)

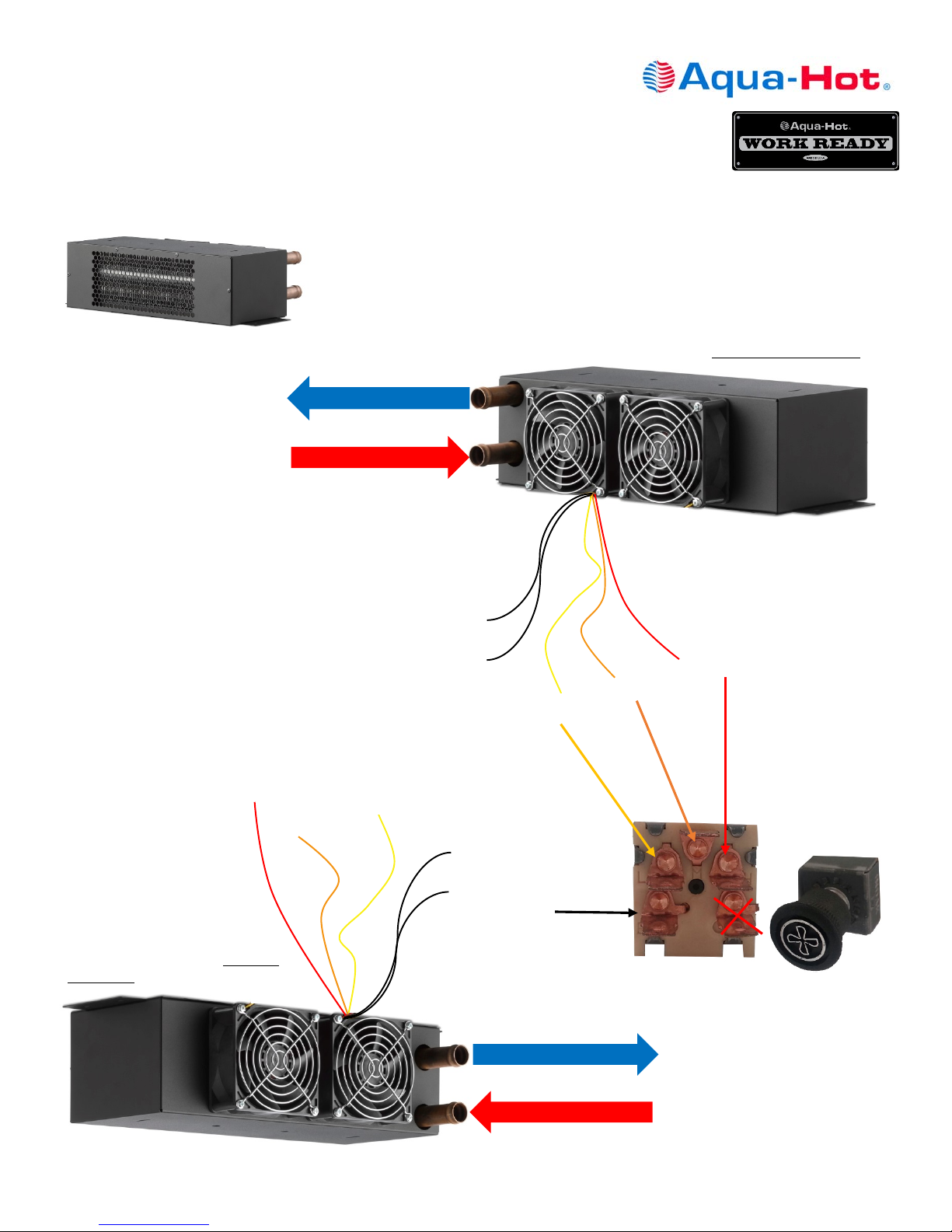

Figure 1: Front View

( -)

Medium/Moyen

High/Haut

I – C2 - 092214

Power Source

Figure 3: Three

Speed Fan Switch

(sold separately)

WORK READY™ Auxiliary Heater

Model WR13000 | Part No. EXE-100-002

Fluid flows in through input

coolant hose from engine to lower

barb

Heated fluid flows out through

coolant hose from heat exchanger

to radiator

Figure 2A: Back View with mounting tabs on bottom.

Heated fluid flows out through

coolant hose from heat exchanger

to radiator

Fluid flows in through input coolant

hose from engine to lower barb

Low/

Basse

Figure 2B: Back View with mounting

tabs on top.

I – C2 - 092214

Installation

Mount Auxiliary Heater (Heat Exchanger).

Ensure that there is enough clearance for two ¾” hoses to be

connected to the barbs on the back of the heat exchanger. If the hoses are being run through the floor,

firewall, or any other surface that requires drilling, make sure clearance is available on both sides of the

mounting surface before drilling.

Note:

Mounting hardware is NOT included.

Plumb Auxiliary Heater (Heat Exchanger).

a. If mounted with mounting tabs on bottom (Figure 2A): Connect input coolant hose from vehicle engine

to lower barb on heat exchanger. Then connect output coolant hose from top barb of heat exchanger

to radiator.

b. If mounted with mounting tabs on top (Figure 2B): Connect input coolant hose from vehicle engine to

lower barb on heat exchanger. Then connect output coolant hose from upper barb of heat exchanger

to radiator.

Note:

Input coolant hose must always be connected to lower barb regardless of mounting.

Output coolant hose must always be connected to upper barb regardless of mounting.

Connect wires of Auxiliary Heater (Heat Exchanger).

Note:

It is recommended to install an inline fuse holder

with a 5amp fuse. (Sold by Aqua-Hot: Fuse Holder Part No. ELX-200-130, 5 amp Fuse Part No. ELX-200-140).

Three speed fan switch sold separately (Sold by Aqua-Hot: Part No. ELX-100-001).

a. Connect yellow wire from the heat exchanger to the “Low” (L) tab on three speed fan switch (Figure 3).

b. Connect orange wire from the heat exchanger to the “Medium” (M) tab on three speed fan switch

(Figure 3).

c. Connect red wire from the heat exchanger to the “High” (H) tab on three speed fan switch (Figure 3).

d. Connect vehicle power source to the “Battery In” (B) tab on three speed fan switch (Figure 3).

e. Connect both black ground ( - ) wires from the heat exchanger
