AQUAHEAT TF200/3 Bedienungsanleitung
Ref: 01
Page 1of 11
Contact number: 0861 50 35 50
AQUAHEAT HEAT PUMP
OPERATING MANUAL
TF200/3
PC8001 Controller
Ref: 01
Page 2of 11
USAGE AND OPERATION

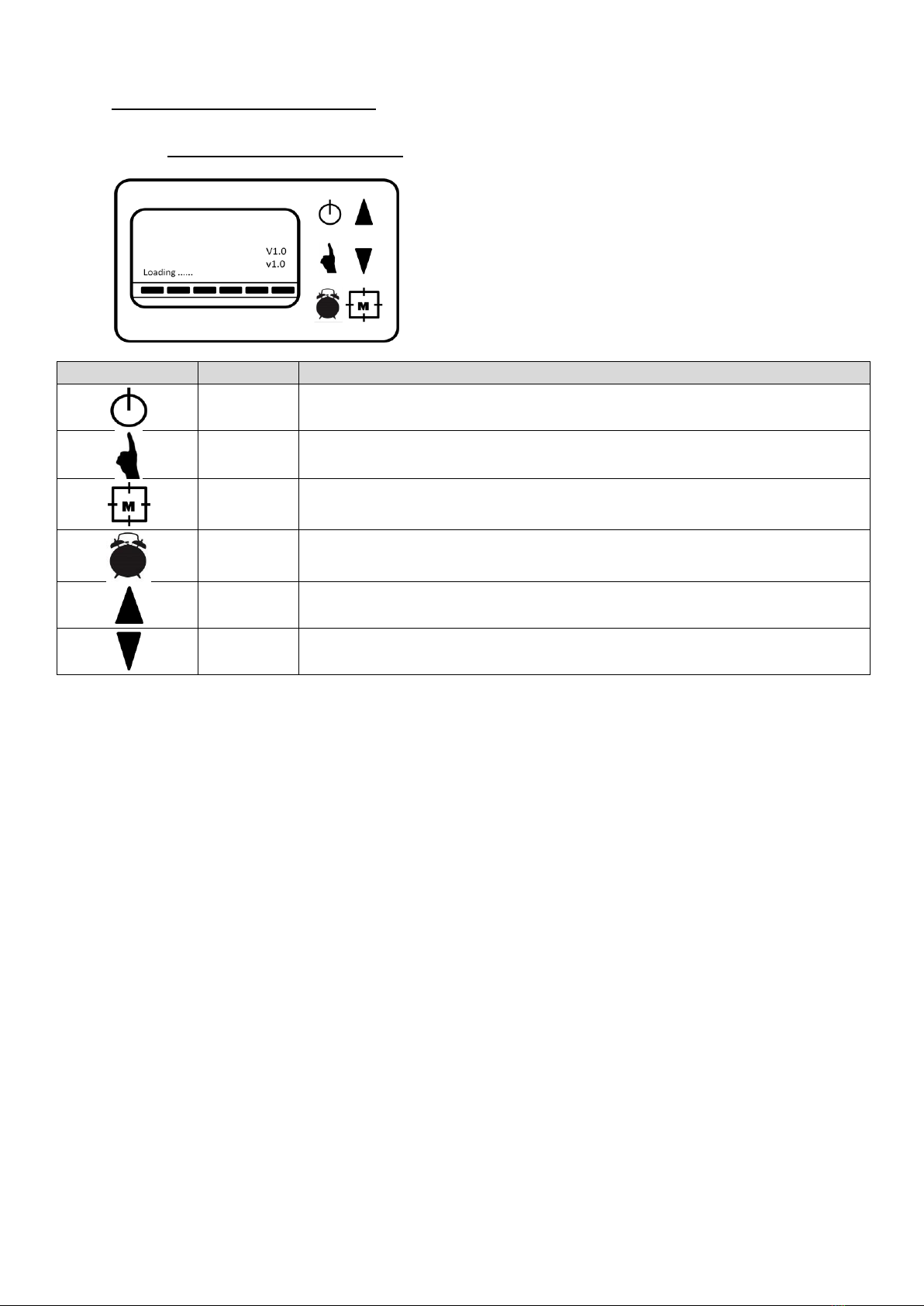

1. Function of wire controller
Button
Name
Function
ON / OFF
Press this button to start/shut off the unit, cancel current operation or
back to upper interface
HELP
Press this button to check button function or system state
MODE
Press this button to change the current mode, page up or confirm
current operation, enter or save
CLOCK
Press the button to set the clock, the timer on or timer off
UP
Press this key to select the upward option or increase the parameter
value
DOWN
Press this key to select the downward option or decrease the parameter
value
Ref: 01
Page 3of 11

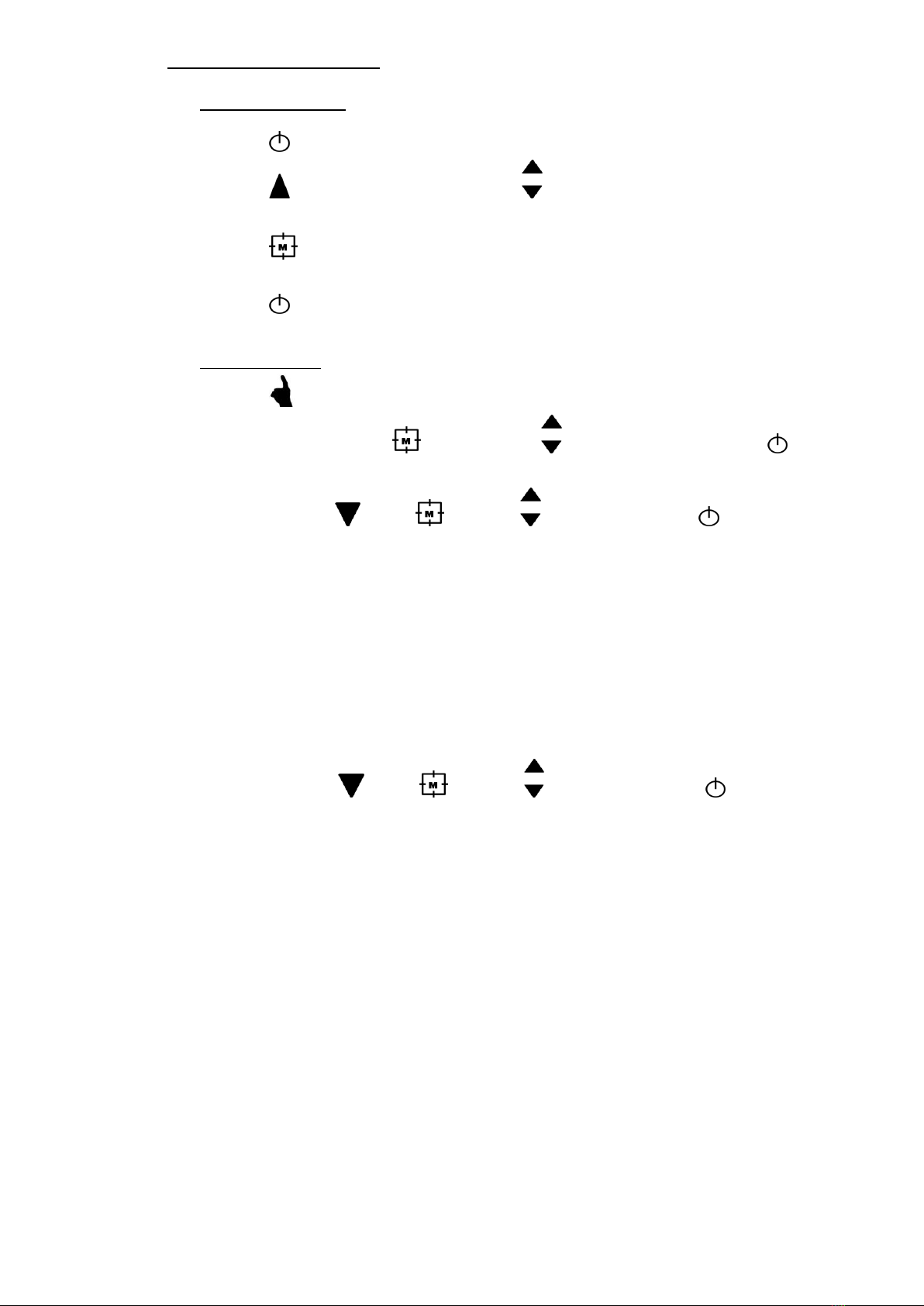

2. Usage of wire controller
2.1 To set temperature
Press (2 seconds) to turn unit off
Press to set the temperature, press to require temperature
Press to set
Press (2 seconds) to turn unit on
2.2 To enter system
Press twice
TEMPERATURE: Press to enter, press to see temperature, press to
go back
SWITCH: Press , press to enter, to see switch, press to go back
Default Switch: 1. CL 8. OP
2. CL 9. CL
3. CL 10. OP
4. OP 11. CL
5. CL 12. CL
6. CL 13. CL
7. CL 14. OP
OUTPUT: Press , press to enter, to see output, press to go back
Default Output: 1. ON 9. OFF
2. ON 10. OFF
3. ON 11. OFF
4. OFF 12. 35 ON
5. ON 13. 35 ON
6. OFF 14. 35 ON
7. ON 15. 35 ON
8. ON
Ref: 01
Page 4of 11
3. Usage of wire controller

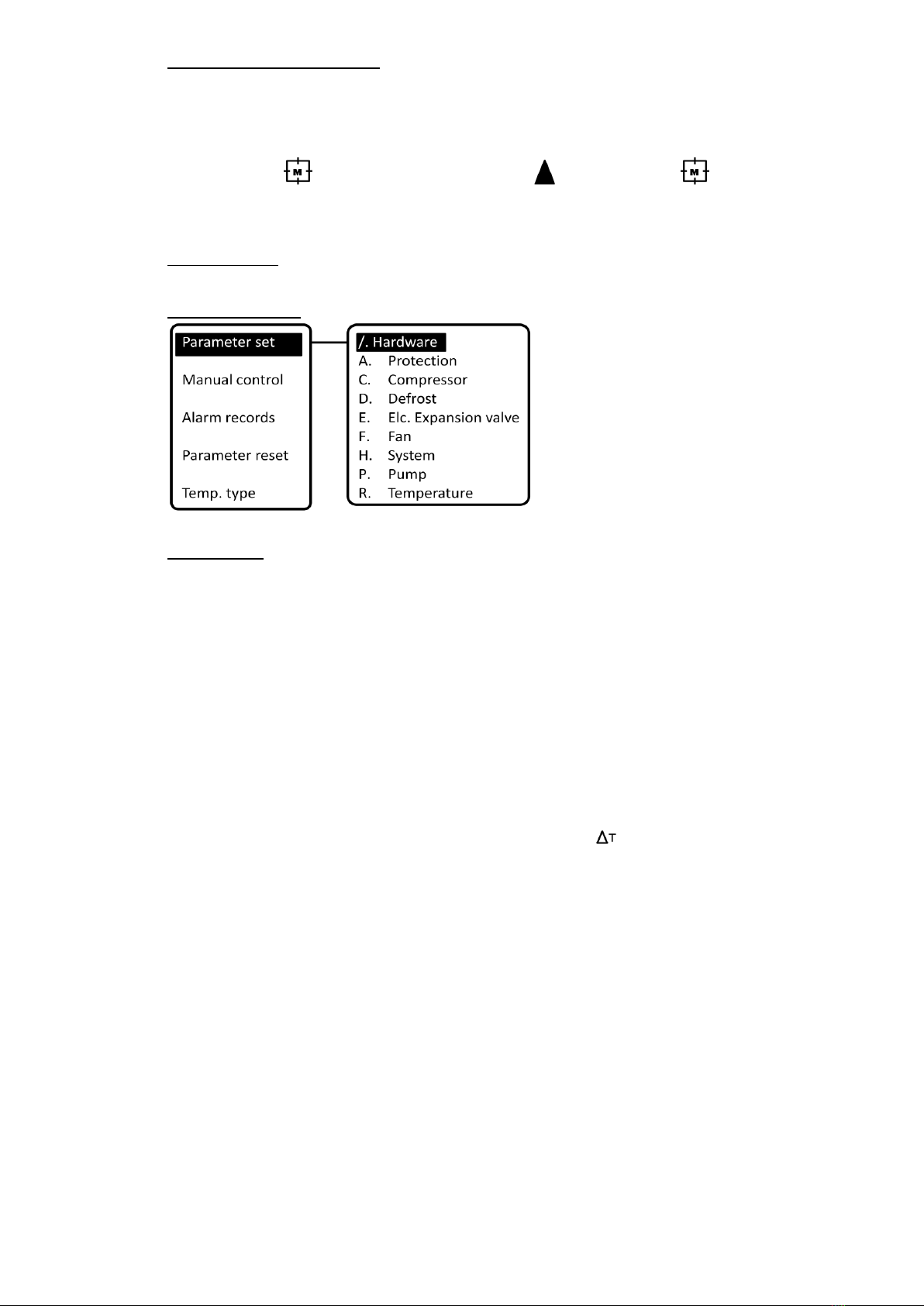

TO ENTER PARAMETER SETTING INTERFACE:
Turn unit off
Press and hold until password shows, press to 66 and press to enter
Display shows:
PARAMETER SET;
/. Hardware:
/01. System 1 HP Yes /17. Coil 4 probe No
/02. System 2 HP Yes /18. Ambient probe Yes
/03. System 3 HP Yes /19. Device 1 probe No
/04. System 4 HP NO /20. Device 2 probe No
/05. System 1 LP Yes /21. Device 3 probe No
/06. System 2 LP Yes /22. Device 4 probe No
/07. System 3 LP Yes /23. Suction 1 probe No
/08. System 4 LP NO /24. Suction 2 probe No
/09. Water flow Yes /25. Suction 3 probe No
/10. Elc. Overload NO /26. Suction 4 probe No
/11. Remote ON/OFF Yes /27. In-Out prot Yes
/12. System Protect No /28. Cooling mode Yes
/13. Outlet probe Yes /29. ECO . Heating Yes
/14. Coil 1 probe Yes /30. Auto mode Yes
/15. Coil 2 probe Yes /31. Heating mode No
/16. Coil 3 probe Yes /32. Rapid Heat No
Ref: 01
Page 5of 11

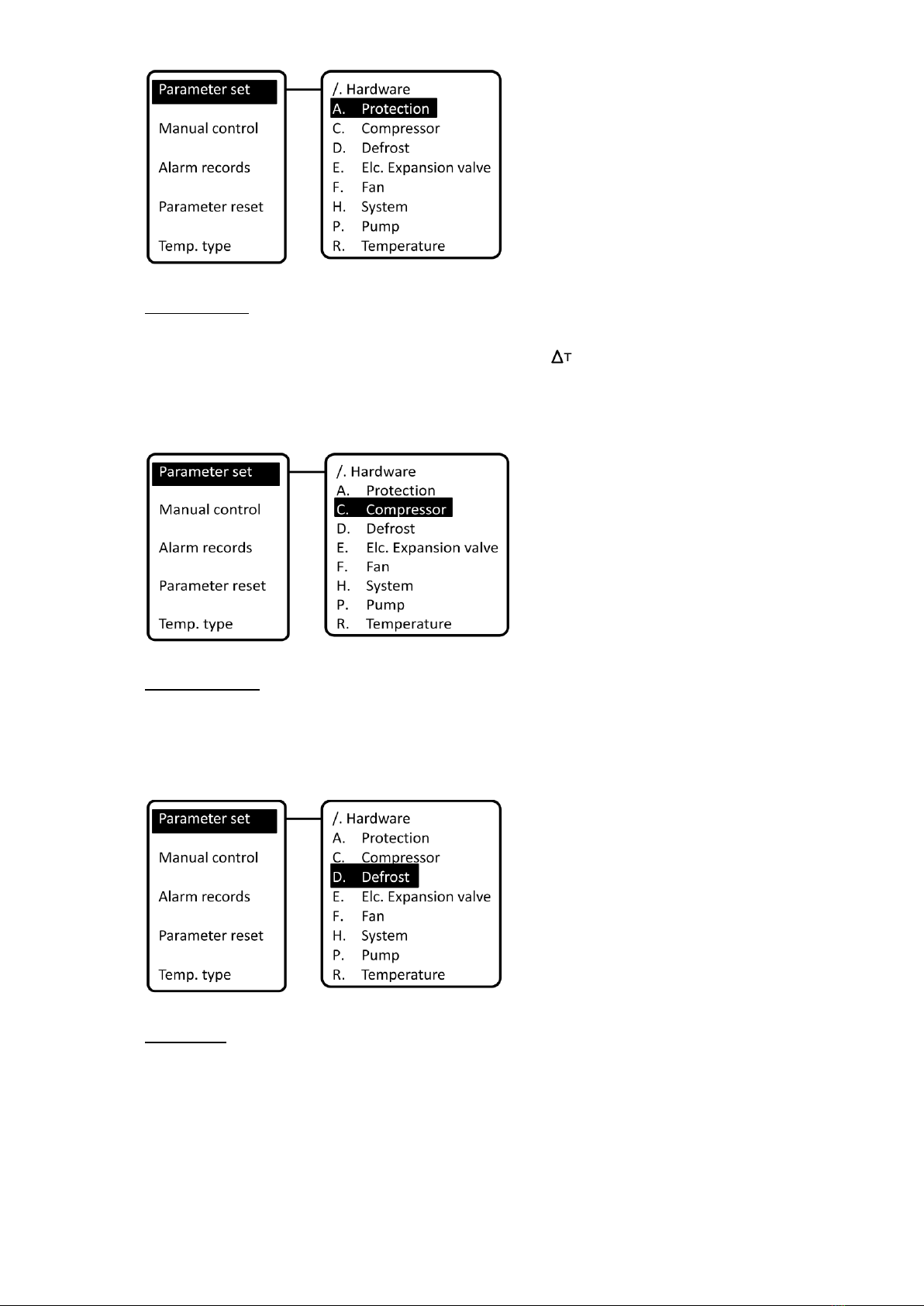

A. Protection:
A 01. HP delay 10 seconds A 05. Deice diff 5.00C
A 02. LP delay 300 seconds A 06. setting 13.00C
A 03. Comp. limit - 15.00C A 07. Spray se 35.00C
A 04. Deice temp 4.00C
C. Compressor:
C 01. Min. on time 120 seconds C 04. Capacity CTRL 3CA
C 02. Min. off time 180 seconds C 05. Rotation FIFO
C 03. Comp. delay 300 seconds
D. Defrost:
D 01. Start temp - 7.00C D 05. Eco. min. time 3M
D 02. End temp 13.00C D 06. Defrost type NOR
D 03. Def. cycle 45M D 07. Heater CTRL On
D 04. Max. duration 8M D 08. Auto. set 4.00C
Ref: 01
Page 6of 11

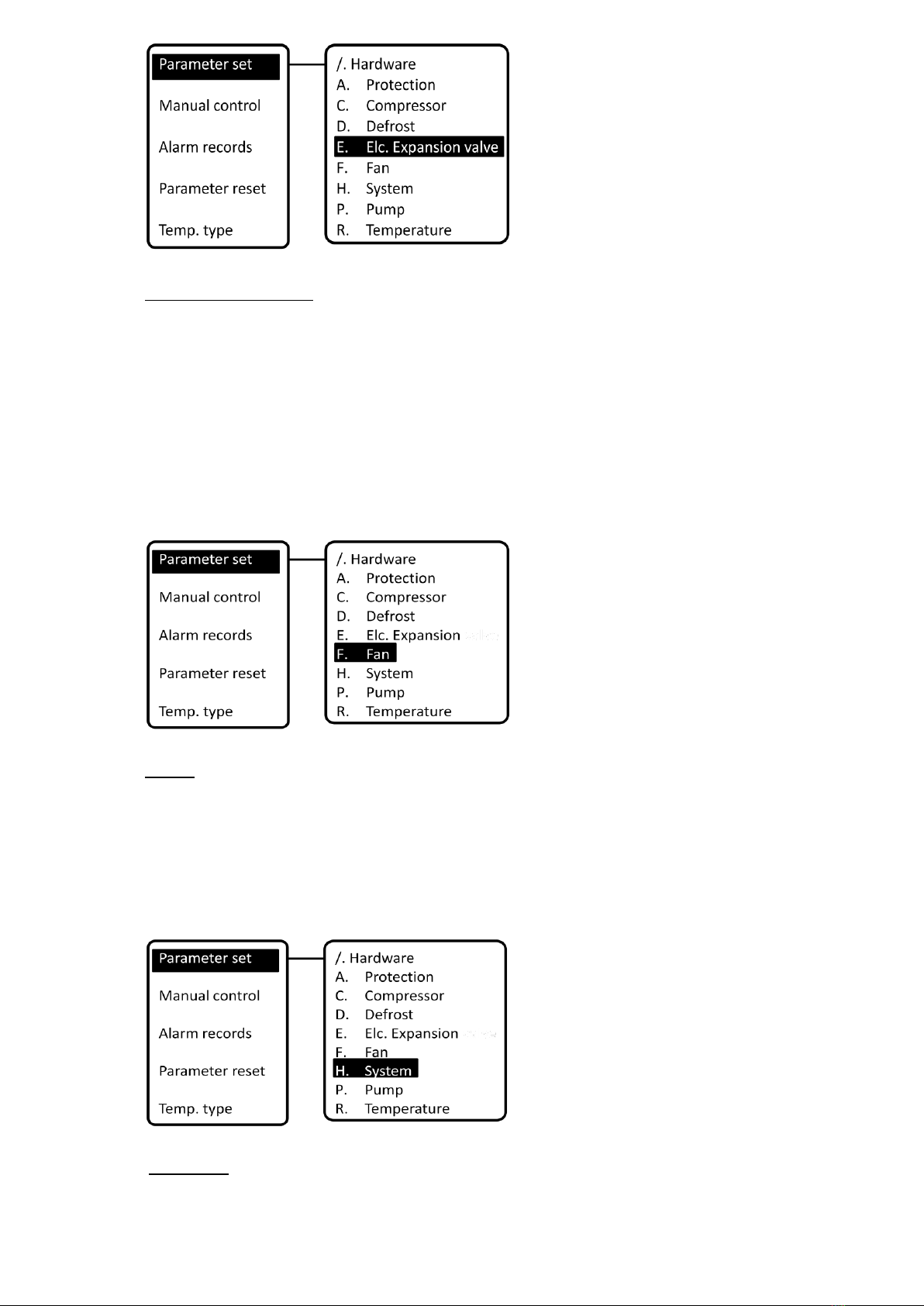

E. Elc Expansion valve:
E 01. EEV 1 mode Auto E 09. Init. place 3 350N
E 02. Super heat 1 5.00C E 10. EEV 4 mode Auto
E 03. Init. place 1 350N E 11. Super heat 4 5.00C
E 04. EEV 2 mode Auto E 12. Init. place 4 350N
E 05. Super heat 2 5.00C E 13. Min. place 100N
E 06. Init. place 2 350N E 14. Defrost place 350N
E 07. EEV 3 mode Auto E 15. Cooling place 350N
E 08. Super heat 3 5.00C
F. Fan:
F 01.Speed High F 06. Min. Heat 20.00C
F 02. Max. Cool 40.00C F 07. Stop Heat 30.00C
F 03. Min. Cool 15.00C F 08. Min. Start time 0H
F 04. Stop Cool 10.00C F 09. Min. Stop time 8H
F 05.Max. Heat 10.00C F 10. CTRL . Probe Coil
H. System:
H 01. Restart Yes H 07. Class Master
Ref: 01
Page 7of 11
H 02. Num. system 3 H 08. Coil use Deice
H 03. 4V logic H-On H 09. Address 1
H 04. 4V order Advance H 10. Baud rate 9600
H 05. Mode type Heat PUPP H 11. Parity 0
H 06. Type Swimming H 12. Stop bit 1

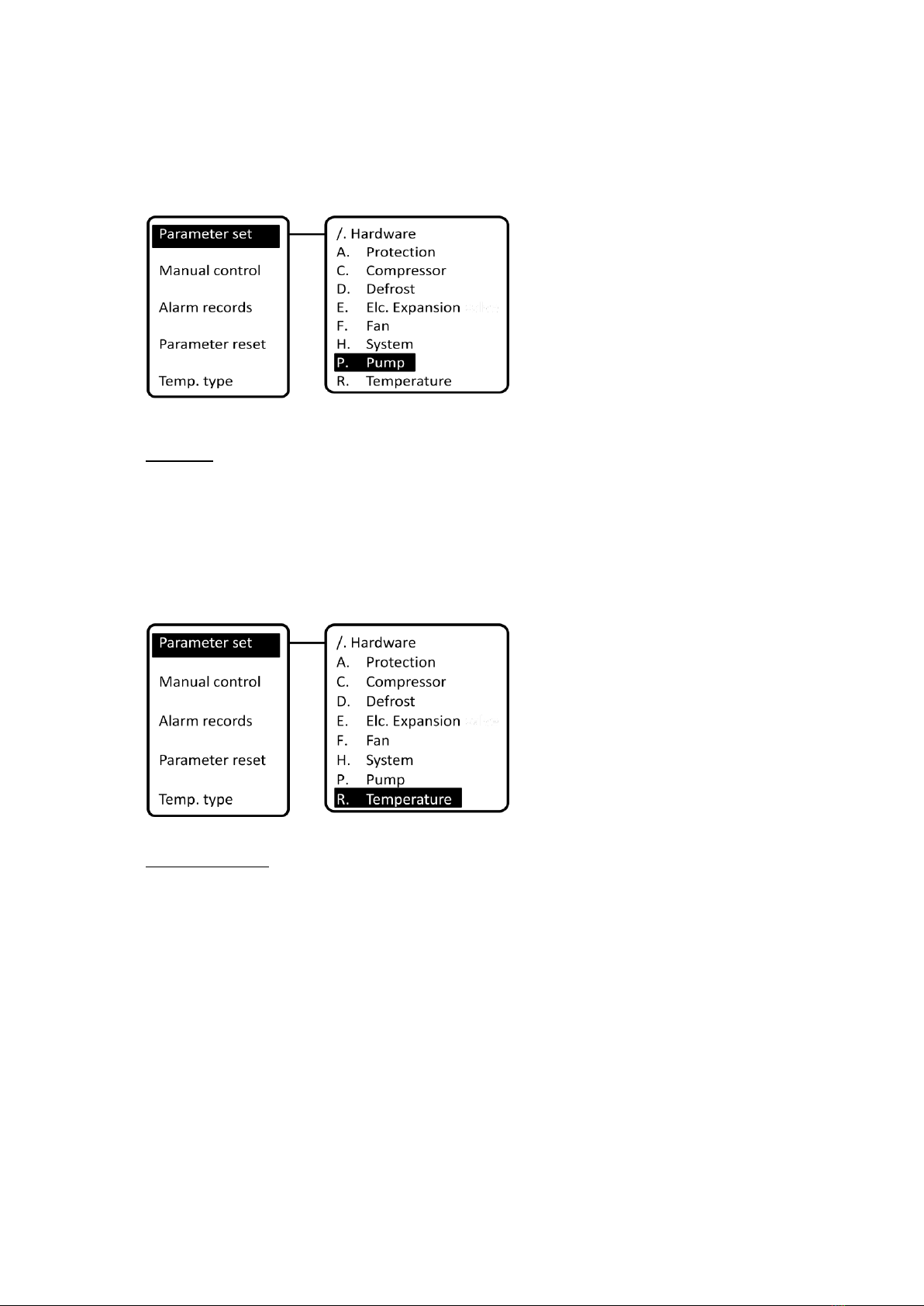

P. Pump:
P 01. Mode Interval P 06. Start filter 1 10H
P 02. Interval 30M P 07. Stop filter 1 12H
P 03. Duration 3M P 08. Start filter 2 15H
P 04. Advance 1M P 09. Stop filter 2 17H
P 05. Filter No
R. Temperature:
R 01. Cooling set 8.00C R 13.Elec. AMB 15.00C
R 02. Heating set 27.00C R 14. Elec. delay 30M
R 03. Auto set 30.00C R 15. Elec. force 5.00C
R 04. Cool diff 1.00C R 16. Compensation No
R 05. Cool stop 1.00C R 17. Compens Max 5.00C
R 06. Heat diff 1.00C R 18. Constant -8.00C
R 07. Heat stop 1.00C R 19. Cool AMB 35.00C
R 08. Min. cool 8.00C R 20. Heat AMB 5.00C
R 09. Max cool 28.00C R 21. Heater type Sanitary water
R 10. Min heat 15.00CR 22. Deice start 3.00C
R 11. Max heat 35.00CR 23. Deice diff. 3.00C
R 12. Elec. diff 2.00C
Ref: 01
Page 8of 11

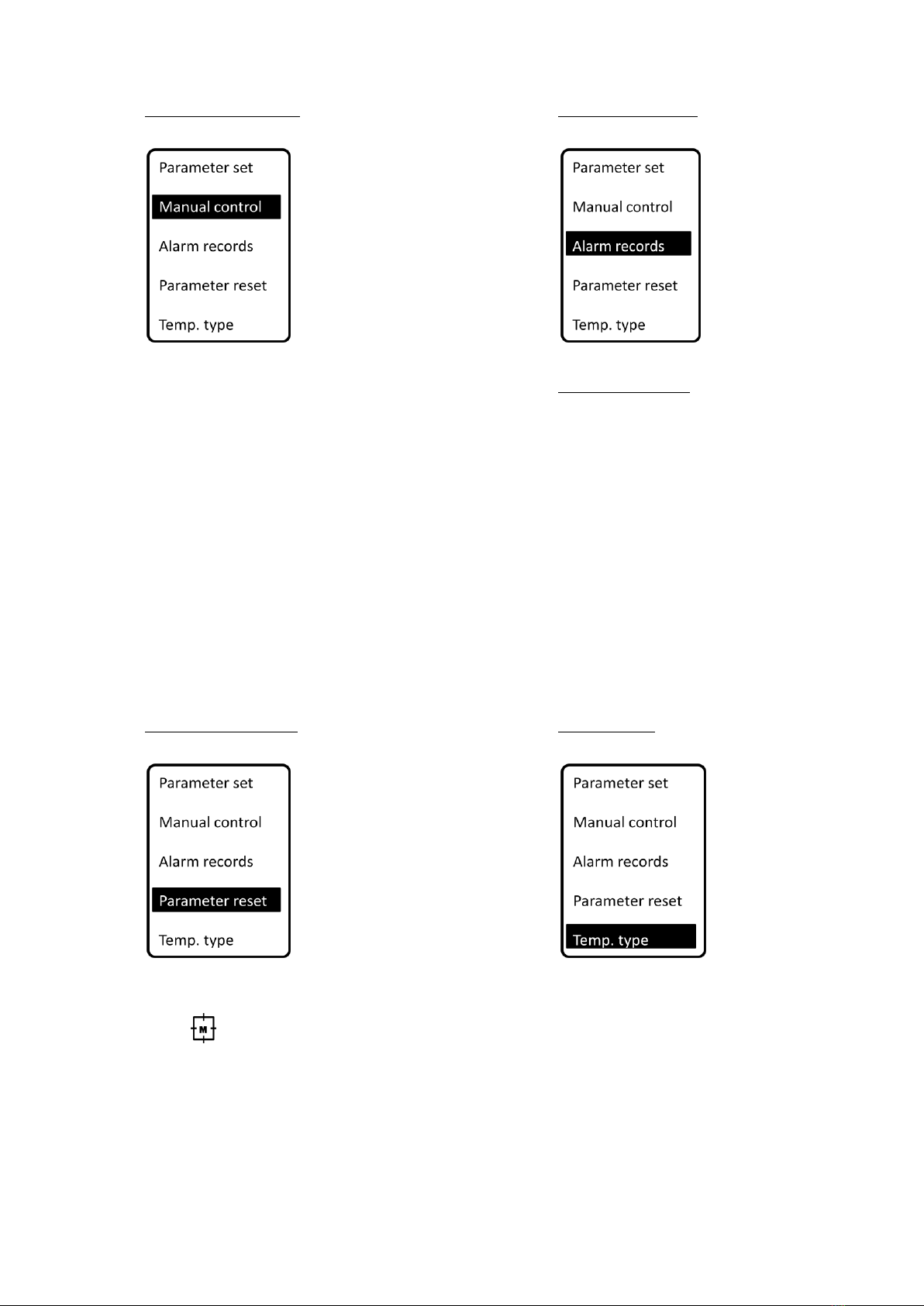

MANUAL CONTROL; ALARM RECORDS;
Compressor 1 OFF Example of error:
Compressor 2 OFF 1. E03 28/06/2013 14:00
Compressor 3 OFF
Compressor 4 OFF
Fan high speed OFF
Fan low speed OFF
Circulate pump OFF
4-way Valve OFF
Elec. Heater OFF
Spray valve OFF
Alarm OFF
PARAMETER RESET; TEMP. TYPE;
Reset the settings to factory default values Celsius degree
Press to confirm Fahrenheit degree
Ref: 01
Page 9of 11

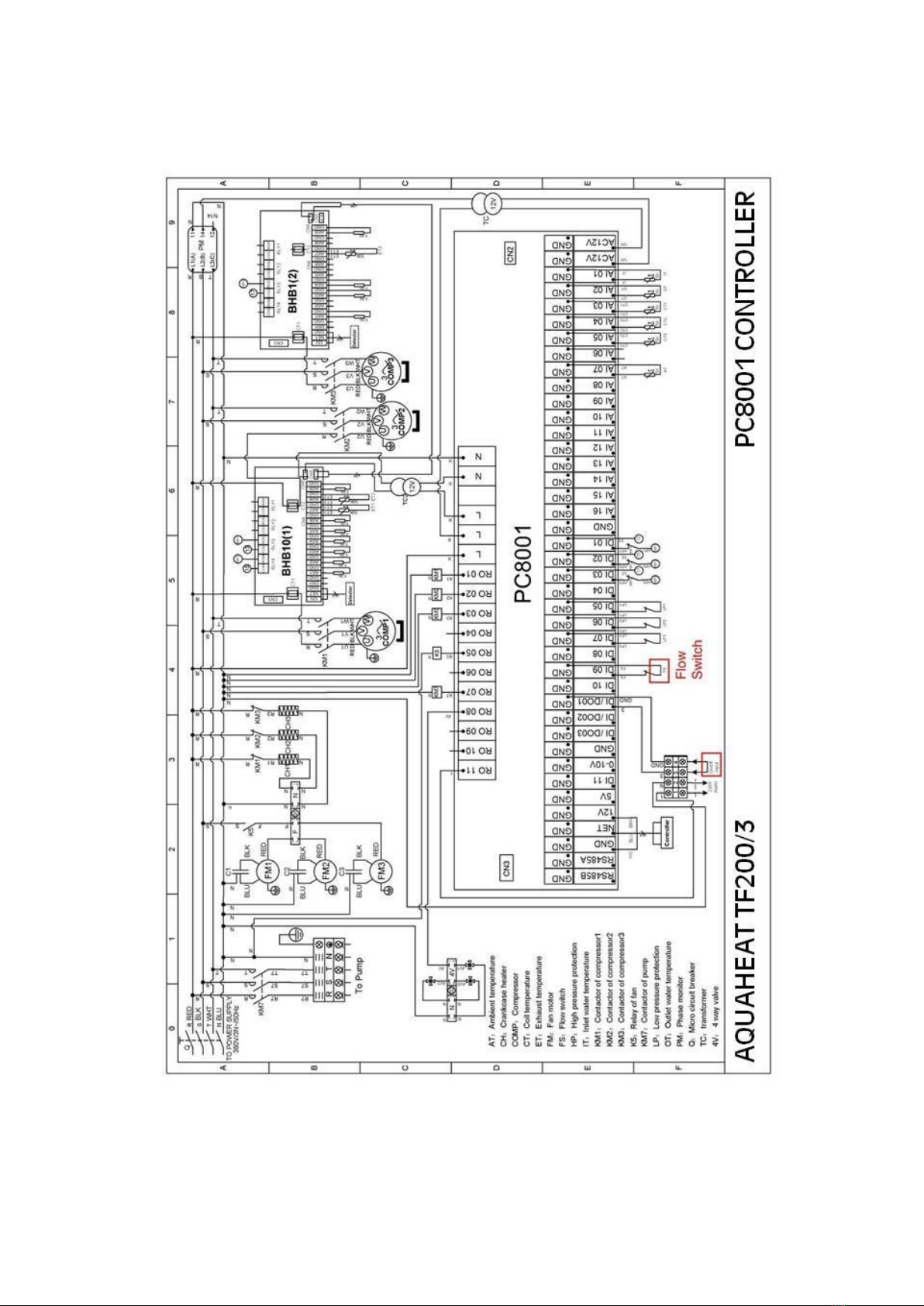

Ref: 01
Page 10 of 11

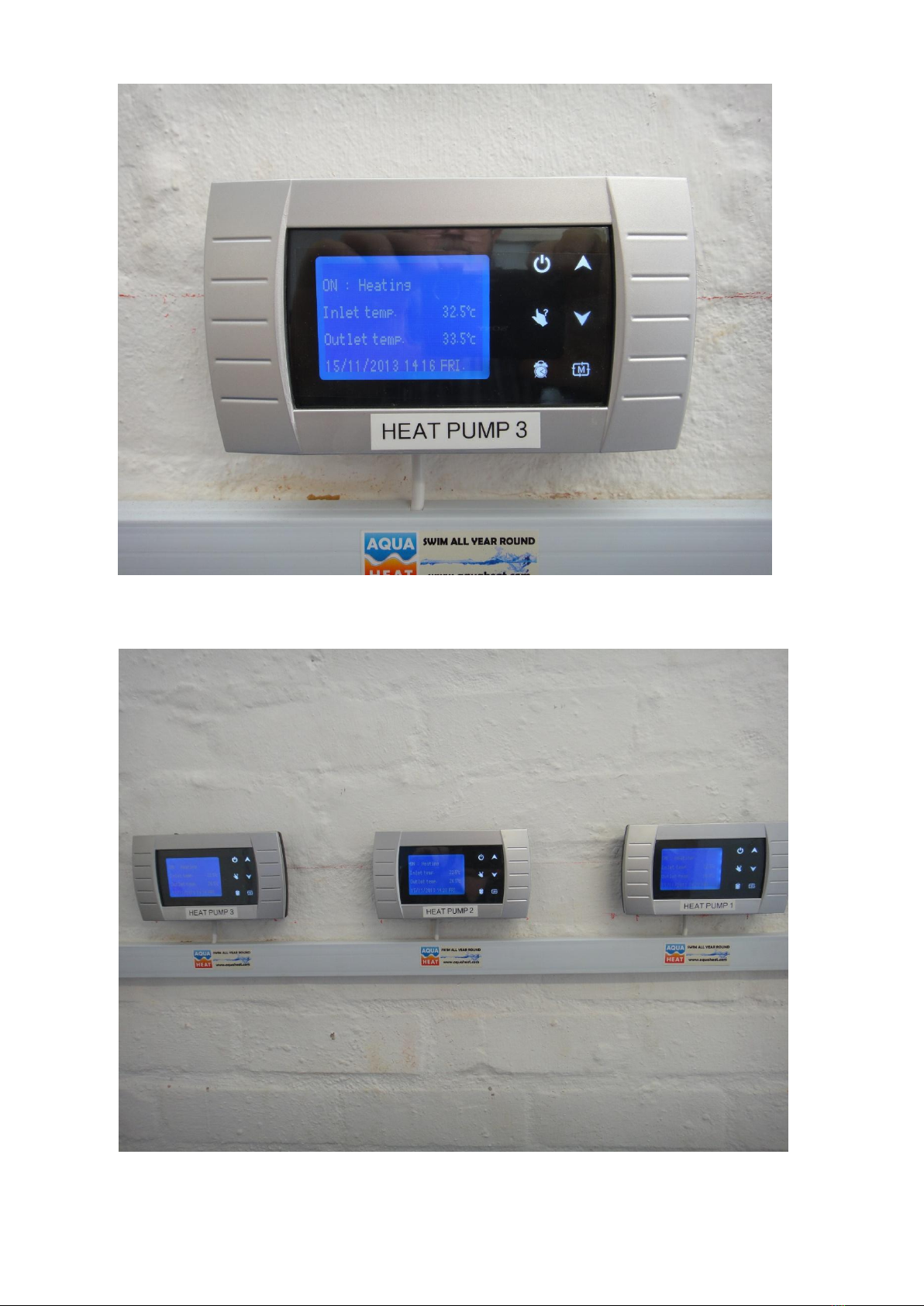

Sample images
