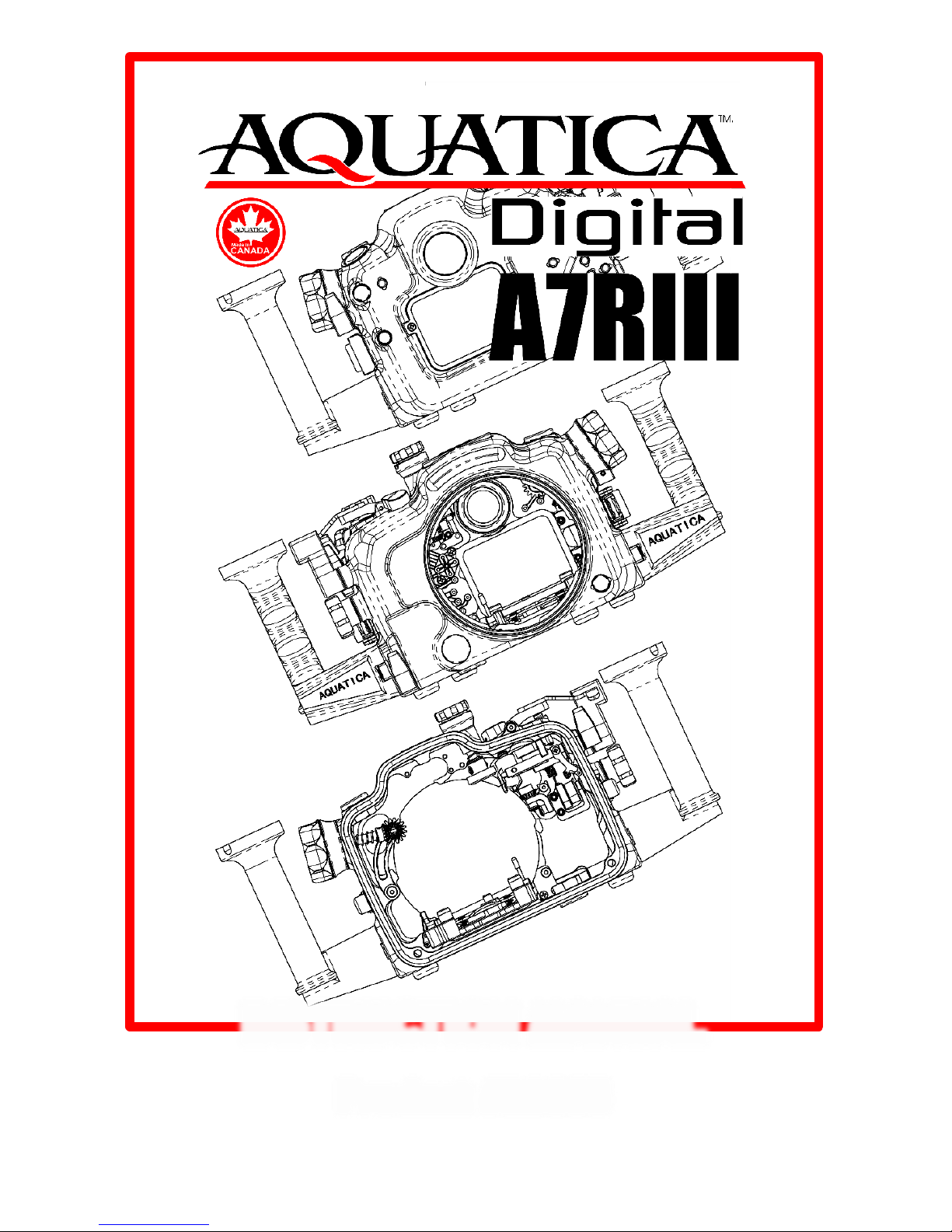

INSTRUCTION MANUAL

Product #20085

2 | A 7 R I I I I N S T RU C T I O N M A N UA L T a bl e o f c o n t e n t s

Thank you for purchasing your Aquatica A7RIII housing. Before you start to use

your new housing, please read these instructions carefully. Keep this manual

in a safe place for future reference.

This instruction manual assumes that the camera user is already familiar with

the Sony 7RIII camera. If not, please read your camera instruction manual

before attempting to use the housing.

Please visit the Aquatica Digital website for further information.

AQUATICA PRODUCT NUMBERS

20085-NK

Aquatica housing for Sony 7RIII

Including dual Nikonos bulkheads

20085-OPT

Aquatica housing for Sony 7RIII

Including dual optical fiber ports

20085-KT

Aquatica housing for Sony 7RIII

Including dual Ikelite bulkheads

20085-NK-VC

Aquatica housing for Sony 7RIII

Including dual Nikonos bulkheads + Surveyor kit

20085-OPT-VC

Aquatica housing for Sony 7RIII

Including dual optical fiber ports + Surveyor kit

20085-KT-VC

Aquatica housing for Sony 7RIII

Including dual Ikelite bulkheads + Surveyor kit

NOTE: Shown housing illustrations may differ from your actual housing depending on the

ordered version. General pictures are mostly showing the 20085-OPT version of

the housing.

T a bl e o f c o n t e n t s 3 | A 7 R I I I I N S T R UC T I O N M A N U A L

Table of contents

Table of contents ......................................................................................... 3

Safety precautions........................................................................................ 4

Product specifications.................................................................................... 5

Package contents ......................................................................................... 6

Housing schematics ....................................................................................... 7

Housing components .............................................................................7

Housing functions.................................................................................8

Housing preparation ..................................................................................... 10

Camera installation...................................................................................... 11

Port mounting ............................................................................................ 14

Port removal.............................................................................................. 16

Housing closing........................................................................................... 17

Housing opening.......................................................................................... 20

Accessories ............................................................................................... 21

Surveyor sensor ................................................................................. 21

Vacuum pump................................................................................... 24

Flash triggering ................................................................................. 28

Aqua View finder ............................................................................... 30

Care and maintenance .................................................................................. 32

Housing components ........................................................................... 32

Sacrificial anodes............................................................................... 32

O-rings ........................................................................................... 33

Storage and transportation ............................................................................. 34

Warranty .................................................................................................. 35

4 | A 7 R I I I I N S T RU C T I O N M A N UA L S a f e t y p r e ca u t i on s

Safety precautions

Please carefully read and follow the following precautions and recommendations:

Improper transportation, handling or use of this housing might cause a flood or a

malfunction. Follow all recommendations stated in the next sections of this

manual.

Never remove, change a port or open the housing in a location where sand or

similar foreign material might come in contact with an O-ring. Be wary of strong

winds as they could potentially be carrying sand or other harmful particulate

matter.

Always perform a simple preventive seal test without the camera inside after doing

maintenance on the housing.

Non-authorized use of third-party accessories, as well as modifications and/or

alterations not specifically authorized by Aquatica may affect performance, cause

poor functioning of the controls or impair the sealing integrity of the housing.

Always handle the ports carefully. Protect them when not in use to avoid scratching

the acrylic or glass surface of ports and windows.

Always confirm that the ports remain properly attached before rinsing the housing.

When rinsing without a wired strobe, confirm that the bulkhead strobes connectors

are sealed with their plug.

Never jump into the water with the housing. Have the system handed to you after

you have made your entry or have it lowered to you on a rope.

Never handle the housing by grabbing the port, or if using one, the Aqua View

finder.

Make sure that boat staff are familiar with these procedures and advise them to

manipulate the housing by using the grips provided with the housing.

P r od u c t s p e c i f i c at i o n s 5 | A 7 R I I I I N S T R UC T I O N M A N U A L

Product specifications

Construction

Housing body

6061-T6 Aluminium

Surface treatment

Anodized + powder coated

Windows

Optical acrylic

Grip handles

Black PVC

Physical

Dimensions WxHxD

(w/o grips)

250mm x 163mm x 127mm

9.8” x 6.4” x 5”

Width (w/ grips)

350mm x 163mm x 127mm

13.8” x 6.4” x 5”

Weight (w/o camera)

2.6 Kg / 5.7 lbs

Buoyancy

Slightly negative

Depth rating

100 msw - 330 fsw

Features

Ergonomic control

placement

Facilitated access to following

controls:

Locking saddle

Safe locking of the saddle

inside the housing using our

proven locking system.

Saddle is easily released by

pressing the locking tab.

Aqua View finder

compatibility

Aqua View finder 45°

Aqua View finder 180°

Moisture/vacuum

alarm

Supplied with the Surveyor moisture

and vacuum sensor alarm.

Flash capability1

Compatible with the following

depending on flash option:

Optical triggering

Nikonos-style bulkhead

Ikelite-style bulkhead

1

Note that all of the A7RIII flash triggering options are not TTL compatible.

6 | A 7 R I I I I N S T RU C T I O N M A N UA L P a ck a g e c o n t e n t s

Package contents

A7RIII housing

Handle grips (2) with screws (2)

A7RIII instruction manual

Lens chart

Spare housing seal O-ring

CR 2032 coin cell battery (for Surveyor)

Aquatica O-ring lubricant container

Set of Allen keys

Optical flash trigger

(for 20085-OPT and 20085-OPT-VC kits)

CR 2450 coin cell batteries (2)

Vacuum pump

(for 20085-NK-VC, 20085-OPT-VC and 20085-KT-VC kits)

H o u s in g s c h e m a t ic s 7 | A 7 R I I I I N S T R UC T I O N M A N U A L

Housing schematics

Housing components

2

All mounts are using ¼-20 UNC threads.

3

Nikonos bulkheads shown.

1

Handle grips (2)

2

Closing latches (2)

3

Ball mounts2(2)

4

Top ball mount

5

Tripod mount

6

16mm ports (2)

7

½’’port

8

Flash bulkheads3(2)

9

Zinc anodes (2)

10

Rubber pads (4)

8 | A 7 R I I I I N S T R U C TI O N M A N U A L Hou s i n g s ch e m a t i cs

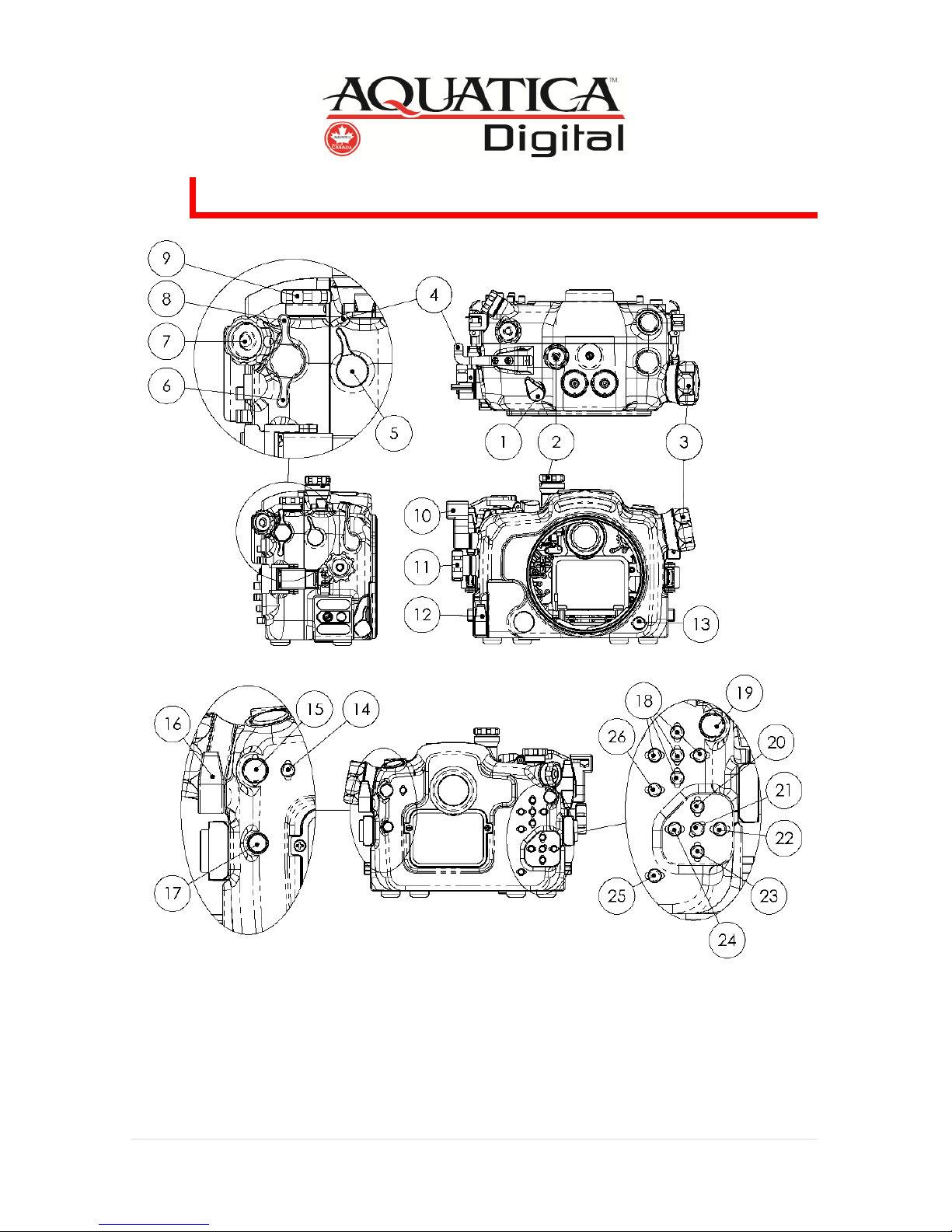

Housing functions

(See table on next page)

H o u s in g s c h e m a t ic s 9 | A 7 R I I I I N S T R UC T I O N M A N U A L

1

ON-OFF lever

2

Mode dial

3

Zoom-Focus Wheel

4

C1 lever

5

C2 Lever

6

Record lever

7

Rear dial wheel

8

AF-ON lever

9

Expo comp dial

10

Shutter release lever

11

Front dial wheel

12

Port release lever

13

Lens release button

14

Menu button

15

C3 button

16

Playback button

17

Alarm LED window

18

Multi-selector

19

AEL button

20

DISP button (up)

21

Select button (center)

22

ISO button (left)

23

Down button

24

Drive button (right)

25

Delete button (C4)

26

Fn button

10 | A 7 R I I I I N S T RU C T I O N M A N U A L H o u s in g p r e p a r at i o n

Housing preparation

Follow these steps to prepare your A7RIII housing for use:

STEP 1: Assemble the grips onto your housing using the provided screws (2) and Allen key.

STEP 2: If you are adding any shoes, brackets or ball mounts onto your housing, mount

them using the intended ¼-20 UNC threaded holes. You can use the threaded

holes on the handle grips (#1,#2), the top one (#3) or the bottom ones (#4) for

your tripod.
