Thank you for purchasing an AQUAVISION® bathroom LCD television.
AQUAVISION® recommend installation to be carried out by a qualified installer. Please ensure
the latest wiring and safety regulations are adhered to during installation. This appliance must
be earthed. AQUAVISION® is powered by a low voltage (12/24v DC) power supply unit which
should be positioned away from any water source. If you are in any doubt, please contact a
qualified electrician.
Speaker Installation continued
Connect each cable into the terminals in each of the speakers making sure that you observe
any polarity. After connecting each cable in the terminals, give each one a slight pull to make
sure it is held in place properly. When you are confident that these connections are correct,
remove the metal grill trim from the front of the speaker. This will reveal the 3 retaining screws.
Put the ceiling speaker into the pre-cut hole and gently tighten the 3 screws. As you start
tightening the screws, the retaining brackets will turn outwards and hold the speaker in place.
Continue until the speaker is tight up against the ceiling. Replace the front grill by applying
gentle pressure to it.

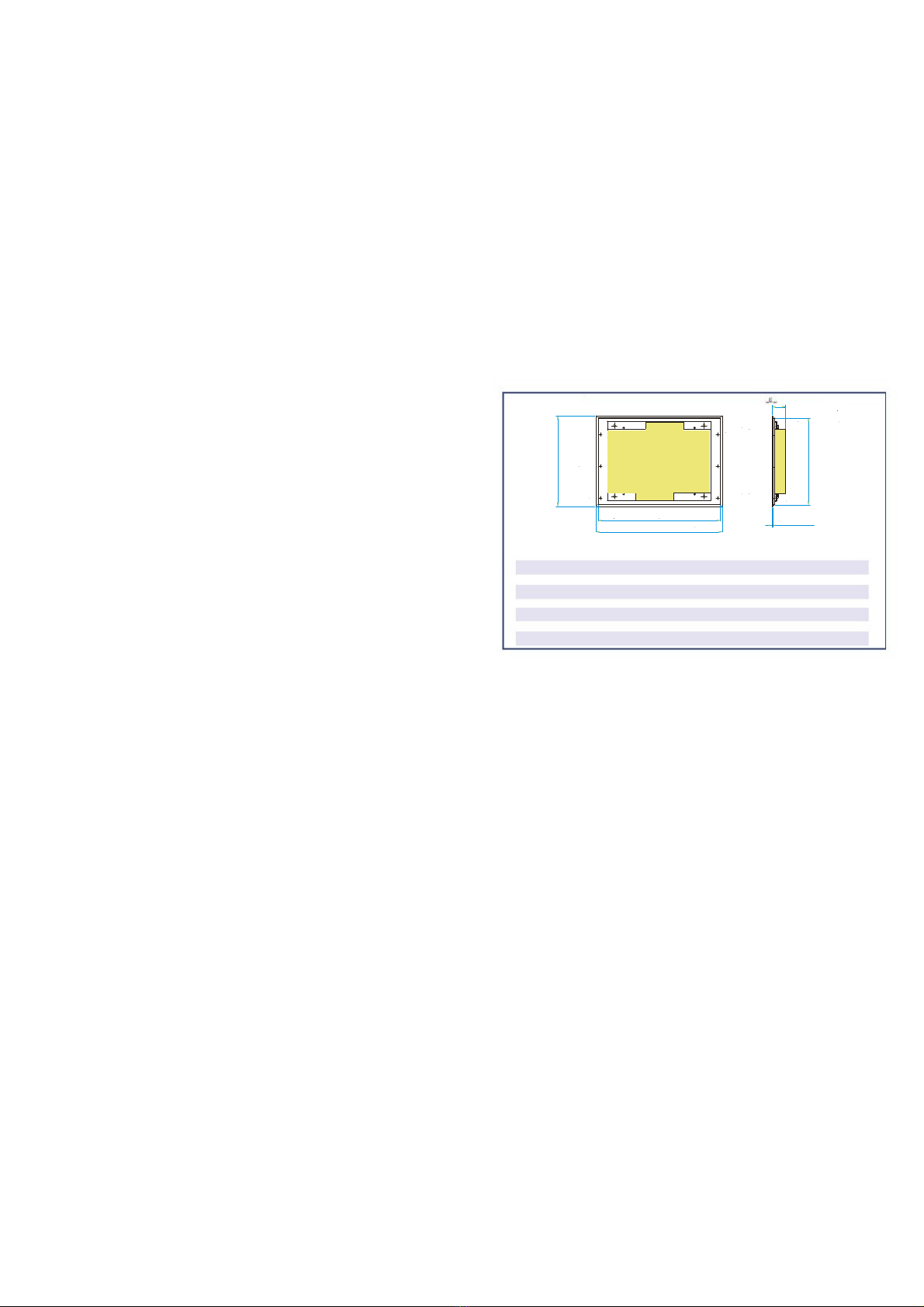

Each AQUAVISION® model has specific view angles (Fig. 1). Position the front bezel in order
to view the picture clearly from all intended areas. Should there be any doubt, make area safe
and power up the LCD, positioning the screen until satisfied the picture does not darken or
disappear from view.
The wall can now be tiled. You must take care not to bend or damage the inner flange of the
bezel as this could potentially hinder any water-proofing qualities and thus void any guarantee.
Note it is not advisable to use raised border tiles under the edge of the bezel frame.
Once all tiles or similar have been fitted and the wall is in a finished state, loosen the bezel
screws and apply a bead of silicon all around the rear of the flange (See Fig. 2 or 3). This
prevents moisture from accessing the sides of the front bezel. Tighten the front panel ensuring
the silicone fills any areas that could allow ingress of water.
The bezel is now in position to accommodate the LCD unit and finally the glass panel.
Instructions on fitting these components are supplied separately.
Wall mounting and cable feed
When the position has been defined, but a hole in the wall to the cutout dimensions specified
for your AQUAVISION® model (Fig. 1).
Next, fit the two side mounting brackets into the sides of the hole following the guidance
offered in either Fig. 2 or 3 depending on the wall structure.

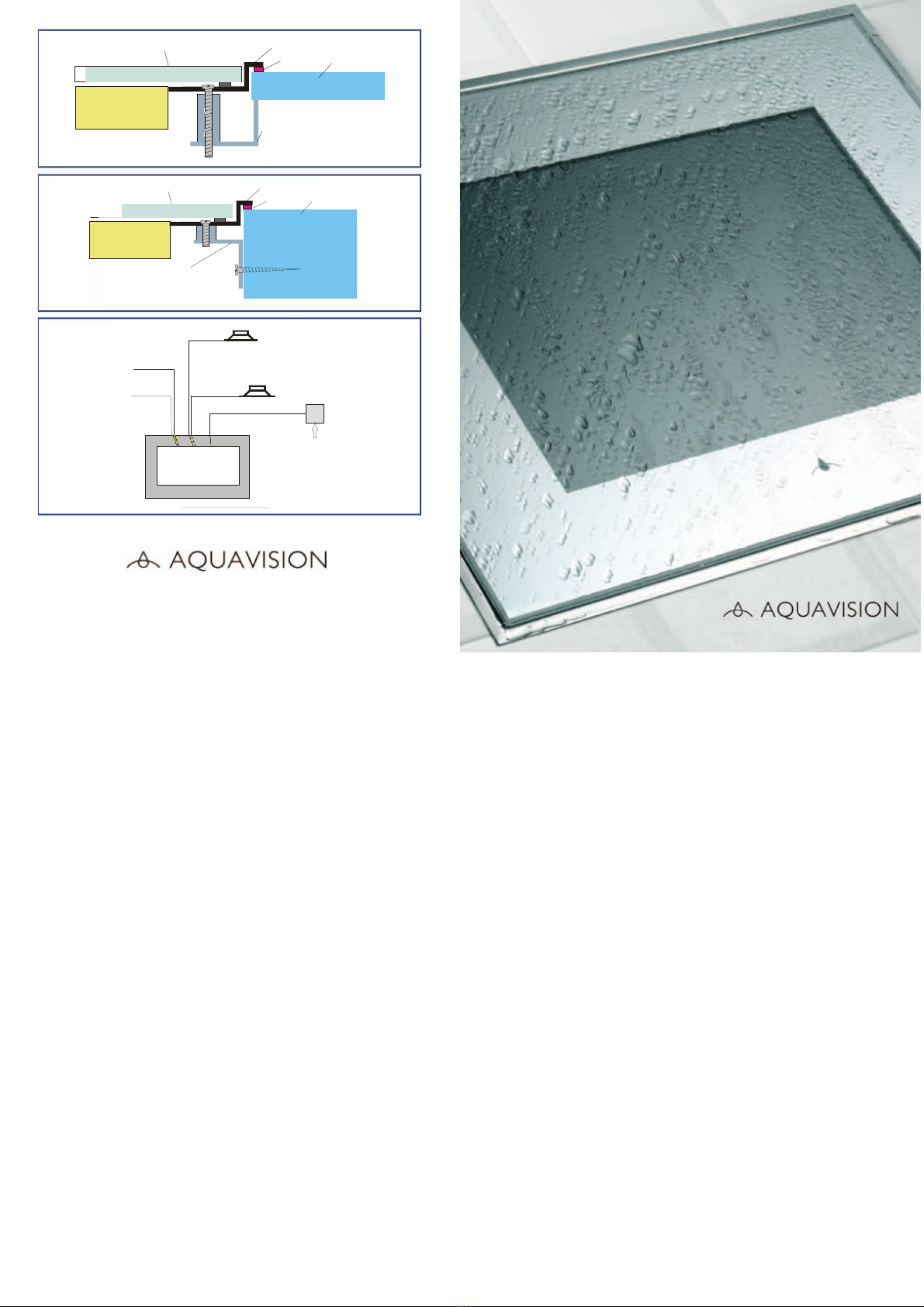

Fig. 2 uses the brackets as a clamp between the front and back of a partition (stud) wall or in
Fig. 3 the bezel brackets must be fixed to a solid wall using six screws (not provided).
Do not over tighten the screws holding the front bezel onto the brackets as this can distort the
frame and may hinder installation of the glass on the final fix. When fitted the unit should be
able to withstand a potential pull force of 100Kg.
Run the cables to their positions as shown in Fig. 4, ensuring there is enough cable slack to
connect to the rear of the AQUAVISION® unit. Ensure that the cables are easily available and
A B C D E
You will need to cut two holes, each of 170mm diameters in the ceiling, in your chosen speaker
locations, but within reach of the supplied length of speaker cable. Care should be taken to
avoid cutting through any cables, pipes, ceiling joists, etc.
Feed a length of speaker cable from the Aquavision back box, through one of the cable glands,
to each of the speaker locations, making sure you have enough slack at either end to allow
termination.
MODEL
AVF 151
AVF 171
AVF 26
AVF 32
AVF40
Screen Overall Overall Cutout Cutout Max Viewing
Size Height Width Height Width Depth Angle
384 385 470 376 461 60 h:120°v:95°
434 371 516 362 507 60 h:176°v:176°
663 492 722 480 710 110 h:176°v:176°
813 571 854 562 845 120 h:176°v:176°
1016 692 1049 683 1040 135 h:176°v:176°
D
B
