ARAG BRAVO 300S Kurzanleitung

300S Bravo SerieS computer

muLti-roW SpraYer

• DIRECT CONNECTION: 46731XXX

• RCU: 46733XXX

Software rel. 3.1x

INSTALLATION, uSe ANd mAINTeNANce

 

=Generic danger

=Warning

LEGEND OF SYMBOLS

This manual is an integral part of the equipment to which it refers and must accompany the equipment in case of sale

or change of ownership. Keep it for any future reference; ARAG reserves the right to modify product specications and

instructions at any moment and without notice.

CONTINUES

• Manualforewordanduse ................................................................................................................................................. 5

• Manualusemodes ............................................................................................................................................................ 5

• Limitations ......................................................................................................................................................................... 5

• Responsibility.................................................................................................................................................................... 5

1 Risksandprotectionsbeforeassembly.......................................................................................................................... 6

2 BravoDSB.......................................................................................................................................................................... 6

3 Intendeduse ...................................................................................................................................................................... 6

4 Precautions ........................................................................................................................................................................ 6

5 Packagecontent ................................................................................................................................................................ 6

6 Positiononfarmingmachine ........................................................................................................................................... 7

6.1 System recommended composition ........................................................................................................................... 7

6.2 Monitor and control unit positioning...........................................................................................................................10

6.3 Bracket fixing.............................................................................................................................................................11

6.4 Control unit (RCU) fixing ...........................................................................................................................................11

6.5 Control unit position...................................................................................................................................................11

7 Computerconnectiontothefarmingmachine............................................................................................................. 12

7.1 General precautions for a correct harness position.................................................................................................. 12

7.2 Power supply connection.......................................................................................................................................... 13

8 Harnessconnectiontothecontrolunit,thehydraulicunitandtheavailablefunctions .......................................... 14

8.1 Multicore connector connection (FOR VERSIONS WITH DIRECT CONNECTION ONLY) ..................................... 14

8.2 Remote control unit (RCU) connection..................................................................................................................... 14

8.3 Control unit valve connection ................................................................................................................................... 14

8.4 Hydraulic valves connection ..................................................................................................................................... 15

8.5 Connection of sensors and other available functions .............................................................................................. 16

8.6 SD memory card ...................................................................................................................................................... 17

9 Setup................................................................................................................................................................................. 18

9.1 Tests and checks before programming..................................................................................................................... 18

9.2 Computer switching On/Off ...................................................................................................................................... 18

9.3 Use of keys for programming.................................................................................................................................... 19

10Advancedsetup............................................................................................................................................................... 20

10.1 Language ................................................................................................................................................................. 21

10.2 Unit of measurement................................................................................................................................................ 21

10.3 Section valves number ............................................................................................................................................. 21

10.4 Coverage.................................................................................................................................................................. 21

10.8 Valves....................................................................................................................................................................... 22

10.5 Flowmeter................................................................................................................................................................. 23

10.6 Pressure sensor ....................................................................................................................................................... 23

10.7 Delivery cal. sensor .................................................................................................................................................. 23

10.9 Tank level ................................................................................................................................................................. 24

10.9.1 Tank level - Manual Mode ...................................................................................................................................... 24

10.9.2 Tank level - Filling flowmeter mode ........................................................................................................................ 24

10.9.3 Tank level - Level sensor mode .............................................................................................................................. 25

10.10 Rev counter ............................................................................................................................................................. 26

10.11 Foam marker ........................................................................................................................................................... 26

10.12 Pump Protector........................................................................................................................................................ 26

10.13 Configuration check after Advanced setup end ....................................................................................................... 27

CONTENTS

11 Usersetting...................................................................................................................................................................... 28

11.1 Speed....................................................................................................................................................................... 29

11.1.1 Source - Wheel sensor............................................................................................................................................. 29

11.1.2 Source - GPS........................................................................................................................................................... 29

11.2 Jobs setup................................................................................................................................................................ 30

11.3 Nozzles setup........................................................................................................................................................... 31

11.4 Booms setup ............................................................................................................................................................ 31

11.5 Working limits ........................................................................................................................................................... 32

11.6 Flowrate correct. factor ............................................................................................................................................. 32

11.7 User preferences...................................................................................................................................................... 32

11.8 Date and Time .......................................................................................................................................................... 33

11.9 Data logger............................................................................................................................................................... 33

11.10 Test........................................................................................................................................................................... 34

11.11 Load/save setup ....................................................................................................................................................... 36

11.12 Totalizers .................................................................................................................................................................. 37

12Jobfunctions................................................................................................................................................................... 38

12.1 F1 - Job selection(PAGE 1)..................................................................................................................................... 39

12.2 F2 - Current job data(PAGE 1)................................................................................................................................ 40

12.3 F3 - Zero transducer setup(PAGE 1)....................................................................................................................... 40

12.4 F4 - Tank(PAGE 1) .................................................................................................................................................. 41

12.5 F4 - Tank(PAGE 1) .................................................................................................................................................. 42

12.6 F4 - User setting(PAGE 2)....................................................................................................................................... 42

13Use.................................................................................................................................................................................... 43

13.1 Controls on computer ............................................................................................................................................... 43

13.2 Control, selection or modification keys ..................................................................................................................... 44

13.3 Operating switches for control unit valves ................................................................................................................ 44

13.4 Operating switches for hydraulic valves.................................................................................................................... 44

13.5 Display...................................................................................................................................................................... 44

13.6 Treatment preliminary settings ................................................................................................................................. 44

13.7 Output rate regulation............................................................................................................................................... 45

13.7.1Automatic operation (DEFAULT)............................................................................................................................... 45

13.7.2Manual operation ..................................................................................................................................................... 45

13.8 Section valves automatic switch-off (through SKIPPER).......................................................................................... 45

14Maintenance/diagnostics/repairs............................................................................................................................... 46

14.1 Operation errors ....................................................................................................................................................... 46

14.2 Troubleshooting ........................................................................................................................................................ 47

14.3 Cleaning rules .......................................................................................................................................................... 47

15Technicaldata.................................................................................................................................................................. 48

15.1 Computer technical data .......................................................................................................................................... 49

16Endoflifedisposal ......................................................................................................................................................... 50

17Guaranteeterms .............................................................................................................................................................. 50

CONTENTS

 

This manual provides instructions to assemble, connect and set the computers of the BRAVO 300S family.

Any other information is provided in specic sheets to be used exclusively by the installer, containing specic information of each computer model.

 

The section of this manual dedicated to the installation contains information for installers. For this reason we have used technical terms without

providing explanations which would be necessary for end users only.

THEINSTALLATIONMUSTBECARRIEDOUTBYAUTHORISEDANDSKILLEDPERSONNELONLY.THEMANUFACTURERIS

NOTRESPONSIBLEFORANYOPERATIONSPECIFIEDINTHISMANUALCARRIEDOUTBYUNAUTHORISEDORUNSKILLED

PERSONNEL.

 

The descriptions of the assembly phases refer to a “general” computer, so specic models will not be mentioned, unless a certain installation procedure

concerns exclusively one computer type.

 

The installer must carry out workmanlike installations and ensure to the end user the perfect operation of the whole system both with ARAG components

only and other brands' components.

ARAG always recommends using its components to install control systems.

The installer will be held responsible for any malfunction if he decides to use other brands' components even without actually changing the system

parts or harness.

The compatibility check with components and accessories of other manufacturers shall be carried out by the installer.

If the computer or the ARAG components installed together with other brands' components get damaged because of what stated above, no direct or

indirect warranty will be provided.

INTRODUCTION

 

Allinstallationworksmustbedonewithbatterydisconnected,usingsuitabletoolsandanyindividualprotectionequipment

deemednecessary.

UseONLYcleanwaterfortreatmenttestsandsimulations:usingchemicalsduringsimulatedtreatmentrunscanseriouslyinjure

personsinthevicinity.

 

ARAG has designed and manufactured a diagnostics system for Bravo series computers and the systems they may be connected to.

BRAVO DSB (code 467003) provides reliable diagnostics of computer, control unit or the whole system to troubleshoot any potential problems

experienced with the BRAVO DSB system.

 

The device you have purchased is a computer which, when connected to a valve or suitable control unit, makes it possible to control all phases of

treatment in agricultural applications directly from the cabin of the farming machine it is installed in.

Thisdeviceisdesignedtoworkonagriculturalmachineryforcropsprayingapplications.

ThemachineisdesignedandbuiltincompliancewithENISO14982standard(Electromagneticcompatibility-Forestryand

farmingmachines),harmonizedwith2004/108/ECDirective.

 

•Donotaimwaterjetsattheequipment.

•Donotusesolventsorfueltocleanthecaseoutersurface.

•Donotcleanequipmentwithdirectwaterjets.

•Complywiththespeciedpowervoltage(12Vdc).

•Incaseofvoltaicarcwelding,removeconnectorsfromBRAVOanddisconnectthepowercables.

•OnlyuseARAGgenuinesparepartsandaccessories.

 

The table below indicates the components that you will nd in the BRAVO computer package:

Fi g . 1

BRAVO300SCOMPUTERWITHDIRECTCONNECTION

Legend:

 Bravo 300S

 Instruction manual

 Power cable

 SD memory card

 Fixing kit

 Power supply connector

 Complete harness to connect valves and sensors

 Inductive speed sensor

 Section valve connector seals

Fi g . 2

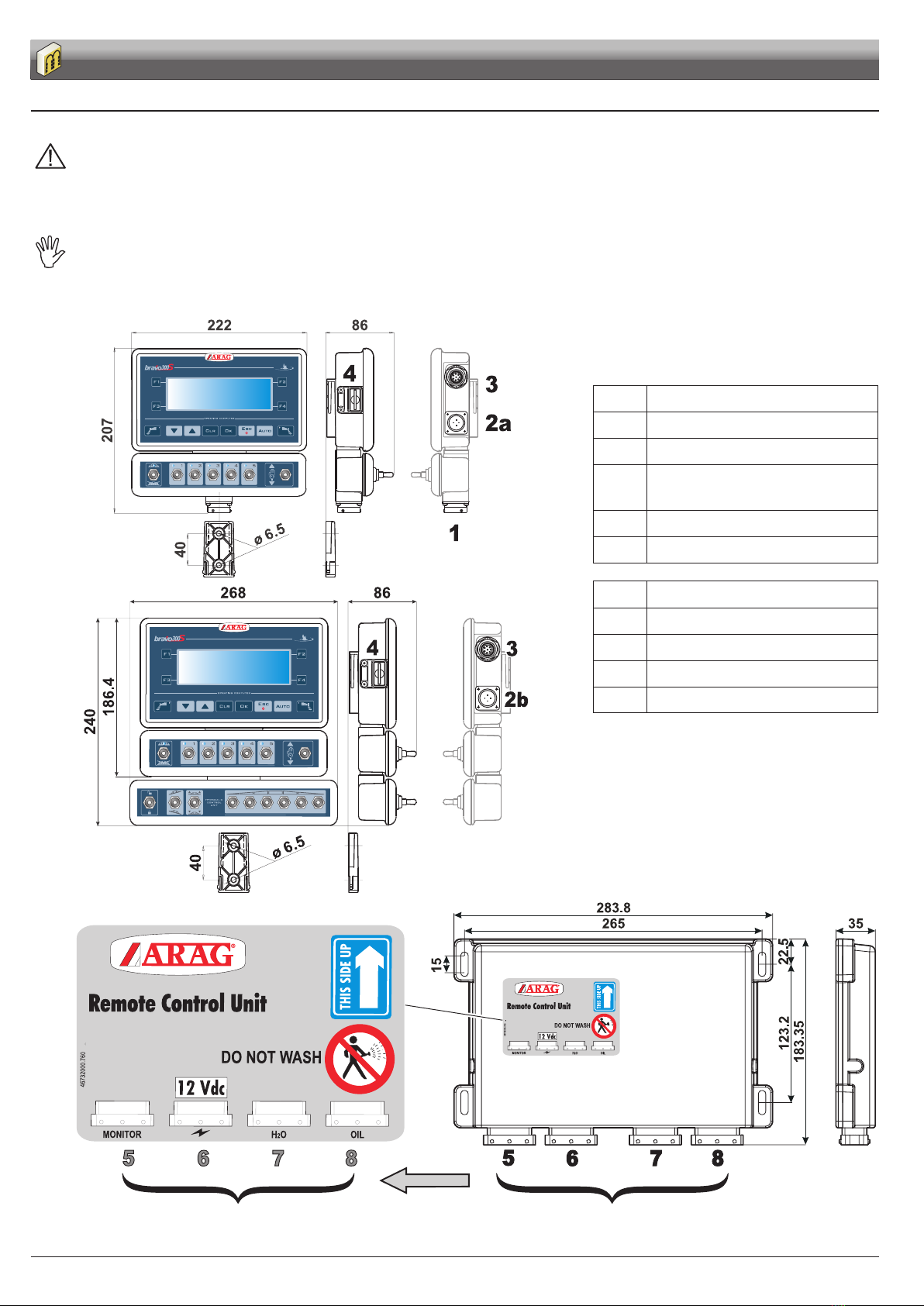

BRAVO300SCOMPUTERWITHRCU

Legend:

1Bravo 300S

2Instruction manual

3Control unit (RCU)

with harnesses

3a Connection cable to the hydraulic unit

3b Connection cable to the control unit

3c Connection cable to power supply and

sensors

3d Connection cable to monitor

4SD memory card

5Fixing kit

6Inductive speed sensor

7a Section valve connector seals

7b Hydraulic valve connector seals

8Power supply connector

INSTALLATION

 

6.1 Systemrecommendedcomposition





Fi g . 3

Legend:

Monitor

Battery

DFilling pump

Flowmeter

GMain valve

Pressure sensor

Control valve

Foam marker

Speed sensor

Filling owmeter /

Pump Protector /

RPM sensor

XLevel sensor

1÷5 Section valves





Fi g . 4

Legend:

Monitor

Battery

DFilling pump

Flowmeter

GDrain valve

Pressure sensor

Control valve

Foam marker

Speed sensor

Filling owmeter /

Pump Protector /

RPM sensor

XLevel sensor

1÷5 Section valves

Thecomputermustbedirectlyconnectedtothefarmingmachinebattery.

*Donotconnectthecomputertokey-operatedswitch(15/54).

CONTINUES

INSTALLATION





Fi g . 5

Legend:

Monitor

Battery

DFilling pump

Flowmeter

Pressure sensor

Control valve

Foam marker

Speed sensor

Filling owmeter /

RPM sensor

XLevel sensor

1÷5 Section valves



Fi g . 6

Legend:

Monitor

Battery

DFilling pump

EHydraulic unit

Flowmeter

GMain valve

LLevel sensor

Pressure sensor

Control valve

Foam marker

Speed sensor

Filling owmeter /

Pump Protector

RCU

XRPM sensor

1÷5 Section valves

Thecomputermustbedirectlyconnectedtothefarmingmachinebattery.

*Donotconnectthecomputertokey-operatedswitch(15/54).

CONTINUES

Thecomputermustbedirectlyconnectedtothefarmingmachinebattery.

*Donotconnectthecomputertokey-operatedswitch(15/54).



Fi g . 7

Legend:

Monitor

Battery

DFilling pump

EHydraulic unit

Flowmeter

GDrain valve

LLevel sensor

Pressure sensor

Control valve

Foam marker

Speed sensor

Filling owmeter /

Pump Protector

RCU

XRPM sensor

1÷5 Section valves





Fi g . 8

Legend:

Monitor

Battery

DFilling pump

EHydraulic unit

Flowmeter

LLevel sensor

Pressure sensor

Control valve

Foam marker

Speed sensor

Filling owmeter

RCU

XRPM sensor

1÷5 Section valves

INSTALLATION

6.2 Monitorandcontrolunitpositioning

•The BRAVO 300S series computer must be placed in the control cabin of the farming machine. Observe the following precautions:

-DoNOTinstallthemonitorinareaswhereitwouldbesubjectedtoexcessivevibrationsorshocks,topreventanydamageor

accidentaluseofthecontrolkeys;

-Installthedeviceinavisiblepositionwithineasyreachbyhand;bearinmindthatthecomputershouldnotobstructthe

operator’sfreedomofmovementorblockhisview.

• Control unit (RCU): secure the control unit on the back of the machine, close to the control unit and the hydraulic unit.

Considerallnecessaryconnectionsofthecomputer,thecablelength,andmakesurethereisenoughspaceforconnectorsand

cables.

Anidenticationsymbolislocatednexttoeachconnectortoindicateitsfunction.Foranyreferencetothesystemconguration

readPar.6.1Systemrecommendedcomposition.

Fi g . 9

Fi g . 10

Fi g . 11

 

1Control unit and sensors

2a Power supply

Monitor power supply

RCU connection

3Auxiliary connections

4SD memory card

 

5Monitor

6Power supply and sensors

7Control unit

8Hydraulic unit

Andere Handbücher für BRAVO 300S

Inhaltsverzeichnis

Andere ARAG Spritzpistole Handbücher

ARAG

ARAG Bravo 400 S LT Series Benutzerhandbuch

Beliebte Spritzpistole Handbücher anderer Marken

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Bedienungsanleitung

Graco

Graco 246737 Gebrauchs- und Pflegehandbuch

Binks

Binks SV100 Bedienungsanleitung

Fimco

Fimco LG-4-3-1 Bedienungsanleitung

AG SPRAY

AG SPRAY FS-ATV-25BL Bedienungsanleitung

Nordson

Nordson MicroMax 2 Bedienungsanleitung

Bonide

Bonide 051 Bedienungsanleitung

zogics

zogics Z-DAS Bedienungsanleitung

KISANKRAFT

KISANKRAFT KK-KBS-165 Bedienungsanleitung

Matrix

Matrix SG 650 Bedienungsanleitung

Anest Iwata

Anest Iwata SGA-3 Kurzanleitung

paasche

paasche VV Datenblatt

Carlisle

Carlisle DeVilbiss JGA-510 Bedienungsanleitung

Gardena

Gardena 11120 Bedienungsanleitung

Conrad

Conrad Hobby Airbrush K3 Bedienungsanleitung

wiwa

wiwa 14025 R/F Bedienungsanleitung

Graco

Graco EM 390 Bedienungsanleitung

DeVilbiss

DeVilbiss LUNA2i Bedienungsanleitung
