arbane APG iX Series Bedienungsanleitung
iX Series
User manual
User manual - iX Series
03/2023DOP_1261_F 2
General informations
iX Series - User manual
03/2023 EN
APG France (Active Audio / Arbane Groupe)
8 Rue Johannes Gutenberg - 44340 Bouguenais- France
Tél : 02.40.46.66.64
www.apg.audio/en
User manual - iX Series
03/2023DOP_1261_F 3
1. Safety note and general information 5
2. The iX range 7
2.1 Description of the product line 7
2.2 Product description 8
2.3 Connections 13
2.4 Accessories 14
2.5 Amplifiers 20
2.6 Applications 21
2.7 Maintenance - Spare parts 24
2.8 Technical specifications 29
2.9 iX-O : iX Series special Outdoor 38
User manual - iX Series
03/2023DOP_1261_F 4
User manual - iX Series
03/2023DOP_1261_F 5
1. Safety note and general information
• Information on the risk of exposure to high sound level
• APG loudspeakers are liable to generate levels of sound pressure hazardous to health, which may
cause hearing impairment. It is recommended that you never stand in the immediate vicinity of the
loudspeakers in operation and wear hearing protection when necessary. Observe the maximum
exposure time to noise according to the noise level and the regulations in force in your country.
Pay attention to the hearing protection of listeners when using APG systems.
• Read this manual before use and keep it.
• Read all documents relating to the product to be used before setting up and using it. Please
contact APG with any questions relating to the product.
• Obtain the latest version of the user manual from the APG website: www.apg.audio .
• Consider all warnings and follow the instructions and recommendations for use.
• Make sure you know the safety rules for hanging, stacking or setting up on a pole or tripod. Failure
to follow these rules may expose people to potential injury or death.
• Ensure the safety of operators and spectators.
• Staff must wear personal protective equipment (PPE) during each step of installing the product
(helmet, gloves, safety shoes at a minimum).
• Installation of APG products should only be carried out by qualified staff trained in rigging
techniques and aware of the safety recommendations set out in this manual.
• Always check the stability, resistance to weight, flatness and horizontality of the support. Prevent
access to the spectators around the system, prevent it being possible to push or climb the stack
of speakers. Use straps to prevent tipping.
• Do not store the product on an unstable cart, stand, tripod, bracket or table.
• Use the products with the specified accessories by the manufacturer.
• Inspect lifting products and accessories before each use.
• Do not install equipment that is faulty or presents a risk of breakage and have it repaired by
qualified personnel or by APG.
• Entrust all repairs to qualified staff or by APG. Repairs are mandatory if the device is damaged in
any way, for example: damaged power cord or plug, spilled liquid or object dropped inside the
device, exposure of the device rain or moisture for long periods of time, appliance that does not
operate normally or that has been dropped.
• Any unauthorized maintenance operation will void the product warranty.
• Perform safety and compliance checks of accessories, enclosures, and third-party accessories
periodically at least once a year.
• Respect the maximum load capacity of each configuration and carry out conformity simulations
using the tools APG Tools, APG Uniline Aiming Tool, AFMG EASE Focus 3.
• Use only with a cart, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. If a cart is used, move the cart-apparatus combination carefully so as not to tip it over,
which could cause personal injury.
• Do not install near a heat source such as an open flame, radiator, heat register, stove or any other
device that produces heat (including amplifiers).
• Do not expose the product to extreme conditions such as humidity (rain, sea water, condensation,
ambient humidity, etc.), excessive heat (sun, heating, etc.) over a long period.
• Take into account the effects of the wind. Flying loudspeakers overhead at wind forces higher
than, 16 mph (25km/h) is not recommended. If the wind force exceeds 46 mph (72km/h):
- Make sure that no person remains in the vicinity of the loudspeaker array.
- Lower and secure the array.
• During an outdoor performance, it is advisable to find out about the weather conditions and
to follow the local weather report and the recommendations of the competent authorities. An
anemometer can be used at the top of the system.
User manual - iX Series
03/2023DOP_1261_F 6
• Use a secondary safety system for any APG speaker rigging.
• The product is intended for be used by professionals trained in professional audio work.
• APG declines all responsibility in the event of the use of non-validated accessories or non-
compliance with safety instructions and rules.
• APG products are guaranteed for 5 years. The full five-year warranty covers filters and transducers
against manufacturing defects under normal product use.
• APG pursues a research and development policy aimed at improving its products. For this reason,
new materials, manufacturing methods and changes in principle may be introduced without prior
warning. As a result, an APG product may differ in some aspects from its published description,
however, unless otherwise indicated, its characteristics will be greater than or equal to those
published.
• Disposal of electrical or electronic equipment
• This symbol on the product or on its packaging indicates that it will not be treated as household
waste. Instead it will be delivered to the applicable collection point for the recycling of electrical
and electronic equipment. By ensuring recycling, you will help prevent potential consequences
for the environment and human health. Recycling of materials will help conserve natural resources.
For more detailed information on recycling this product, please contact your local office, waste
collection agency or dealer.
User manual - iX Series
03/2023DOP_1261_F 7

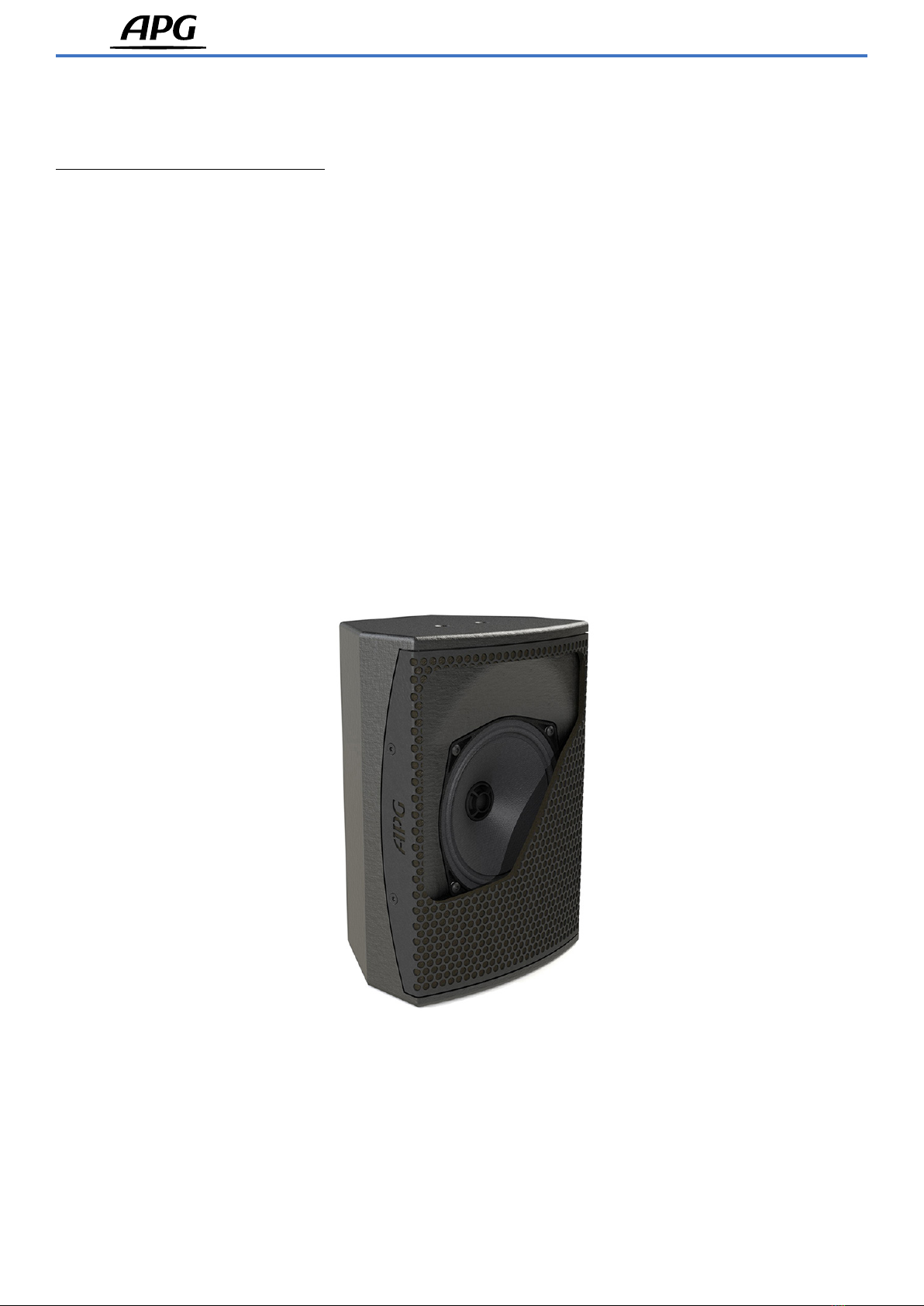

2. The iX range
2.1 Description of the product line
iX Series is a range of 5 high-quality speakers dedicated to professional installations.
Aesthetic and compact, they deliver a high sound level while offering a high quality of sound reproduction. Their bandwidth
has been designed to allow wideband use of loudspeakers and meet the requirements of users up to high power musical
applications. Their homogeneous dispersion makes them ideal for applications of short and medium range sound systems,
additional diffusion and spatial sound systems.
Designed for fixed installation, the iX Series speakers feature ergonomic options for quick and easy installation.
The combination of coaxial technology and proprietary ‘APG NDB’ baffling allows a distortion-free and uniform sound
distribution for a pure and faithful result throughout the sound space for the enjoyment of listeners.
APG NDB - No Diffraction Baffle
Harmoniously extending the coaxial transducer, the anti-diffraction ‘APG NDB’ baffle allows
a perfect adaptation of the enclosure to its environment
User manual - iX Series
03/2023DOP_1261_F 8
2.2 Product description

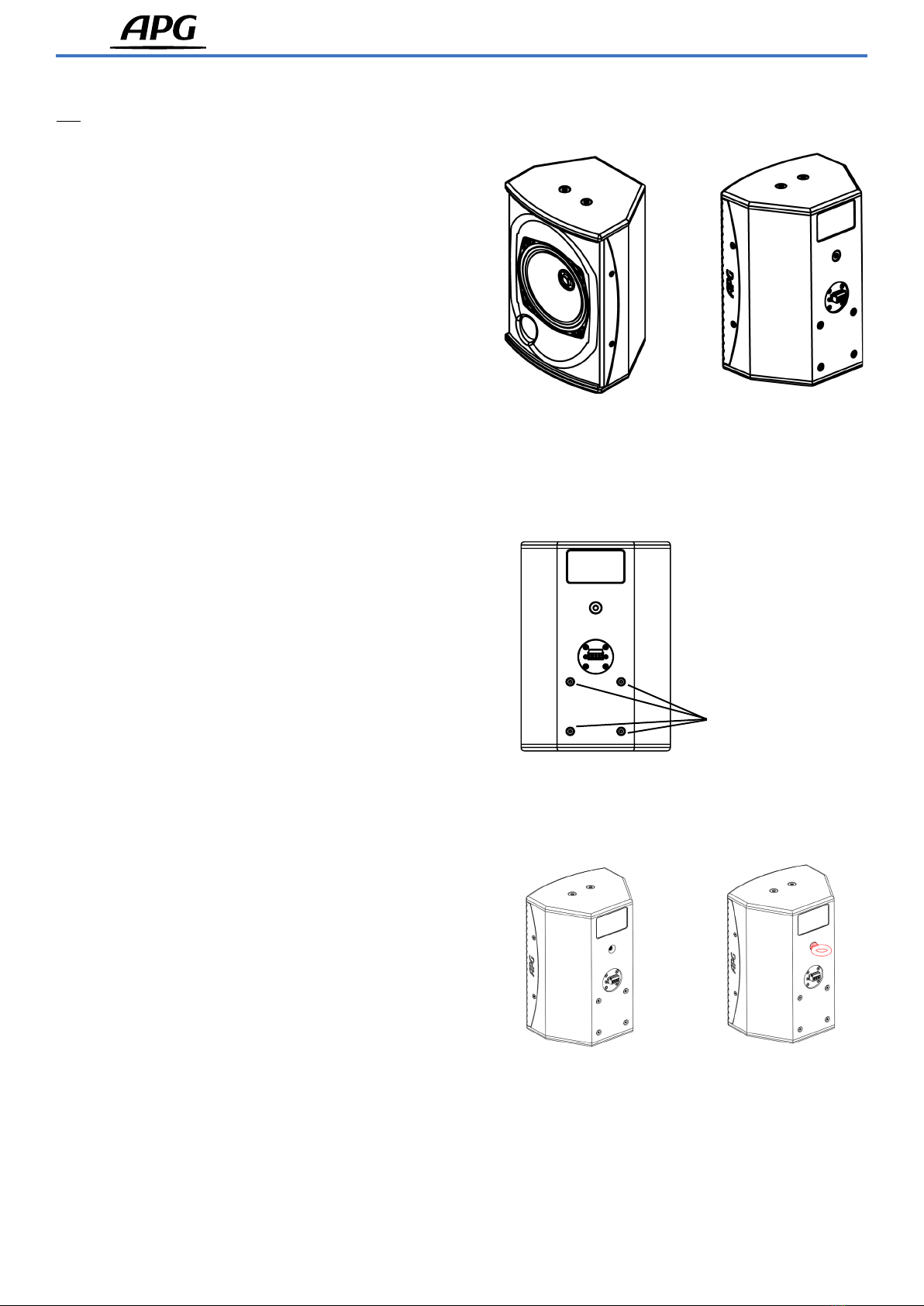

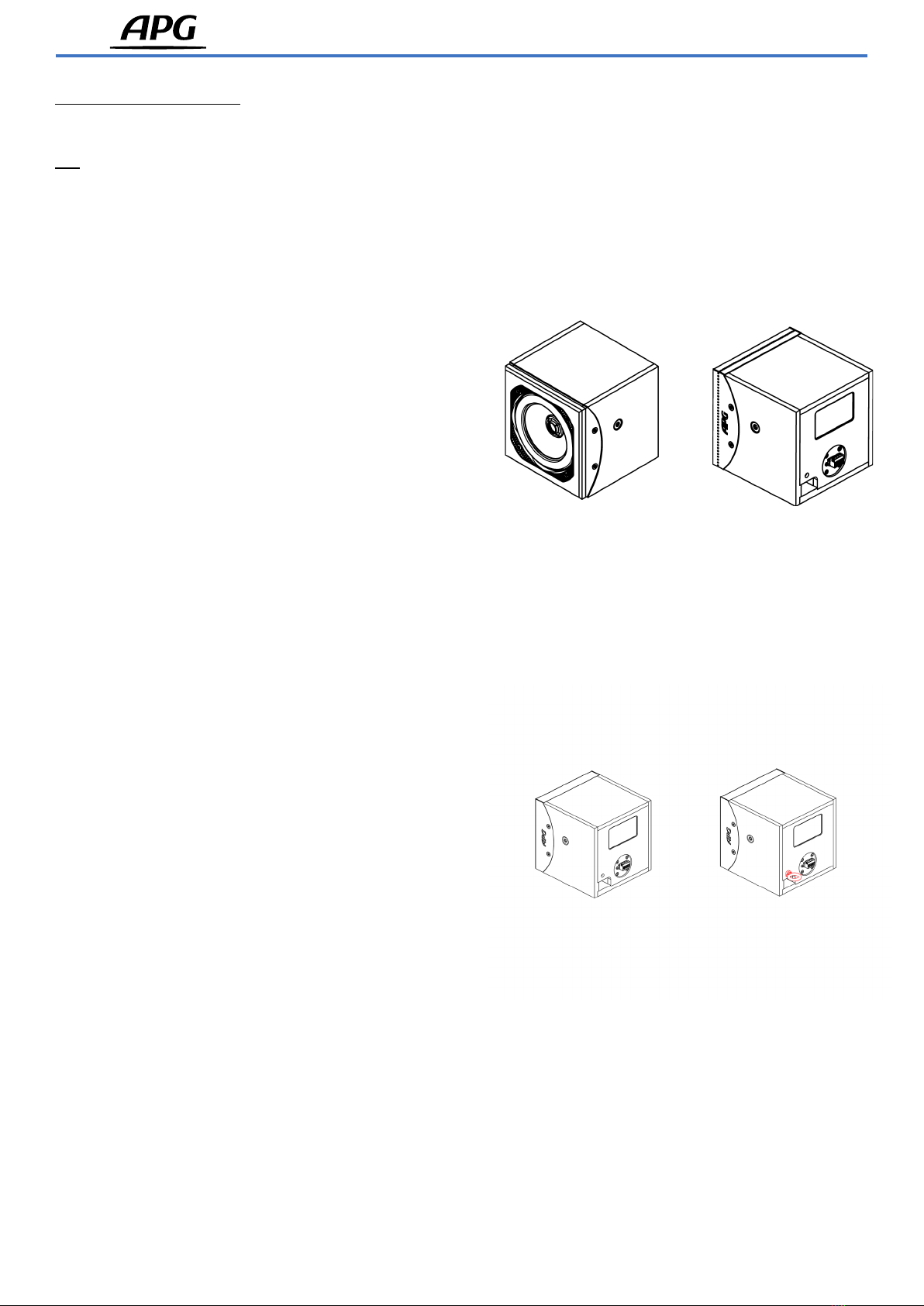

iX5
The APG iX5 model is a 2 ways fullrange coaxial speaker.
The iX5 is characterized by its visual discretion and its limited
weight.
The Lo section is reproduced by a high-elongation 5” coaxial
driver passively connected with a 1” dome tweeter for the
Mid/Hi section.
The impedance of the APG iX5 is 16 Ohm, allowing up to 8
speakers to be connected in parallel on one amplifier channel.
The iX5 speaker is equipped with an Euroblock type connector
/ Phoenix 4 pins allowing connection to amplifiers on terminal
blocks 1+/1-.
The frequency bandwith operate from 60Hz to 20kHz and can
be extended with APG subwoofers.
The conical dispersion is 105° and the frequency spectrum
is constant thanks to the use of coaxial and ‘APG NDB’
technologies.
The speaker has one 3/8” insert for mounting on a round-
base microphone stand and two inserts for the iX5B mounting
bracket.
An M5 insert is installed on the rear face of the enclosure
allowing the use of a safety sling in addition to the iX5B
mounting bracket.
The front grid protects the loudspeakers and provides an
aesthetic finish.
Rear panel insert
User manual - iX Series
03/2023DOP_1261_F 9
iX6
The APG iX6 is a 2 ways fullrange coaxial speaker.
The iX6 is characterized by its minimal footprint and weight.
The Lo section is reproduced by a 6.5’’ coaxial loudspeaker
passively connected with a 1’’ dome tweeter for the Mid/Hi
section.
The impedance of the APG iX6 is 8 Ohm, allowing up to 4
speakers to be connected in parallel on one amplifier channel.
TheiX6speaker isequipped with an Euroblocktype connector
/ Phoenix 4 pins allowing connection to amplifiers on terminal
blocks 1+/1-.
The frequency bandwith operate from 60Hz to 20kHz and can
be extended with APG subwoofers.
The conical dispersion is 120° and the frequency spectrum
is constant thanks to the use of coaxial and ‘APG NDB’
technologies.
The speaker has one 3/8” insert for mounting on a round-base
microphone stand and two inserts for the iX6B mounting
bracket.
In order to extend the possibilities of hanging, the speaker is
VESA 100x100 compatible, with 4 inserts on the rear panel
allowing it to be suspended.
A M5 insert is installed on the rear face of the enclosure
allowing the use of a safety sling in addition to the iX6B
mounting bracket.
The front grid protects the loudspeakers and provides an
aesthetic finish.
4 inserts compatible
VESA 100x100
Rear panel insert
User manual - iX Series
03/2023DOP_1261_F 10

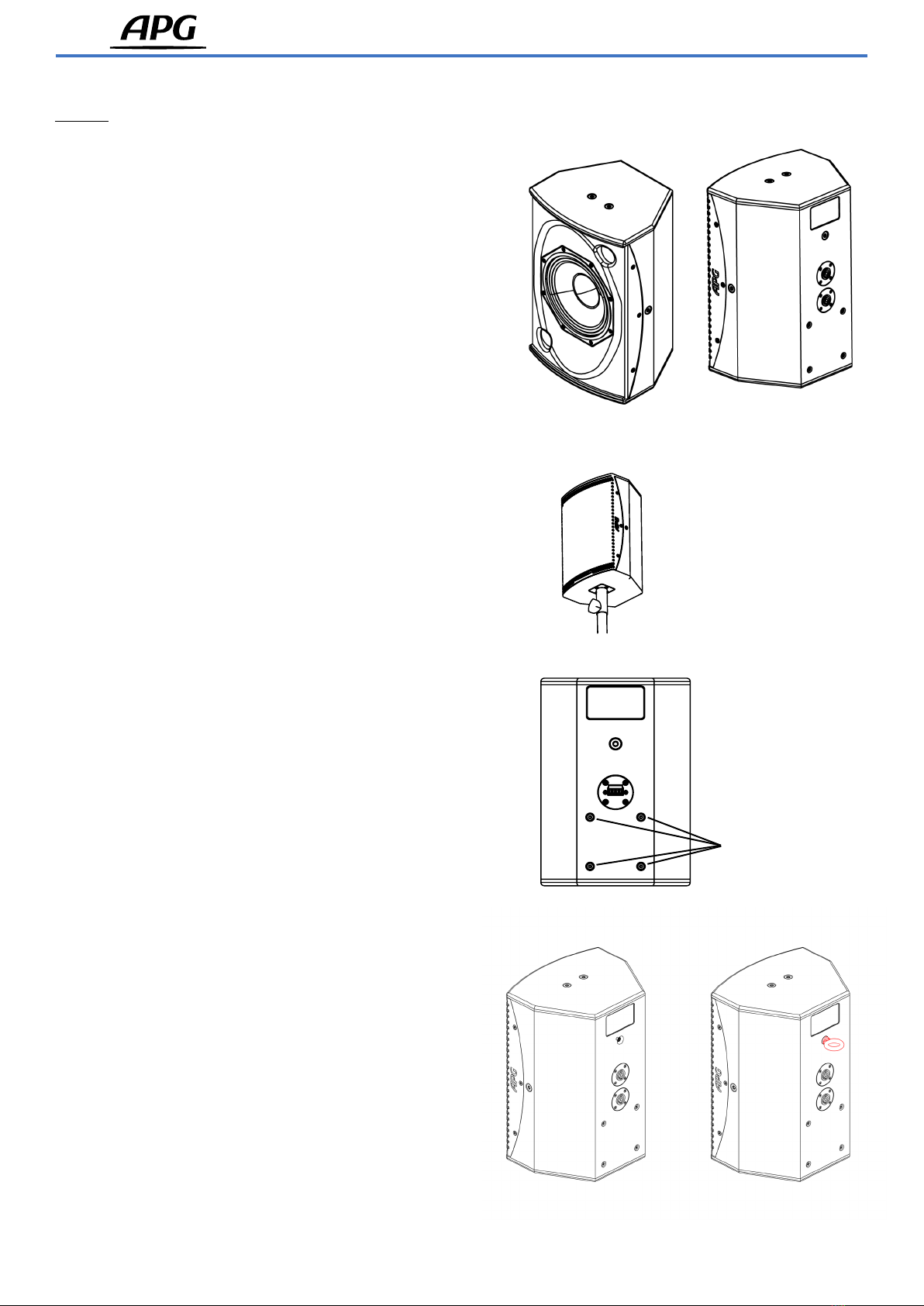

iX8 M2
The APG iX8 M2 model is a 2 ways fullrange coaxial speaker.
Its dimensions and performance make it suitable for many
applications (distributed sound, spatialization, delays, front-
fills…).
The Lo section is reproduced by a neodymium vented 8’’
coaxial loudspeaker passively connected with a 1’’ HF driver
for the Mid/Hi section.
The impedance of the APG iX8 M2 is 8 Ohm, allowing up to 2
speakers to be connected in parallel on one amplifier channel.
The iX8 M2 speaker is equipped with two Speakon NL4
connectors allowing connection to amplifiers on the 1 + / 1-
terminal blocks. 2 + / 2- points are linked in parallel on the two
connectors but are not connected to the transducers.
The frequency bandwith operate from 60Hz to 20kHz and can
be extended with APG subwoofers.
The conical dispersion is 100° and the frequency spectrum
is constant thanks to the use of coaxial and ‘APG NDB’
technologies.
The speaker has an insert compatible with K&M 24521 third-
party accessorie to instal the speaker on a 35mm pole-stand.
In order to extend the possibilities of hanging, the speaker is
VESA 100x100 compatible, with 4 inserts on the rear panel
allowing it to be suspended.
A M8 insert is installed on the rear face of the enclosure
allowing the use of a safety sling.
The front grid protects the loudspeakers and provides an
aesthetic finish.
4 inserts compatible
VESA 100x100
K&M 24521 accessories
for 35mm pole mount
installation
Rear panel insert
