ARC Audio M-PAK 14CX Bedienungsanleitung

Table Of Contents

1. Remove the Seat 4

2. Remove the rear Tank Bolts 5

3. Remove the Front Tank Bolts 6

4. Disconnect the Fuel Line 7

5. Tank Removal 8

Special Note: Brake Lines 9

6. Expose the Harness 10

7. Power Harness 11

8. Exposing the Battery 12

9. Connecting the Power Harness 13

Note: Remove the Fuse 14

10. Fairing Removal 15

11. Windshield Removal 16

12. Disconnect the Headlight 17

13. Speaker Enclosure Fastener Locations 18

14. Disconnecting the Speaker Harness 19

15. Removing the Vent Assembly 20

16. Speaker Enclosure Bottom Fasteners 18

17. Enclosure to Fairing Fasteners 19

18. Enclosures to Radio Bracket Fasteners 20

Note; CB Radio Equipped Bikes 20

19. Trim the Enclosure Alignment Pins 22

20. Connecting the New Speakers. 23

21. Prepping the Harness 24

22. Relocate the GPS Antenna 25

23. Remote Turn-on P&A Plug 26

24. Mount the Amplifier 27

25. Connect the Power Harness 28

26. Connect the Input Plug 29

27. Connect the Speaker Wires 30

28. Apply the Weather Protector 31

Note: Tuning the Amp 32

29. Finishing it up 33

Note: Install the Fuse 33

2 Channel Tuning Guide 34

4 Channel Tuning Guide 35

1. Remove the Seat 1

2. Remove the rear Tank Bolts 2

3. Remove the Front Tank Bolts 3

4. Disconnect the Fuel Line 4

5. Tank Removal 5

Special Note: Brake Lines 6

6. Expose the Harness 7

7. Power Harness 8

8. Exposing the Battery 9

9. Connecting the Power Harness 10

Note: Remove the Fuse 11

10. Fairing Removal 12

11. Windshield Removal 13

12. Disconnect the Headlight 14

13. Speaker Enclosure Fastener Locations 15

14. Disconnecting the Speaker Harness 16

15. Removing the Vent Assembly 17

Special Thanks to Dick Braner for

supplying his 2014 Ultra Classic.

16. Speaker Enclosure Bottom Fasteners 21

17. Enclosure to Fairing Fasteners 22

18. Enclosures to Radio Bracket Fasteners 23

Note; CB Radio Equipped Bikes 24

19. Trim the Enclosure Alignment Pins 25

20. Connecting the New Speakers. 26

21. Prepping the Harness 27

22. Relocate the GPS Antenna 28

23. Remote Turn-on P&A Plug 29

24. Mount the Amplifier 30

25. Connect the Power Harness 31

26. Connect the Input Plug 32

27. Connect the Speaker Wires 33

28. Apply the Weather Protector 34

Note: Tuning the Amp 35

29. Finishing it up 36

Note: Install the Fuse

2 Channel Tuning Guide

4 Channel Tuning Guide

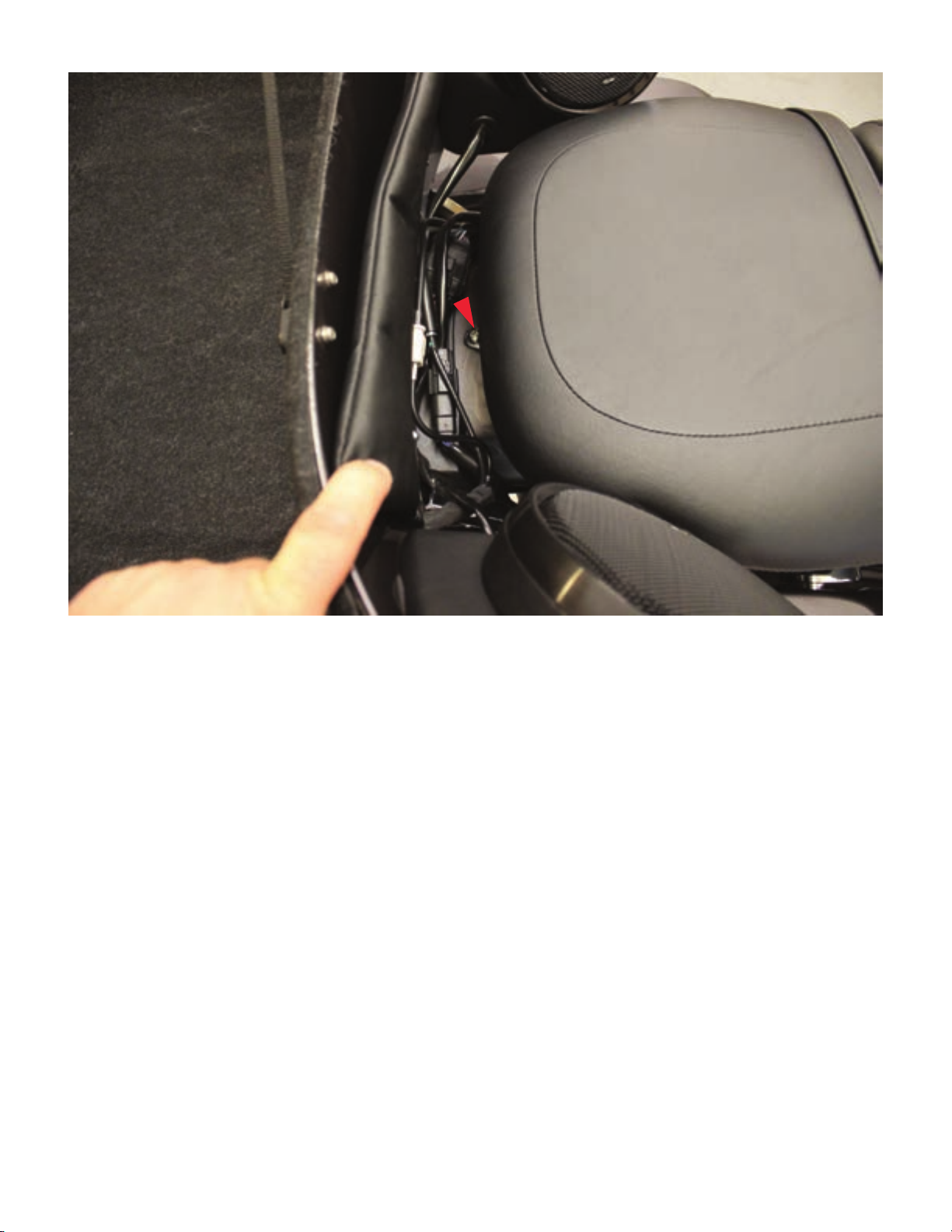

1. Locate the Philips head screw at the back of the seat and

remove it being careful not to drop it. This will free the back of

the seat. Raise it slightly and slide the seat toward the back of

the bike until it comes free.

Note: It maybe necessary to remove the seat strap. The

Philips screw for the strap can be found behind the saddle

bag.

TOP

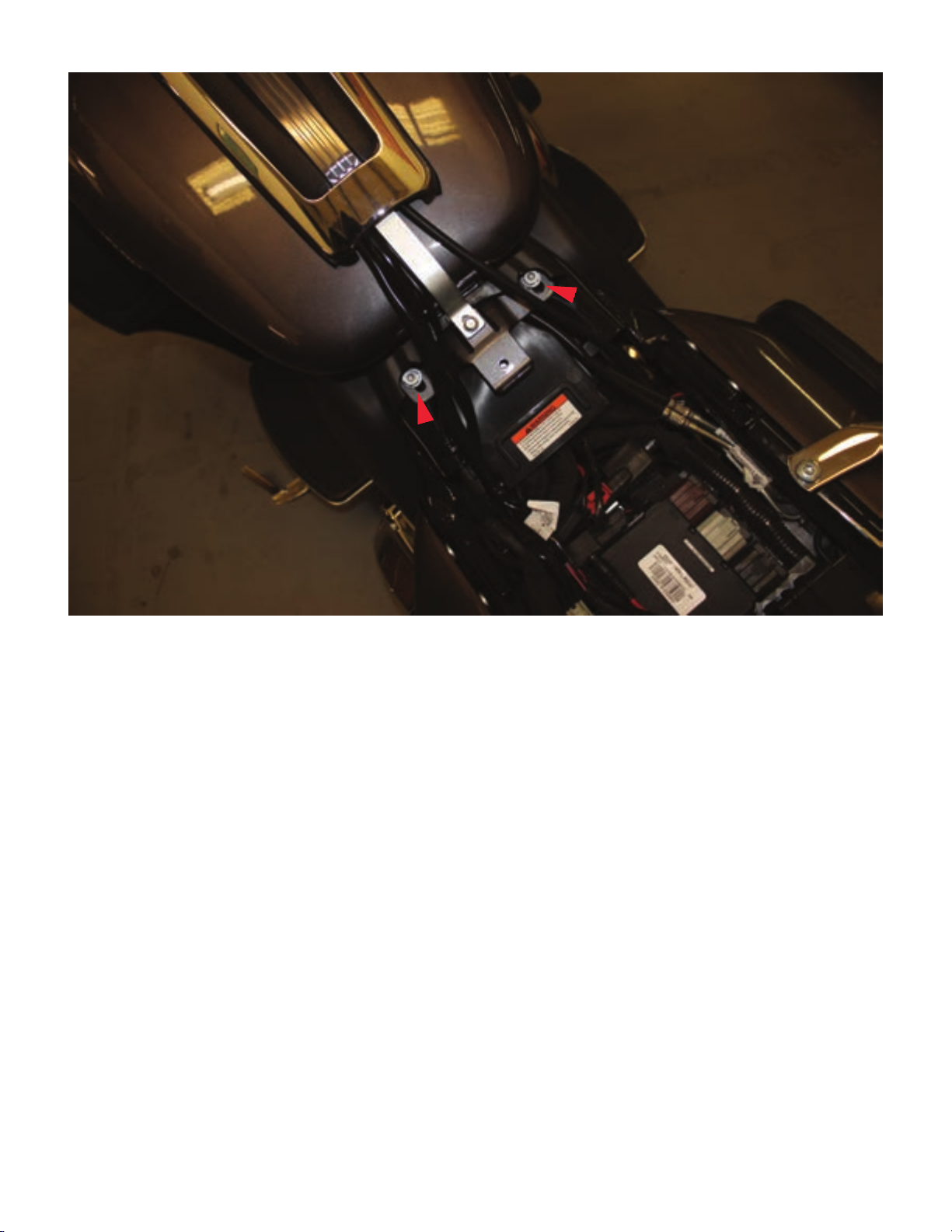

2. Remove the 2 bolts at the back of the tank under the seat.

Don't drop them down by the battery. You will need them later.

TOP

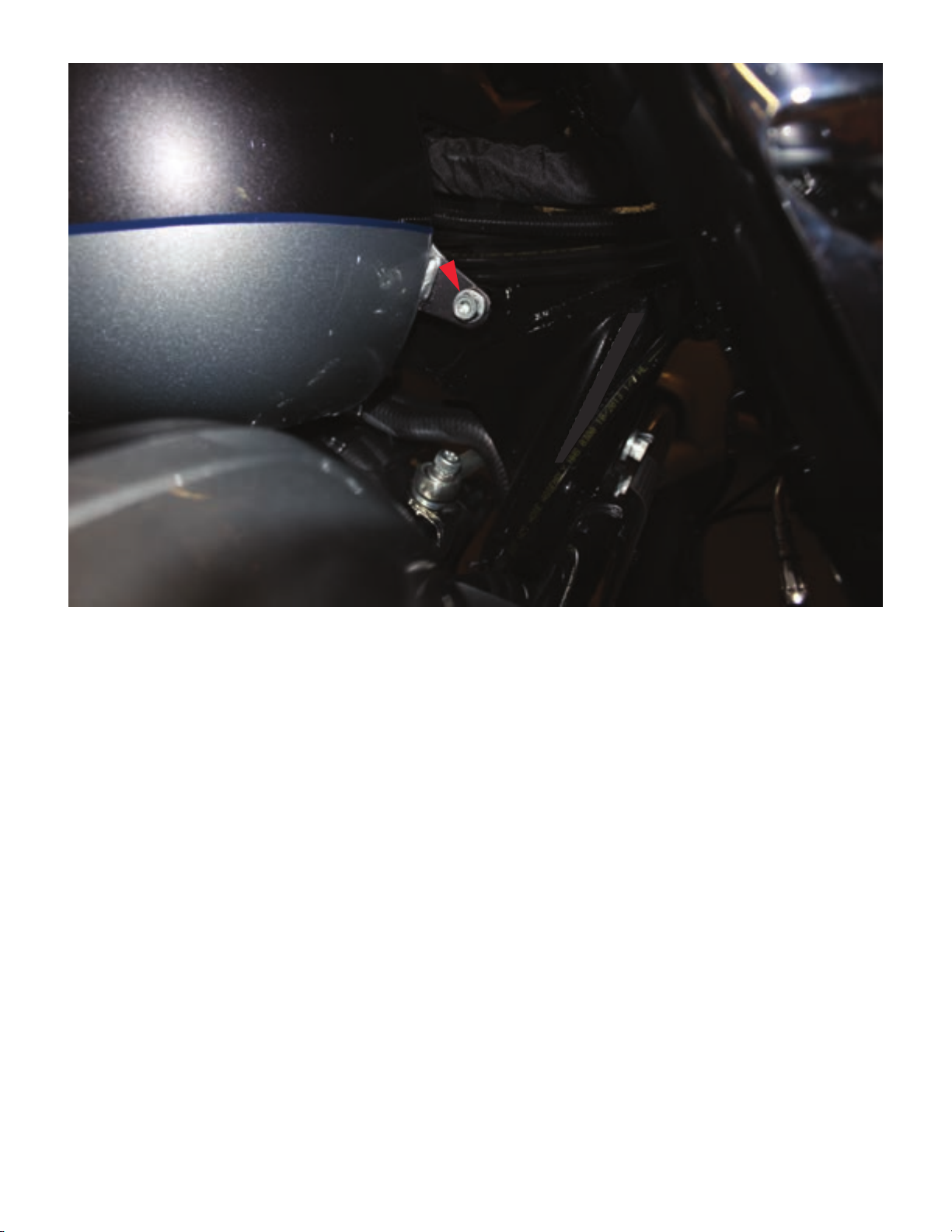

3. Remove the 2 bolts at the front of the tank. These are

under rubber covers that must be removed first.

TOP

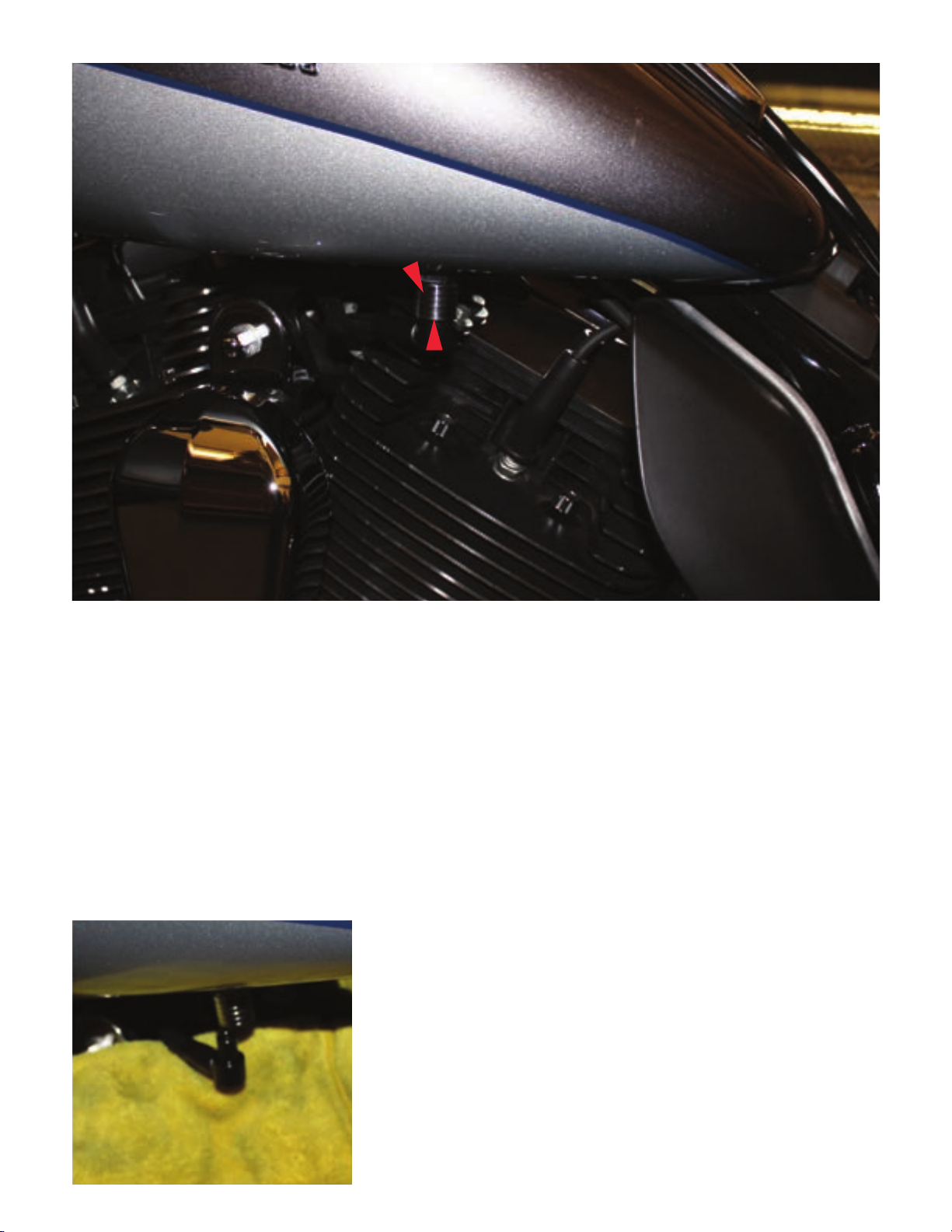

4. To disconnect the fuel line from the fuel tank, locate the

quick disconnect fitting on the left side of the tank.

Push up on the chrome plated portion of the connector. Work

the black elbow fitting free while holding the chrome fitting in

the up position.

The elbow and attached fuel line

should come free with very little

effort. This fitting is self sealing how-

ever a small amount of fuel may drip

for the connector. You may want to

put a rag under it to catch any gas.

TOP

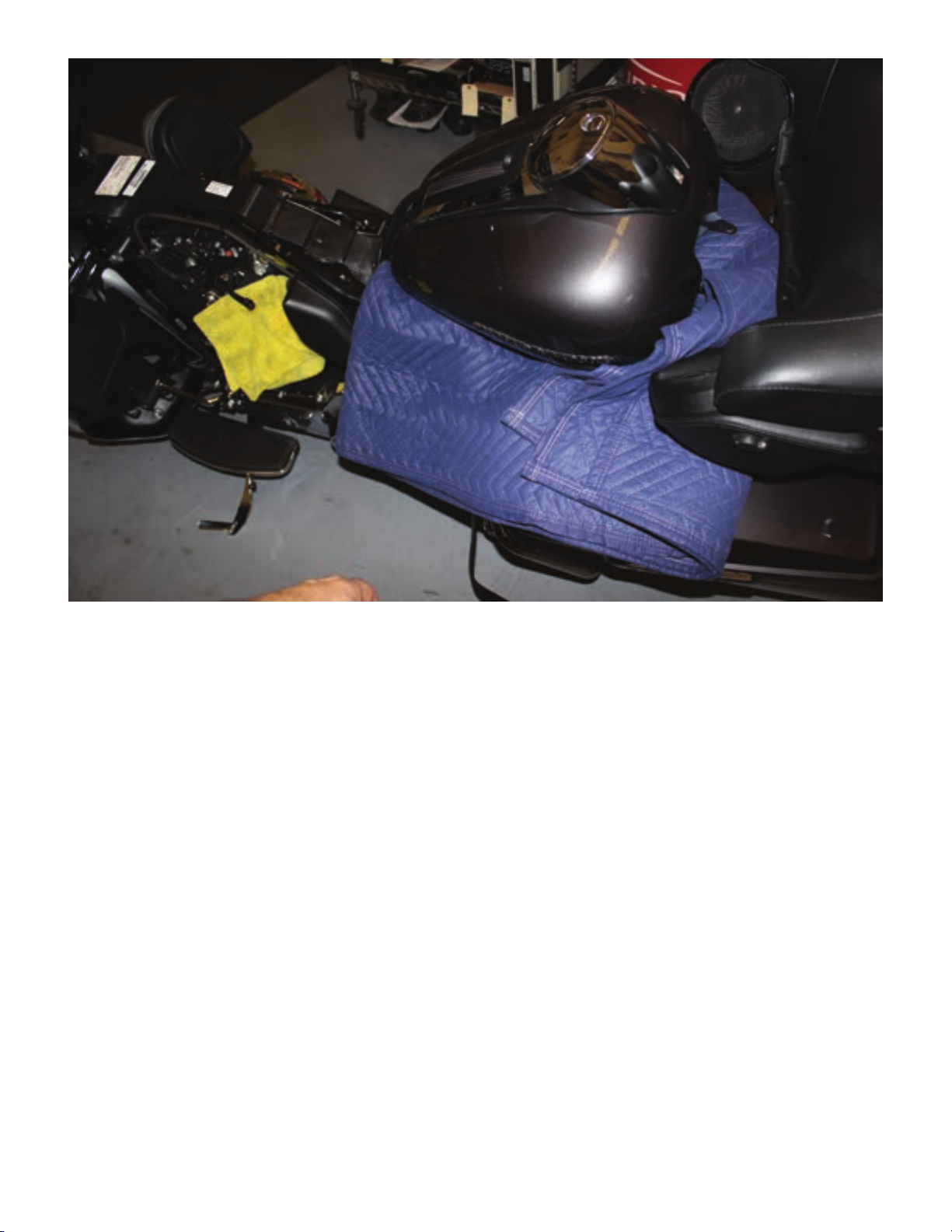

5. Short Cut. While it is advisable to remove the chrome

"Dash Board" from the tank and fully disconnect all wires and

lines attached, you can carefully swing the tank around and

set it in the seat position. A great deal of care must be taken

to insure nothing is scratched or damaged. If you are uncom-

fortable with this method, please watch the tank video below

for complete tank removal instructions.

https://www.youtube.com/watch?v=TOaxIr8BCgU

TOP

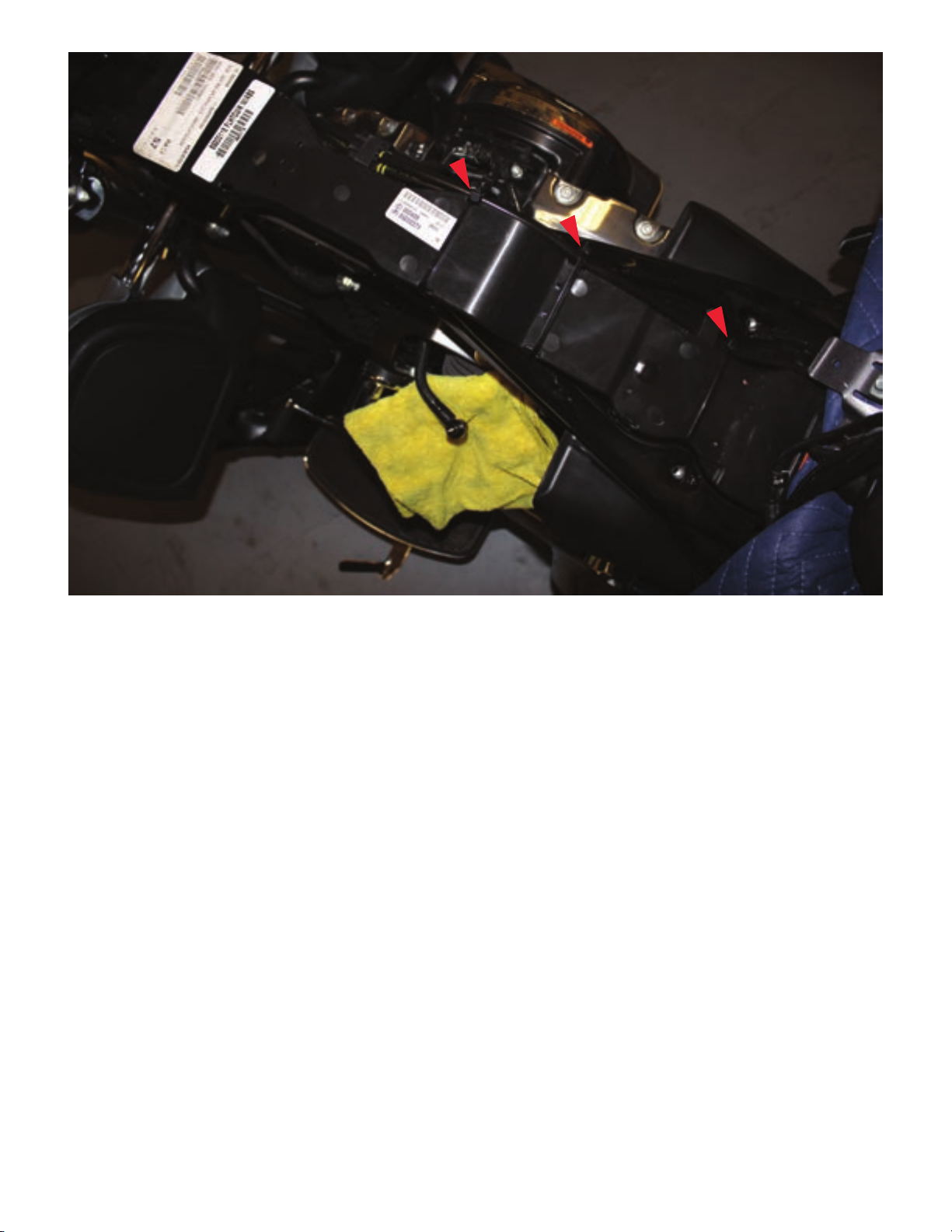

Special Note: This 2014 model has had 3 zip ties added

under the tank the secure the brake lines. If your bike does

not have these it is recommended that you contact your local

dealer and find out if it is necessary. If they are present they

must be replaced exactly as they are. ARC Audio takes no

responsibility for this modification.

TOP

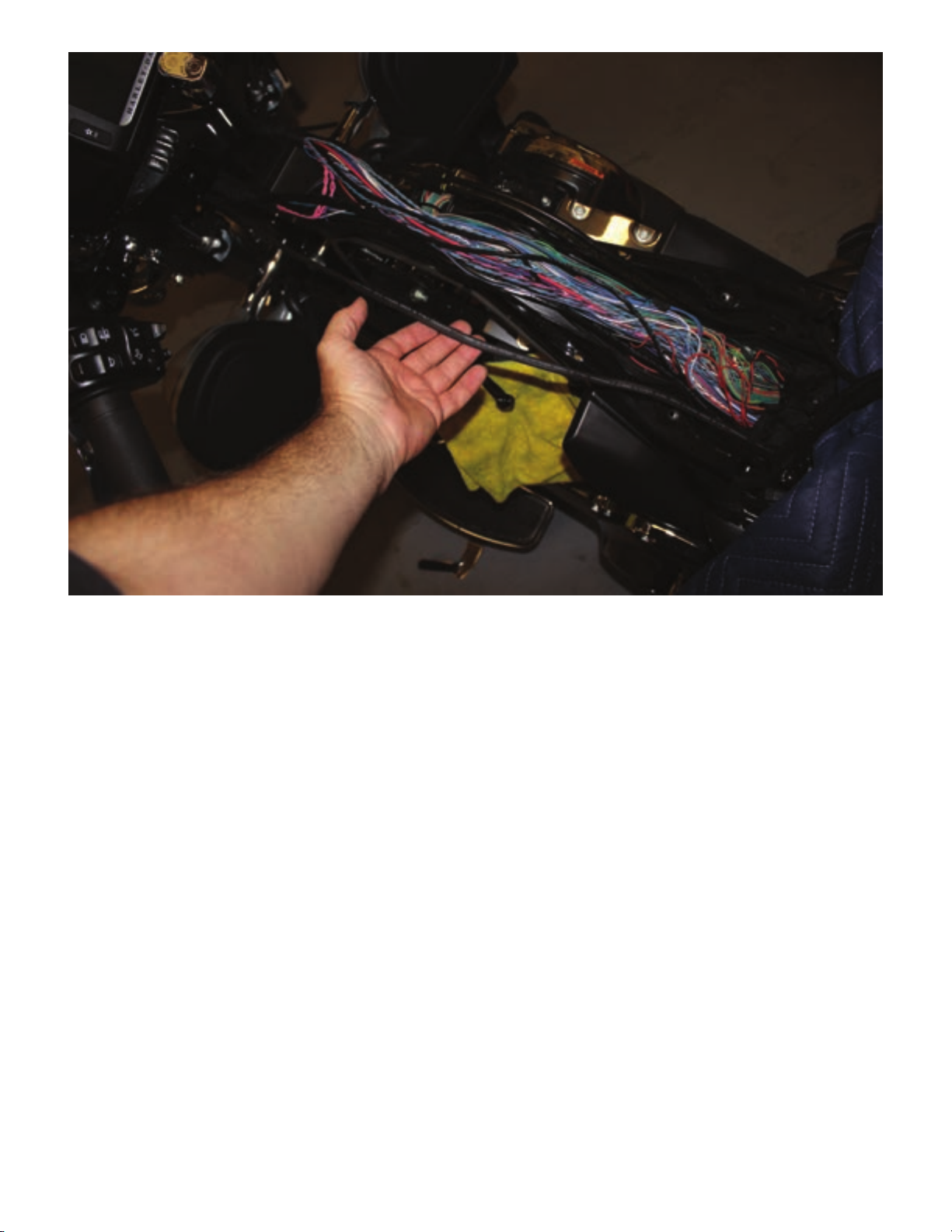

6. Remove the black plastic cover off the top of the wire cover

on the back bone of the frame. No tools here, just work it

loose from the tabs.

Lay the Provided HD Power Upgrade Harness in with the rest

of the wires. Make sure the fuse holder is at the battery end.

Nothing special here, just tuck it in place. Make sure you

leave enough to make the connection to the battery.

Warning: Remove the supplied fuse from the fuse holder

before you begin.

TOP
