Self Adhesive strips
Make sure the surface is free from dirt and grease.
Attach the self adhesive tab to the back cover of the push button unit. Remove the protective strips
from the self adhesive tab and push firmly against the wall.
Mounting the bell push button by screwing
Unclip the cover from the bell push unit and using the 2 holes on the back of the bell as a template,
mark and drill the fixing holes and then attach the bell push using the screws provided.
Close back the front cover to complete the whole push button bell transmitter.
MLR-1105 Receiver (chime)

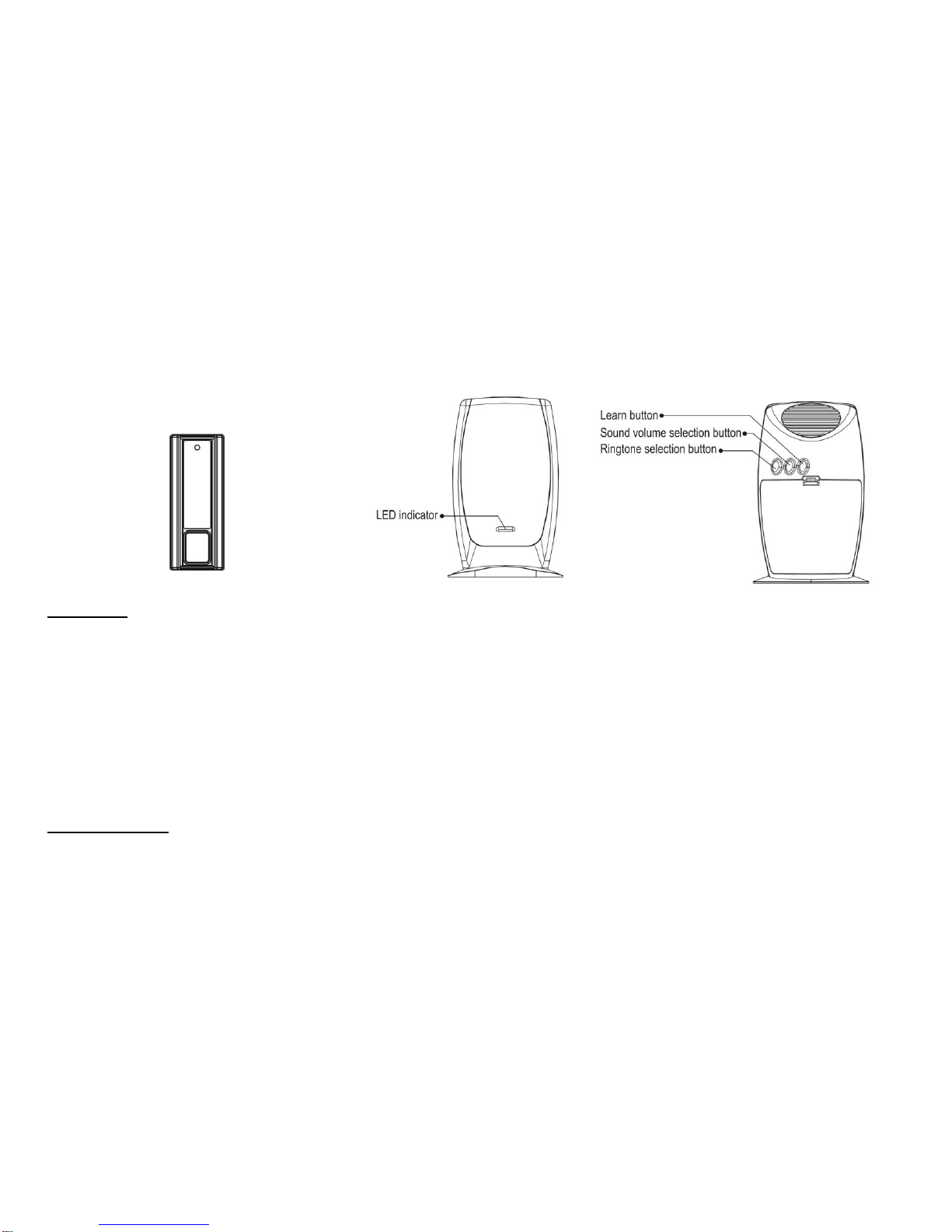

Stand type door chime can be placed wherever the suitable place for sound clearly hearing or LED indicator clearly visually.
HOW TO SET CODE: Learning Function
To start, program the Transmitter (bell push unit) with the Receiver (chime unit).
Firstly choose the desire ringtone.
Press once on the “Learn” button of the Receiver (chime unit), “Du” sound is heard, LED flashes slowly.
Then, press the push button of bell push unit LMLT-711 (or slide to “SET” position of button on LMDT-609 or separate parts of LMST-606 as
“LEARN” code) to send signal to the receiver chime.
No matter sound volume is setup at any volume level or mute mode, once the pairing is completed, the receiver will indicate a “Du-Du” sound
to confirm, LED light does not flash.
Although learning process is setup at “Mute” mode, after turning to H-M-L volume level selection, ringtone programmed can still be sounded.
Selected ringtone and the transmitter are programmed in one of the memory of MLR-1105 at the same time.
If not process pairing of transmitter and receiver within about 15 seconds after pressing “Learn” button, automatically leaving learning mode
after the 15 seconds.
Repeat procedure with different ringtone for different transmitter setting.
When 4 memories are fully programmed, receiver will make “Du-Du-Du-Du” sound.
