archgon MD-3107-U3 Bedienungsanleitung
USB 3.0

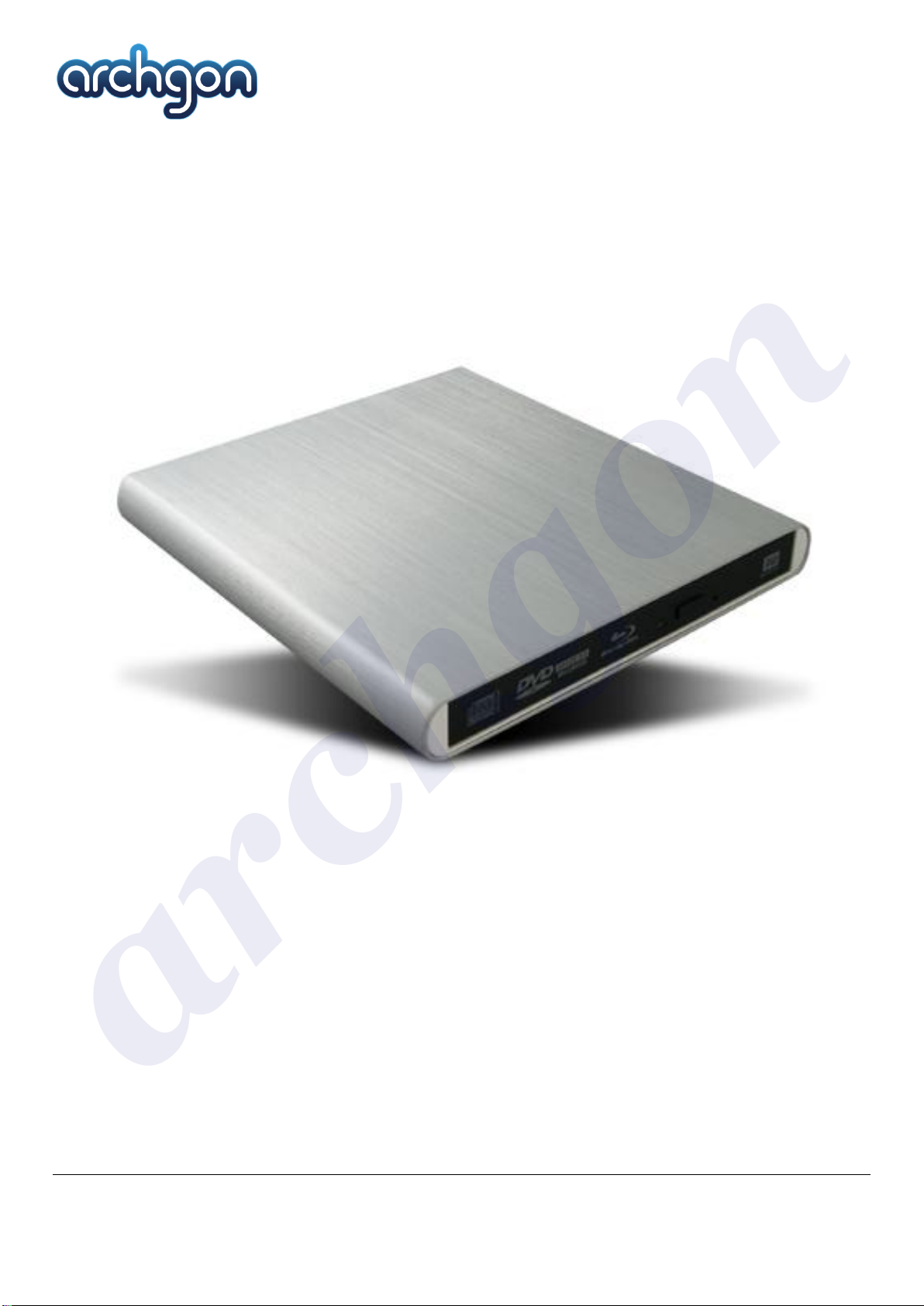

MD–3107–U3 Blu-ray Optical Drive
User Manual
archgon
Product MD-3107-U3 Blu-ray Optical Drive
Thank you for purchasing External Blu-ray Drive from archgon. Please read following instructions
carefully and note all Cautions and Warnings.
BEFORE USE
Please confirm the drive type in your hand. It can be identified by the retail package.
CD
DVD
Blu-ray
Read
Write
Read
Write
Read
Write
Combo
V
V
V
V
V
X
Writer
V
V
V
V
V
V
Note：The external drive is compatible with both PC and Mac.
Install authorized Blu-ray software before reading or writing to a BD media.
For Mac users,
1. Please purchase and download appropriate Blu-ray playback software for Mac OS.
2. The external drive will be not detected if without inserting a disk.
3. Eject button function may be not work under Mac OS. Please click the eject icon from playback.
SYSTEM REQUIREMENT
Windows XP, Vista, 7, 8 or higher
Mac OS 10.5 or higher
INSTALLATION
1. Power on the PC/Laptop.
2. Plug the USB 3.0 micro B type connector to the back of the drive.
3. Connect the Type-A connector(s) to USB port(s) on the PC/Laptop.
4. Once properly connected, you will see the new drive under “My Computer”. The device will be
ready to use without further setup.
Note：Connect fat cable to PC/Laptop as the major power. In some cases, the thinner one maybe
required to connect to the computer as well.
archgon
Troubleshooting MD-3107-U3 Blu-ray Optical Drive
Drive not recognized.
1. Make sure the USB Y-cable and connectors are not damaged and firmly connected at all three
ends.
2. Insert a BD, DVD or CD to allow your PC/MAC to mount a disc.
Cannot open the tray.
1. Wait until the software activity is finished; or stop the software activity and then press eject.
2. Turn off power to the drive, then insert a small stick or paper clip into the emergency eject hole
to eject the tray.
Cannot read a previous session of a CD-RW disc that has been written to at least twice.
1. Make sure you properly select “import previous sessions” when writing new data to the disc.
2. Always use high-quality media. Always handle discs with care and keep them clean. Deep
scratches, fingerprints or other contaminants on the disc’s surface can make it unreadable.
3. Remove the disc from the tray and reinsert it label side up.
Cannot play BD movies
1. Install authorized BD playback software.
2. Use CyberLink BD & 3DAdvisor Overview to verify if your system meets the minimum
requirements for BD movie playback.
http://www.cyberlink.com/stat/bd-support/enu/index.jsp
3. Visit the website of your graphics card manufacturer to confirm both your graphics card and
driver are HDCP compliant. Download and install the latest graphics card driver.
4. Visit your monitor manufacturer to confirm your monitor is HDCP compliant.
Cannot write to disc
1. Use the authorized software.
2. Contact the software supplier (or check the appropriate website) to ensure that it supports your
BD drive.
3. Reinsert the disc label side up.
4. Ensure that the capacity of the write data is available on disc. (Required capacity may vary
according to write method.)
5. Make sure the USB Y-cable and connectors are not damaged and firmly connected at all three
ends.
Writing errors occur
1. Always use high-quality media. Always handle discs with care and keep them clean. Deep
scratches, fingerprints, or other contaminants on a disc’s surface can make it unwritable.
2. Ensure that the capacity of the write data is available on disc. (Required capacity may vary
according to write method.)
archgon

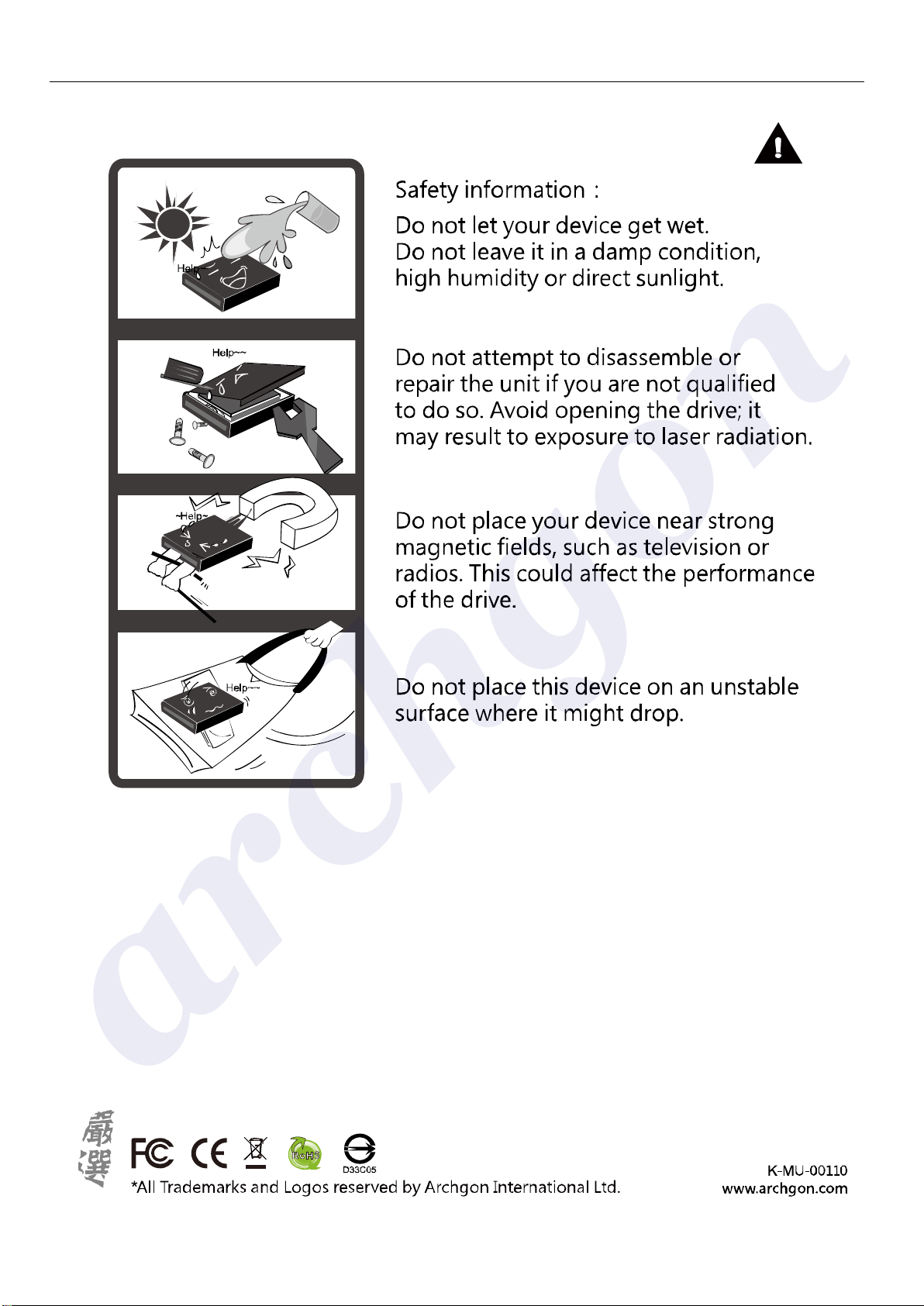

Cautions MD-3107-U3 Blu-ray Optical Drive
＊For further questions, please write an e-mail to archgon@archgon.com
