Argox A-50 Bedienungsanleitung

1. Checking Your Box

Receiving the box of your printer, you are advised to

check first for the possible shipping damage. There are two ways

you can do it:

1. Inspect the outer appearances of both the box and the printer

for possible damage.

2. Raise the top cover of the printer to see if the media

compartments are in order.

If damages did occur, immediately file the claim to the shipping

company for settlement.

Having performed the primary inspections,next

step, please check whether you have received the following

accessories together with the printer. If there is any item missing,

contact your local dealer to get it.

* Not available for A-50

Power Adapter

* Sample Media

* Ribbon

CD Rom Disk

User’s Manual

Printer

2. Power Supply

WARNING:

NEVER OPERATE THE PRINTER AND POWER SUPPLY IN

AN AREA WHERE THEY CAN GET WET.

1. The Power Adapter has a barrel connector on one end that

must be inserted into the power jack on the back of the printer.

2. Plug the other end of the cord into an appropriate AC electrical

outlet.

3. When plugging the connector into power jack, please leave the

power switch at "O" position and don't touch the 36 pin parallel

connector.

Power Switch

Barrel Connector

Power Jack

Power Adapter

AC Electrical Outlet

36 Pin parallel connector

3. Parts and Features

Top Cover

Power Switch

Power Indicator

Ready Indicator

Feed Button

* Not available for A-50

* Ribbon Pick-up Holder

Release Levers

Media Hanger

* Ribbon Supply Holder

Thermal Printhead

4. Loading the Ribbon

Note:

This section is not applicable to the direct thermal printing.

1. Lift the top cover to expose the media compartment.

Ribbon Supply Holder

2. Unlatch the print head module by pushing the two white release

levers on the sides toward the rear.

3. Turn over the print head module to expose the ribbon supply

holder.

Media Compartment

Release Lever

Print Head Module

4. Unwrap the ribbon roll pack and separate the ribbon roll and

the bare core.

5. Attach the edge of the ribbon on the bare core and wind it a

little bit onto the core.

6. Insert the ribbon roll into the supply holder. (First snap in the left

side and then the right side.)

Ribbon Roll

Bare Core

7. Turn back the print head module and then insert the bare core

into the pick-up holder. (First snap in the left side, then the right

side.)

8. Turn the wheel of the print head module to ensure the ribbon is

tightly wound.

9. Press down the print head module on both sides firmly till you

hear a snap.

Wheel

Print Head Module

5. Loading the Media

A Series printers can be operated in three different options:

standard, peel-off, or with a cutter.

- Standard mode allows you to collect each label freely.

- In peel-off mode, the backing material is being peeled away from

the label as it is printed. After the former label is removed, the

next one will be printed.

- In cutter mode, the printer automatically cuts the label after it is

printed.

Standard Mode

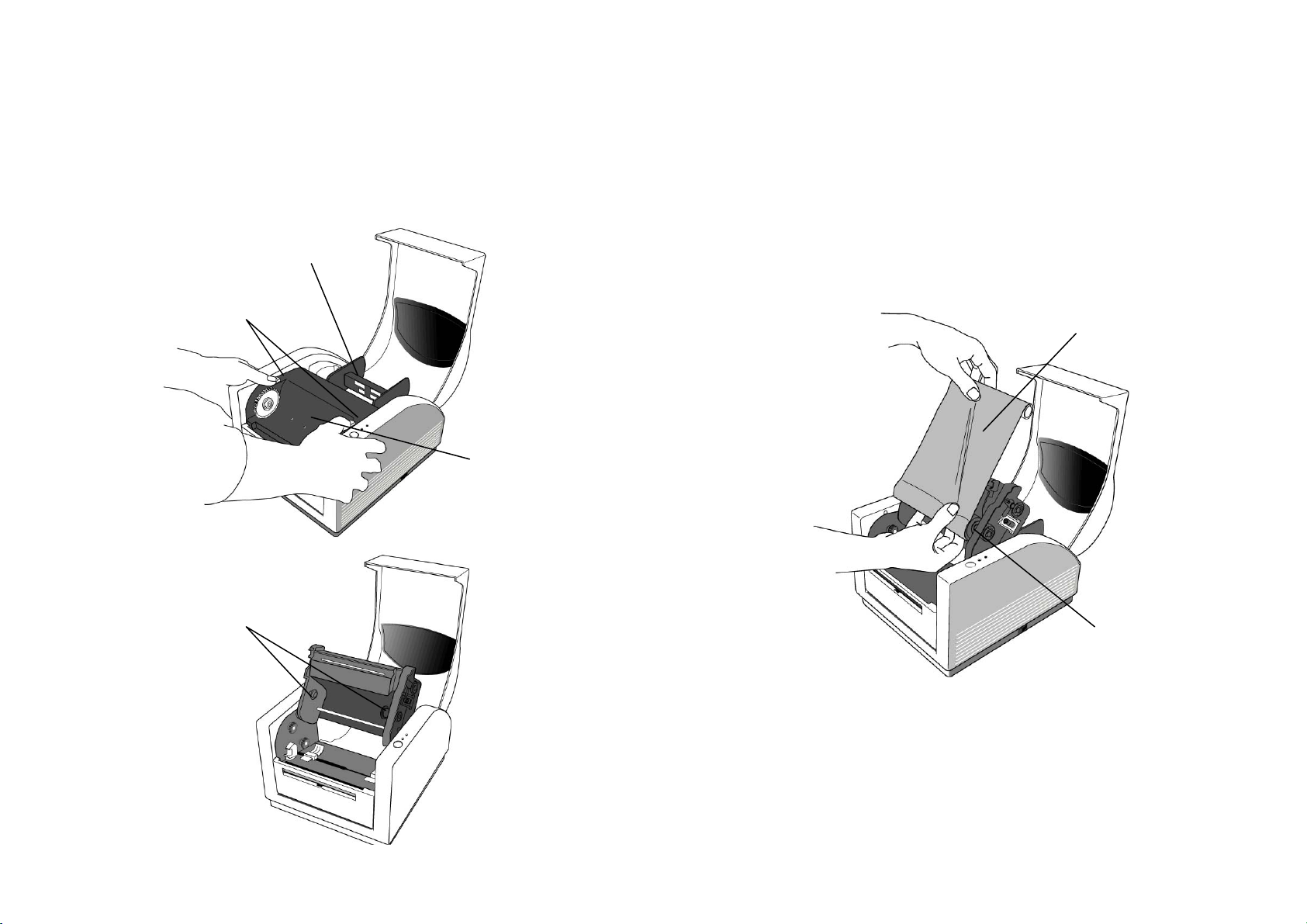

1. Lift the top cover to expose the media compartment.

2. Remove the media hanger.

3. Load the media roll onto the hanger.

4. Unlatch the print head module.

5. Left the peeler cover easy for label easy into the slot.

Media Compartment

Media Hanger

Ribbon Roll

(Not Available

for A-50)

Peeler Cover

6. Lead the label through the media guides with the other hand.

The media guide can be adjusted centrality to well fit with

different label width.

Media Guides

7. Press down the print head module firmly on both sides till you

hear a snap.

Print Head Module

8. Close the top cover and turn on the printer or press the feed

button if the printer is already on.

Feed Button

Peel Off Mode

1. Loose two attached screws on the back of peeler cover.

2. Remove the peeler cover.

Screw

3. Plug in the dispenser connecter.

4. Mount the dispenser module.

Dispenser Connecter

Dispenser Module

5. Secure two attached screws on the back of peeler cover.

6. Lead the label through the media guides and dispenser.

Media Guides

Dispenser

Screw

7. Press down the print head module firmly till you hear a snap.

8. Close the top cover and turn on the printer or press the feed

button if the printer is already on.

Feed Button

9. Press the feed button and the label backing paper will come out

from the slot under dispenser.

Note :

The feed button will not drive the printer to peel. The

peeling function can be executed only when the software

setting is ready.

Label

Backing Paper

Feed Button
