Ariens Compact 22 LE Bedienungsanleitung

Quick Start Guide

Compact 22 LE (920013 s/n 35000 - 74999)

•Step 1: Unfold Handlebar

•Step 2: Install Discharge Chute

•Step 3: Install Discharge Chute Crank

•Step 4: Check Function of Dual Handle Interlock

•Step 5: Check Tire Pressure

•Step 6: Check Auger Gearcase Oil

•Step 7: Check Engine Crankcase Oil

•Step 8: Fill Engine Fuel Tank

•Step 9: Starting the Engine

•Step 10: Stopping the Engine

READ AND UNDERSTAND ALL INSTRUCTION, WARNING, AND DANGER LABELS.

IMPORTANT: READ OPERATOR’S MANUAL AND ENGINE MANUAL

THOROUGHLY AND FOLLOW THE IMPORTANT SAFE OPERATION PRACTICES

BEFORE OPERATING.

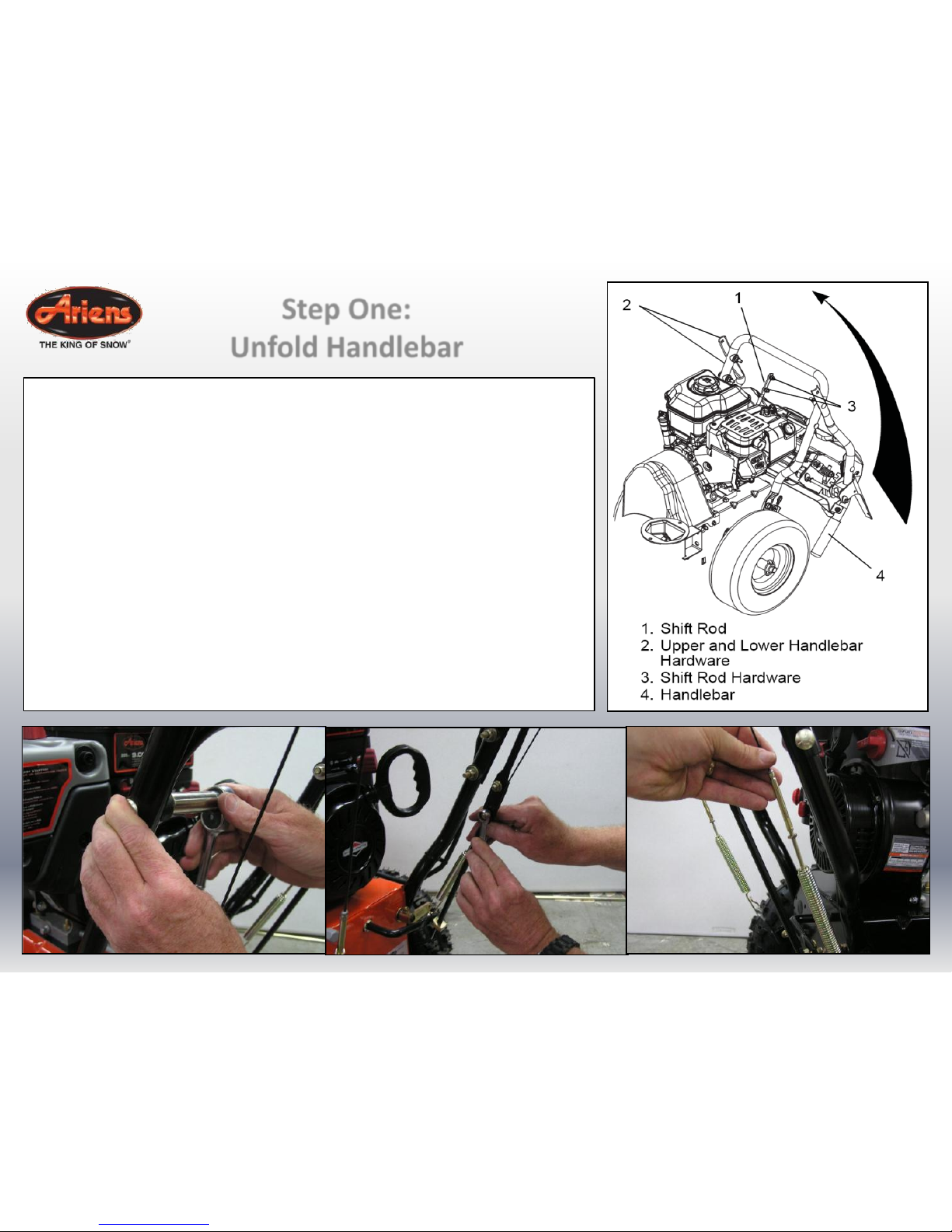

Step One:

Unfold Handlebar

1. Remove the lower and loosen the upper hardware on the

handlebar assembly.

2. Loosen the hardware on the shift rod.

3. Put the speed selector lever in the sixth forward position.

4. Rotate the handlebar into operating position.

NOTE: Be careful not to damage cable spring hooks when rotating

handlebar upward.

5. Install and tighten the hardware on the handlebar assembly

and shift rod.

6. Check tension on auger and traction clutch cables.

IMPORTANT: Cables should not be slack nor under tension.Adjust

as necessary.

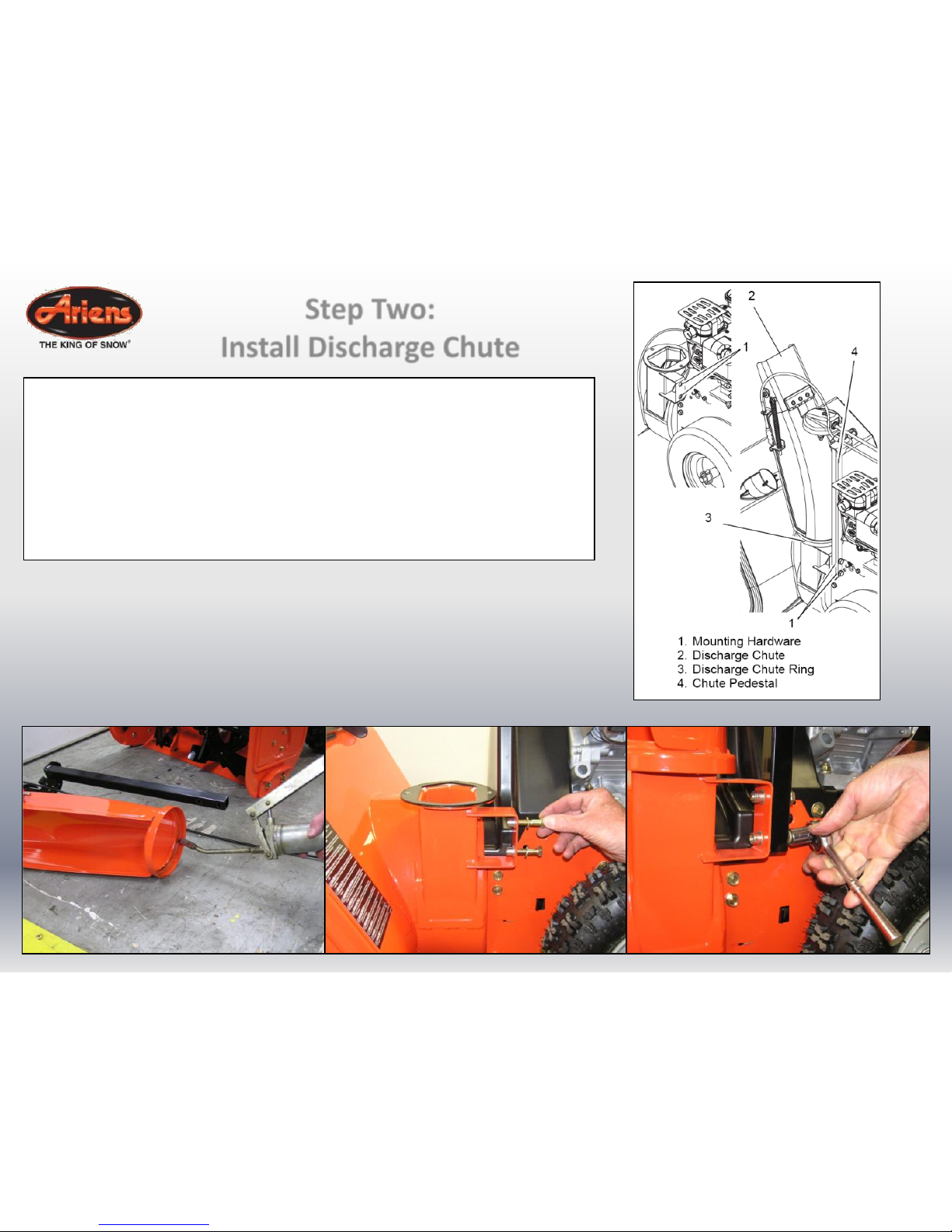

Step Two:

Install Discharge Chute

1. Grease underside of discharge chute ring (if not already

greased).

2. Remove mounting hardware from the bottom of the chute

pedestal mount.

3. Install discharge chute over opening in the auger housing

and secure pedestal to auger housing with hardware

removed above.

Step Three: Install

Discharge Chute Crank

1. Slide Chute Crank through the opening in the control panel.

NOTE: Be careful not to damage nylon bushing when attaching

crank to the dash.

2. Connect the chute crank to the pinion gear on discharge

chute with hairpin.

Step Four:

Check Function of Dual Handle Interlock

Without the engine

running, press down

(engage) both clutch

levers. Release

attachment clutch lever.

Attachment clutch should

remain engaged until

traction clutch lever is

released, then both

clutches must disengage.

If they do not, contact your

dealer for repairs.

Step Five:

Check Tire Pressure

Check tire pressure and

adjust to the pressure

listed on tire sidewall.

Check oil level in auger

gearcase

(see Check Auger

Gearcase in Owners

Manual).

Step Six:

Check Auger Gearcase Oil

IMPORTANT: The engine

is shipped with 5W-30 oil

in crankcase. Refer to

engine manual for

detailed instructions.

Step Seven:

Check Engine Crankcase Oil

Fill fuel tank. DO NOT

OVERFILL! See

FILLING FUEL TANK in

Owners Manual.

Step Eight:

Fill Engine Fuel Tank

Step Nine: Starting the Engine
