Dear Customer,

Thank you for choosing an ARISTON boiler.

We guarantee that your boiler is a reliable

and technically sound product.

This User's Manual provides detailed

instructions and recommendations for proper

installation, use and maintenance.

Remember to keep thismanual in a safeplace

for future reference i.e. by the gasmeter.

Your local MTS Servicing Centre is at your

complete disposal for all requirements.

The guarantee on thisappliance is

valid for 12 monthsfrom the first

day of installation.

Repairsto the electric, hydraulic or

gascircuits may be carried out only

by your local authorised MTS

Servicing Centre.

Every attempt hasbeen made to avoid

errorsof any kind

in thisUser'sManual, the Management

invitescustomersto inform

of any inaccuracies which they may find.

Thiswill help to improve our service

TABLEOFCONTENTS

1. GENERAL INFORMATION page 4

Technical Information page 5

Control Panel page 6

2. OPERATING INSTRUCTIONS page 7

3. USEFUL INFORMATION AND TROUBLESHOOTING page 12

4. MAINTENANCE page 15

5. CHANGE OF GAS TYPE page 15

6. TIME CLOCK page 15

IMPORTANT!

Please read this manual carefully.

For additional information, please consult the “Installation and Servicing

Instructions.”

Make sure to keep the manuals provided with the appliance so that they can

be used by the end-user, installer or our authorised engineer. 3

1. GENERAL INFORMATION

MTS (GB) Limited support the

initiative. Your installer will give you, and

show you how to use, a logbook which will

give you important information about your

boiler, and heating system. Please have this

logbook to hand whenever you contact a

service engineer or us.

All CORGI Registered Installers carry a

CORGI ID card, and have a registration

number. Both should be recorded in your

boiler Logbook. Youcan check your installer

is CORGI registered by calling CORGI direct

on :- (01256) 372300.

This is an appliance for the production of

central heating. This appliance must be used

only for the purpose for which it is designed.

The manufacturer declines all liability for

damagecaused by improper or negligent use.

Do not allow children or inexperienced

persons to use the appliance without

supervision.

If you smell gas in the room, do not turn on

light switches, use the telephone or any other

object which might cause sparks.

Open doors and windows immediately to

ventilate the room.

Shut the gas mains tap (on the gas meter) or

thevalveof thegascylinder and call your Gas

Supplier immediately.

If you are going away for a long period of

time, remember to shut the mains gas tap or

the gascylinder valve.

Before any intervention within the boiler it is

first necessary to cut off the electrical power

supply by turning the external switch to

“OFF”.

TECHNICAL INFORMATION

GENERALDATA

Heating input max-min

Heating output max-min

Efficiency at Maximum Thermal Capacity

(see Installation Instructions)

CENTRALHEATING

Operating Temperature max-min

Maximum-Minimum Heating Pressure

Built-in expansion vessel - Total capacity

ELECTRICALDATA

Electrical Supply/ Frequency

Power Consumption

Protection of Electrical System

CATEGORY

Nominal Pressure/ MethaneGas(G20)

Nominal Pressure/ Liquid Gas(G30-G31)

°C

bar

litres

V/ Hz

mbar

15.4

14.1

82.4

82-42

3-0.7

230/ 50

115

X4D

30-37

11.6

10.5

81.3

82-42

3-0.7

230/ 50

105

X4D

30-37

15 kW

10 kW 22.7-10.0

21.0-8.7

83.7

82-42

3-0.7

230/ 50

105

X4D

30-37

21 kW 29.8-12.0

27.8-10.5

84.2

82-42

3-0.7

230/ 50

155

X4D

30-37

28 kW

CONTROL PANEL

10 RFFI / 15 RFFI

21 RFFI / 28 RFFI FR011A

2. OPERATING INSTRUCTIONS

CAUTION

Installation, start-up, adjustments and

maintenance must be performed by a

competent person only, in accordance

with the current GasSafety (Installation &

Use) Regulations and the instructions

provided. Improper installation may

cause damage or injury to individuals,

animalsand personal property, for which

the manufacturer will not be held liable.

To ensure efficient and safe operation it is

recommended that the boiler is serviced

annually by a competent person.

If it is known or suspected that a fault

exists on the appliance, it must not be

used until the fault hasbeen corrected by

a competent person.

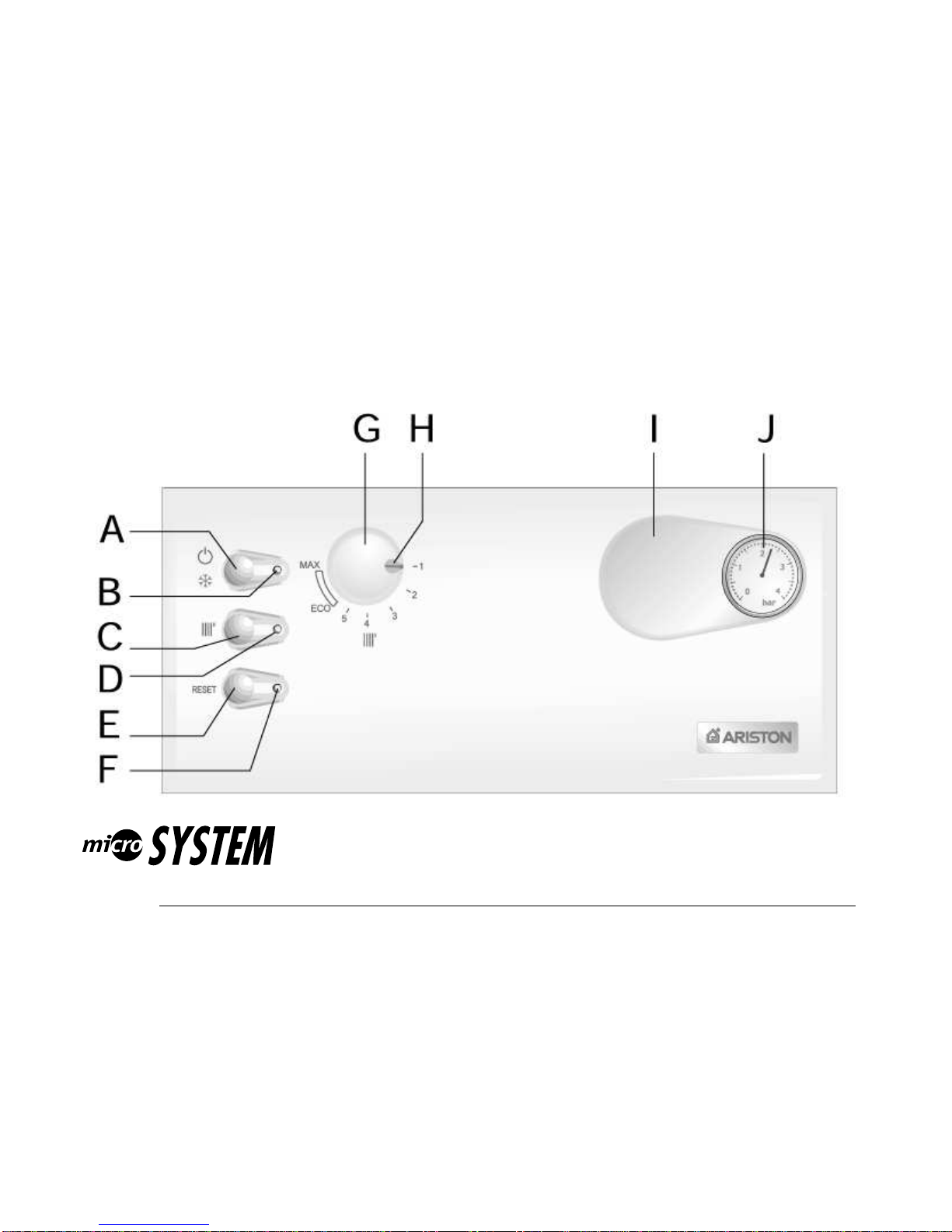

LEGEND:

A- On/ Off button

B- On/ Off L.E.D. green (frost

protection active)

C- Central Heating button

D- Cental Heating active

L.E.D. green

E- Ignition failure (lockout)

and/ or overheat reset button

F- Ignition failure (lockout) and/ or

overheat L.E.D. red

G- Central heating temperature

adjustment

H- Energy Saving System (ESS)

I- Knock-out for time clock

J- Heating system pressure gauge

HELPFUL SUGGESTIONS

To get the most out of your boiler, we have

provided you with some useful advice on

proper use and maintenance:

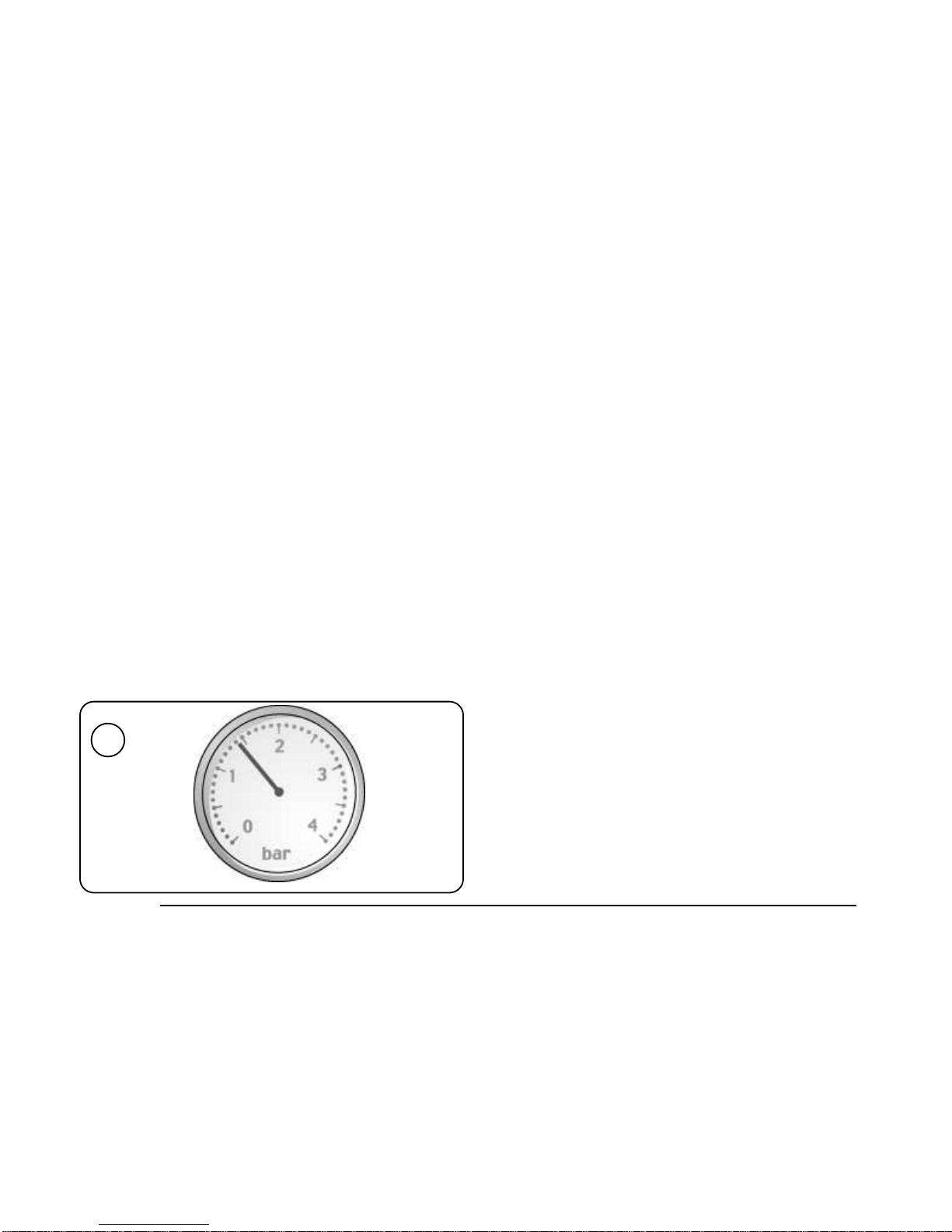

- Periodically check the system pressure

using the pressure gauge “J”, make sure

that the pressure is between 1.0 and 1.5

bar (the blue part on the gauge) when the

systemisoff and cool. Consultyour installer

for checking and refilling the system if the

pressure value isunder 1.0 bar.

- The outer panels of the units case must

only be cleaned with a damp cloth. Do

not use abrasive cleaners. The control

panel can be wiped with either a damp

or dry cloth. Spray polishesmust not be

used on the control panel surface or

knobs. Care must be taken in preventing

any liquid entering the appliance.

PRACTICAL TIPS

- If the water is very hard, it is

recommended that a scale reducer be

added to the system so as to reduce the

formation of limescale in the boiler heat

exchanger. This will ensure that the

efficiency of the unit remains the same

over time, reducing gas consumption

UT013Af

Ignition procedure

Push the button “A” the green L.E.D. “B”

will illuminate indicating that the boiler is

supplied with electricity.

Push the button “C” the green L.E.D. “D”

will illuminate indicating that the boiler is

operating for central heating production.

and maintenance costs.

- If the boiler should be out of use for a

prolonged period, it is recommended

that the electrical power supply be

disconnected and that the external gas

cock be closed. If low temperatures are

expected, the boiler and system pipe

work should be drained in order to

prevent frost damage.

- To improve comfort and take full

advantage of the heat produced by the

boiler, it is recommended that an

external (room) thermostat be installed.

- It is good practice to clean and service

the appliance and central heating

system every year.

Call an Authorised Service Centre.

UT013Aa

UT013Ab

The centralised electronic control unit will

ignite the burner, without any manual

intervention but in response to the request

for heating. If, after approximately 10

seconds, the burner has not ignited, the

boiler safety devices will shut off the gas

and the red L.E.D. “F” illuminates. To reset

the ignition system, the reset button “E”

must be pressed and released. Should the

boiler fail to ignite a second time, check

that the external gas cock is open. If the

problem persists, contact an Authorised

Service Centre.

Adjusting the heating

It is possible to set the temperature of the

heating system by adjusting the knob “G”

between 1 and 5 until the stop on the

“ECO” position. This will vary temperature

from approximately 40˚C to about 65˚C.

To obtain a higher temperature it is

necessary to turn theEnergy Saving System

(ESS) screw “H” clockwise with a small

coin. The knob is now free to turn to the

MAX position,

which represents

a temperature of

about 80°C.

UT013Ac

UT013Ad
