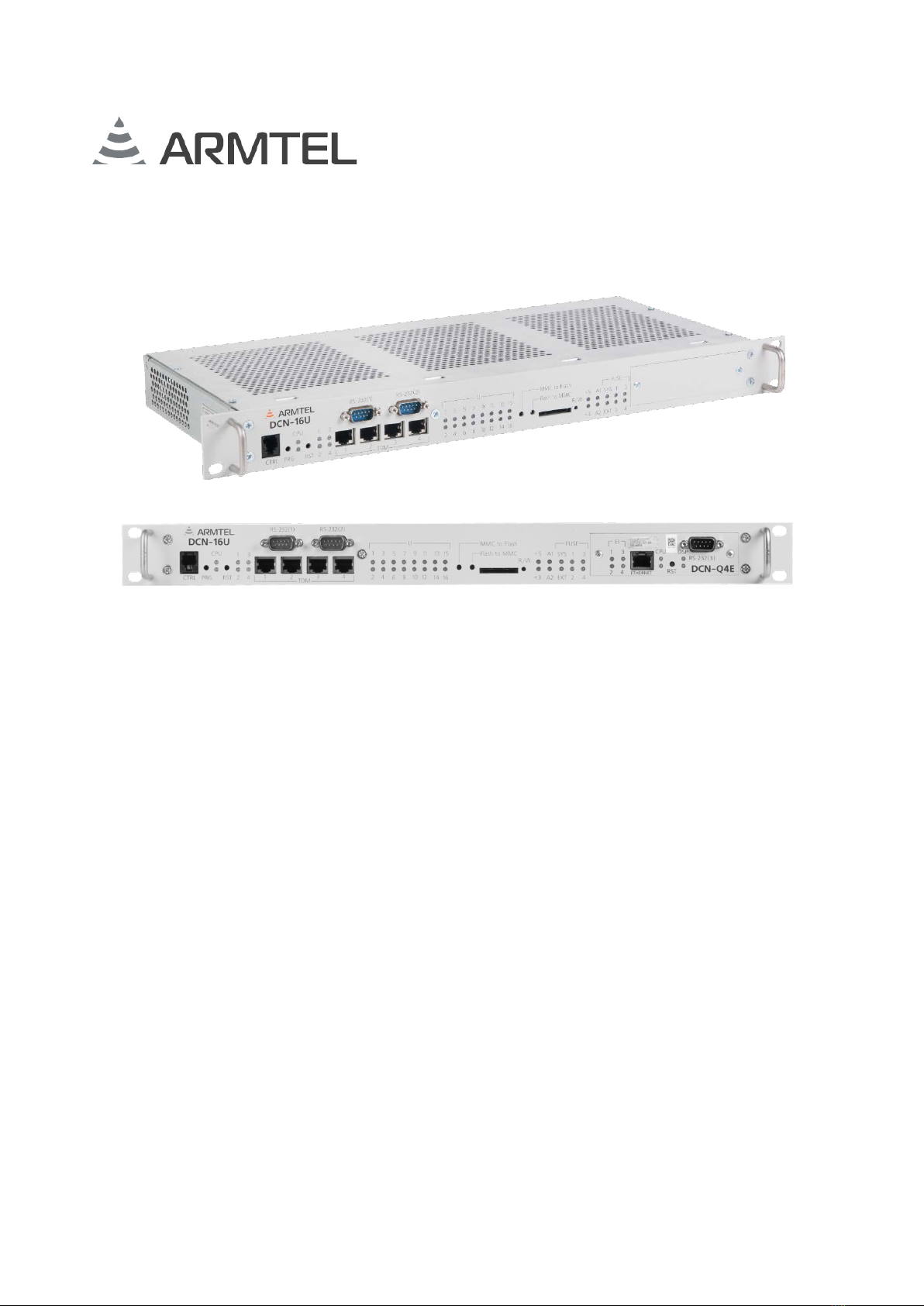

ARMTEL DCN-16U Bedienungsanleitung

DCN-16U Exchange

(basic version, version with

pre-installed switching

module DCN-Q4E)

ARMT.665200.001UM

User Manual

Document version 17-11 26.30.11.190

2020

armtel.com

DCN-16U EXCHANGE

(BASIC VERSION, VERSION WITH PRE-INSTALLED SWITCHING MODULE DCN-Q4E)

User Manual

armtel.com page 1/44

info@armtel.com © Armtel

INTRODUCTION

This User Manual is intended for introducing DCN-16U Exchange of ARMT.665200.001

basic version and version ARMT.665200.001-01 with pre-installed switching processor

module DCN-Q4E (4xE1) ARMT.665200.010 to the User.

DCN-16U exchange is a compact connection unit for subscriber equipment within the

DCN distributed of Public Address and General Alarm system.

Short product name – DCN-16U.

Maintenance personnel for the DCN-16U shall be appointed by the management at

the installation site.

The maintenance personnel shall be required to know the operating procedure of the

DCN-16U to the extent provided for by the user manual.

Duties of the maintenance personnel shall include maintenance of the DCN-16U in

accordance with this user manual.

ATTENTION! In connection with systematic work to improve the design and

manufacturing technology, it is possible some discrepancy between the description and the

supplied product, which does not affect its operation or maintenance.

DCN-16U EXCHANGE

(BASIC VERSION, VERSION WITH PRE-INSTALLED SWITCHING MODULE DCN-Q4E)

User Manual

page 2/44 armtel.com

SAFETY PROVISIONS

During installation and operation of DCN-16U, observe safety precautions laid out in

local regulations on electrical safety.

To avoid electric shock, do not:

−operate the product if its case is not connected to the ground rod;

−operate the product with a damaged power or communication cable;

−the interface cable can be connected and disconnected if the power cable is

disconnected.

ATTENTION! NEVER DISMANTLE THE PRODUCT CONNECTED TO MAINS.

Do not use the product in rooms with high humidity of more than 80% or conductive

dust.

In order to ensure fire safety, follow the following rules:

−before connecting the product to the power supply, make sure the power and

communication cables are properly insulated;

−protect power and communication cables from damage.

The safety provisions for specific operations described in this manual are marked with:

DCN-16U EXCHANGE

(BASIC VERSION, VERSION WITH PRE-INSTALLED SWITCHING MODULE DCN-Q4E)

User Manual

armtel.com page 3/44

info@armtel.com © Armtel

CONTENTS

INTRODUCTION.................................................................................................................................................................... 1

SAFETY PROVISIONS........................................................................................................................................................... 2

CONTENTS .............................................................................................................................................................................. 3

1 DESCRIPTION AND OPERATION................................................................................................................................. 5

1.1 Product description and operation .................................................................................................................. 5

1.1.1 Functions........................................................................................................................................................... 5

1.1.2 Main specifications........................................................................................................................................ 7

1.1.3 Scope of supply ............................................................................................................................................10

1.1.4 Design...............................................................................................................................................................11

1.2 Product components description and operation......................................................................................14

1.2.1 General.............................................................................................................................................................14

1.2.2 DCN-Q4E (4xE1) switching processor module..................................................................................14

1.2.3 DCN-Q4E E1 connection cable ...............................................................................................................16

1.2.4 DCN-16U subscribers connection cable..............................................................................................17

1.3 Subscriber units connected to DCN-16U (with DCN-Q4E)....................................................................18

1.3.1 General information....................................................................................................................................18

1.3.2 DCN-2 Exchange / DCN-Q4E switching processor module (to DCN-16U with

DCN-Q4E) ..................................................................................................................................................................18

1.3.2 Digital ATX (to DCN-16U with DCN-Q4E) ..........................................................................................18

1.3.3 Subscriber units ............................................................................................................................................18

2 INTENDED USE ................................................................................................................................................................21

2.1 Operating limits .....................................................................................................................................................21

2.2 Preparation for use ...............................................................................................................................................21

2.3 Safety precautions.................................................................................................................................................22

2.4 Installation, connection and dismantling .....................................................................................................23

2.5 Operation .................................................................................................................................................................24

2.5.1 Product On/Off .............................................................................................................................................24

2.5.2 Product general performance monitoring routine..........................................................................25

2.5.3 Troubleshooting...........................................................................................................................................28

3 MAINTENANCE................................................................................................................................................................30

4 REPAIR ..............................................................................................................................................................................31

5 STORAGE............................................................................................................................................................................32

6 TRANSPORTATION.........................................................................................................................................................33

DCN-16U EXCHANGE

(BASIC VERSION, VERSION WITH PRE-INSTALLED SWITCHING MODULE DCN-Q4E)

User Manual

page 4/44 armtel.com

7 DISPOSAL...........................................................................................................................................................................34

ANNEX А(reference) Сonnecting optional equipment and power supply.................................................35

А.1 DCN-Q4E E1 connection cable ........................................................................................................................35

А.2 DCN-16U digital subscribers connection cable.........................................................................................38

А.3 Connection to power supply ............................................................................................................................41

А.4 Phantom power supply.......................................................................................................................................42

DCN-16U EXCHANGE

(BASIC VERSION, VERSION WITH PRE-INSTALLED SWITCHING MODULE DCN-Q4E)

User Manual

armtel.com page 5/44

info@armtel.com © Armtel

1 DESCRIPTION AND OPERATION

1.1 Product description and operation

1.1.1 Functions

DCN-16U is designed to operate as a part of DCN-2 or DCN-Q4E-based DCN

communication system as a module of digital subscriber sets to connect the subscriber

devices via Uk0-interface. DCN-16U transmits voice traffic channels and signaling among 15

subscriber Uk0-interfaces and E1 line to a central exchange unit, and it doesn’t function as

an exchange for connections between subscribers. Armtel DCN communication systems

built-up using these products provides for voice communication between loud-speaking

subscriber units made by Armtel LLC, VoIP subscribers, public address and general alarm.

Base version of DCN-16U has advanced features in version with preinstalled DCN-Q4E

switching processor module.

DCN-16U Exchange of ARMT.665200.001-01 version has pre-installed switching

processor module DCN-Q4E (4хЕ1) ARMT.665200.010, which is a small central exchange unit

of DCN system and provides for switching voice channels up to four E1 lines enabling to

connect a subscriber switching unit for 15 digital or analogue interfaces to each of them.

Therefore, maximum capacity of DCN-Q4E-based system can be up to 60 subscribers.

The switching processor module DCN-Q4E intended for use as central exchange unit

of DCN system, at the enterprise of industry and transport. DCN system (Armtel LLC) built

with product provide simplex communication between loud-speaking subscriber devices

manufactured by Armtel LLC, duplex communication with telephony subscribers, paging,

and emergency loud warning.

DCN-16U is installed in control or office rooms.

DCN-16U Exchange both versions are shown in Figure 1.

DCN-16U EXCHANGE

(BASIC VERSION, VERSION WITH PRE-INSTALLED SWITCHING MODULE DCN-Q4E)

User Manual

page 6/44 armtel.com

a) version ARMT.665200.001 (base version)

b) version ARMT.665200.001-01 (with pre-installed switching processor module DCN-Q4E)

Figure 1 – DCN-16U Exchange

In DCN-16U Exchange with DCN-Q4E switching processor module DCN-16U Exchange

can be directly connected to a built-in processor module DCN-Q4E. This version of the

product may function as central exchange of DCN system, enabling connection up to 15

digital subscriber units and three E1 lines to it to communicate with DCN system exchange

units or other equipment.

Digital communication system DCN has flexible distributed structure, where single

stations are linked into a single network by E1 digital lines. DCN communication system

station (or central exchange) consists of DCN-2 or DCN-Q4E central exchange with

DCN-16U and DCN-15A exchange equipped with digital and analogue subscriber interfaces

connected to it by E1 lines. E1 lines can also be used as ISDN PRI lines to communicate with

external telecommunication systems or to connect multichannel communication recorders.

DCN IP-gateway providing communication with different IP-devices can also be used as DCN

system station.

Each DCN-16U exchange is a subscriber lines equipment module with 16 Uk0-interfaces

for connecting digital subscriber devices, and an E1 interface for connecting to a DCN central

exchange (16th interface is not used). Digital subscriber interfaces enable to connect both

Armtel equipment (DIS, DW, А8, DWEx, DTS5, Analogue subsystem module), and third-party

equipment with Uk0-interface (ISDN telephones, ISDN adapters for analogue telephone

connection, DECT stations with ISDN interfaces etc.). In order to improve intercom system

quality when operating Armtel subscriber units, an expanded sound transmit frequency band

of 6.8 kHz is used. DCN-16U is connected to a central exchange of DCN system by E1 line,

which is used for transmitting voice traffic channels and signaling between the central

exchange and subscriber units. Therefore, all functions of communication and control of

subscriber units are implemented in the central exchange of DCN system and DCN-16U

subscriber exchange performs no functions if not connected there to.

DCN-16U EXCHANGE

(BASIC VERSION, VERSION WITH PRE-INSTALLED SWITCHING MODULE DCN-Q4E)

User Manual

armtel.com page 7/44

info@armtel.com © Armtel

Being a part of DCN digital intercom system DCN-16U exchange functions as follows:

−Connection of up to 15 devices by the lines of digital double-wire subscriber

interfaces Uk0at a distance of max. 6 km.

−Transmission of voice communication channels and signaling between E1 line

used for connection to DCN system central exchange and 15 digital subscriber

interfaces Uk0.

−Control and indication on the front panel of subscriber interface and E1 line

status.

−Phantom power supply of end units by Uk0subscriber interface line.

Being a part of DCN digital intercom system DCN-16U Exchange provides for

connection with the following devices:

−DIS and DIS-TOP digital desktop call stations.

−DW/DWEx explosion and weather proof digital loud-speaking call stations.

−DTS5 and DTS-TOP multifunction desktop digital phones.

−Analogue subsystem modules for communication with analogue equipment

(one LF-interface line) and иswitching control circuits (eight discrete

input/output lines).

−А8/A8Ex explosion and weather proof digital duplex call stations (currently out

of production).

−ISDN-telephones and other third-party devices with Uk0-interface.

DCN-16U Exchange is ready for operation as supplied and no programming is required

during operation except for assignment of subscriber unit connection ports. Operation of

DCN-16U Exchange and subscriber units connected to it is managed by a central exchange

of DCN system connected to DCN-16U via E1 line.

Detailed description of functions and programming methods of DCN system exchange

units are given in RMLT.465275.002 “DCN Communication System. User Manual. Part 1. User

Manual” and “DCN Communication System. User Manual. Part 2. Administrator Manual”.

1.1.2 Main specifications

DCN-16U exchange has the following interfaces:

−16 double-wire subscriber interfaces Uk0– for basic access to end equipment.

16th interface is not used.

−Two serial interfaces RS-232 (V.24) – for PC connection at bit rate up to 115 kB/s,

used for diagnostics and programming of the exchange at the manufacturer.

DCN-16U EXCHANGE

(BASIC VERSION, VERSION WITH PRE-INSTALLED SWITCHING MODULE DCN-Q4E)

User Manual

page 8/44 armtel.com

−E1 (G.703/G.704) – for connection to DCN system central exchange via E1 line.

Uk0 interface provides for:

−Distance from the exchange to a subscriber is up to 6 km when using non-

symmetrical cable.

−Bandwidth for voice transmission – 6.8 kHz (when using two B-channels).

−Phantom power supply to subscriber units using PoU (Power-over-U) function

at load current up to 250 mA.

−ANSI T1.602 – interface of base channel, it is a procedure of accessing to a

primary channel, D-channel (LAP-D), communication protocol is BRI.

−Coding the signal in the line – as per 2B1Q pattern according to ITU-T

recommendation.

The product supports standard communications protocols as follows:

−Q.931 – for procedure of establishing network-level communication of OSI

model (third-level specification for D-channel), provides for managing calls and

a set of options, circuit switched call routing of service subscriber;

−I.452 (Q.932) – general procedures for ISDN options managing;

−Q.921 (LAP-D) – to determine frame structure and frame field content at channel

level of OSI model (D-channel), User-Network interfaces is ISDN – specification

of communication data level;

−I.430 of recommendations of ITU-T (ISDN standard) – for organizing data

transmission at physical level of OSI model and basic access;

−I.431 of recommendations of ITU-T (ISDN standard) – for organizing data

transmission at physical level of OSI model and main access;

−ANSI T1.604 – minimum set of services of ISDN BRI;

−I.432 of recommendations of ITU-T (ISDN standard) – User-network interface B-

ISDN – physical level specification;

−DSS1 – subscriber signaling protocol.

Main specifications and performance characteristics of DCN-16U Exchange are given

in the Table 1.

Inhaltsverzeichnis

Andere ARMTEL Schalten Handbücher

ARMTEL

ARMTEL IPN-8U Bedienungsanleitung

ARMTEL

ARMTEL DCN-2 Central Exchange Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
