Three-Way Architectural Speaker
Owners Manual
www. artcoustic.com
Architect SL
Features:
- X2 bass system, extended low frequency
-Extremely small and compact design
-low distortion
-low power consumption
- Wide frequency response 55Hz to 40kHz
-Fast, easy and simple installation
- Suitable for a wide range of application, from
HiFi Systems, Multi Room Systems and smaller
Home Cinemas

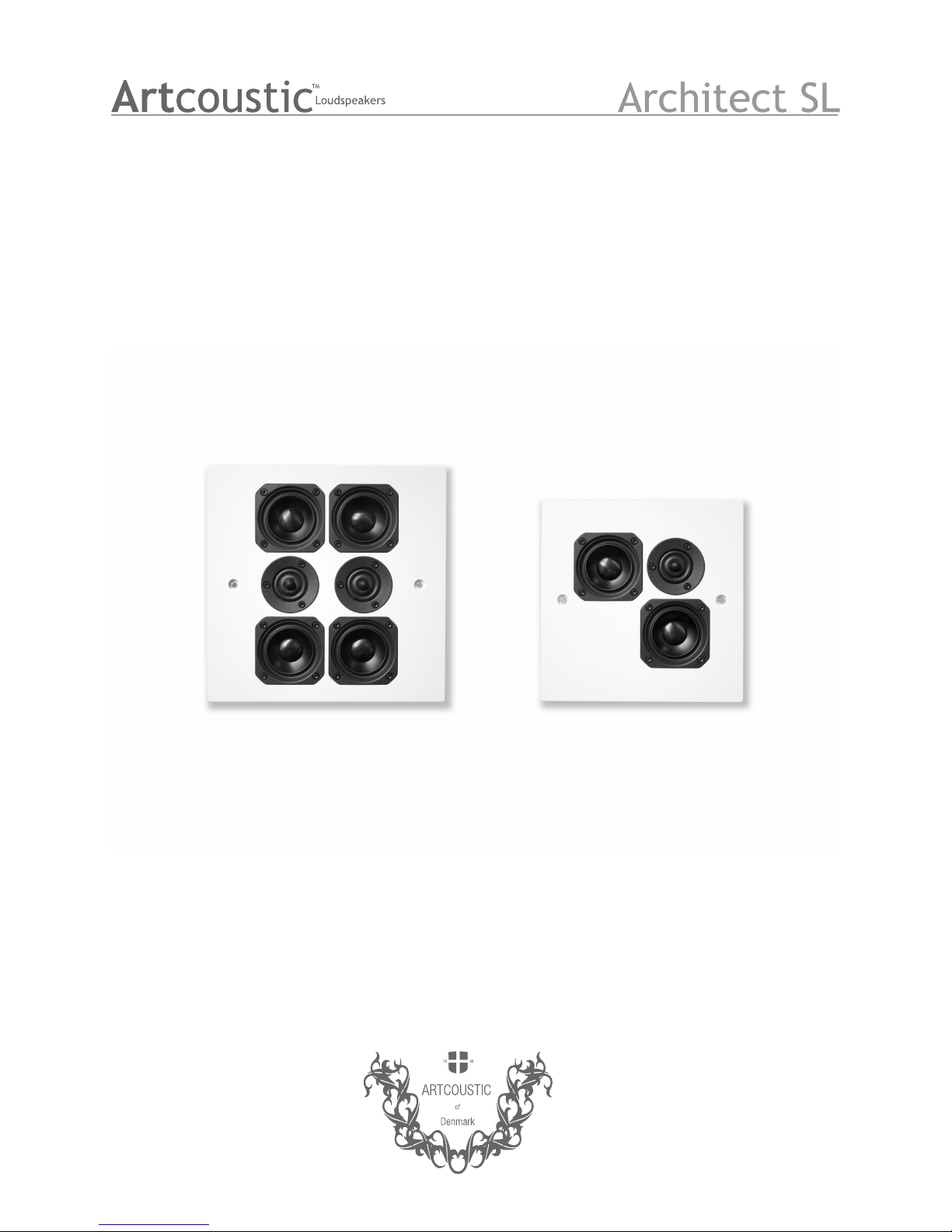

Architect SL Overview:
Architect SL Series - Created to provide impressive
sound from ultra thin and aesthetic pleasing
loudspeakers, the entire Architect line of in-wall/in-
ceiling loudspeakers will surprise you. Whether you
are looking for true Hifi music reproduction, or louder
applications, such as home cinema installations,
commercial installations, bars, restaurants and public
address solutions, The Artcoustic Architect Series
offers the ultimate solution.
The Architect Series has been designed and
Engineered with same high specifications as all the
other Artcoustic models, leaving no space for
compromise on sound quality and built. The Architect
series consist of two models, Architect 2-1 SL
single source 3-way full range speaker to the larger
Architect 4-2 SL single or dual source 3-way full
range speaker.
Partner it with an Artcoustic Subwoofer for a truly
full range, dynamic performance.
Components Overview:
High Frequency driver:
Dual Ring Radiator diaphragm with highly linear suspension
and low loss surrounds for high clarity and clean transient
response. Copper caps for better HF extension and lower
distortion and wave-guide center plug, copper-clad
aluwire
Woofer:
Extra long excursion and Aluminum Short Circuiting Ring,
4-layer voice coil, anodized aluminum for improved heat
dissipation, combined with Distortion Reduced Motor
Crossover:
6 dB/octave low pass and 12 dB/octave high pass filter

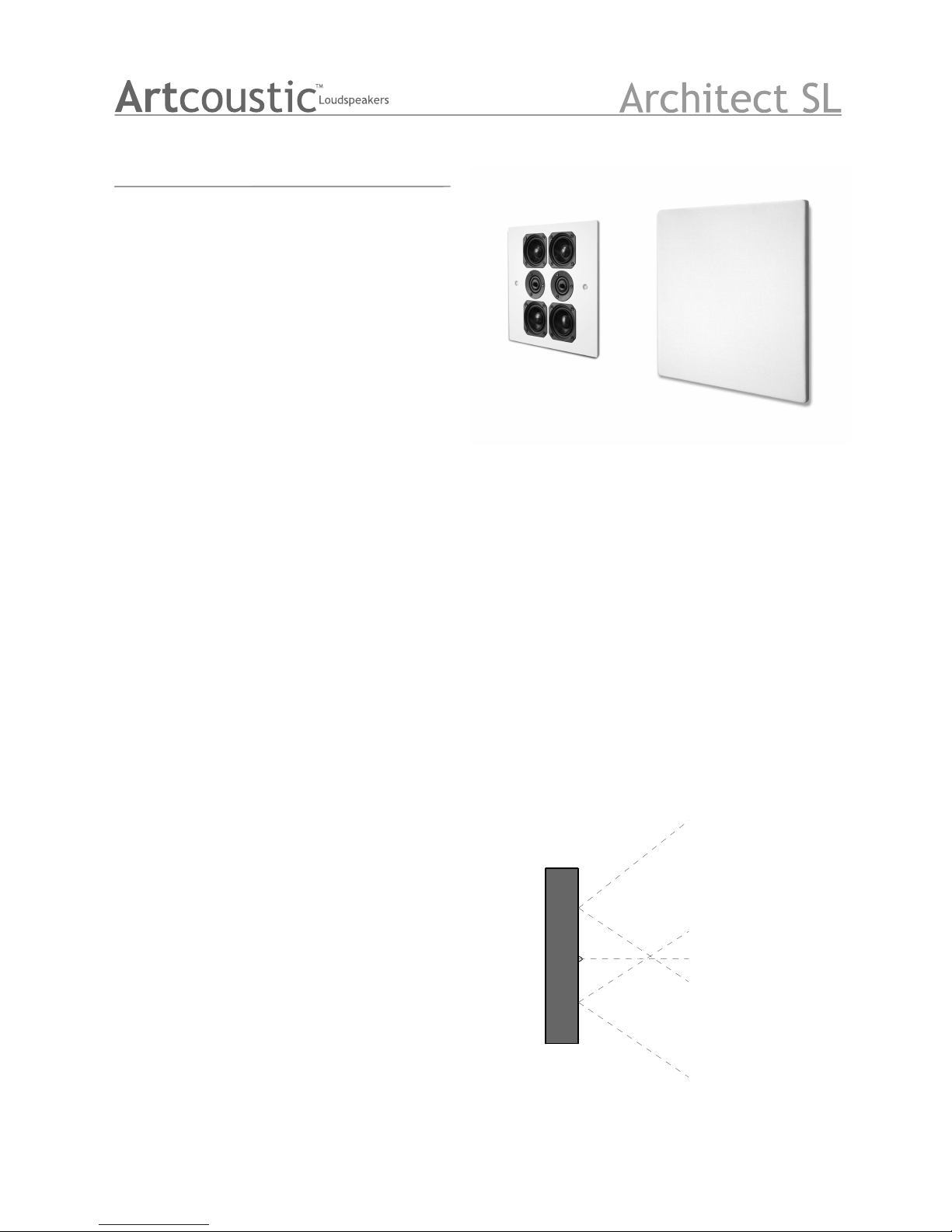

Side View Vertical Phase aligned Dispersion :
Three-Way Architectural Speaker
Specification Architect 2-1 SL Architectural Speaker
Transducer:
LF-MF 2 x 3 inch cone
HF 1 x 1 inch Dual Ring Radiator
Crossover:
Low Pass Filter 6 dB/octave 1000 Hz High Pass
12 dB/octave 4000Hz
Connection:
Single amped Gold Plated Push Terminals
Performance:
- Operating Range 55 Hz (-3dB) to 40 kHz
- Nominal Beamwidth Horizontal 90° Vertical 90°
- Axial Sensitivity (whole space SPL) LF/MF-HF Sensitivity 88 dB
- Input Impedance Nominal Minimum 4 ohms
- Calculated Axial Output Limit (whole space SPL) Average Peak LF/MF-HF 104dB
- Maximum Power Handling 50 Watt
- Weight 2 kg
- Dimensions H: 230 W: 230 D: 70 mm
- Dimensions (grille) H: 260 W: 260 D: 9 mm
Finish:
Silk Paint, White and RAL colours
Grille options: Match System and Pantone
Three-Way Architectural Speaker
Specification Architct 4-2 SL Architectual Speaker
Transducer:
LF-MF 4 x 3 inch cone
HF 2 x 1 inch Dual Ring Radiator
Crossover:
Low Pass Filter 6 dB/octave 1000 Hz High Pass
12 dB/octave 4000Hz
Connection:
Single or bi- amped Gold Plated Push Terminals
Performance:
- Operating Range 55 Hz (-3dB) to 40 kHz
- Nominal Beamwidth Horizontal 90° Vertical 90°
- Axial Sensitivity (whole space SPL) LF/MF-HF Sensitivity (stereo) 88 dB (mono) 94dB
- Input Impedance Nominal Minimum 4 ohms
- Calculated Axial Output Limit (whole space SPL) Average Peak LF/MF-HF (stereo) 104dB (mono) 110dB
- Maximum Power Handling 50 Watt
- Weight 4 kg
- Dimensions H: 290 W: 290 D: 70 mm
- Dimensions (grille) H: 320 W: 320 D: 9 mm
Finish:
Silk Paint, White and RAL colours
Grille options: Match System and Pantone

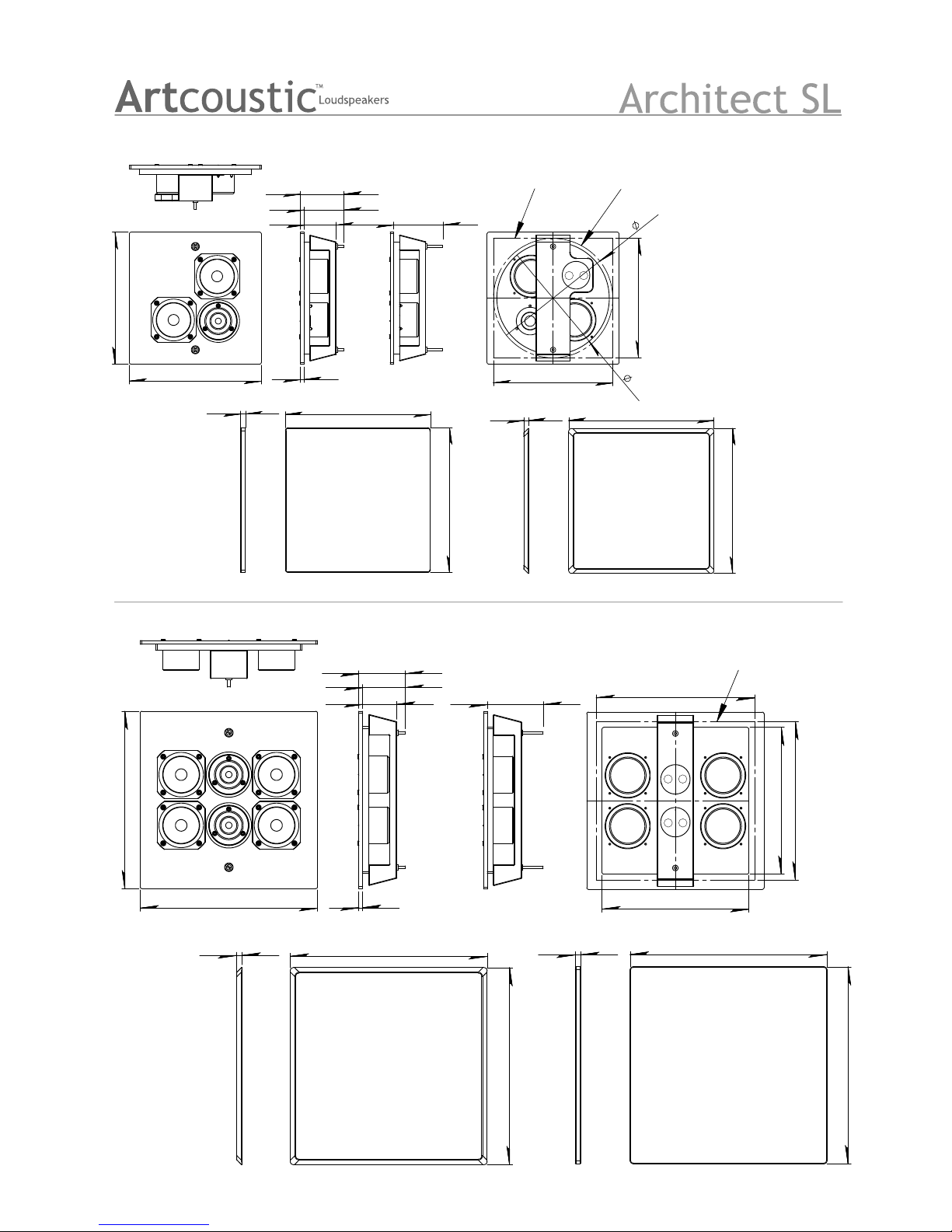

Architect 2-1 SL Three-Way
Architectural Speaker
Architect 4-2 SL Three-Way
Architectural Speaker
208
208
208
230
230
Round cut
Square cut
19
76
56
6
70
9
260
260
9
260
260
259
259
290
290
6
56
70
76 Square cut
240
240
90 degree angled grille Facet grille
9
9320
320
320
320
90 degree angled grille
Facet grille
95
Longer
screws
95
Longer
screws
www. artcoustic.com

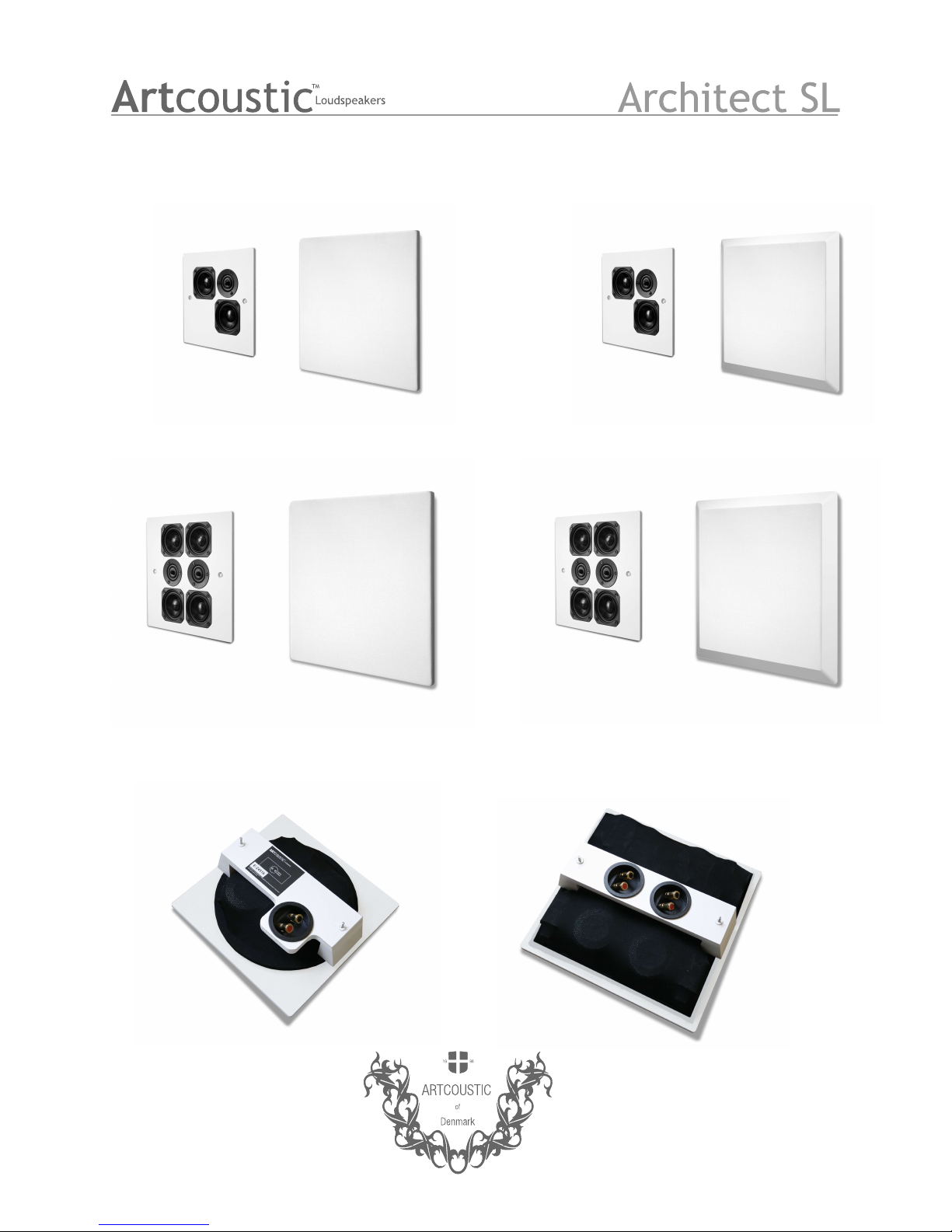

Architect 2-1 SL with
90 degree angled grille Architect 2-1 SL with
facet grille
Architect 4-2 SL with
90 degree angled grille Architect 4-2 SL with
facet grille
www. artcoustic.com

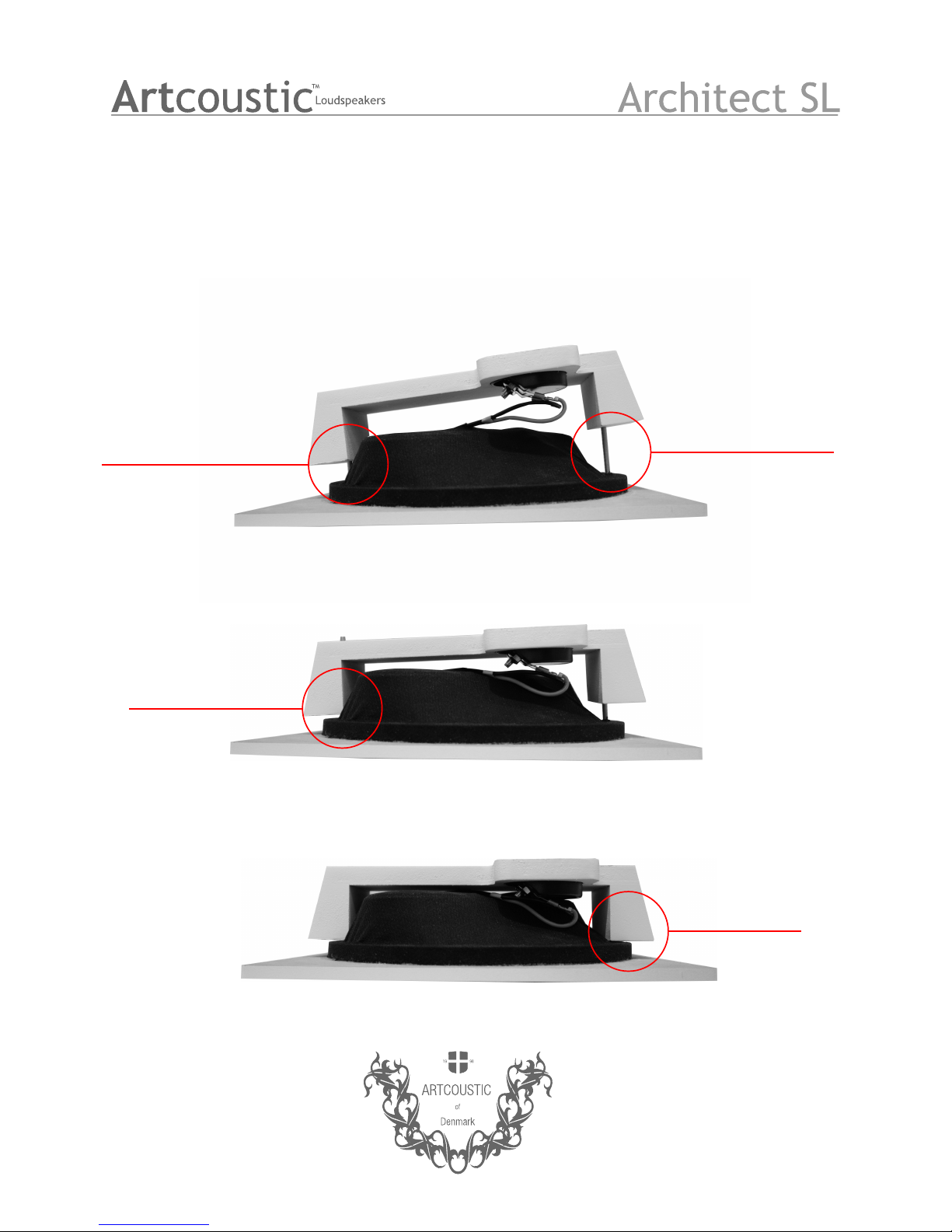

Unscrew screw 1 untill max.
Leave screw inside insert
Unscrew screw 2 until it
slip off the insert and
angle mounting bracket
as shown in step 1
Step 1
Step 2
Tighten screw 1
12
3
Tighten screw 2
4
Step 3
Artcoustic Architect mounting method, ceiling thickness max. 18mm. for ceiling plate thickness
up to 36mm. use supplied set of longer screws
