ARTDEV AP-8220 U Bedienungsanleitung

All specifications are subject to change without notice

Receipt Printer User’s Manual

MODEL : AP-8220 U

AP-8220 U Rev.A 10/14

Table of Contents 1. Parts Identifications

PRINTER COVER

POWER SWITCH

COVER OPEN LEVER

CONTROL PANEL

Open this cover to

load or replace paper.

Used to turn on/off

power to the printer.

Pull down this lever to

open the printer cover.

Features LED indicators

to indicate printer status

and switches to operate

the printer.

INTERFACE CONNECTOR

PERIPHERAL DRIVE CONNECTOR

POWER CONNECTOR

INTERFACE CONNECTOR (USB)

1. Parts Identications 3

2. Setting up the printer 4

2.1 Unpacking 4

2.2 Connecting the cables 5

2.3 Loading the roll paper 9

2.4 Adjustment of paper width 12

3. Control panel and other functions 13

3.1 Control panel 13

3.2 Error Indicating 13

4. Self Test 14

ASCII Print

Select Baudrate Mode

7. Hexadecimal Dump 16

8. Printer cleaning 17

9. Specications 18

9.1. General Specications 18

9.2. Auto Cutter Specications 19

9.3. Interface 19

9.4. Electrical Characteristics 19

9.5. Environmental Requirements 20

9.6. Reliability 20

9.7. Certication 20

10. Command List 21

2. Setting Up the Printer

INTERFACE CONNECTOR PERIPHERAL DRIVE CONNECTOR POWER CONNECTOR

INTERFACE CONNECTOR (USB)

For connection to a

host computer. For connection to a

host computer.

For connection of the

AC adapter.

Never unplug the AC

adapter while the

printer is on.

Connects to peripheral

units such as cash

drawer, etc.

Do not connect this to a

telephone.

2-1. Unpacking

Your printer box should include these items. If any items are damaged or missing, please contact your

dealer for assistance.

The Printer CD Roll Paper

Adaptor(optional) Interface Cable(optional)

2-2. Connecting the Cables

You can connect up the cables required for printing to the printer.

They all connect to the connector panel on the back of the printer, which is shown below :

Before connecting any of the cables, make sure that both the printer and the computer are turned off.

Centronics Parallel Interface

PIN SIGNAL I/O DESCRIPTION

1 STROBE- Input Synchronize signal Data received

2~9 DATA 0~7 Input/Output Data bit Transmitted 0~7

10 ACK- Output Data receiving completed.

11 BUSY Output Impossible to print of data receiving.

12 PE Output Paper empty

13 SELECT Output Printer status for ON/OFF line

14 AUTO FEED- Input Paper auto feed signal

15 GROUND - System ground

16 GROUND - System ground

17 NC -

18 LOGIC-H - +3.3V

19~30 GROUND - System ground

31 INIT- Input Initialize

32 ERROR- Output Printer error

33 GROUND - System ground

34 NC -

35 NC -

36 SELLECT IN- Input Printer select signal

Ethernet Interface

PIN SIGNAL I/O

1 Data Out + Output Data +

2 Data Out - Output Data -

3 GND Ground

4 Data IN + Input Data +

5 Data IN - Input Data -

6N.C

7N.C

8N.C

2-2-1. Interface Connector

<D-SUB 25 Female Serial> <Centronics Parallel>

USB Interface

PIN SIGNAL I/O DESCRIPTION

1 +5V - +5V

2DATA- - Printer transmit data line

3DATA+ - Printer transmit data line

4 GND - System Ground

Serial Interface

PIN SIGNAL I/O DESCRIPTION

2 TxD Output Printer transmit data line RS-232C level

3 RxD Input Printer receive data line RS-232C level

4, 20 DTR Output Printer handshake to host line RS-232C level

6 DSR Input Data Send Ready

1, 7 GND - System Ground

2-3. Loading the Roll Paper

Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the

paper glued to the core because the printer cannot detect the paper end correctly.

(Turn off power switch)

1. Make sure that the printer is not receiving data; Otherwise, data may be lost.

2. Open the paper roll cover by pushing down the cover open button.

3. Remove the used paper roll core if there is one inside.

4. Insert new paper roll as shown.

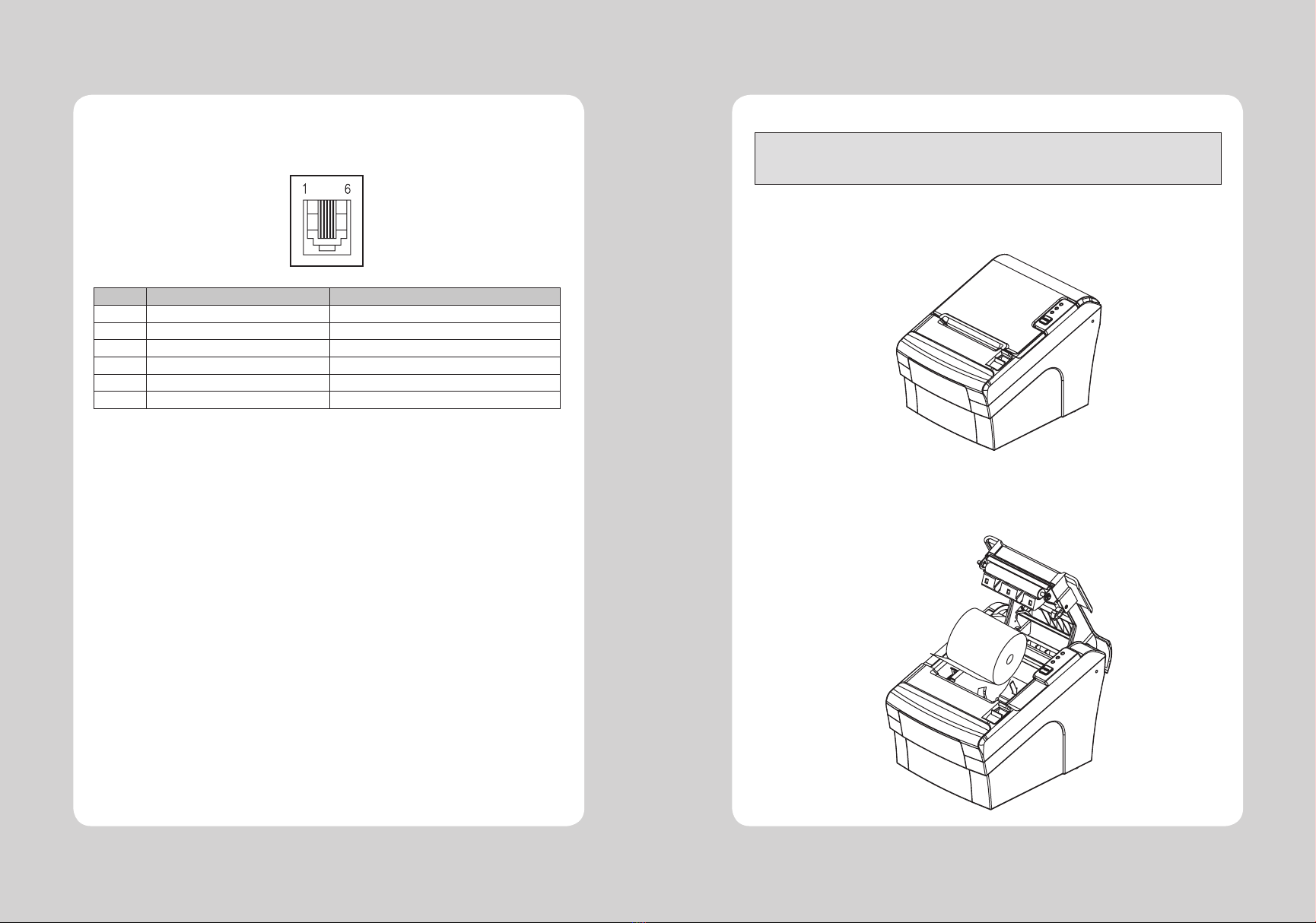

2-2-2. Cash Drawer Connector

The printer can operate two cash drawers with a 6 pin RJ-11 modular connector.

The driver is capable of supplying a maximum current of 1.0A for 510ms or less when not printing.

PIN SIGNAL DESCRIPTION

1 Signal GND -

2 Drawer kick-out drive signal 1 Output

3 Drawer open/close signal Input

4 +24V -

5 Drawer kick-out drive signal 2 Output

6 Signal GND -

Caution : To avoid an overcurrent, the resistance of the drawer kick-out solenoid must be

24 Ω or more.

5. Be sure to note the correct direction that the paper comes off the roll.

6. Pull out a small amount of paper, as shown. Then, close the cover.

7. Tear off the paper as shown.

♣CAUTION:

When the paper is jammed with cutter, the top cover might be stuck. In this case, repeat power on

and off several times.

If the top cover is still stuck, please follow the steps to release the papers from jamming.

1. Make sure the printer is turned off.

2. Remove the screw from the DIP switch cover. Then, take off the DIP switch cover as shown in

the illustration below.

3. Turn screw with drivers to a direction until paper is released from the cutter.

3-1. Control panel

You can control the basic paper feeding operations of the printer with the button on the control panel.

The indicator lights help you to monitor the printer’sstatus.

Control Panel

Button

The button can be disabled by the ESC c 5 command.

Press the FEED button once to advance paper one line. You can also hold down the FEED button to

feed paper continuously.

3-2. Error indicators

This section explains the different patterns signaled by the three LED indicators located on the top

cover of the printer.

STATUS PAPER ERROR POWER REMARKS

RED RED GREEN

Power off OFF OFF OFF Normal power is not supplied to

the printer

Power on OFF OFF ON Normal power is supplied to the

printer

On line OFF OFF ON Normal error-free mode

Cover open OFF ON ON Close cover

Paper empty OFF ON ON Insert new paper roll

Paper near end ON OFF ON Paper is low

Test mode OFF OFF ON Ignored error led

3. Control panel and other functions

2-4. Adjustment of paper width

1. Please adjust the Paper Guide to fit to the paper width as the direction of arrow.

2. Tight the screw after adjusting the Paper Guide.

3. Pull the edge of paper once the paper roll is installed correctly and close the Paper Cover.

The self-test result indicated whether the printer is operating properly. Also with this, user can check

following options or status of the printer.

 Controlcircuit

 Printermechanism

 Printingquality

 ROMversion

 Interfacesetting

This test is independent of any other equipment or software.

Running the self test

1. Make sure the printer is turned off and the printer cover is closed properly before performing the

self test

2. Turn the printer on holding the FEED button, then the self-test will start.The self-test prints the

printer

setting value and then prints the following, and pauses. (Error LED On)

SELECT MODE BY BUTTON

1. ASCII PRINT

2. SELECT BAUDRATE MODE

3. HEXADUMP MODE

3. Press the FEED button consecutively (1~3)

1. ASCII PRINT

(press the FEED button once)

2. SELECT BAUDRATE MODE

(press the FEED button twice)

3. HEXADUMP MODE

(press the FEED button triple time)

Printing test page

constructed with ACII code.

Set the speed of Serial Interface

(You can set the BAUDRATE in

this mode)

Printing the HEX value received

from the interface



♣Wait for 5~6 seconds if you want to exit. Printer performs a cutting when exiting this mode

4. The printer is ready to receive data after finishing setting.

4. Self Test

ASCII PRINT is printing a test page constructed ASCII code. You can able to check the printer works

properly with this

The ASCII PRINT test automatically ends and cuts the paper after printing the following:

*** Completed ***

The printer is ready to receive data as soon as it completes the ASCII PRINT.

5. ASCII Print

After entering the BAUDRATE MODE, the list which can select the BPS will be printed. Similar like Self Test,

you can press the FEED button to select a BAUDRATE.

Once the input performs properly, the printer shows a result and store.

The printer is ready to receive data as soon as it completes the SELECT BAUDRATEMODE.

SELECT BAUDRATE BY BUTTON

1. 9600bps

2. 19200bps

3. 38400bps

4. 115200bps

6. Select Baudrate Mode

This feature allows experienced users to see exactly what data is coming to the printer. This can be

useful in finding software problems.

When you go into the hex dump function, the printer prints all commands and other data in

hexadecimal format along with a guide section to help you find specific commands.

To use the hex dump feature, follow these steps

1. Please turn printer off.

2. Please turn printer on while press down “Feed” button.

3. Press the FEED button three times when the Self Test printed.

4. Now printer had entered into Hexa dump mode.

5. Run any software program that sends data to the printer. The printer prints ”Hexadecimal printing

mode…” and then all the codes it receives in a two-column format. The first column contains the

hecadecimal codes and the second column gives the ASCII characters that correspond to the codes.

Hecadecimal Dump

1B 21 00 1B 26 02 40 40 .!..& . @ @

1B 25 01 1B 63 34 00 1B .%..c4 ..

41 42 43 44 45 46 47 48 ABCDEFGH

□A period (.) is printed for each code that has no ASCII equivalent.

6. Turn off the printer.

7. Turn on the printer.

7. Hexadecimal Dump 8. Printer cleaning

If the interior of the printer is dusty, printing quality can be lowered.

In this case, follow the instructions below to clean the printer.

1. Use an applicator swab moistened with an alcohol solution to clean the print head and remove

any dusts.

2. Once the cleaning is completed, insert paper roll into the printer few minutes later and close

the printer cover.

♣

Preventing Overheating

To prevent the motor from overheating, continuous operation of the printer should be

1.5 m or less in print length. Set the pause time for 30 seconds or more than it.

♣Note :

1. Make sure to turn the printer power off prior to cleaning

2. Regarding print head cleaning, as the print head is very hot during printing, turn off the printer

power and wait approximately 10 minute before start.

3. When cleaning the print head, take care not to touch the heated part of the print head.

The print head subject to be damaged by static electricity.

4. Take care not to allow the print head to become scratched and /or damaged in any way.
