Artec PMA3-10 Bedienungsanleitung

PMA3-8, PMA3-10

MASTER

VOLUME

POWER

SWITCH

POWER

INDICATOR

POWER

INLET

FUSE

250V1A

LEVEL

CONTROL

BASS

CONTROL

TREBLE

CONTROL

GAIN

CONTROL

Ch1 Input

For general high

impedance instrument

(ex:electric guitar)

Ch2 Input

For low impedance

and balanced signal

(ex: microphone)

For general low

impedance

signal

Ch3 Input

For low impedance

line-out signal

(ex: CDP or MP3)

For general low

impedance

signal

AIR VENT

LINE OUT

For connect with

a recorder or one more

PMA3

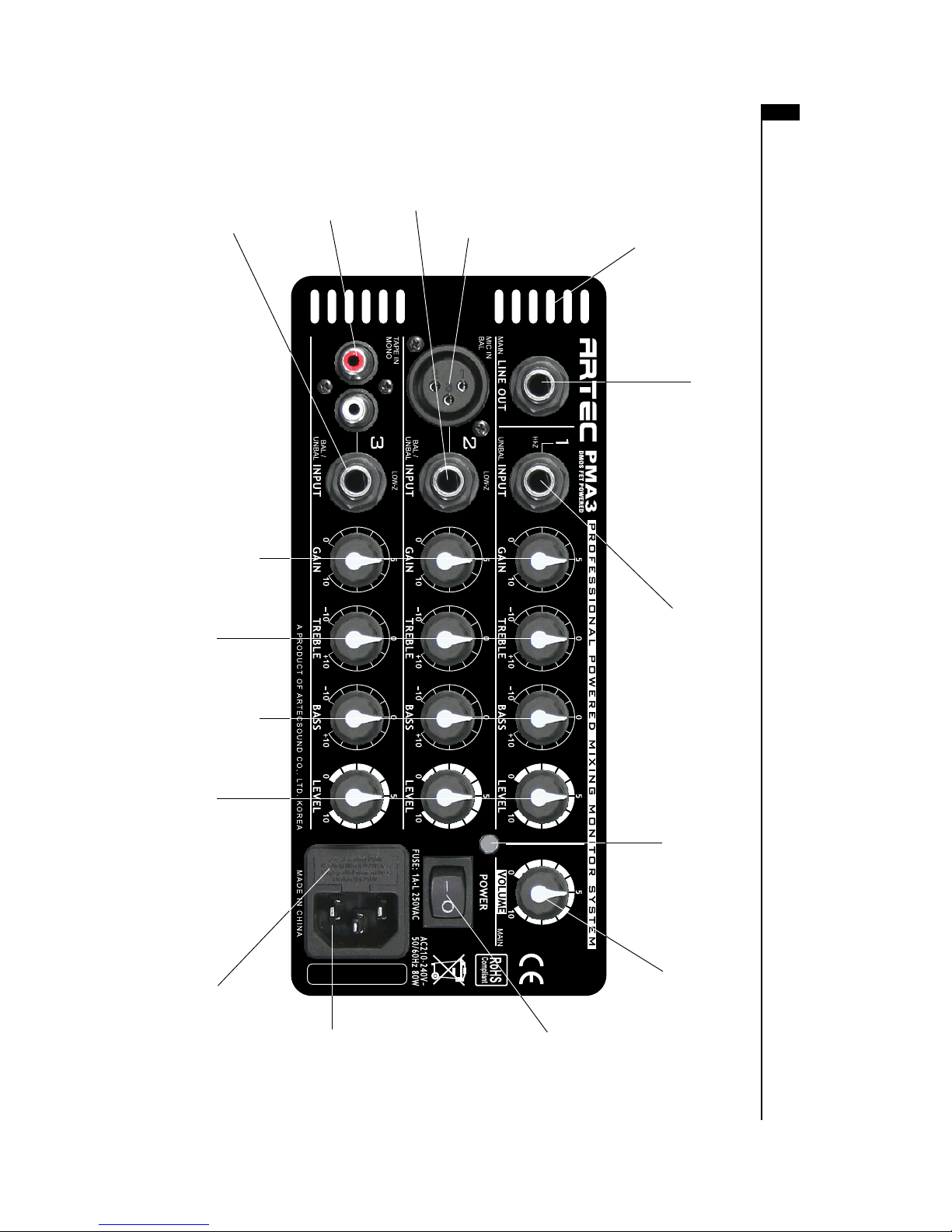

CONTROL PANEL

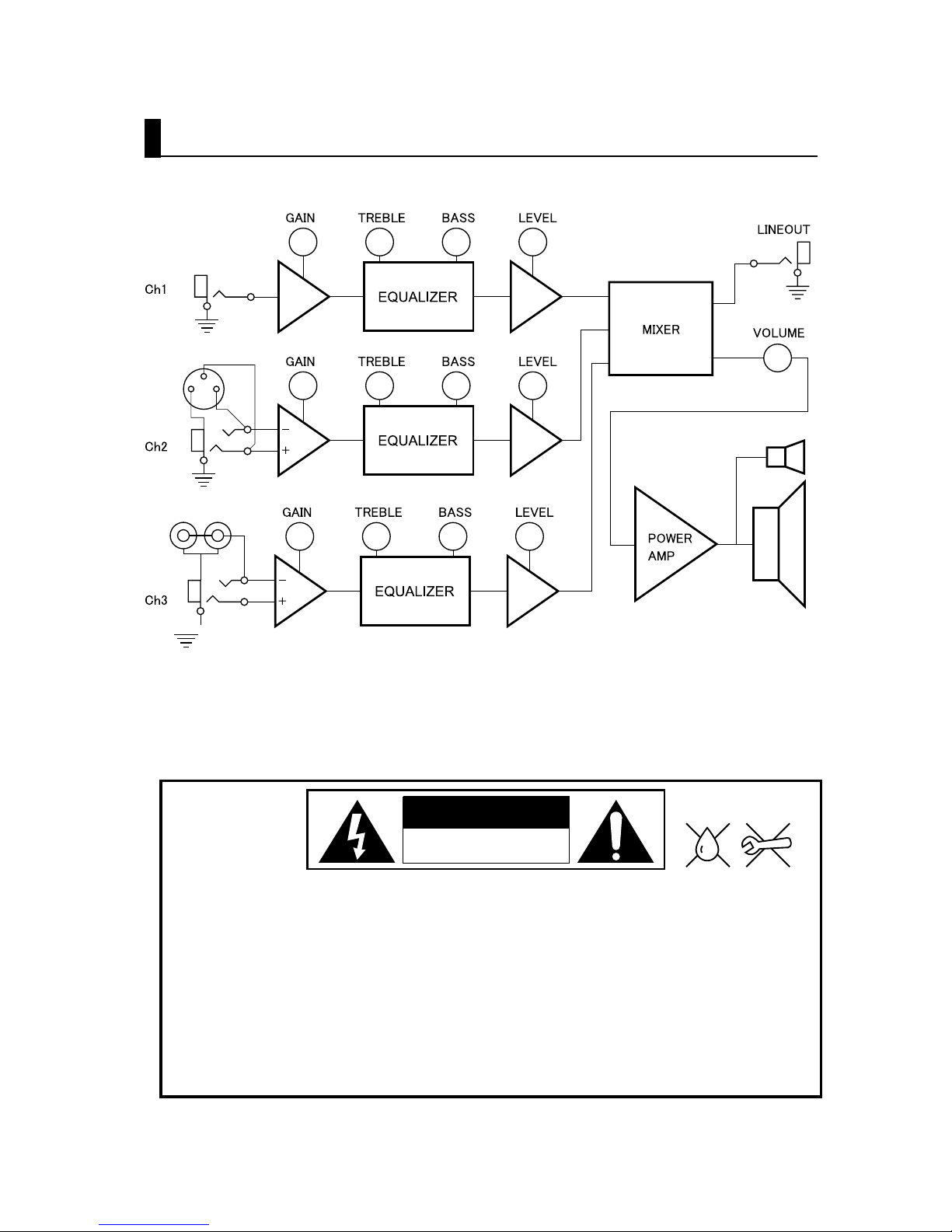

PMA3 BLOCK DIAGRAM

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

IMPORTANT SAFETY INSTRUCTIONS

- DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS.

- ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES

AND COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE

APPARATUS.

- ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE

OPERATION AND TO AVOID INJURY.

- WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

- SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL.

- OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH

SOUND PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND

EAR PROTECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME.

SPECIFICATION

- Equalizer (common)

Bass : -10dB ~ +10dB @ 180Hz

Treble : -10dB ~ +10dB @ 2kHz

- Output frequency range

50Hz ~ 12kHz

A PRODUCT OF ARTECSOUND CO., LTD. KOREA MADE IN CHINA

PMA3-8 PMA3-10

DIMENSION

SPEAKER

OUTPUT

AC POWER

250 x 440 x 380 (mm)

10 inch LF + 1 inch HF

35 watts music power

80W @ 230V50Hz

200 x 360 x 310 (mm)

8 inch LF + 1 inch HF

25 watts music power

60W @ 230V50Hz

Input impedance Max. input level max. gain

Ch 1 1/4inch jack

Ch 2 XLR jack

Ch 2 1/4inch jack

Ch 3 RCA jack

Ch 3 1/4inch jack

- Lineout

1/4inch jack

output impedance : 2kohm

- Stand Access Hole

35mm (diameter)

500kohm +8dBV 70dB

50kohm +10dBV 60dB
