Artison STUDIO 55 SoundBar Bedienungsanleitung

INSTALLATION GUIDE

STUDIO 55 SoundBar STUDIO55-SB

STUDIO 46 SoundBar STUDIO46-SB

STUDIO 39 SoundBar STUDIO39-SB

CARTON CONTENTS:

1. STUDIO SoundBar Speaker

2. Television Mounting Brackets (TMB)

o(24” for STUDIO39-SB & STUDIO46-SB; 29” for STUDIO55-SB)

2. Long Extension Plates

2. Short Extension Plates

1. Hardware Accessory Kit

o1. 3mm Allen Wrench

o8. Bracket to Bracket (B to B) Screws, M5 x 10 mm, Stainless Steel

o4. Machine Screw, M4 x 11.5 mm

o4. Machine Screw, M5 x 11.5 mm

o4. Machine Screw, M6 x 11.5 mm

o4. Machine Screw, M8 x 11.5 mm

o4. Machine Screw, M10 x 11.5 mm

o4. Flat Washer; 25 mm OD, 10 mm ID

o4. Flat Washer; 25 mm OD, 5 mm ID

2. White Gloves

1. Installation Guide

If you are missing any of these parts or if you need assistance during the

installation of your Artison Studio SoundBar, please contact Artison’s Customer

Service Department during normal business hours, Pacific Time at (775) 783-4770

Thank you for choosing the Artison STUDIO SoundBar Speaker. We are pleased

that you have selected our high-performance audio product. The following

information will guide you through the installation of your Artison STUDIO

SoundBar Speaker.

INTRODUCTION

Artison STUDIO SoundBars are designed to attach directly to any Flat Panel TV (FPTV)

with the included hardware, brackets, and come with custom made grilles. Studio

SoundBars contain a Center Channel, Left Channel, and Right Channel; all housed in one

aluminum enclosure. All 3 speakers have independent air chambers and crossovers.

This creates one TOTAL INVOLVEMENT EXPERIENCE™.

The STUDIO SoundBar attaches to any FPTV using the VESA mounting points on the

rear surface. Using the Thin UMB, the LCR DM speakers can be attached to any FPTV in

a table top application or a wall-mount application in conjunction with a FPTV wall-mount

bracket.

G ST Grilles are available customized to the width and bezel color of any FPTV. Artison

maintains a database of popular FPTV’s and can match the exact width of any set. Any

Artison Dealer can order a custom made grille for your FPTV.

G ST Grilles used with Studio 39 are compatible with any FPTV that is 38.0”inches wide

tall or larger. G ST Grilles used with Studio 46 are compatible with any FPTV that is

45.4”inches wide tall or larger. G ST Grilles used with Studio 55 are compatible with any

FPTV that is 54.1”inches wide tall or larger.

All STUDIO models are compatible with displays that are 25.4 mm – 200 mm, (1.0” – 3.6”)

in depth.

INSTALLATION OPTIONS

The Artison STUDIO SoundBar Speakers were designed to have multiple installation

options using the included hardware and brackets.

Attachment to any Flat Panel TV (FPTV) in a Tablestand or Wall Mounted installation.

On-Wall/Surface Mounting.

Please read the instructions below before attempting your installation.

INSTALLATION PROCEDURES

The Television Mounting Brackets were designed in compliance with the VESA Mounting

Standards. When using a third party FPTV wall-mount, the Television Mounting Brackets

are placed between the FPTV chassis and the FPTV wall-mount. In cases where the

display utilizes a table top stand, the Television Mounting Brackets can be attached

directly to the FPTV’s chassis.

REMOVAL OF FPTV CURRENTLY INSTALLED

1. If your FPTV is currently wall mounted, disconnect any wiring connections and remove

the FPTV from the wall mount. NOTE: This step may require two people.

2. Place FPTV in safe location, display side down on a soft non-abrasive surface.

3. Remove any existing mounting brackets and screws from the VESA mounting points

on the rear of the FPTV.

TELEVISION MOUNTING BRACKET PLACEMENT

4. Position one Television Mounting Brackets across the left mounting points, one Thin

UMB across the right set of mounting points.

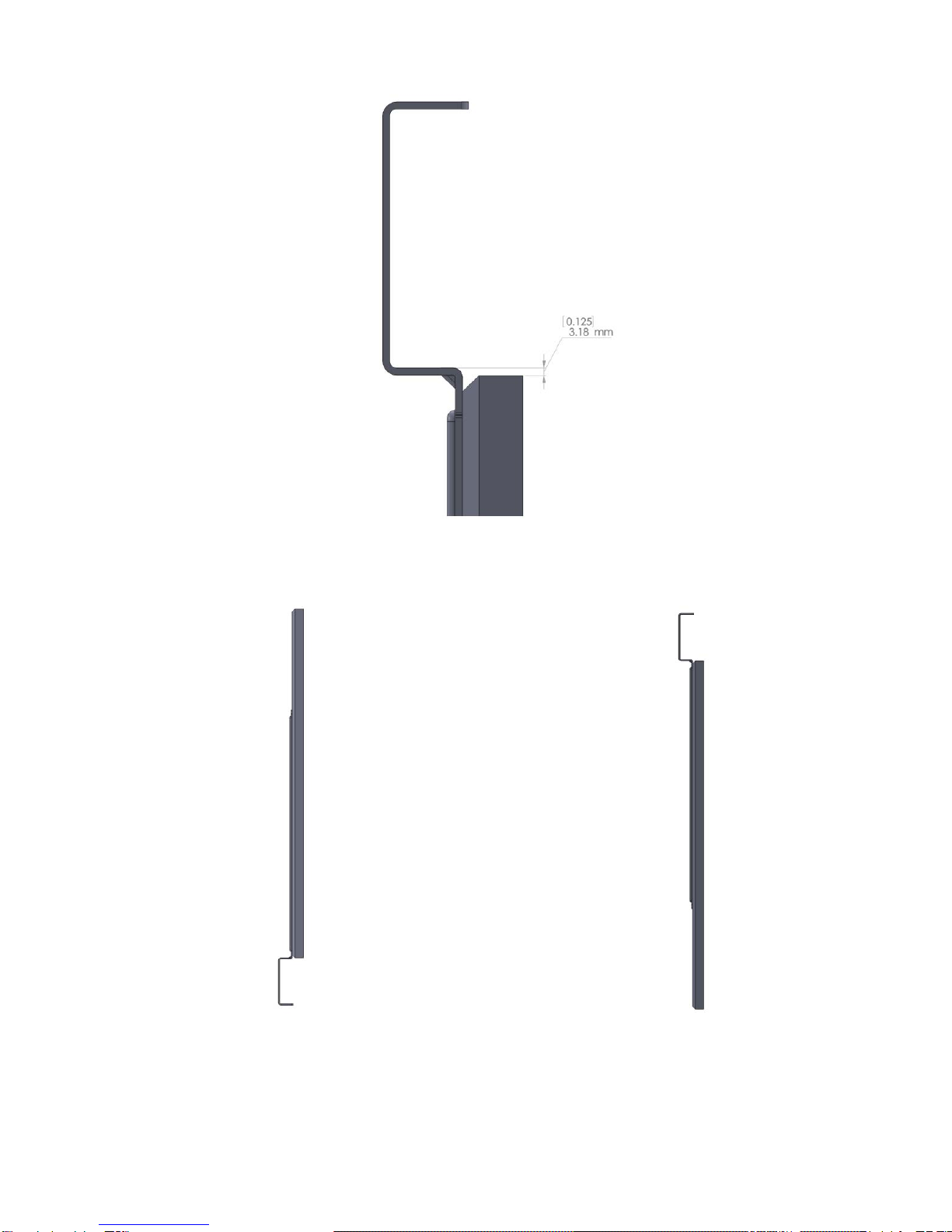

Align the flat inner return of the Television Mounting Brackets to extend beyond the

FPTV bezel by 1/8”, 1/4” if your FPTV is thicker than 1.8”. This will leave the required

space for the grille to fit between the FPTV and speaker cabinet, see FIGURE 1.

NOTE: If your television is too tall for the TMBs to align with both the upper and

lower set of mounting holes. Line up the TMBs with the closer mounting points

and use spacers on the other mounting points to keep the mounting brackets

parallel to the chassis.

5. The STUDIO SoundBar can be mounted on top or bottom of the FPTV. See

FIGURES 2 & 3.

FIGURE 1

FIGURE 2 FIGURE 3

EXTENSION PLATE SELECTION BASED ON FPTV THICKNESS

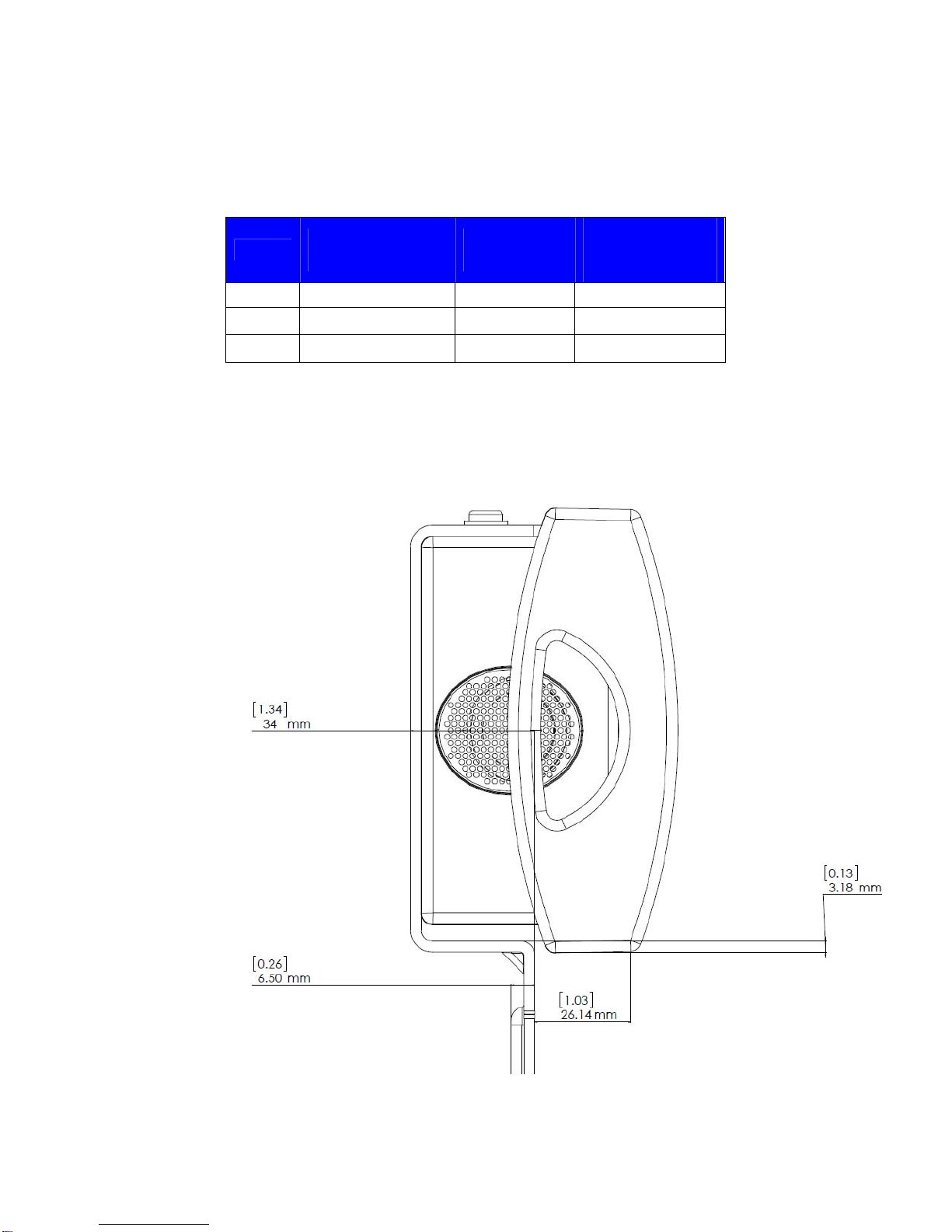

6. Depending on the FPTV depth the use of Extension Plates will vary. Refer to the

following; TABLE 1 and FIGURES 4-9.

Figure FPTV

Thickness Extension

Plate

Minimum

TV Wall Mount

Bracket Depth

4 & 5 1.0 - 1.4” No 1.0"

6 & 7 1.9 - 2.8” Short 1.0"

8 & 9 2.7 – 3.6” Long 1.0"

TABLE 1

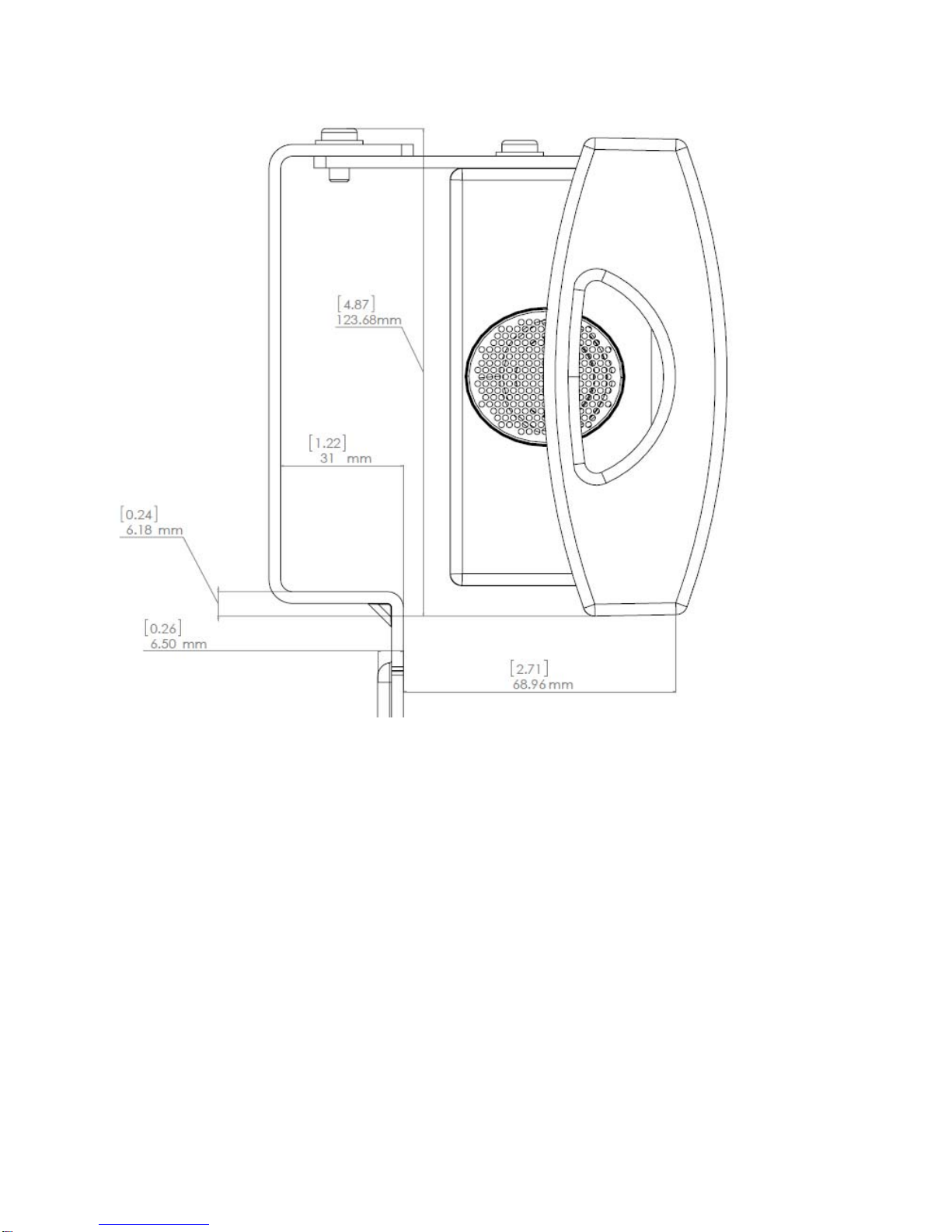

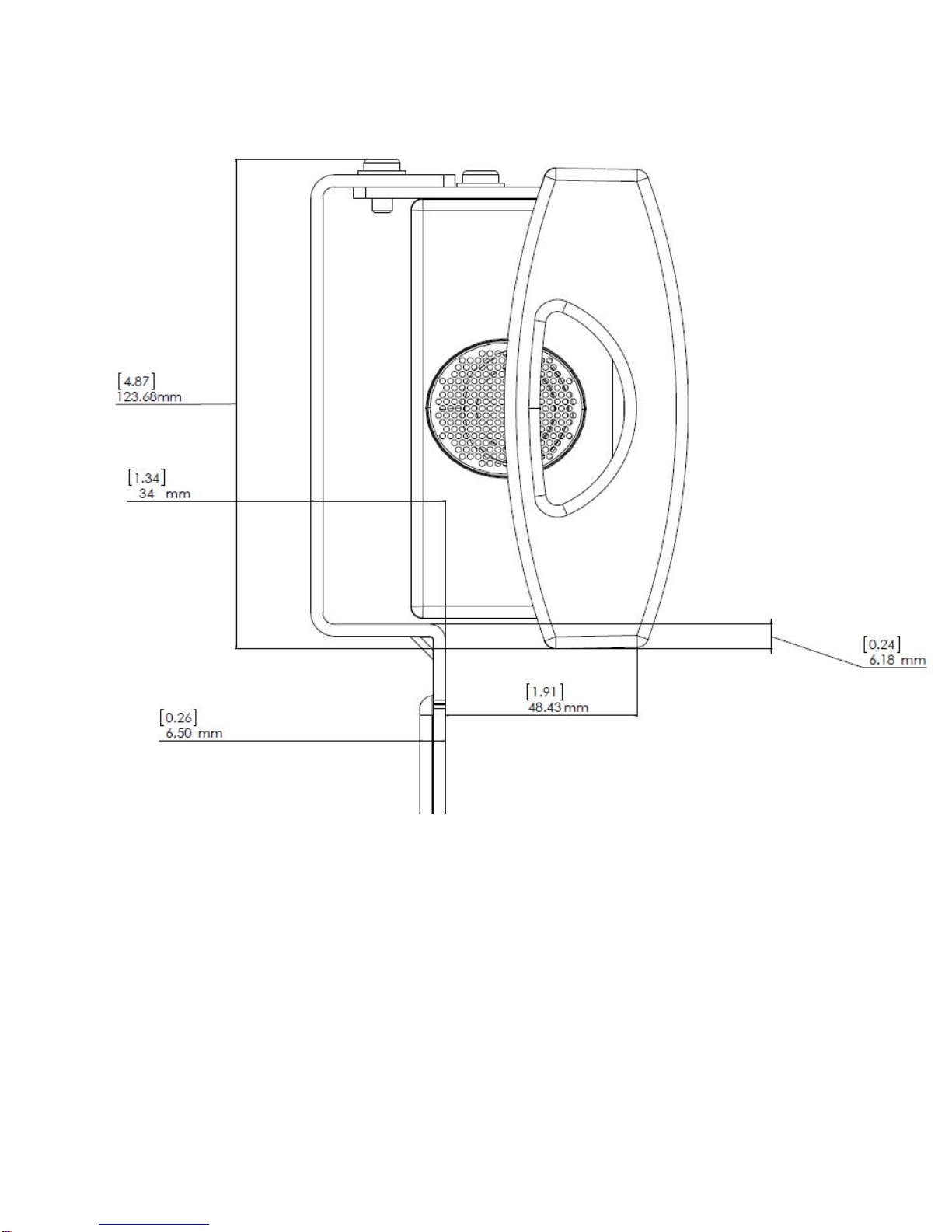

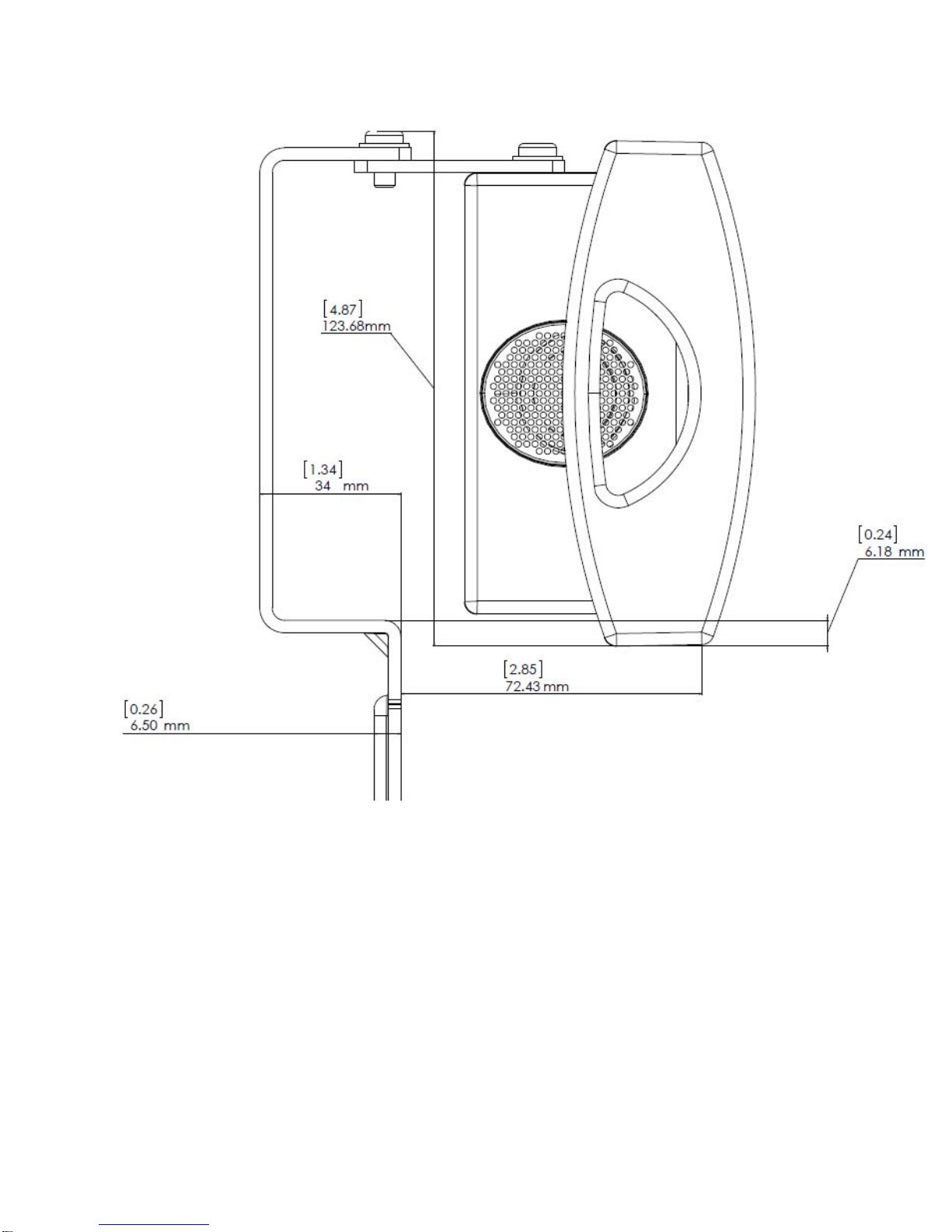

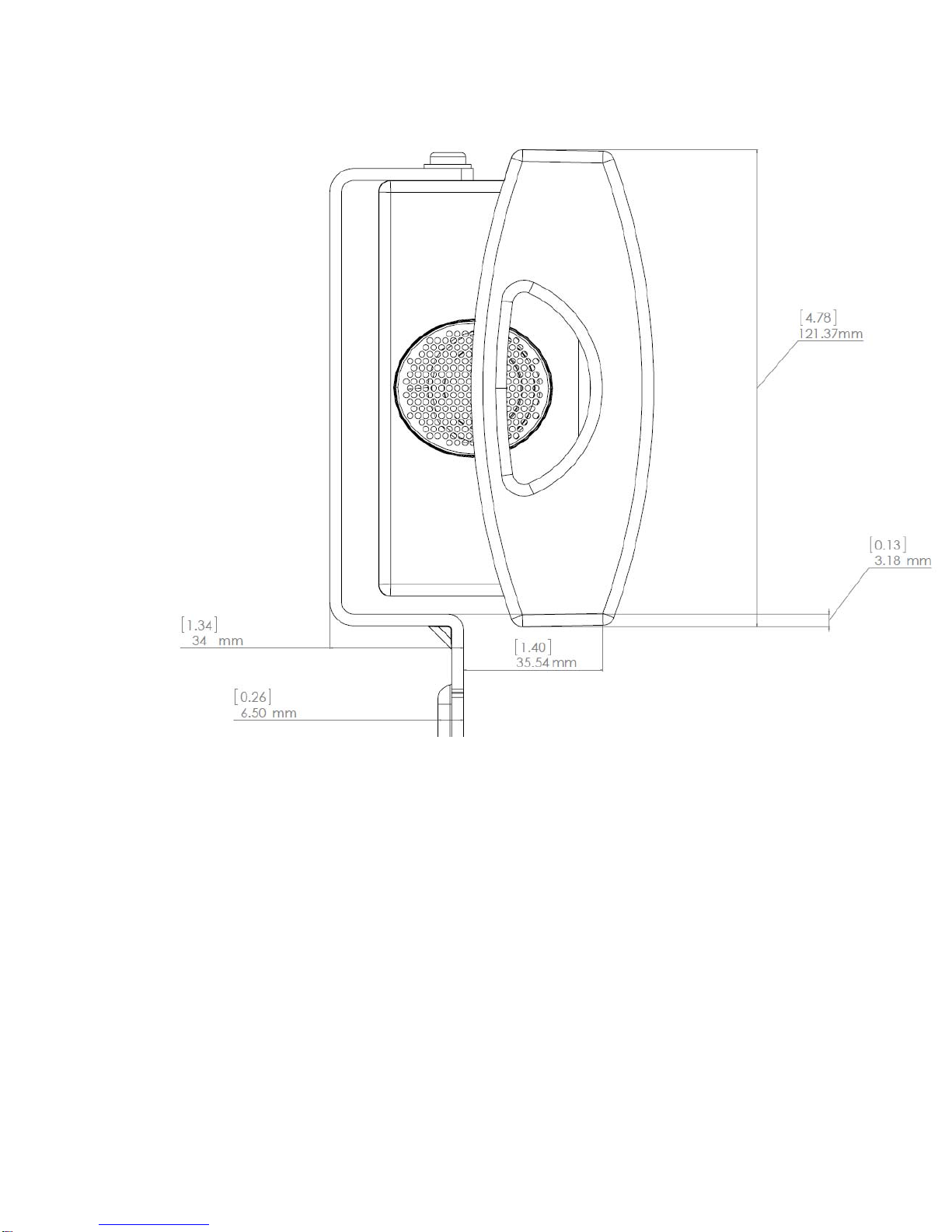

FIGURE 4

FIGURE 5

FIGURE 6

FIGURE 7

FIGURE 8
