Artistic Licence Rail-Split extreme Bedienungsanleitung

Artistic Licence

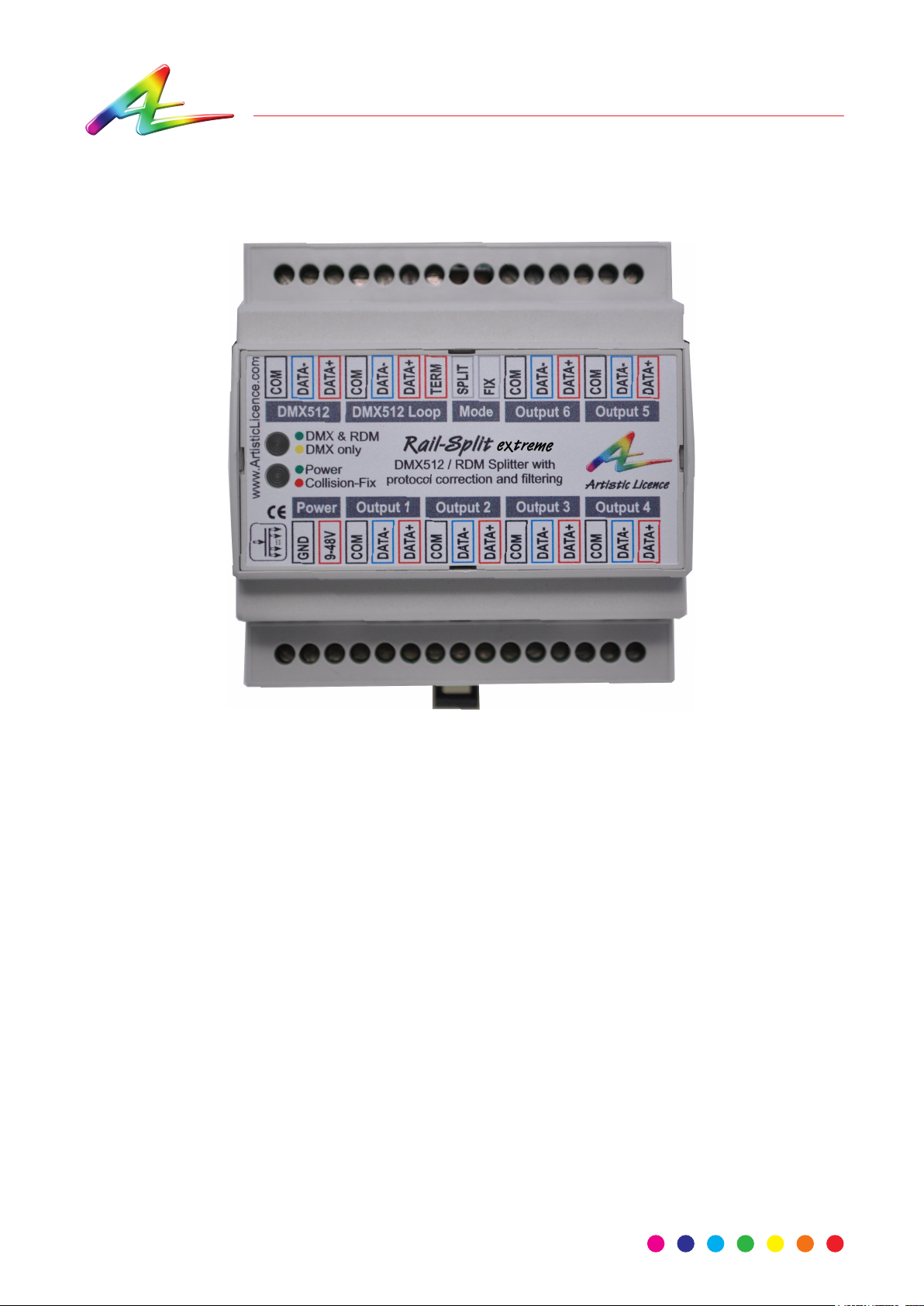

Rail-Split extreme User Guide

Rail-Split extreme

Version 5-0

User Guide

Serial numbers 151 upwards

Page 2

Rail-Split extreme User Guide

Please read these instructions before using the product.

This product has been designed & manufactured for professional use only.

It should only be installed by a suitably qualied technician and in accordance with

electrical regulations in the country of use.

Unless directed in the instructions there are no user serviceable parts inside the

outer case of this product.

Always disconnect from the power supply when not in use.

Any specic IP rating, where appropriate, is given in the instructions. Unless

otherwise stated this product is designed for indoor use only. If used outdoors it

MUST be installed in an appropriate IP rated cabinet. Do not allow this product to be

exposed to rain or moisture. Do not allow liquid to penetrate the product.

Please recycle all packaging.

Download the user guide by scanning the following QR code:

Page 3

Rail-Split extreme User Guide

Reference Type Description

1LED Data Good

2LED Power / Fix

3Connection Power Input

4Connection DMX512 Input

5Connection DMX512 Loop &

Term**

6Switch Split / Fix Mode

7Connection Splitter Outputs

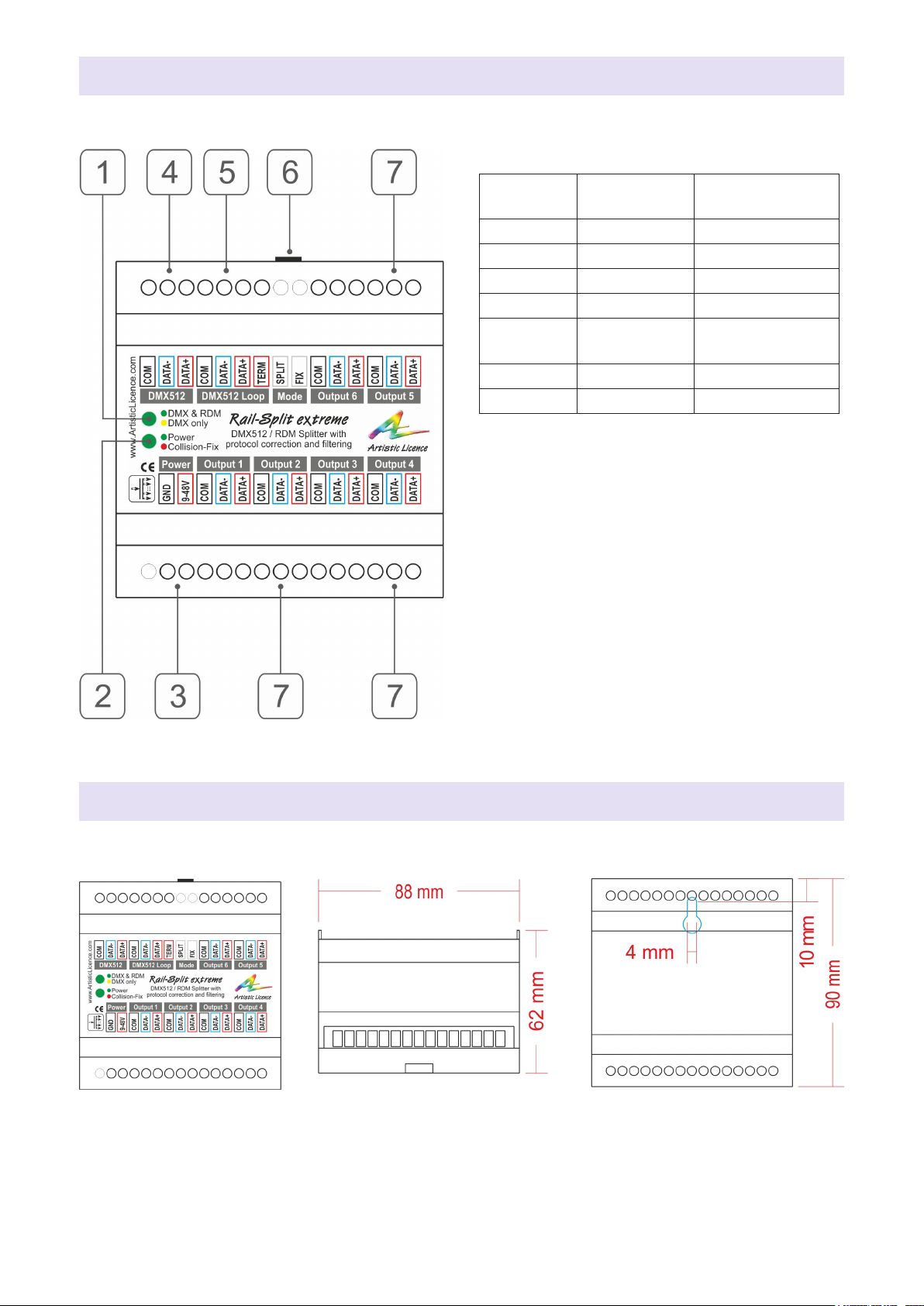

Connections

Mounting Diagram

** A passive loop-through connection allows

onward connection to other DMX512 devices. If

this feature is not required then the signal must

be terminated. The product contains an internal

termination resistor. This is enabled by tting a

wire link between Term and DAT+.

Rail-Split extreme User Guide

Overview

Rail-Split extreme is a fully bi-directional DMX512 splitter and distribution amplier, with the

added feature of a ‘data xer’ for DMX. The latter functionality is used for resolving ickering

problems arising from product incompatibility issues - see ‘Fixer Mode’ on page 6 for more

information.

Rail-Split extreme o󰀨ers all the functionality of its sister product, Rail-Split RDM. Both products

feature electrocution protection (self-healing) on the input, loop and all outputs (up to 425 VAC

continuous connection).

Additionally, Rail-Split extreme provides surge protection. This feature is aimed at protecting the

product and connected equipment against voltage surges of the type generated by lightning.

The protection is sacricial which means that after a certain number of protection events, the

protection circuitry will be destroyed (see Specication on page 7).

Page 4

Key features

yInput Optical Isolation

ySix independent outputs

yBi-directional outputs

yOptimized for electrically noisy

environments

yMains electrocution protection (self-

healing) on input, loop and outputs

ySurge protection (sacricial) on input,

loop and outputs

yRDM (Remote Device Management

Draft & Standard V1.0)

yDMX512-A compatible

yMicroprocessor controlled

ySurface mount or DIN rail mounted

yDMX-Fix mode to handle compatibility

issues

Connections

Input

The DMX512 input is attached via three screw

terminals. Please refer to the connections

diagram.

Loop-Through

A passive loop-through connection allows

onward connection to other DMX512 devices.

If this feature is not required then the signal

must be terminated. The product contains an

internal termination resistor. This is enabled by

tting a wire link between the screw terminals

that will terminate the DMX line (Term and

DAT+).

Output

Six DMX512 outputs are provided. Each output

is capable of driving 32 additional DMX512

devices. It is not necessary to terminate any

outputs that are not connected. However, a

terminator must be connected to the nal

DMX512 device.

XLR Pin (Convention) Function Colour

1Ground Black

2Data - Blue

3Data + Red

DMX512 Wiring

Page 5

Rail-Split extreme User Guide

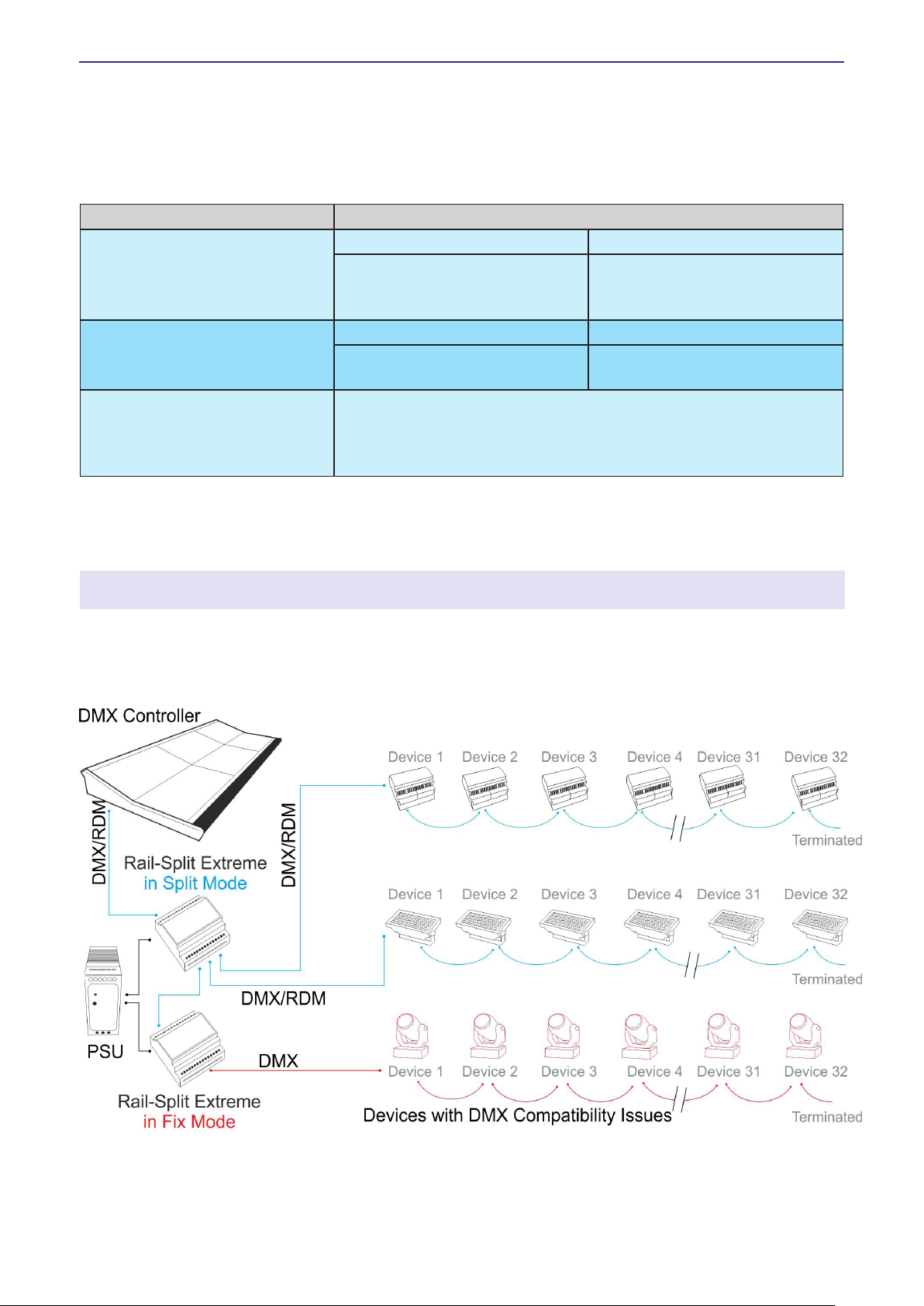

Application Diagram

The diagram below shows how Rail-Split extreme could be utilised in a typical application.

Internal Earth and Isolation

The following table summarises the internal earth interconnection and isolation.

Please note that we use the term Earth-Ground to avoid international confusion. In Europe

Earth-Ground is called Earth; in the USA, Earth-Ground is called Ground.

Circuit Description

DMX512 Input

(including Loop Through)

Type: Isolated

Pin 1: Connects to internal isolated

circuit. No connection to

Internal Logic Ground

DMX512 Outputs Type: PSU referenced

Pin 1: Connected to Internal Logic

Ground

Internal Logic Ground Connected to power supply 0V. If the selected PSU has a connection

between Earth-Ground and 0V the DMX outputs become Ground

Referenced. Otherwise the DMX outputs are Floating. When the

recommended PSU is used, DMX outputs are Floating.

Page 6

Rail-Split extreme User Guide

Operating Modes

The product can operate in two modes. In its default mode, the product is a fully-featured RDM

Splitter. In the second mode, it acts as a DMX Fixer.

Splitter Mode

In splitter mode, all six outputs operate as bi-directional RDM ports and all DMX data received

is passed onto the outputs. The indicators have the following meaning:

Top (Data):

OFF = no data received

Green = DMX and RDM received

Yellow = DMX only received

Bottom (Power):

Green = Power

Red = Data error or collisions detected

Fixer Mode

Fixer mode is intended to solve product compatibility problems. Unfortunately, there are numerous

products on the market which will not accept the wide range of legal DMX timings and data.

Fixer mode attempts to clean-out any unusual or non-standard timing and data before sending

to the output. This includes stripping out all non-zero start codes (including RDM), forcing a

512-channel footprint and calming any timing jitter. Indicators have the following meaning:

Top (Data):

As above

Bottom (Power):

Green = Power

Red = I am xing something

Detailed Fix Specication

Accepts and corrects break in range 56 µs – 1000 µs and outputs 250 µs

Accepts and corrects MaB in range 5 µs – 1000 µs and outputs 30 µs

Accepts and corrects MaB in range 0 µs – 1000 µs and outputs 30 µs

Accepts channel count 1 – 512 and outputs 512

Accepts refresh period from 23 ms – 1000 ms and outputs 30ms

Filters out multiple consecutive breaks

Re-times bytes of 1 stop bit to 2 stop bits

Filters out all non-zero start code packets

Re-times digital signal

Page 7

Rail-Split extreme User Guide

Rail-Split extreme Specication

Mechanical

yHousing: DIN rail case

yMaterial: Lexan Plastic - UL94-V0 rated

yOverall dimensions: 90 mm (H) x 88 mm

(W) x 62 mm (D)

yWeight: 0.2 kg

yMounting: 35 mm DIN rail or surface

mount

yCountry of manufacture: UK

Environmental

yOperating temperature: 0°C to 40°C

yStorage temperature: -10°C to +50°C

yOperating relative humidity (max): 80%

non-condensing

yIP rating: IP20 indoor use only

yCertication: CE, WEEE, RoHS

yWarranty: 2-year (return to base)

Power & Electrical

yInput voltage: 9-48 VDC

yInput connector: 2-pin screw terminal

(1 no.)

yInput power (max): 8 W

yDuty cycle: 100% @ 25°C

yDC fuse: internal resettable fuse for

control electronics

DMX512 Outputs

yMode: PSU referenced

yIsolation: n/a

yElectrocution protection: All outputs

protected against continuous connection

to 425 VAC (self-healing)

y Surge protection (sacricial):

- IDC 30,000A (8/20uS) 1 operation

- IDC 20,000A (8/20uS) 10 operations

- IDC 20A (10/1000uS) 1500 operations

DMX512 Input & Loop

yMode: Optically isolated

yIsolation: 1 kV

yElectrocution protection: Input & Loop

protected against continuous connection

to 425 VAC (self-healing)

ySurge protection (sacricial):

- IDC 30,000A (8/20uS) 1 operation

- IDC 20,000A (8/20uS) 10 operations

- IDC 20A (10/1000uS) 1500 operations

Control

yInput Protocols: DMX512, DMX512 (1990),

DMX512-A, RDM V1.0 (E1.20 - 2006

ESTA Standard)

yOutput Protocols: Same as input

Data Connections

y3-pin Screw Terminal DMX Input (1 no.)

y3-pin Screw Terminal DMX Loop (1 no.)

y3-pin Screw Terminal DMX Output (6 no.)

LED Indication

yPower / DMX / RDM

Package Contents

yRail-Split extreme

yUser guide

Ordering Info

yProduct code: Rail-Split extreme

Accessories (not included)

yPSU-9-1.5-FER

Warranty

All products are covered from date of purchase

by a two-year return to base warranty.

By return to base, we mean that the customer

is responsible for all costs of transport to and

from Artistic Licence.

Returns will not be accepted without prior

authorisation. In order to discuss a request to

return goods, please email:

Sales@ArtisticLicence.com

CE Compliance

Rail-Split extreme is CE compliant when

installed in a shielded and earthed metal

case

Compliance

All Products manufactured or sold by Artistic

Licence Engineering Ltd are fully compliant

with the appropriate CE, FCC, and RoHS

regulations. Product specic information is

available on request.

Waste Electrical & Electronic Equipment

(WEEE)

Artistic Licence is a member of a WEEE

compliance scheme and will happily recycle

any of our products that you, at your expense,

return to us.

Due to our policy of continuing product improvement

specications are subject to change without notice

Artistic Licence

The Mould Making Workshop

Soby Mews

Bovey Tracey

TQ13 9JG

United Kingdom

Telephone +44 (0) 20 8863 4515

Email: Sales@ArtisticLicence.com

Web: www.ArtisticLicence.com

Support@ArtisticLicence.com
