Asko DBI664IXXLSSOF Leitfaden

REVISED 10/2017

DESIGN GUIDE

Features and specications are subject to change at any

time without notice. Visit askona.com/specs for the most

up-to-date information.

IMPORTANT NOTE: Throughout this guide, dimensions may

vary by ± 1/8"(3). Dimensions in parentheses are millimeters

unless otherwise specied.

Contents

3Asko Dishwashers

4Specications

8Custom Panel

9Asko Washers | Dryers

11 Specications

19 Warranty

askona.com/specs

ASKO DISHWASHERS

DISHWASHER MODELS

INTEGRATED HANDLE

TUBULAR HANDLE

PANEL READY

OUTDOOR

DBI663IS

DBI663ISSOF

DBI664IXXLS

DBI664IXXLSSOF

DBI675IXXLS

DFI663

DFI663XXL

DFI664

DFI664XXL

DFI664XXLSOF

DFI675XXL

DBI663THS

DBI664THXXLS

D5956OUTDOORPH

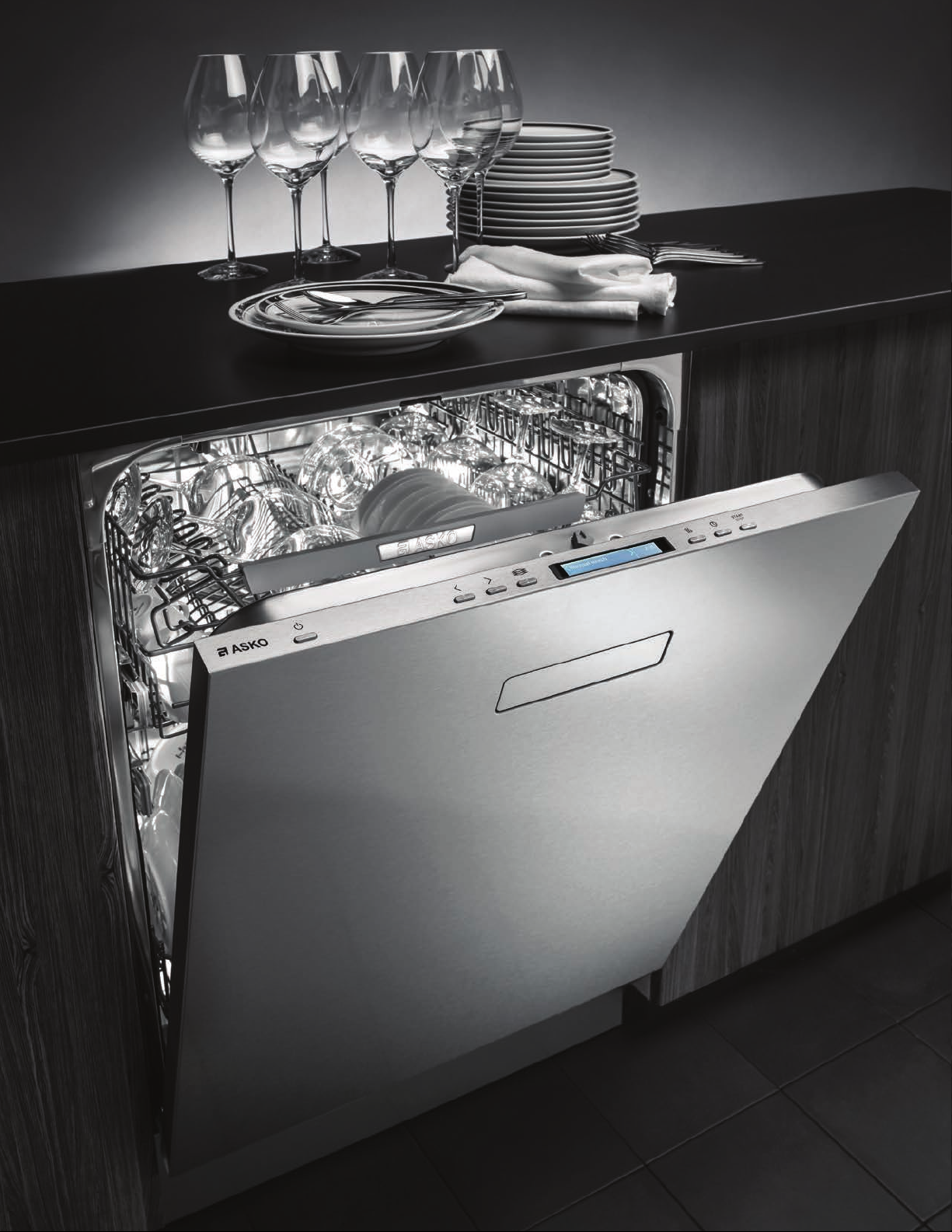

Asko Dishwashers

At Asko, we design and manufacture premium quality

dishwashers with a special Scandinavian touch for design

and function. Panel ready models accept a custom panel

and handle. Tubular and pro handle models match Sub-Zero

and Wolf products. Our products meet the highest demands

in performance and durability, as well as environmental

awareness.

PRO HANDLE

DBI663PHS

DBI664PHXXLS

DBI675THXXLS

DBI675PHXXLS

DOD651PHXXLS

Asko Customer Care 800.222.7820

ASKO DISHWASHERS

OPEN DOOR

237/8"(606)

4" (102)*

22" (559)

(51)

53/8"*

(137)

imension will vary with product height.

245/8"

(625)

Overall Dimensions

INTEGRATED HANDLE

HEIGHT H

Non-XXL Model 323/4"(832)* – 343/4"(883)

XXL Model 34" (864) – 353/4"(908)

*Can be reduced to 321/4"(819) by removing top trim and lowering side trim.

OPEN DOOR

237/8"(606) 23/8"

(60)

4" (102)*

22" (559)

(51)

53/8"*

(137)

*Dimension will vary with product height.

245/8"

(625)

TUBULAR | PRO HANDLE

HEIGHT H

Non-XXL Model 323/4"(832)* – 343/4"(883)

XXL Model 34" (864) – 353/4"(908)

*Can be reduced to 321/4"(819) by removing top trim and lowering side trim.

askona.com/specs

ASKO DISHWASHERS

Overall Dimensions

PANEL READY

235/8"(600)

OPEN DOOR

imension will vary with product height.

4" (102)*

245/8"

(625)

22" (559)

(51)

53/8"*

(137)

OPEN DOOR

245/8"(625) 23/8"

(60) 25" (635)

4" (102)*

47/8"

(124)

53/8"*

(137)

*Dimension will vary with product height.

245/8"

(625)

OUTDOOR

HEIGHT H

Outdoor Model 35" (889) – 353/4"(908)

HEIGHT H

Non-XXL Model 323/4"(832)* – 343/4"(883)

XXL Model 34" (864) – 353/4"(908)

*Can be reduced to 321/4"(819).

IMPORTANT NOTE: Overall dimensions for panel ready

models do not include panels or handles. Dimensions will

vary with panel thickness.

Asko Customer Care 800.222.7820

ASKO DISHWASHERS

OPENING WIDTH

OPENING

HEIGHT

OPENING

DEPTH

TOP VIEW

SIDE

VIEW FRONT VIEW

NOTE:

31/2"(89) finished returns will be visible and should be finished to match cabinetry.

31/2"(89)

FINISHED

RETURN

FRAMELESS CABINETRY

3/4"

(19)

TYPICAL

31/2"(89)

FINISHED

RETURN

FILLER

FRAMED CABINETRY

W W

Opening Dimensions

DISHWASHERS IMPORTANT NOTE: All indoor models can accommodate

varying opening widths, however, 24" (610) and 235/8"

(60 cm) are the two most common. A 235/8" (60 cm) opening

will provide minimum reveals.

OPENING WHD

Indoor Model 235/8"(600) 341/2"(876) 24" (610)

Outdoor Model 247/8"(632) 351/2"(902) 251/4"(641)

A minimum 31/2"(89) nished return is required on all sides

of the opening. Framed cabinets will require additional

nished ller material behind the face frame for a proper

installation. Refer to the illustration.

Indoor models include top and side trim to accommodate

varying opening dimensions. Top and side trim can be

removed to achieve minimum reveals.

For ADA installations and height restricted openings, all

indoor, non-XXL models can be installed in a 321/4"(819)

opening by removing top trim and lowering side trim.

askona.com/specs

Electrical

The electrical supply should be located in an adjacent

cabinet. If the supply cannot be located in an adjacent

cabinet, it must be located within the shaded area shown in

the illustration below. A separate circuit, servicing only this

appliance is required.

IMPORTANT NOTE: For the outdoor model, a ground fault

circuit interrupter (GFCI) is required to reduce the risk of

electrical shock. A GFCI is not recommended for use with

other models and may cause interruption of operation.

Installation must comply with all applicable electrical codes.

ELECTRICAL REQUIREMENTS

Electrical Supply 115 VAC, 60 Hz

Service 15 amp dedicated circuit

Receptacle 3-prong grounding-type

53/8"

(137)

OPENING

WIDTH

AREA EXTENDS 2" (51)

FORWARD ON FLOOR

Electrical supply location.

Plumbing

The water supply and drain should be located in an adjacent

cabinet. If they cannot be located in an adjacent cabinet,

they must be located within the shaded area shown in the

illustration below. The water supply line should be con-

nected to a hot or cold house supply with an easily acces-

sible shut-off valve between the supply and the unit.

Installation must comply with all applicable plumbing codes.

PLUMBING REQUIREMENTS

Water Connection 6' (1.8 m) PEX tubing with

3/8" NPT female connection

Pressure 4.2–140 psi (.3–9.7 bar)

ASKO DISHWASHERS

53/8"

(137)

OPENING

WIDTH

AREA EXTENDS 2" (51)

FORWARD ON FLOOR

Water supply and drain location.

Asko Customer Care 800.222.7820

ASKO DISHWASHERS

Custom Panel

PANEL READY

IMPORTANT NOTE: The size of the custom door panel is

directly related to the size of the opening.

The two most common dishwasher opening widths are

24" (610) and 235/8" (60 cm). For all other widths, the panel

should be 1/4"(6) less than the opening to achieve minimum

reveals. The minimum panel width is 233/8"(594).

The most common dishwasher opening height is 341/2"

(876). The panel dimensions in the chart below are based on

a 341/2"(876) opening, with a 4" (102) toe kick and 3/8"(10)

top reveal. For all other opening and toe kick heights, the

panel must be adjusted accordingly. The minimum panel

height is 28" (711). The minimum toe kick height is 4" (102).

Finish all sides of the custom panel. They may be visible

when the door is open.

PANEL DIMENSIONS W H

235/8" (60 cm) Opening 233/8"(594) 301/8"(765)

24" (610) Opening 233/4"(603) 301/8"(765)

PANEL REQUIREMENTS

Max Weight (including handle) 20 lb (9 kg)

Min Thickness 3/4"(19)

Panel dimensions.

ADA CUSTOM PANEL HEIGHT

The American with Disabilities Act limits the countertop

height to 34" (864). Differing countertop thickness will affect

the overall panel height.

Typical panel dimensions are based on a 321/2"(826)

opening height with a 4" (102) toe kick and 3/8"(10) top

reveal. The panel height cannot be less than 28" (711). Refer

to the chart below for typical panel dimensions.

PANEL DIMENSIONS (ADA) W H

235/8" (60 cm) Opening 233/8"(594) 281/8"(714)

24" (610) Opening 233/4"(603) 281/8"(714)

PANEL REQUIREMENTS

Max Weight (including handle) 20 lb (9 kg)

Min Thickness 3/4"(19)

Asko Customer Care 800.222.7820

WASHER MODELS

ASKO WASHERS | DRYERS

DRYER MODELS

Asko Washers | Dryers

Asko’s range of washers and dryers reect 60 years of

Swedish ingenuity and continuous innovation, designed

to balance performance and durability with environmental

considerations. They provide the best possible washing and

drying results, handling your clothes with care. No matter

what life throws at you, Asko has the perfect UltraCare

system to make short work of your laundry. From the high-

efciency family size to the supersized XL washers and

dryers, Asko has the right laundry system for any family,

large or small.

W6424W

W6424T

W8844XLW

T754W

T754T

T754CW

T884XLW

T884XLHPW
