SERVICEMANUAL

DISHWASHERS

DW20.1, DW20.2, DW20.3,

DW20.4, DW20.5, DW20.C

Contents

1. Introduction .............................................................................................................. 5

2. Technical data ........................................................................................................... 8

2.1 Technical information ....................................................................................... 8

2.2 Components and measured values ................................................................... 9

2.3 Connection diagram....................................................................................... 11

2.4 Functional description of components ............................................................. 12

3. Installation.............................................................................................................. 15

4. Settings................................................................................................................... 19

4.1 Programme .................................................................................................... 19

4.2 Time display................................................................................................... 20

4.3 Options.......................................................................................................... 20

4.4 Water level DW20 .......................................................................................... 31

5. Service menu.......................................................................................................... 32

5.1 Activation of service menu ............................................................................. 32

5.2 Programme flow description .......................................................................... 36

6. Troubleshooting ...................................................................................................... 40

6.1 Most common faults ....................................................................................... 40

6.2 Fault indication .............................................................................................. 42

6.3 Fault codes..................................................................................................... 43

7. Tools....................................................................................................................... 44

7.1 Tools .............................................................................................................. 44

7.2 Special tools................................................................................................... 44

Register ...................................................................................................................... 45

1. Introduction

In your hand you are holding ASKO’s Service Manual for the new generation of dishwashers.

The dishwashers in the DW20 range are available in four different basic models with the type designations

DW20.1, DW20.2, DW20.3, DW20.4, DW20.5 and DW20.C. Presented on the following page are the

different panels available for each type, which lets you readily identify the machine type. The different

variants have different designations from market to market. The type designation is most important when

you need to identify a particular type of machine.

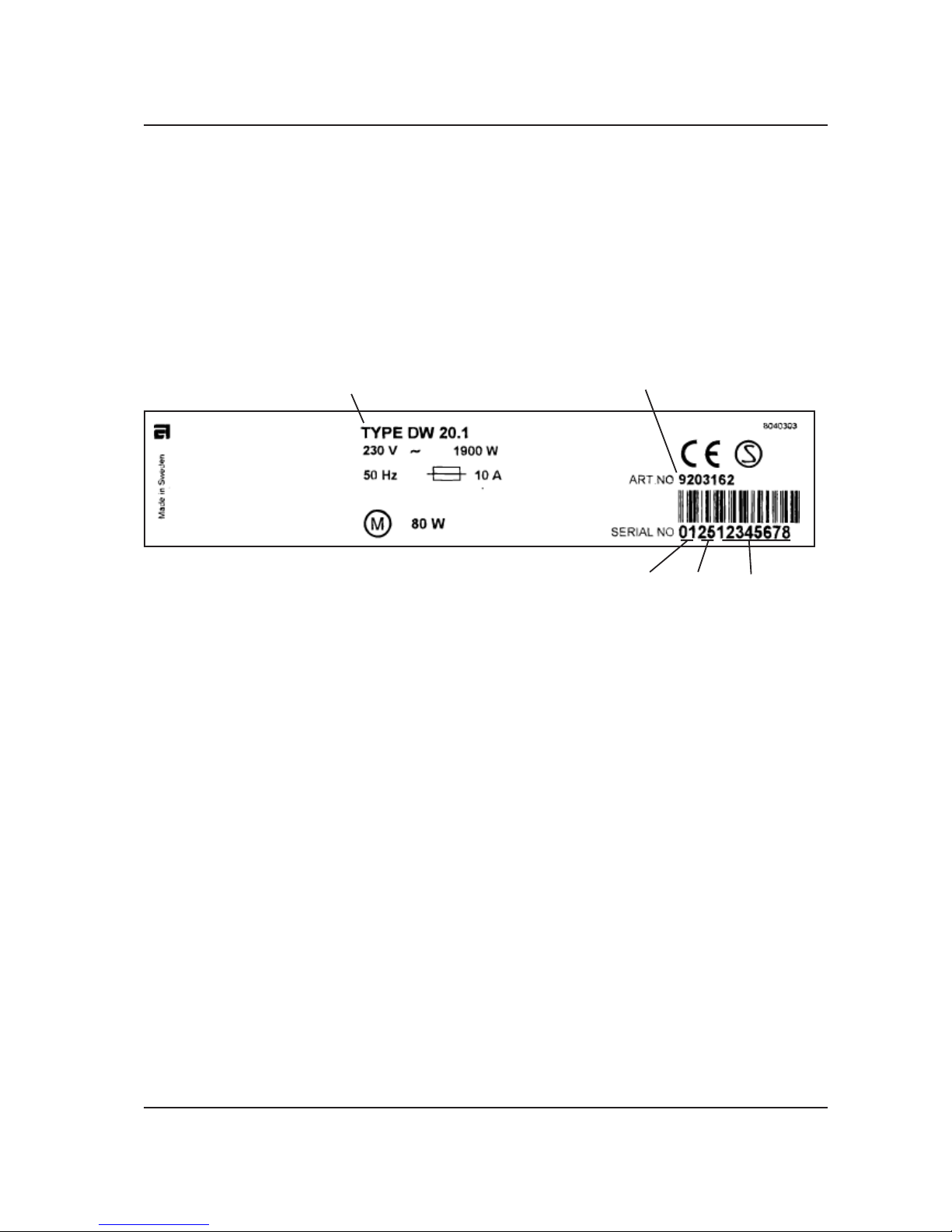

You can find this on the machine rating plate positioned on the right-hand side of the inner part of the door.

It must be easy to carry out servicing on dishwashers. It is important for you, as a service technician, to

benefit from the conditions necessary to enable you to work in an effective and satisfactory fashion. We

hope that this Service Manual will be a useful tool in your daily work.

Asko Cylinda AB/After Sales

Box 344

SE-532 24 Skara

Sweden

INTRODUCTIONINTRODUCTION

INTRODUCTION

Type designation Item number

Serial number

Year Week

DW20.3

The buttons are on the top side of the control unit in the DW20.3. The unit has six set programmes and is

available in two models - with three or five options.

DW20.2

DW20.2 is a control unit with a large display on the front of the panel. It has six set programmes and none

or three or five options.

DW20.4

DW20.4 is a control unit with ten set programmes, a number of different options and with a single display

(LCD) on the top side of the panel.

DW20.1

DW20.1 is available in three variants, either with none, one or with two options.All have four set

programmes and operating controls on the front of the panel.

INTRODUCTIONINTRODUCTION

INTRODUCTION

The DW20.3 and DW20.4 control units are used both for fully integrated and standard models. The other

control units are used only on standard models.

DW20.5

DW20.5is acontrol modulewith displayonthe frontof thepanel. Ithas fivefixedprogramsand

betweenthree andfive options.

STARTSTART

STOPSTOP

PROGPROG

DW20.C

DW20.C is a control unit with a large display on the front of the panel. It has six set programmes and

none or three or five options.

INTRODUCTIONINTRODUCTION

INTRODUCTION

2.1 Technical information

Height: 820 - 870 mm = for 820 mm machines,

(860 - 870 mm) = for 860 mm machines

Width: 596mm

Depth: 570mm

Weight: 42 kg/45 kg with water softener

Capacity*: 12 place settings

Water pressure: 0.03–1.0 MPa (0.3–10 kp/cm2)

Connection: 1-phase, 230 V, 50 Hz 10 A**

Max connection power: 1 900 W**

*According to standard EN 50242

**See rating plate

2. Technical data

TECHNICAL DATECHNICAL DA

TECHNICAL DATT

TAA

TECHNICAL DATECHNICAL DA

TECHNICAL DATT

TAA

2.2 Components and measured values

Indicated resistance values apply at room temperature (ca. 20°C/68°F)

Values within ±10% are regarded as normal

Item No. Component Measured value Position

8073779 Radio interference suppression filter 680 kohm

8073780,81 Radio interference suppression filter 1 Mohm

8073784 Heating element 1800 W 230 V 30 ohm

8073785 Heating element 1200 W 120 V 12 ohm

8073788 Thermistor 25 kohm

8073801,02 Combined dispenser 230 V 1.3 kohm

8073803,04 Combined dispenser 120 V 0.3 kohm

8073811 Circulation pump 200-240 V 50 HZ 90 ohm

8073812 Circulation pump 200-220 V 60 HZ 56 ohm

8073813 Circulation pump 120 V 60 HZ 22 ohm

8073816 Drain pump 200-240 V 50 HZ, 16 l/m 150 ohm

8073817 Drain pump 200-220 V 60 HZ, 16 l/m 85 ohm

8073818 Drain pump 120V 60 HZ, 16 l/m 25 ohm

8073821 Spray arm divider 200-240 V 50/60 HZ 8,5 kohm 2-3

8073822 Spray arm divider 120 V 60 HZ 2.6 kohm 2-3

8073824 Inlet valve single incl. flow sensor 200-240 V, 4 l/m 3.8 kohm coil

8073825 Inlet valve single incl. flow sensor 120 V, 4 l/m 0.95 kohm ”

8073826 Inlet valve safety incl. flow sensor 200-240 V, 4 l/m 2 kohm ”

8073827 Inlet valve safety incl. flow sensor 120 V, 4 l/m 0.5 kohm ”

8074337 Inlet valve water soft incl. flow sensor 200-240 V, 4 l/m 3.8 kohm ”

8074338 Inlet valve water softener incl. flow sensor 120 V, 4 l/m 0.95 kohm ”

8073830 Halogen lamp 5 W/12 V <10 kohm

8052778 Wax motor 1.1 kohm

8073847 Fan motor 230 V 0.75 kohm

8073848 Fan motor 120 V 0.18 kohm

8081321 Heavy soil sensor

Item No. Component Item No.

8801260 Control unit Compl., DW20.1 EU

8801285 Control unit Compl., DW20.1 AU

8801286 Control unit Compl., DW20.1 USA

8801261 Control unit Compl., DW20.2 EU

8801279 Control unit Compl., DW20.2 AU

8801280 Control unit Compl., DW20.2 USA

8801272 Control unit Compl., DW20.3 EU

8801281 Control unit Compl., DW20.3 AU

8801282 Control unit Compl., DW20.3 USA

8801273 Control unit Compl., DW20.4 EU

8801283 Control unit Compl., DW20.4 AU

8801284 Control unit Compl., DW20.4 USA

8801320 Control unit Compl., DW20.5 EU

8801340 Control unit Compl., DW20.5 USA

8801341 Control unit Compl., DW20.5 AU

8801249 Control unit Compl., DW20.C EU/AU/USA

TECHNICAL DATECHNICAL DA

TECHNICAL DATT

TAA
