Asko DC7784HP.W.AU Bedienungsanleitung

Drying cabinet

DC7784HP.W.AU

USER MANUAL

Please read the user manual before using the appliance.

859149au_en.indd 1859149au_en.indd 1 17. 02. 2022 08:50:2517. 02. 2022 08:50:25

Dear ASKO customer,

Congratulations on making an excellent choice, and welcome to the ASKO

family, a global family with its roots in Scandinavia.

We at ASKO thank you for your trust and hope that you will enjoy using

your new drying cabinet.

A good drying cabinet should be well designed, dry clothes well, have a low

environmental impact, be user-friendly, save time and energy, have a long service life and

be reliable. ASKO oers you all these features.

When you buy an ASKO product you can be sure that the inside is just as

good as the outside and that the ethics and morality that go into building this

product are just as high as the quality and function you are getting. at’s what

Scandinavian quality is all about.

Before using the product for the rst time, please read the user instructions and the advice

on caring for the product. is will help you get the best possible results from your product

and all its functions.

If you have any questions, do not hesitate to call us or to contact us through

our website.

Best wishes from the ASKO team.

859149au_en.indd 2859149au_en.indd 2 17. 02. 2022 08:50:4417. 02. 2022 08:50:44

CONTENTS

THIS USER MANUAL 4

IMPORTANT SAFETY

INFORMATION 5

FOR A GOOD ENVIRONMENT 7

Packaging materials 7

Management of end-of-life drying

cabinet 7

DESCRIPTION OF THE DRYING

CABINET 8

Air ﬂow in the cabinet 9

CONTROL PANEL 10

Button function 10

Display 10

Language setting 11

PLACEMENT 12

UNPACKING 13

Assembly kit 13

CONDENSATION WATER 14

Detachable water tank 14

Connection to ﬂoor drain 15

Reconnection to water tank 16

INSTALLATION 17

Positioning and Securing to the wall 17

Electrical connection 18

START-UP 19

OPERATION 20

User tips 21

Drying programs 22

Selection of drying program 22

Child lock 22

Starting drying program 23

Ending drying program 24

Door opened 24

OPTIMISING THE DRYING

PROGRAM 25

Introduction 25

Procedure 26

Return to operating mode 26

Parameter list 27

Restoring to factory setting 27

CARE 28

Cleaning 28

Replacement part 28

Service 29

TROUBLESHOOTING 30

LIST OF ERROR CODES 32

TECHNICAL DATA 33

859149au_en.indd 3859149au_en.indd 3 17. 02. 2022 08:50:4417. 02. 2022 08:50:44

THIS USER MANUAL

The contents of this user manual describe function, operation and optimisation

of drying programs, as well as instructions for installation and maintenance.

Alongside the ‘User Manual’ there is a ‘Service Manual’.

859149au_en.indd 4859149au_en.indd 4 17. 02. 2022 08:50:4417. 02. 2022 08:50:44

IMPORTANT SAFETY INFORMATION

This drying cabinet meets applicable safety requirements. Incorrect

use may, however, lead to injuries and damage to objects.

The advice and caution notices in this manual have been written

to enable you to avoid incorrect use and unnecessary risks of

accidents, and should be read before installing and using the drying

cabinet.

CAUTION: This appliance is intended only to be used to dry textiles

washed in water.

Applicable to installation in the EU

The drying cabinet can be used by children over the

age of 8 and persons (including children) with various

disabilities or inadequate experience and knowledge,

provided they are kept under supervision or are given

instructions on how to use the appliance in a safe way

and understand the risks that use entails.

Children must not play with the appliance.

Applicable to installation in countries outside the EU

This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person

responsible for their safety.

Children must be supervised to ensure that they do not

play with the appliance.

859149au_en.indd 5859149au_en.indd 5 17. 02. 2022 08:50:4417. 02. 2022 08:50:44

Applicable to all installation

The drying cabinet must be installed and kept indoors.

If the power cord is damaged, it must be immediately re-

placed, and this must be done only by the manufacturer,

the manufacturer’s service agent or similarly qualiﬁed

persons in order to prevent danger.

Follow ASKO instructions in repair and replacement of

parts.

859149au_en.indd 6859149au_en.indd 6 17. 02. 2022 08:50:4417. 02. 2022 08:50:44

FOR A GOOD ENVIRONMENT

PACKAGING MATERIALS

The packaging that protects the drying

cabinet against damage in transit has

been chosen with concern for the

environment in mind and is therefore

recyclable.

Packaging that is returned to the

material cycle means reduced

consumption of raw materials and a

smaller volume of waste.

MANAGEMENT OF END-OF-

LIFE DRYING CABINET

When the drying cabinet has reached

the end of its useful life, it must be

taken to a recycling centre for disposal.

Many parts of the drying cabinet

can be re-used, but it also contains

other materials that must be handled

correctly. You should therefore never

leave the drying cabinet or parts of the

cabinet for collection with household

waste, as this may lead to risks to health

and cause damage to the environment.

The end-of-life drying cabinet should

instead be taken to a recycling centre.

Check with your dealer if necessary.

All the plastic parts of the drying

cabinet are marked with internationally

standardised symbols. The parts of

the drying cabinet can therefore be

recycled in an environmentally sound

manner by waste separation.

859149au_en.indd 7859149au_en.indd 7 17. 02. 2022 08:50:4417. 02. 2022 08:50:44

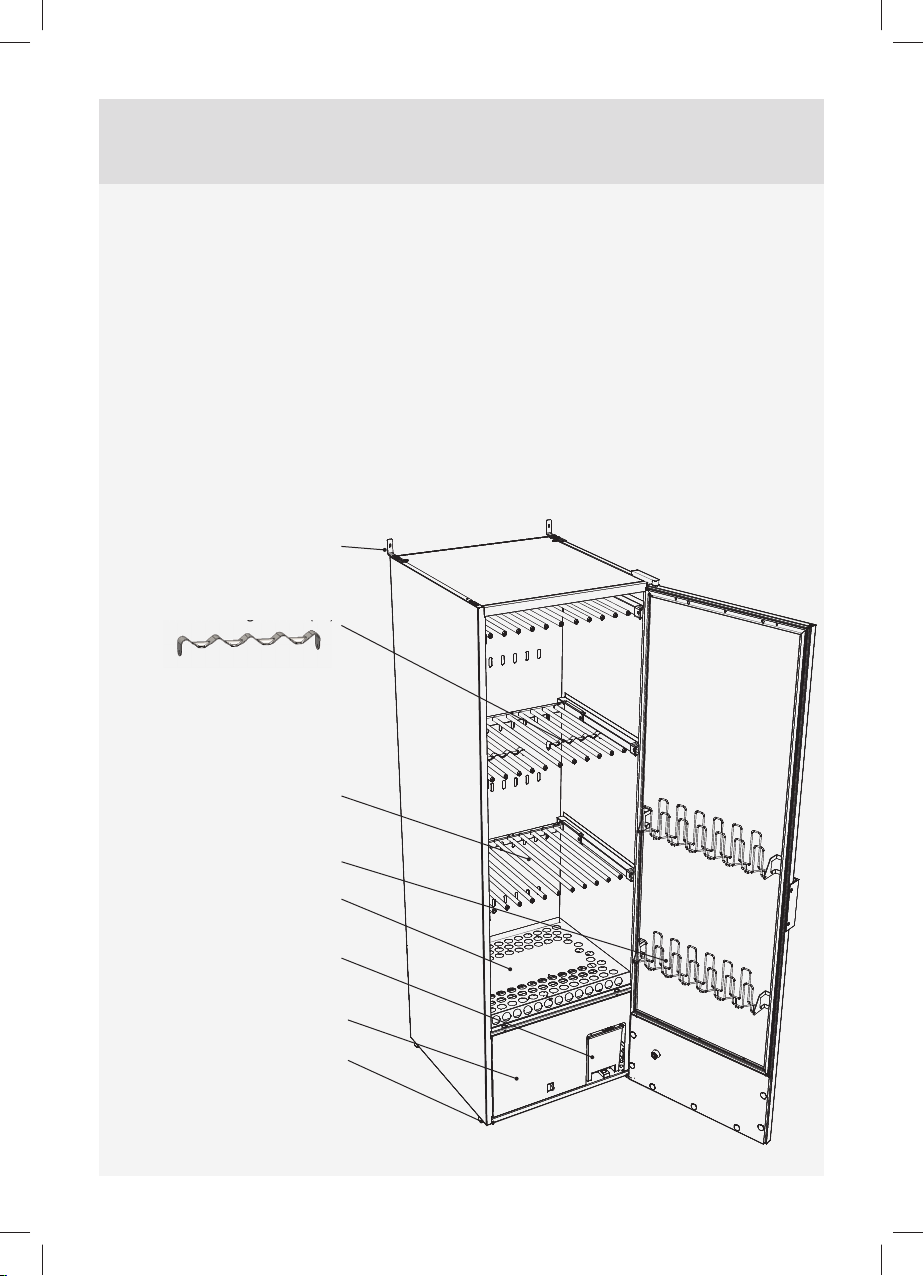

DESCRIPTION OF THE DRYING CABINET

The ASKO DC7784HP drying cabinet

operates according to the heat pump

principle with a dehumidiﬁer instead of

a conventional hot-air unit. As a result,

the washing is dried at lower heat

and with substantially lower energy

consumption.

The cabinet is a completely enclosed

system. No exhaust-air connection is

required. The moisture is condensed

during the drying cycle. It is stored in

the detachable water tank. There is an

option to route the water externally to a

drain (See Page 15)

In addition, the fan is so powerful that

it causes the items of clothing to ﬂutter,

making the drying process even more

eﬃcient.

Wall mount

Clothes hanger rack (2x)

Extendible hanger

sections (3x)

Door hangers

Detachable shoe rack

Tank for condensation

water

Dehumidiﬁer

Adjustable feet (4x)

g()

859149au_en.indd 8859149au_en.indd 8 17. 02. 2022 08:50:4417. 02. 2022 08:50:44

PLEASE NOTE

Make sure that shoes and similar

items do not block the airﬂow.

AIR FLOW IN THE CABINET

Air return after dehumidiﬁcation

Enters a duct in the back of the

drying cabinet

Air intake in 6

rows of holes

Cleaning ﬁlter

below the shoe

rack

Dehumidiﬁer

859149au_en.indd 9859149au_en.indd 9 17. 02. 2022 08:50:5317. 02. 2022 08:50:53

CONTROL PANEL

DISPLAY

The display has two rows with 6

characters on each row. During the drying

process the selected drying program and

a rolling bar indicating that the process is

in progress are shown.

ON / OFF

OK/START/STOP

UP ARROW

DOWN ARROW

BUTTON FUNCTION

ON-OFF

The display is lit and shows the last program used.

OK/START/STOP

Conﬁrms selection of program, functions and settings.

If the setting ﬂashes, it must be conﬁrmed or changed using the ARROW keys

and/or OK. The drying process starts.

UP ARROW / DOWN ARROW

These are navigation keys to step through lists and information texts.

If UP and DOWN are pressed simultaneously when ON-OFF is turned oﬀ,

PROGRAMMING MODE opens when ON-OFF is pressed.

To return to operating mode, press DOWN ARROW and then OK.

859149au_en.indd 10859149au_en.indd 10 17. 02. 2022 08:51:1317. 02. 2022 08:51:13
