Operation

Interior Texture Sprayers

Zip-Tex™900

For Water-Based Materials Only

Models:

254983

60 psi (4.2 bar) Maximum Fluid Working Pressure

Related Manuals

Important Safety Instructions.

Read all warnings and instructions in this

manual. Save these instructions.

311969

311774

Model 254983 Shown

ti9993a

Conforms to ANSI/UL

standard 1450

Warnings

2311766B

Warnings

The following are general warnings related to the setup, use, grounding, maintenance and repair of this equipment.

Additional, more specific warnings may be found throughout the body of this manual where applicable. Symbols

appearing in the body of the manual refer to these general warnings. When these symbols appear through the

manual, refer back to these pages for a description of the specific hazard.

Warnings

Fire and Explosion Hazard

Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and result

in fire or explosion and serious injury.

• The system is for use with water-based materials only. Only use fluids compatible with the

equipment. Refer to Technical Data of all equipment manuals. Read fluid and solvent manufacturers

warnings.

• Ground the equipment. See Grounding and Electrical Requirements, page 6.

• If there is any static sparking or you feel an electric shock while using this equipment, stop spraying

immediately. Do not use the equipment until you identify and correct the problem.

• Keep work area free of debris, including solvent, rags and gasoline.

• Comply with all applicable state and national fire, electrical and safety regulations.

Equipment Misuse Hazard

Equipment misuse can cause equipment to rupture, malfunction, or start unexpectedly and cause serious

injury.

• Before operating this equipment, read all manuals, tags, and labels including material labels and

instructions.

• Do not expose system to rain. Always store system indoors.

• Do not alter or modify equipment.

• Do not spray cementitious materials.

• Do not exceed maximum working pressure of lowest rated component in your system.

• Check equipment daily. Repair or replace worn or damaged parts immediately.

• To reduce risk of serious injury, including electric shock and splashing fluid in eyes, follow Pressure

Relief Procedure on page 6 before servicing the unit.

• Do not use hoses to pull equipment.

• Route hoses away from traffic areas, sharp edges, moving parts and hot surfaces.

• Do not expose hoses to temperatures above 130 °F (55 °C) or below -35 °F (-37 °C). Store hazard-

ous fluid in an approved container. Dispose of hazardous fluid according to all local, state and

national guidelines.

• Never directly inhale compressed air. Compressed air may contain toxic vapors.

Warnings

311766B 3

Electric Shock Hazard

To reduce the risk of electric shock:

• Be sure sprayer is adequately grounded through electrical outlet.

• Use only 3-wire, extension cords.

• Make sure ground prongs are intact on sprayer and extension cords. Improper installation of ground-

ing plug will result in a risk of electrical shock, fire or explosion that could cause serious injury or

death.

• Do not operate with cover removed.

• Turn off sprayer. Follow Pressure Relief Procedure, page 6, and unplug unit, before removing any

parts.

Pressurized Equipment Hazard

Fluid from gun, leaks or ruptured components can splash in the eyes or on skin and cause serious injury.

• Follow Pressure Relief Procedure, page 6 when you stop spraying and before cleaning, checking

or servicing.

• Do not point spray gun at anyone; put hand, fingers or rag over nozzle, or stop or deflect leaks with

your hand, body, glove, or rag.

• Wear protective clothing, gloves, and eyewear.

Cleaning Solvent Hazard with Plastic Parts

Use only compatible water-based solvents to clean plastic structural or pressure-containing parts. Many

solvents can degrade plastic parts to the point where they could fail. Such failure could cause serious

injury or property damage. See Technical Data on page 16 of this instruction manual and in all other

equipment manuals. Read fluid and solvent manufacturer’s warnings.

Burn Hazard

Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe burns,

do not touch hot fluid or equipment. Wait until equipment/fluid has cooled completely.

Personal Protective Equipment

You must wear appropriate protective equipment when operating, servicing, or when in the operating

area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic

fumes, burns, and hearing loss. This equipment includes but is not limited to:

• Protective eyewear

• Clothing and respirator as recommended by the fluid and solvent manufacturer

•Gloves

• Hearing Protection

Warnings

4311766B

CAUTION

• Water or material remaining in unit when temperatures are below freezing can damage

motor and/or delay pump startup. Do not allow unit to freeze.

• Before adding material or starting unit in cold weather, run warm water through pump.

To ensure water and material are completely drained out of unit:

1. Remove material line from sprayer.

2. Tip sprayer up as shown.

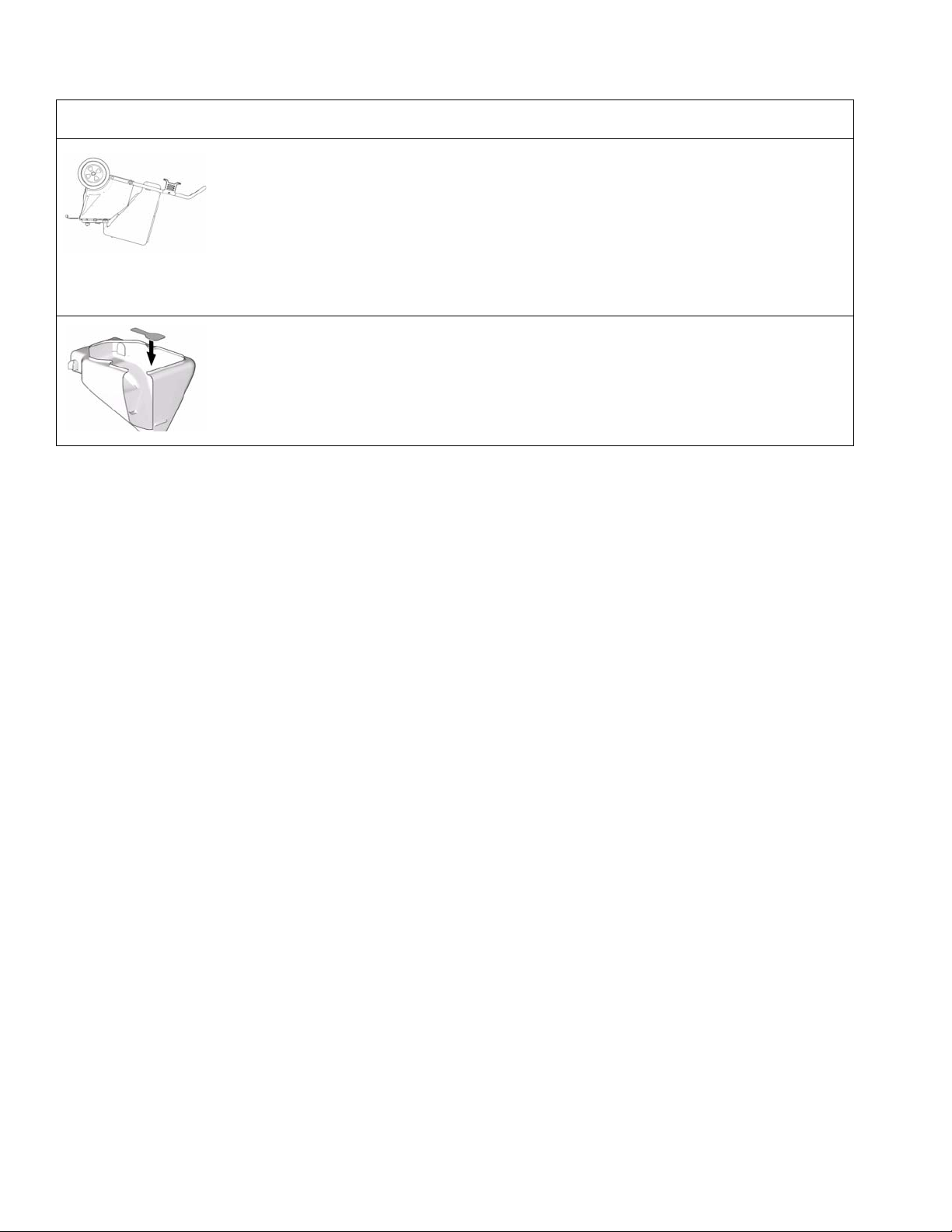

Before adding material to the hopper, install the burp guard. When only a small amount of

material remains in the hopper, the burp guard prevents material from shooting out when the

unit is turned off. This material could splash in the operator’s eyes or on skin, or into the air.

ti8713a

ti8703a

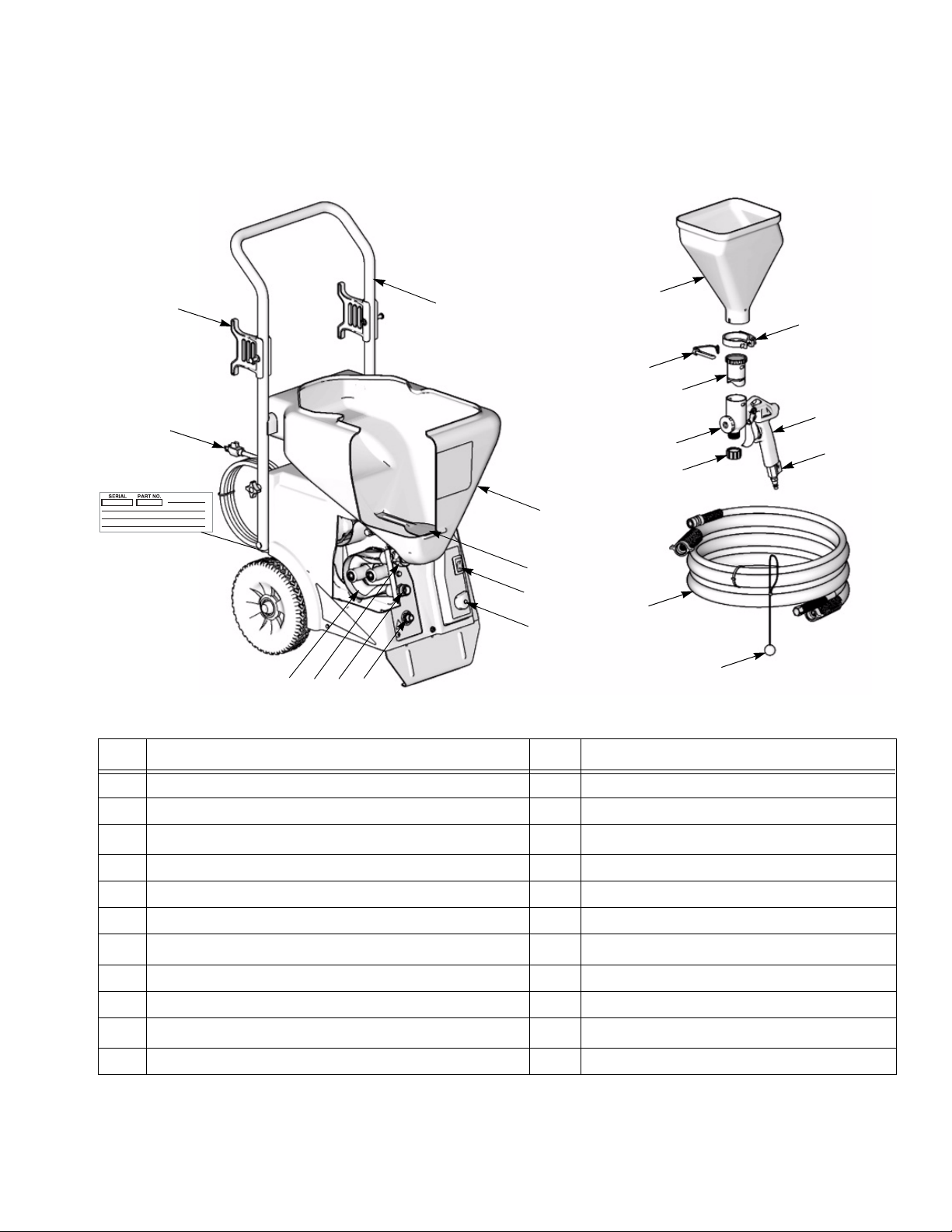

Component Identification

311766B 5

Component Identification

Gti9995a

Item Component Item Component

A Hose Rack/Cord Wrap M Touch-Up Hopper (3/4 Gallon)

B Power Cord N Gun Plug Clip

CRotoFlex™II Pump (inside) PGunPlug

D Hopper Fitting (fluid inlet) Q Nozzle (Nozzle Selection, page 11)

E Material Hose Outlet R Hose Plug

F Air Hose Outlet S Material/Air Hose

GZip-Tex™900 - Hopper Gun/Spray Selector Switch U Material Thickness Gauge

H ON/OFF Switch V Gun Air Flow Control Valve

J Burp Guard W Texture Spray Gun (manual 311969)

KZip-Tex™900 - Material Hopper, 8 Gallon Z Hopper Clamp

L Handle

Preparation

6311766B

Preparation

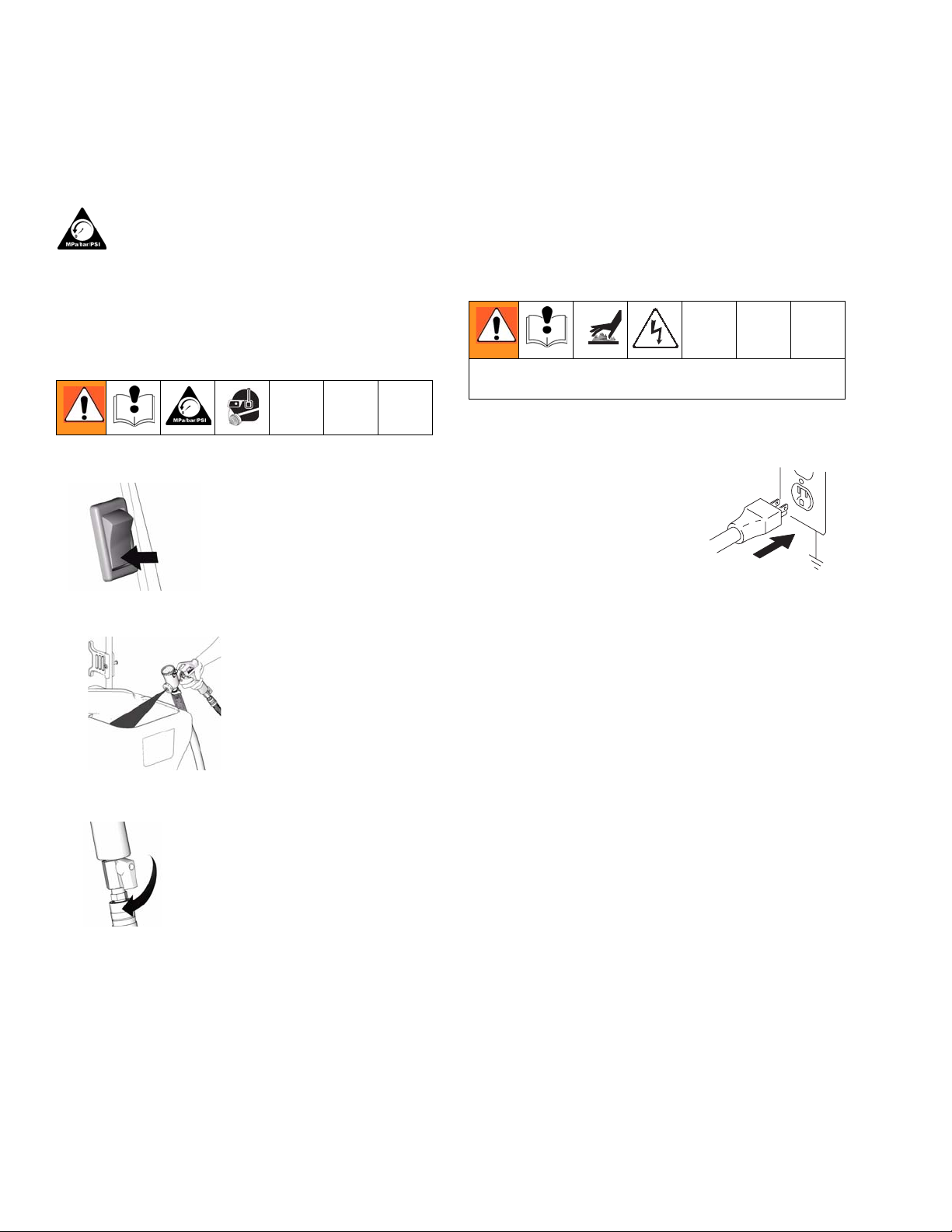

Pressure Relief Procedure

To reduce risk of injury, follow this procedure

whenever you see this symbol throughout this

manual, Also, perform this procedure whenever

you:

• Stop spraying

• Check or repair any part of this system

• Install or clean spray nozzle

1. Turn Power Switch OFF.

2. Trigger gun into material hopper.

3. Open gun air valve.

Grounding and Electrical Requirements

This sprayer must be grounded. Grounding reduces the

risk of electrical shock by providing an escape wire for

the electrical current. The sprayer cord includes a

grounding wire with an appropriate grounding plug. The

plug must be plugged into an outlet that is properly

installed and grounded in accordance with all local

codes and ordinances.

Check with a qualified electrician or serviceman if

grounding instructions are not completely understood,

or if in doubt as to whether the product is properly

grounded. Do not modify plug provided; if it will not fit

the outlet, have proper outlet installed by a qualified

electrician.

120V AC Systems

• This equipment requires a

120V AC, 60 Hz, 15A circuit

with a grounding receptacle.

Do not use an adapter with

this product.

Extension Cords

• Use only an extension cord with an undamaged,

3-prong plug.

• For 25 to 50 ft (7.6 to 15.2 m) cords, use 3-wire, 14

AWG (1.5 mm2) minimum.

• For up to 100 ft. (30.48 m) cord, use 3-wire, 12 AWG

(2.5 mm2) minimum.

Auxiliary Air Compressor

Do not use an auxiliary air compressor with this spray

system.

Generator Requirements

3500 W (3.5 kW) minimum.

Hose Size and Length

The system comes with a hose set consisting of a 3/4 in.

ID x 25 ft (25 mm x 7.6 m) material hose and a 3/8 in-ID

air hose.

Do not use more than 25 ft (7.6 m) of material hose.

ti8712a

ti8710a

ti8528a

Air hose fittings can get hot! Allow sprayer to cool

down 15 minutes before removing air hose.

ti2810a

Setup

311766B 7

Setup

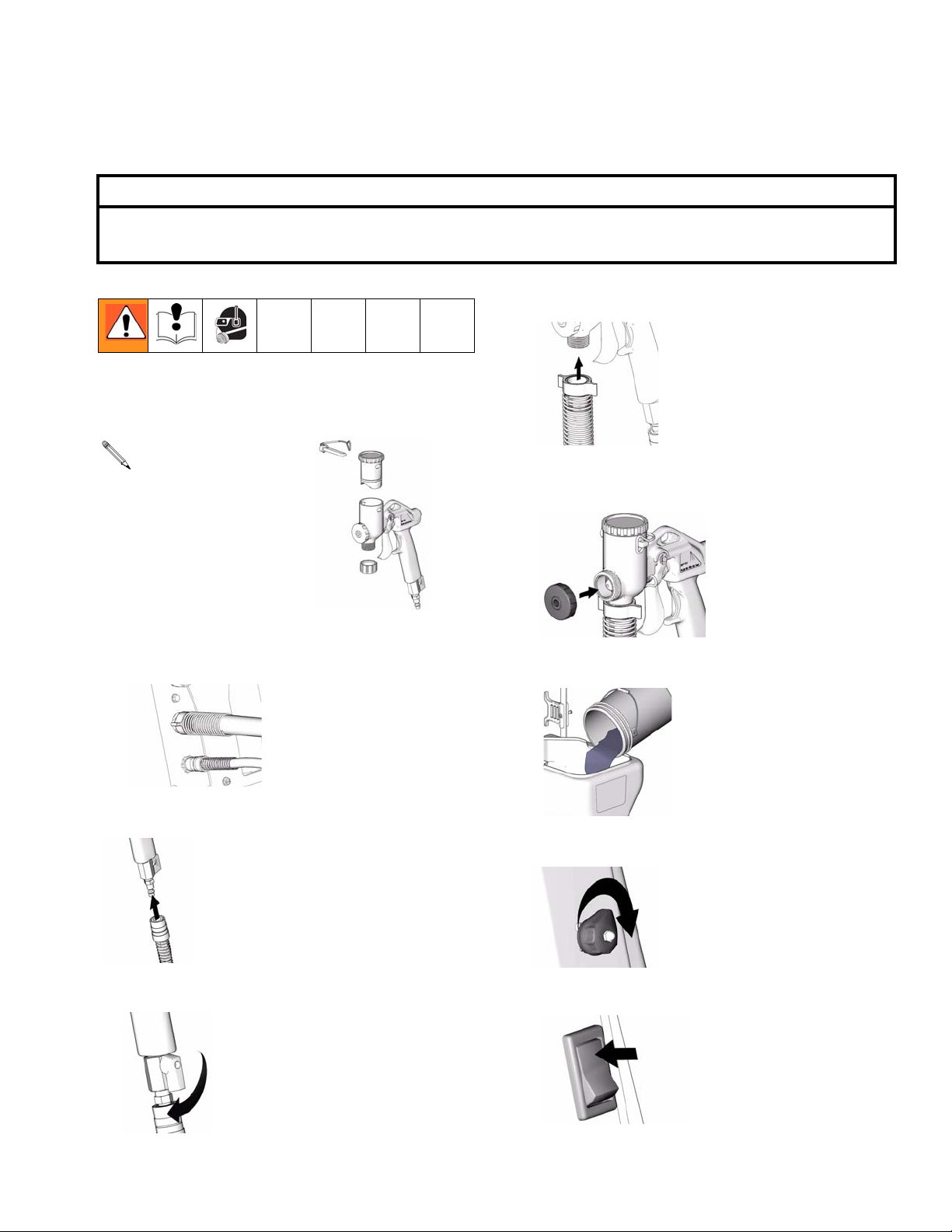

Texture Spraying (material supplied from

unit)

1. Connect air hose and material hose to sprayer air

and material hose outlets.

2. Connect air hose to gun.

3. Open air valve.

4. Connect material hose to gun.

5. Install spray nozzle. See Recommended Nozzle

Selection Chart, Page 11.

6. Fill material hopper with 1 gallon of water.

7. Turn selector knob to SPRAYER.

8. Turn power switch ON.

Important

• To increase pump life, turn power off when not spraying.

• Do not allow material to dry inside pump, hoses, gun or spray system.

When using material

supplied from unit,

insert the Gun Plug in

the top of the gun.

Hose plug must be

removed from bottom

of gun.

ti8701a

ti8698a

ti8534a

ti8528a

ti8705a

ti8706a

ti8700a

ti8729a

ti8711a

Setup

8311766B

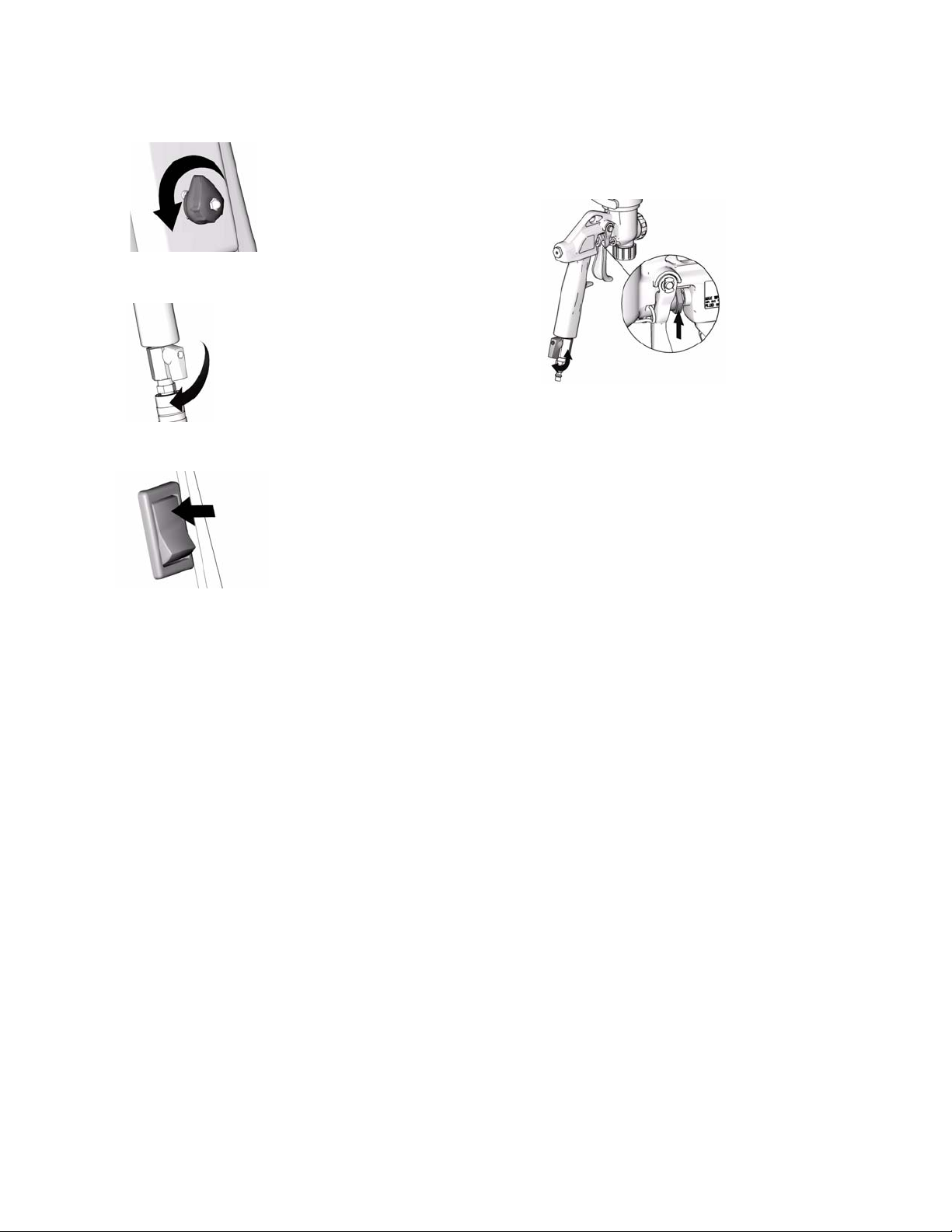

9. Close gun air valve.

10. Point gun into waste bucket and pull trigger to pump

water through the system. Continue to trigger gun

until material hopper is empty.

11. Make sure burp guard is installed, Caution, page 3.

12. Add pre-mixed texture mix to material hopper. See

Mixing Material, page 10.

13. Continue to trigger gun and spray into waste bucket

until a steady stream of material sprays out of gun.

14. Release trigger. To achieve uniform spray pattern,

adjust air valve and flow adjustment nut on gun. If

you do not achieve the desired pattern, change noz-

zles, page 11.

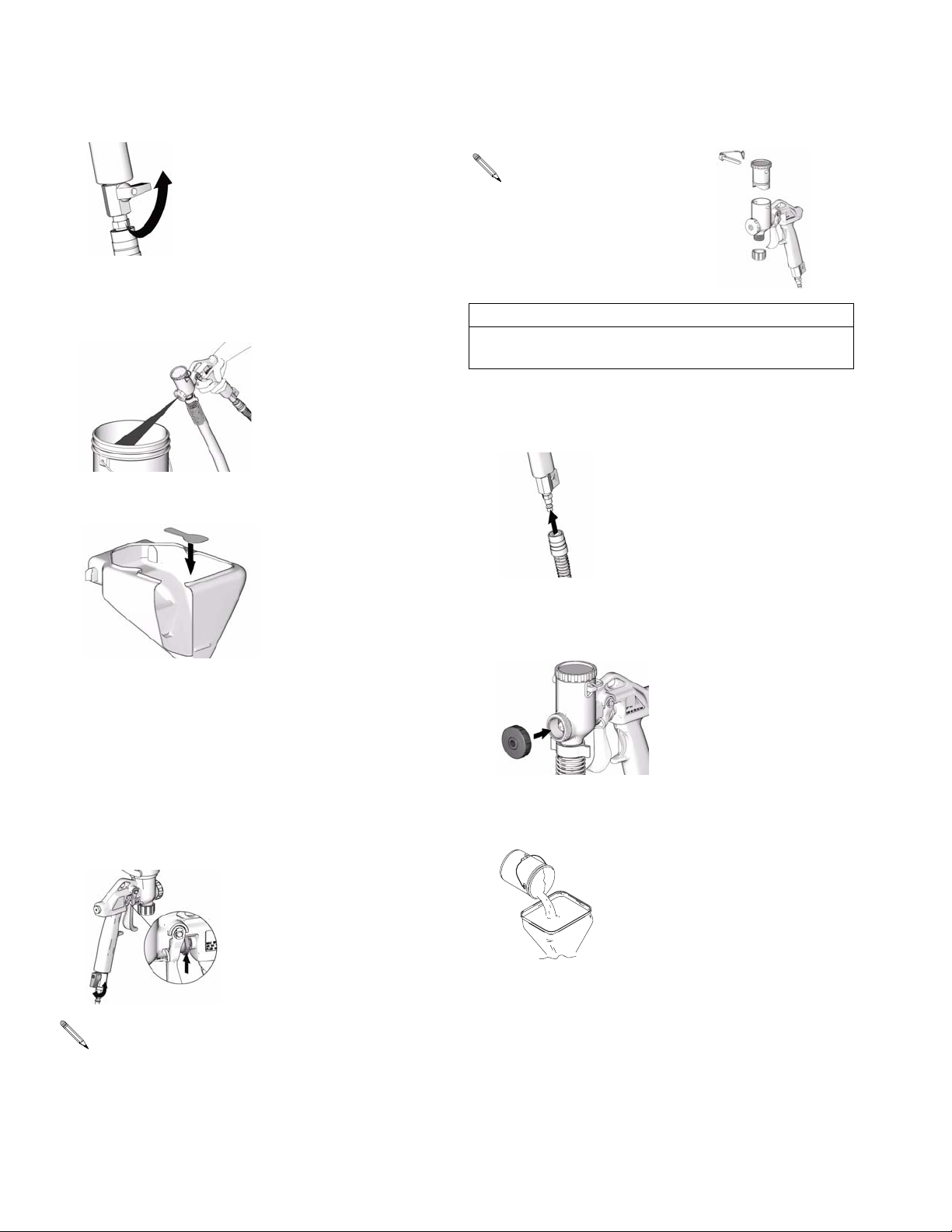

Touch Up Hopper Attachment

1. Connect air hose to sprayer.

2. Connect air hose to gun.

3. Slide hopper on top of gun, and tighten clamp.

4. Install spray nozzle, page 11.

5. Fill Touch-up hopper with pre-mixed texture. See

Mixing Material, page 10.

Fluid flow will be restricted if the material hose is

kinked.

ti8712a

ti9274a

ti8703a

ti9996a

The Hose Plug must be

securely fastened to bottom

of gun when using the Touch

Up Hopper. Gun plug must

be removed from top of gun.

CAUTION

Failure to change selector switch to Hopper Gun when

using hopper gun will damage pump hose.

ti8701a

ti8534a

ti8706a

ti2559a

Setup

311766B 9

6. Turn selector knob to HOPPER GUN.

7. Open gun air valve.

8. Turn power switch ON.

9. To achieve uniform spray pattern, adjust air valve

and flow adjustment nut on gun. If you do not

achieve the desired spray pattern, change nozzles

(see page 11).

ti8728a

ti8528a

ti8711a

ti9996a

Mixing Material

10 311766B

Mixing Material

Dry Mix - 40 lb (18 kg) bag

1. Carefully mix texture material and water according

to manufacturer instructions on bag.

2. Agitate to mix, using a half-inch, variable speed drill

with mixing paddle, to a smooth, lump-free consis-

tency.

3. Allow ceiling texture to set for at least 15 minutes.

Then remix prior to use.

4. After texture material is thoroughly mixed, gently set

ball end of Material Thickness Gauge on surface of

mixture.

5. Observe the ball on the material. When the material

is thin enough to spray the ball will sink completely

into the mixture.

6. If the ball does not sink completely into the mixture

within 10 seconds, add more water, agitate and try

test again.

Premix

1. Slowly add approximately 2 to 4 qts (1.9 to 3.8 liters)

of water to a 5 gallon (18.9 liter) bucket of premix.

2. Agitate to mix, using a half-inch, variable speed drill

with a mixing paddle, to a smooth, lump-free consis-

tency.

3. After texture material is thoroughly mixed, gently set

ball end of Material Thickness Gauge on surface of

mixture.

4. Observe the ball in material. When the material is

thin enough to spray the ball will sink completely into

the mixture.

5. If the ball does not sink completely into the mixture

within 10 seconds, add more water, agitate and try

test again.

Correct material mixture is essential. The pump

will not operate if the mixture is too thick.

Mix the material in a separate container before

pouring it into hopper.

Use Material Thickness Gauge to determine mix-

ture is thin enough to spray.

*The Material Thickness Gauge will only deter-

mine if the material is thin enough to pass through

the pump. For some applications or for higher

speed spraying, your mixture may need to be thin-

ner.

For best results do not use partial bags of mate-

rial.

For an accurate test, be sure gauge is completely

dry and clean every time it is used.

TI

ti2496a

ti2497a

For an accurate test, be sure gauge is completely

dry and clean every time it is used.

ADD WATER

READY

ti2498a

ti2493a

ADD WATER

READY

ti2498a

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ASM Spritzpistole Handbücher

ASM

ASM Zip-Spray 2100 Plus Hi-Boy Bedienungsanleitung

ASM

ASM Zip-Spray 1900 Plus Einrichtungshandbuch

ASM

ASM Zip-Spray-n-Roll B Series Gebrauchs- und Pflegehandbuch

ASM

ASM 249458 Bedienungsanleitung

ASM

ASM Zip-Spray 1900 Plus Bedienungsanleitung

ASM

ASM AllPro Mach 8600 Plus Bedienungsanleitung

ASM

ASM Zip-Spray 2300 Plus 110V Gebrauchs- und Pflegehandbuch

$ASM Zip-Tex 650 Bedienungsanleitung$

ASM

ASM Zip-Tex 650 Bedienungsanleitung

ASM

ASM 246409 Bedienungsanleitung

ASM

ASM ASM Zip-Spray 2100 Plus 110V: 247482 Bedienungsanleitung

ASM

ASM Zip-Spray ESP Bedienungsanleitung

ASM

ASM 249164 Bedienungsanleitung

ASM

ASM L2100 Plus 240V Bedienungsanleitung

ASM

ASM Zip-Spray 2300 Plus Hi-Boy Bedienungsanleitung

ASM

ASM AllPro Mustang 3100 Bedienungsanleitung

$ASM Zip-Tex 1500 Electric 249457 Betriebsanleitung$

ASM

ASM Zip-Tex 1500 Electric 249457 Betriebsanleitung

ASM

ASM Zip-Spray 2100 Plus 240V Bedienungsanleitung

ASM

ASM Zip-Spray 2300 Plus 110V Bedienungsanleitung

ASM

ASM Combo 6700 Series Bedienungsanleitung

ASM

ASM Zip-Spray 1700 Gebrauchs- und Pflegehandbuch

ASM

ASM L1900 Einrichtungshandbuch

ASM

ASM Zip-Spray 233782 Einrichtungshandbuch

ASM

ASM 249159 Bedienungsanleitung

ASM

ASM Allpro A Series Bedienungsanleitung

Beliebte Spritzpistole Handbücher anderer Marken

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Bedienungsanleitung

Graco

Graco 246737 Gebrauchs- und Pflegehandbuch

Binks

Binks SV100 Bedienungsanleitung

Fimco

Fimco LG-4-3-1 Bedienungsanleitung

AG SPRAY

AG SPRAY FS-ATV-25BL Bedienungsanleitung

Nordson

Nordson MicroMax 2 Bedienungsanleitung

Bonide

Bonide 051 Bedienungsanleitung

zogics

zogics Z-DAS Bedienungsanleitung

KISANKRAFT

KISANKRAFT KK-KBS-165 Bedienungsanleitung

Matrix

Matrix SG 650 Bedienungsanleitung

Anest Iwata

Anest Iwata SGA-3 Kurzanleitung

paasche

paasche VV Datenblatt

Carlisle

Carlisle DeVilbiss JGA-510 Bedienungsanleitung

Gardena

Gardena 11120 Bedienungsanleitung

Conrad

Conrad Hobby Airbrush K3 Bedienungsanleitung

wiwa

wiwa 14025 R/F Bedienungsanleitung

Graco

Graco EM 390 Bedienungsanleitung

DeVilbiss

DeVilbiss LUNA2i Bedienungsanleitung
