TOUCH! WIRELESS RGB LED CONTROLLER INSTALLATION GUIDE

Touch! Wireless RGB LED Controller

INSTALLATION GUIDE

SPECIFICATIONS

Wireless Remote Dimensions 4-1/2" long, 2-1/4" wide, 3/4" thick

Control Box Dimensions 3-1/4" long, 3-1/4" wide, 1-1/4" thick

Input Voltage 12VDC or 24VDC

Input Signal Wireless (RF) Remote Control

Output Signal 3 channels @ up to 4A per channel

Output Power 144-288 Watts

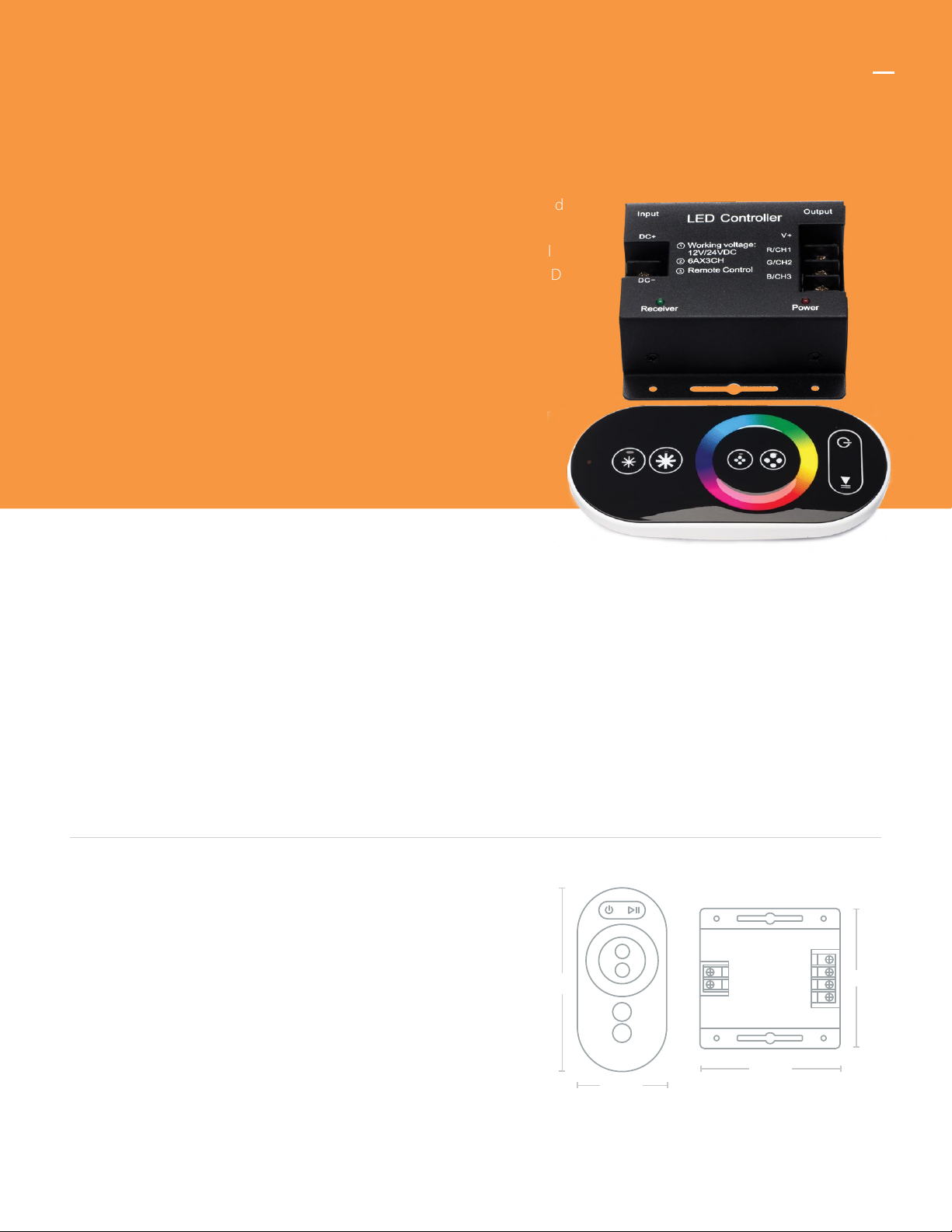

The Touch! Wireless RGB LED Controller is our most advanced and

easiest to use RGB LED controller. With this controller, you can use the

touch wireless remote to control your RGB LED xtures, providing full

color and brightness control. Simply connect this unit to your RGB LED

xtures and a power supply, grab the remote control, and start

controlling your xture.

Choose any color output using the touchwheel on the

remote control, or choose from 16 pre-programmed scenes.

This RGB LED controller is compatible with most of

aspectLEDs RGB LED xtures.

Product Overview

• Install in accordance with the National Electric Code, and all local regulations.

• This product is intended to be installed and serviced by a qualied licensed electrician.

• Only use with compatible LED xture and power supplies. Only use copper wiring.

• Ensure appropriate type and size wire is installed between driver, xture, and any controls in between.

When choosing wire, factor in voltage drop, amperage rating, and type (in-wall rated). Improper wire size

or type could cause a re or damage components.

• Do not install if product has any visible damage.

• Do not modify or disassemble this product. Modication or disassembly will void warranty.

• Use only non-dimming class 2 constant voltage LED power supply.

SAFETY AND WARNINGS

4.5in 3.25in

2.25in

3.25in

TOUCH! WIRELESS RGB LED CONTROLLER INSTALLATION GUIDE

Before you begin

We know how boring it can be to read instructions, so we’ll

keep this installation guide as short and sweet as possible.

Before you begin with your installation, be sure to fully read

these instructions. They contain many useful tips and pointers

that will help to ensure a perfect installation, save you time,

and ensure your safety.

It is important that you install this product (and all other

electrical products) in accordance with the National Electric

Code (NEC) and all applicable local building and electrical

codes for your area. If you are unfamiliar with the NEC, your

local building/electrical codes, and/or the proper installation

methods for electrical devices, you should hire a qualied and

licensed electrician to do the work for you.

• This product is only suitable for dry locations. Avoid direct sun light.

• Use of accessories not recommended by aspectLED may cause an unsafe condition and void warranty.

• Always consult a wire gauge chart to determine the correct size wire for your application. Wire gauge is

dependent on voltage drop, amperage rating, and environment. Incorrect wire selection could overheat

systems and cause a re.

• This LED controller requires 12VDC or 24VDC input. DO NOT CONNECT TO 120VAC!

• Keep nger o the touch ring when installing batteries to improve sensitivity.

• Do not use the controller in a concrete or metal-heavy area or in a strong electromagnetic eld or range of

remote may be considerably reduced.

Important considerations

Before beginning any electrical work, always

disconnect power at the fuse or circuit breaker.

TOUCH! WIRELESS RGB LED CONTROLLER INSTALLATION GUIDE

System diagram

DC+ V+

R/CH1

G/CH2

B/CH3

DC-

120V

input

Remote

Light Fixture

Power Supply

Controller

120V

input

TOUCH! WIRELESS RGB LED CONTROLLER INSTALLATION GUIDE

Installation

Using appropriately sized copper wiring, connect the output wires from your power

supply to the input terminals on the controller and connect your LED light xture to

the output terminals on your controller.

Refer to System Diagram for conguration. Note that as long as you use the correct size/type of wire, you can mount

your controller and power supply in a dierent location than your LED light xture.

Once you've nished, double check all connections and turn on power to your circuit.

Test functionality of your installation. If you experience issues, see the trouble shooting guide on page 6,

or contact technical support at (888) 503-1317 option 3 or suppor[email protected].

Identify the location where you'll install your controller, power supply, and lights.

Insert batteries into your remote controller.

Turn o power at breaker.

Verify connections before turning power on at the breaker.

Congratulations!

You've successfully completed the installation process. Once your light is installed, your project is nished.

Now is a great time to take a moment to sit down and enjoy your favorite beverage while giving yourself a

pat on the back for a job well done.

120V

input

Power Supply Remote + Controller LED Light Fixture

TOUCH! WIRELESS RGB LED CONTROLLER INSTALLATION GUIDE

Remote operation

Troubleshooting

Shift in brightness

and/or temperature

• Make sure you did not exceed the maximum wattage of the controller or the max series run

limit for your xture. This will cause excess voltage drop, resulting in decreased brightness

and/or temperature as the run is extended.

Some lights are

not functional • Ensure all connections have been attached properly.

Lights are ickering • Check that a compatible power supply/driver is installed.

• Check for loose connections and that components are attached correctly.

Lights are turning

on/o repeatedly

• Ensure the driver is not overloaded. An overloaded driver will trip the internal auto-reset

repeatedly, turning the system on/o.

Installation trips

main breaker • Check wiring for a short circuit or other wiring issue.

Choose a single color by

using the color wheel.

Slide your nger anywhere

on the color wheel to

choose a specic color.

Brightness/Speed control

buttons.Press the large

star to increase brightness

or speed. Press the small

star button to decrease

brightness or speed.

SCENES

• Solid White – brightness adjustable

• Solid Cyan –brightness adjustable

• Solid Magenta –brightness adjustable

• Solid Yellow –brightness adjustable

• Solid Blue –brightness adjustable

• Solid Green –brightness adjustable

• Solid Red –brightness adjustable

• Blue + Red Strobe Flash –speed adjustable

• Blue Strobe Flash – speed adjustable

• Green Strobe Flash – speed adjustable

• Red Strobe Flash – speed adjustable

• 7 Color Fade – speed adjustable

(color fades out before new color comes in)

• 7 Color Smooth Gradient –speed adjustable

(smooth transition between colors)

• Red, Green, Blue Fade – speed adjustable

(color fades out before new color comes in)

• 7 Color Strobe Flash – speed adjustable

• Red, Green, Blue Strobe Flash –speed adjustable

to power on and o

to play and pause

Previous Next
