ASRock 4Core1333-FullHD Motherboard

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

EnglishEnglish

English

Published June 2007

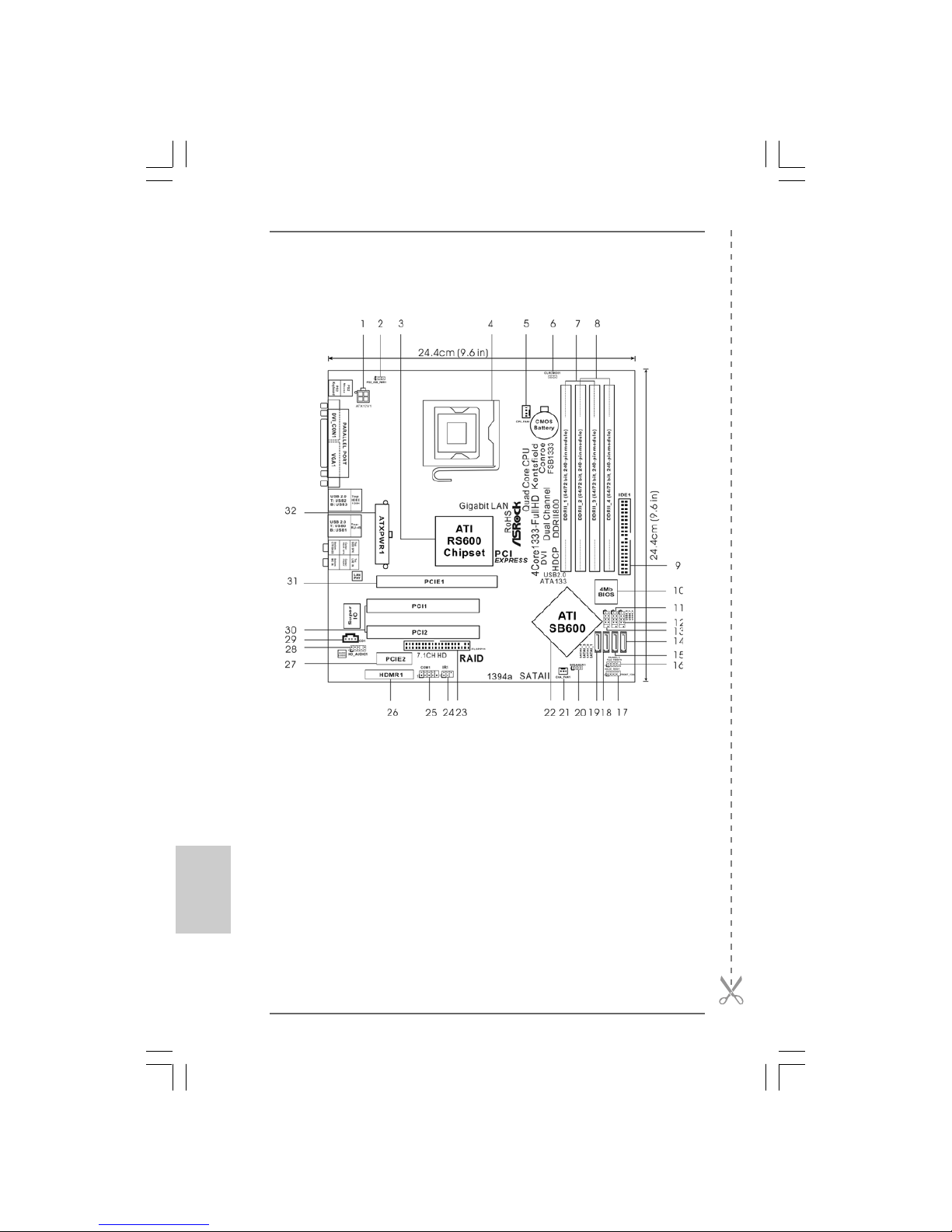

ASRock 4Core1333-FullHD Motherboard

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

EnglishEnglish

English

1 ATX 12V Power Connector (ATX12V1) 16 System Panel Header (PANEL1)

2 PS2_USB_PWR1 Jumper 17 Front Panel IEEE 1394 Header (FRONT_1394)

3 North Bridge Controller 18 Third SATAII Connector (SATAII_3)

4 775-Pin CPU Socket 19 Fourth SATAII Connector (SATAII_4)

5 CPU Fan Connector (CPU_FAN1) 20 Chassis Speaker Header (SPEAKER1)

6 Clear CMOS Jumper (CLRCMOS1) 21 Chassis Fan Connector (CHA_FAN1)

7 2 x 240-pin DDRII DIMM Slots 22 South Bridge Controller

(Dual Channel A: DDRII_1, DDRII_3; Yellow) 23 Floppy Connector (FLOPPY1)

8 2 x 240-pin DDRII DIMM Slots 24 Infrared Module Header (IR1)

(Dual Channel B: DDRII_2, DDRII_4; Orange) 25 Serial Port Connector (COM1)

9 Primary IDE Connector (IDE1, Blue) 26 HDMR Slot (HDMR1)

10 Flash Memory (4Mb) 27 PCI Express x1 Slot (PCIE2)

11 USB 2.0 Header (USB6_7, Blue) 28 Front Panel Audio Header (HD_AUDIO1)

12 USB 2.0 Header (USB8_8, Blue) 29 Internal Audio Connector: CD1 (Black)

13 USB 2.0 Header (USB4_5, Blue) 30 PCI Slots (PCI1- 2)

14 Primary SATAII Connector (SATAII_1) 31 PCI Express x16 Slot (PCIE1)

15 Secondary SATAII Connector (SATAII_2) 32 ATX Power Connector (ATXPWR1)

ASRock 4Core1333-FullHD Motherboard

EnglishEnglish

English

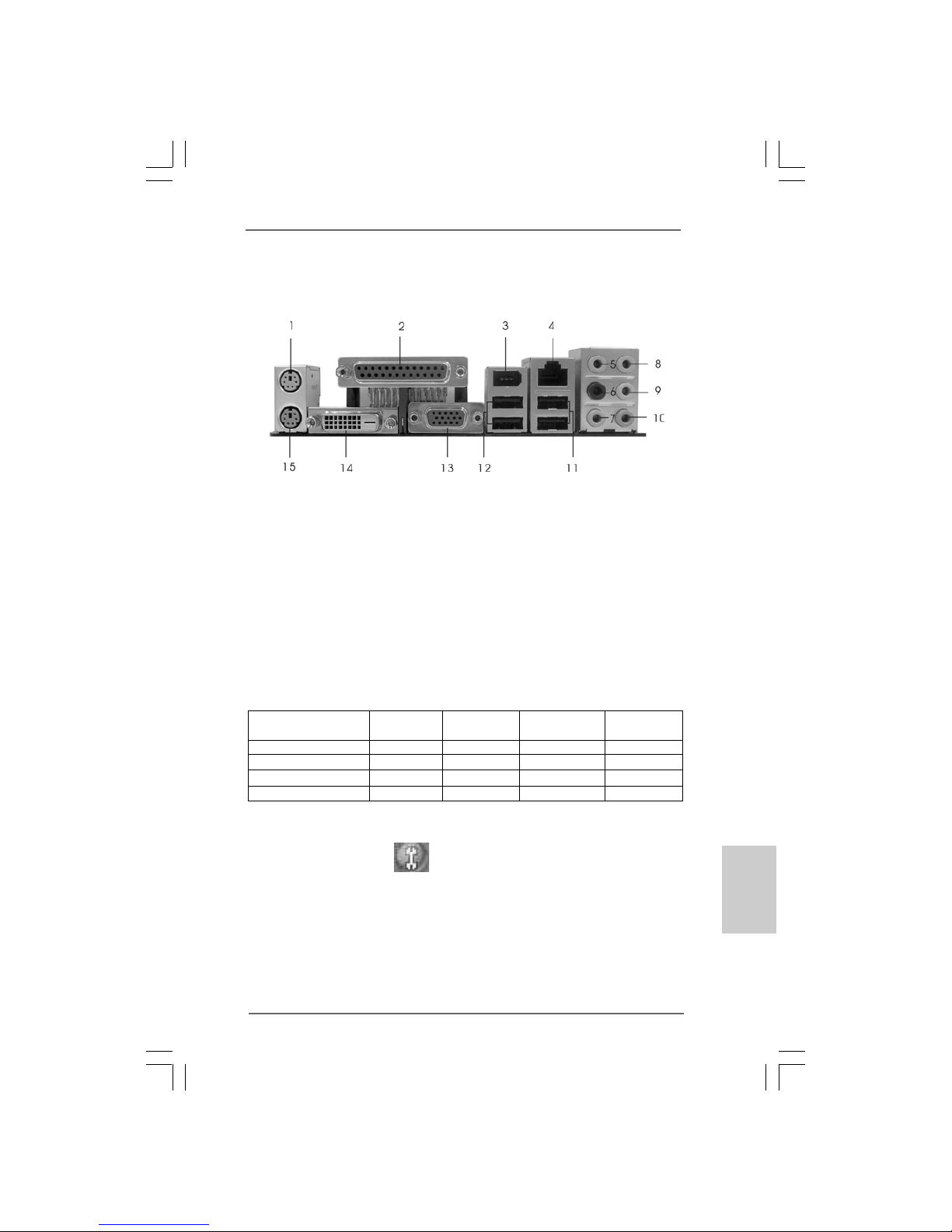

ASRock DVI_1394 I/OASRock DVI_1394 I/O

ASRock DVI_1394 I/O

1 PS/2 Mouse Port (Green) * 9 Front Speaker (Lime)

2 Parallel Port 10 Microphone (Pink)

3 IEEE 1394 Port 11 USB 2.0 Ports (USB01)

4 RJ-45 Port 12 USB 2.0 Ports (USB23)

5 Side Speaker (Gray) 13 VGA/D-Sub Port

6 Rear Speaker (Black) 14 VGA/DVI-D Port

7 Central / Bass (Orange) 15 PS/2 Keyboard Port (Purple)

8 Line In (Light Blue)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 9) (No. 6) (No. 7) (No. 5)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

ASRock 4Core1333-FullHD Motherboard

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock 4Core1333-FullHD motherboard, a reliable moth-

erboard produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change

without notice. In case any modifications of this manual occur, the

updated version will be available on ASRock website without further

notice. You may find the latest VGA cards and CPU support lists on

ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

1 x ASRock 4Core1333-FullHD Motherboard

(Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

1 x ASRock 4Core1333-FullHD Quick Installation Guide

2 x ASRock 4Core1333-FullHD Support CD

1 x 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

1 x Ribbon Cable for a 3.5-in Floppy Drive

1 x Serial ATA (SATA) Cable (Optional)

1 x Serial ATA (SATA) HDD Power Cable (Optional)

1 xASRock DVI_1394 I/O Shield

1 x COM Port Bracket

EnglishEnglish

English

ASRock 4Core1333-FullHD Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

CPU - LGA 775 for Intel®CoreTM 2 Quad / CoreTM 2 Extreme /

CoreTM 2 Duo / Pentium®XE / Pentium®D/ Pentium®Dual Core /

Pentium®4 / Celeron®/ Celeron® D, supporting Quad Core

Kentsfield processors

- Compatible with all FSB1333/1066/800/533MHz CPUs

(see CAUTION 1)

- Supports Hyper-Threading Technology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset -Northbridge: ATITM RS600

- Southbridge: ATITM SB600

Memory - Dual Channel DDRII Memory Technology (see CAUTION 4)

- 4 xDDRIIDIMM slots

- SupportDDRII800/667/533

- Max. capacity: 8GB (see CAUTION 5)

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 6)

- ASRock U-COP (see CAUTION 7)

- Boot Failure Guard (B.F.G.)

Expansion Slot - 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 2 x PCI slots

- 1 x HDMR slot

Graphics - Integrated ATITM X1250 graphics

- DX9.0 VGA, Pixel Shader 2.0

- Max. shared memory 512MB

- Dual VGA Output: support DVI-D and D-Sub ports by

independent display controllers

- Supports HDCP function withDVI-D port

- Supports 1080p Blu-ray (BD) / HD-DVD playback with DVI-D

port (see CAUTION 8)

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(ALC888 Audio Codec)

- Chipset embedded HDMIAudio

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

- Realtek RTL8111B

- Supports Wake-On-LAN

ASRock 4Core1333-FullHD Motherboard

EnglishEnglish

English

Rear Panel I/O ASRockDVI_1394 I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA/D-Sub Port

- 1 x VGA/DVI-D Port (see CAUTION 9)

- 1 x Parallel Port (ECP/EPP Support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x IEEE 1394 Port

- 1 x RJ-45 Port

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 10)

Connector - 4 x SerialATAII 3.0Gb/s connectors, support RAID (RAID 0,

RAID1, RAID 0+1, JBODand RAID10),NCQ,AHCI and “Hot

Plug” functions (see CAUTION 11)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM port header

- 1 x IEEE 1394 header

- CPU/Chassis FANconnector

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

(see CAUTION 12)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 2000 / XP / XP 64-bit / VistaTM /

VistaTM 64-bit compliant (see CAUTION 13)

Certifications - FCC, CE, WHQL

ASRock 4Core1333-FullHD Motherboard

EnglishEnglish

English

CAUTION!

1. FSB1333-CPU will operate in overclocking mode.

2. About the setting of “Hyper Threading Technology”, please check page 44

of “User Manual” in the support CD.

3. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 34 for details.

4. This motherboard supportsDual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 14 for proper installation.

5. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM 64-

bit with 64-bit CPU, there is no such limitation.

6. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

7. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

8. 1080p Blu-ray (BD) / HD-DVD playback support on this motherboard requires

the proper hardware configuration. Please refer to page 9 and 10 for the

minimum hardware requirement and the passed 1080p Blu-ray (BD) / HD-DVD

films in our lab test.

9. This DVI-D port for the chipset adopted on this motherboard can support

DVI/HDCP and HDMI format signal. You may use theDVI to HDMI adapter to

convert this DVI-D port to HDMI interface.DVI to HDMI adapter is not bundled

with our product, please refer to the adapter vendor for further information.

10. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

11. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 26 to adjust your SATAII hard disk drive to

SATAII mode. You can also connect SATA hard disk to SATAII connector

directly.

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

ASRock 4Core1333-FullHD Motherboard

EnglishEnglish

English

1.31.3

1.3 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement Tequirement T

equirement Tequirement T

equirement Table for Wable for W

able for Wable for W

able for Windowsindows

indowsindows

indows®®

®®

VistaVista

VistaTMTM

TMTM

TM Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic Logo

For system integrators and users who purchase this motherboard and

plan to submit Windows®VistaTM Premium 2007 and Basic logo, please

follow below table for minimum hardware requirements.

CPU Celeron D 326

Memory 512MB x 2 Dual Channel (Premium)

512MB Single Channel (Basic)

256MB x 2 Dual Channel (Basic)

VGA DX9.0 with WDDM Driver

DVI with HDCP

* If you use onboard VGA with total system memory size 512MB and plan to

submit Windows®VistaTM Basic logo, please adjust the shared memory size of

onboard VGA to 64MB. If you use onboard VGA with total system memory size

above 512MB and plan to submit Windows®VistaTM Premium or Basic logo, please

adjust the shared memory size of onboard VGA to 128MB or above.

* If you plan to use external graphics card on this motherboard, please refer to

Premium Discrete requirement at http://www.asrock.com

* If the onboard VGA supports DVI, it must also support HDCP function to qualify for

Windows®VistaTM Premium 2007 logo.

* After June 1, 2007, all Windows®VistaTM systems are required to meet above

minimum hardware requirements in order to qualify for Windows®VistaTM Premium

2007 logo.

12. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

13. Microsoft®Windows®VistaTM / VistaTM 64-bit driver keeps on updating now. As

long as we have the latest driver, we will update it to our website in the future.

Please visit our website for Microsoft®Windows®VistaTM / VistaTM 64-bit driver

and related information.

ASRock website http://www.asrock.com

ASRock 4Core1333-FullHD Motherboard

EnglishEnglish

English

1.41.4

1.4 Minimum Hardware Requirement for 1080p Blu-rayMinimum Hardware Requirement for 1080p Blu-ray

Minimum Hardware Requirement for 1080p Blu-rayMinimum Hardware Requirement for 1080p Blu-ray

Minimum Hardware Requirement for 1080p Blu-ray

(BD) / HD-DVD Playback Support(BD) / HD-DVD Playback Support

(BD) / HD-DVD Playback Support

1080p Blu-ray (BD) / HD-DVD playback support on this motherboard

requires the proper hardware configuration. Please refer to below table

for the minimum hardware requirement.

CPU Intel®FSB1333 CPU (e.g. Intel®E6550)

VGA Onboard VGA with DVI-D port

Memory Dual Channel DDRII667, 1GB x 2

Suggested OS Windows®VistaTM

* If you need to use CyberLink PowerDVD Ultra, we suggest to disable Hardware

Acceleration function for better playback performance and compatibility. After

executing CyberLink PowerDVD Ultra program, please follow below steps to disable

Hardware Acceleration function.

A. Right-click the main page of CyberLink PowerDVD Ultra program.

B. Click “Configuration”.

C. Select “Video”.

D. Click “Enable hardware acceleration (ATI Avivo)” to remove the “V” mark in this item.

E. Click “OK” to save the change.

* If you use this motherboard to playback 1080p Blu-ray (BD) / HD-DVD under

Windows®2000 / XP / XP 64-bit OS, the film may pause sometimes. For Windows®

VistaTM / VistaTM 64-bit OS, there is no this issue.

ASRock 4Core1333-FullHD Motherboard

1010

EnglishEnglish

English

1.51.5

1.5 Passed 1080p Blu-ray (BD) / HD-DVD Films in Our LabPassed 1080p Blu-ray (BD) / HD-DVD Films in Our Lab

Passed 1080p Blu-ray (BD) / HD-DVD Films in Our LabPassed 1080p Blu-ray (BD) / HD-DVD Films in Our Lab

Passed 1080p Blu-ray (BD) / HD-DVD Films in Our Lab

Testest

estest

est

DVD Film Name Format Producer

Type

Blu-ray CASINO ROYALE MPEG-4-AVC SONY

DVD THE LAST STAND MPEG-4-AVC FOX

SPEED MPEG-4-AVC FOX

THE LEAGUE OF MPEG-4-AVC FOX

EXTRAORDINARY GENTLEMEN

HD- KING KONG VC-1 UNIVERSAL

DVD THE INTERPRETER MPEG-4-AVC UNIVERSAL

ONE SIX RIGHT MPEG-2 TERWILLIGER

* MPEG-4-AVC mentioned above refers to the same format of H.264.

* Above passed films are tested under below configuration. Please visite our website

(http://www.asrock.com) for film updates in the future.

Items Configurations

CPU Intel®FSB1333 CPU (e.g. Intel®E6550)

VGA Onboard VGA with DVI-D port

Memory Dual Channel DDRII667, 1GB x 2

OS Windows®VistaTM

Playback Software CyberLink PowerDVD Ultra

DVD Player Pioneer BDR-101A / LG GBW-H10N (BD)

HP HD100 (HD-DVD)

Andere Handbücher für 4Core1333-FullHD

Inhaltsverzeichnis

Sprachen:

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK B650 PG LIGHTNING Bedienungsanleitung

ASROCK

ASROCK G31M-VS Bedienungsanleitung

ASROCK

ASROCK H81M-G Bedienungsanleitung

ASROCK

ASROCK C226 WS Bedienungsanleitung

ASROCK

ASROCK FM2A75 PRO04+ Bedienungsanleitung

ASROCK

ASROCK Fatal1ty AB350 Gaming K4 Bedienungsanleitung

ASROCK

ASROCK X99M Extreme4 Bedienungsanleitung

ASROCK

ASROCK P67 Extreme4 Gen3 Bedienungsanleitung

ASROCK

ASROCK E3V5 Performance Gaming Bedienungsanleitung

ASROCK

ASROCK H61M-VG3 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty 970 Performance/3.1 Series Bedienungsanleitung

ASROCK

ASROCK Fatal1ty B150 Gaming K4 Bedienungsanleitung

ASROCK

ASROCK 4X4-4800U Bedienungsanleitung

ASROCK

ASROCK K7VT2 Bedienungsanleitung

ASROCK

ASROCK B450 Pro4 R2.0 Bedienungsanleitung

ASROCK

ASROCK Z590 PHANTOM GAMING 4 Bedienungsanleitung

ASROCK

ASROCK N68-GS4 FX R2.0 Bedienungsanleitung

ASROCK

ASROCK Q87M vPro Bedienungsanleitung

ASROCK

ASROCK K7VT6 Bedienungsanleitung

ASROCK

ASROCK B85M DASH/OL R2.0 Bedienungsanleitung

ASROCK

ASROCK IMB-146 Bedienungsanleitung

ASROCK

ASROCK IMB-156 Gebrauchsanweisung

ASROCK

ASROCK ALIVENF5-ESATA2 PLUS - V1.0 Bedienungsanleitung

ASROCK

ASROCK H310M-HDVP Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
