ASRock 970 Pro2 Motherboard

English

Motherboard Layout

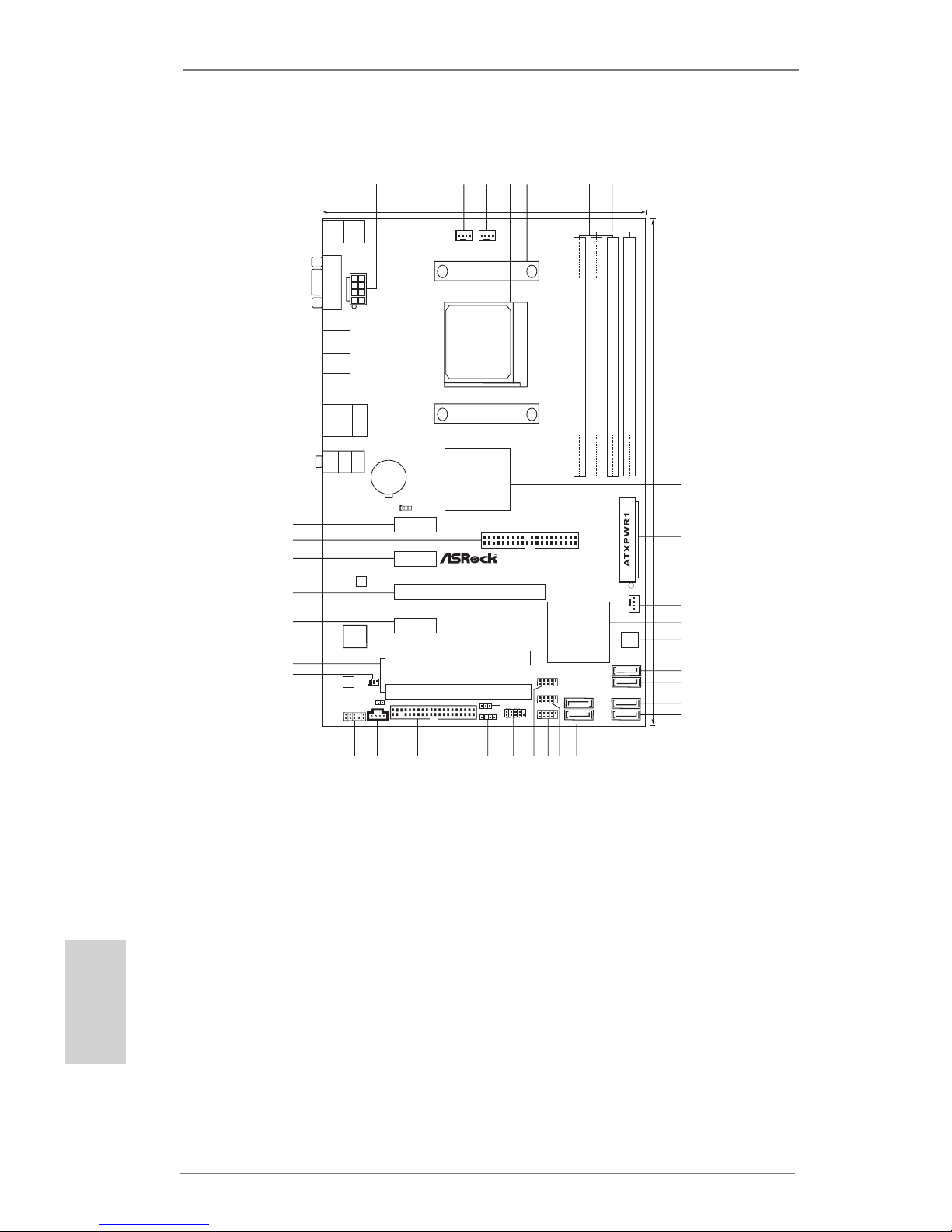

1 ATX 12V Power Connector (ATX12V1) 18 SATA2 Connector (SATA2_1 (PORT 1))

2 Power Fan Connector (PWR_FAN1) 19 USB 2.0 Header (USB6_7)

3 CPU Fan Connector (CPU_FAN1) 20 USB 2.0 Header (USB4_5)

4 AM3+ CPU Socket 21 USB 2.0 Header (USB8_9)

5 CPU Heatsink Retention Module 22 System Panel Header (PANEL1)

6 2 x 240-pin DDR3 DIMM Slots 23 Power LED Header (PLED1)

(Dual Channel: DDR3_A1, DDR3_B1) 24 Chassis Speaker Header (SPEAKER 1)

7 2 x 240-pin DDR3 DIMM Slots 25 Floppy Connector (FLOPPY1)

(Dual Channel: DDR3_A2, DDR3_B2) 26 Internal Audio Connector: CD1

8 Northbridge Controller 27 Front Panel Audio Header (HD_AUDIO1)

9 ATX Power Connector (ATXPWR1) 28 HDMI_SPDIF Header (HDMI_SPDIF1)

10 Chassis Fan Connector (CHA_FAN1) 29 Infrared Module Header (IR1)

11 Southbridge Controller 30 PCI Slots (PCI1-2)

12 SPI Flash Memory (8Mb) 31 PCI Express 2.0 x1 Slot (PCIE4)

13 SATA2 Connector (SATA2_6 (PORT 5)) 32 PCI Express 2.0 x16 Slot (PCIE3)

14 SATA2 Connector (SATA2_5 (PORT 4)) 33 PCI Express 2.0 x1 Slot (PCIE2)

15 SATA2 Connector (SATA2_4 (PORT 3)) 34 IDE1 Connector (IDE1)

16 SATA2 Connector (SATA2_3 (PORT 2)) 35 PCI Express 2.0 x1 Slot (PCIE1)

17 SATA2 Connector (SATA2_2 (PORT 1)) 36 Clear CMOS Jumper (CLRCMOS1)

124

IDE1

AMD

SB710

Chipset

ATX12V1

8Mb

BIOS

CMOS

BATTERY

CLRCMOS1

LAN

PHY

AUDIO

CODEC

Super

I/O

IR1

CD1

HD_AUDIO1

PCIE1

FLOPPY1

HDLED RESET

PLED PWRBTN

PANEL 1

SPEAKER1

SATAII_2(PORT1)

19.1cm (7.5-in)

30.5cm (12.0-in)

AMD

770

Chipset

PCI1

PCI2

970 Pro2

SATAII_4(PORT3)

SATAII_3(PORT2)

Top:

LIN E IN

Center:

FRONT

Bottom:

MIC I N

PS2

Mouse

PS2

Keyboard

USB 2.0

T: USB0

B: USB1

Top:

RJ-45

USB 2.0

T: USB0

B: USB1

ErP/EuP Ready

RoHS

USB8_9

SATAII_1(PORT0)

SATAII_6(PORT5)

SATAII_5(PORT4)

PLED1

HDMI_SPDIF1

USB6_7

USB4_5

USB 2.0

T: USB2

B: USB3

COM1

CHA_FAN1

Designed in Taipei

Support 8-Core CPU

SOCKET AM3b

PCIE2

PCIE4

PCIE3

FSB800

DDR3_A1 (64 b it, 240-pin modu le)

DDR3_A2 (64 b it, 240-pin modu le)

FSB800

DDR3_B1 (64 b it, 240-pin modu le)

DDR3_B2 (64 b it, 240-pin modu le)

DDR3 1866

AM3+

140W CPU

CPU_FAN1PWR_FAN1

Fast RAM

Fast USB

Fast LAN

ASRock 970 Pro2 Motherboard

English

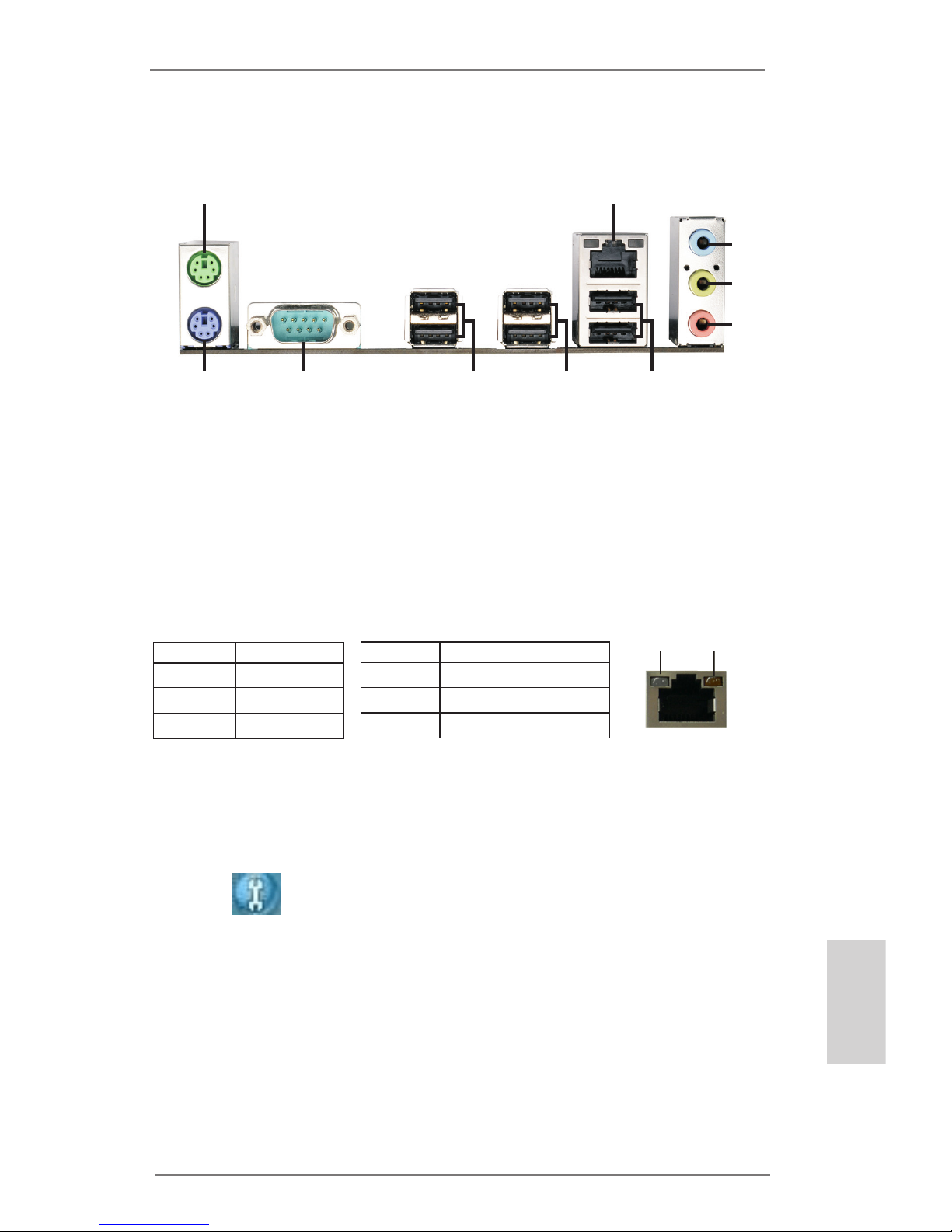

I/O Panel

LAN Port

ACT/LINK

LED

SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB01)

* 2 LAN RJ-45 Port 7 USB 2.0 Port (USB01)

3 Line In (Light Blue) 8 USB 2.0 Ports (USB23)

** 4 Front Speaker (Lime) 9 Serial Port: COM1

5 Microphone (Pink) 10 PS/2 Keyboard Port (Purple)

** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows® XP:

After restarting your computer, you will nd “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows® 7 / VistaTM:

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Conguration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

910 7

ASRock 970 Pro2 Motherboard

English

1. Introduction

Thank you for purchasing ASRock 970 Pro2 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard specications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modications of this manual occur, the updated ver-

sion will be available on ASRock website without further notice. You may

nd the latest VGA cards and CPU support lists on ASRock website as

well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock 970 Pro2 Motherboard

(ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm)

ASRock 970 Pro2 Quick Installation Guide

ASRock 970 Pro2 Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / VistaTM / VistaTM 64

bit, it is recommended to set the BIOS option in Storage Conguration

to AHCI mode. For the BIOS setup, please refer to the “User Manual” in

our support CD for details.

ASRock 970 Pro2 Motherboard

English

1.2 Specications

Platform - ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm

- All Solid Capacitor design

CPU - Support for Socket AM3+ processors

- Support for Socket AM3 processors: AMD PhenomTM II X6 /

X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 /

Sempron processors

- Supports 8-Core CPU

- Digi Power Design

- Supports CPU up to 140W

- Supports AMD OverDriveTM with ACC feature (Advanced

Clock Calibration)

- Supports AMD’s Cool ‘n’ QuietTM Technology

- FSB 2600 MHz (5.2 GT/s)

- Supports Untied Overclocking Technology

- Supports Hyper-Transport 3.0 (HT 3.0) Technology

Chipset - Northbridge: AMD 770

- Southbridge: AMD SB710

Memory - Dual Channel DDR3 Memory Technology

- 4 x DDR3 DIMM slots

- Support DDR3 1866(OC)/1600(OC)/1333/1066/800

non-ECC, un-buffered memory (see CAUTION 1)

- Max. capacity of system memory: 32GB (see CAUTION 2)

Expansion Slot - 1 x PCI Express 2.0 x16 slot (PCIE3 @ x16 mode)

- 3 x PCI Express 2.0 x1 slots

- 2 x PCI slots

Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efcient Ethernet 802.3az

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

ASRock 970 Pro2 Motherboard

English

- HD Audio Jack: Line in / Front Speaker / Microphone

Connector - 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 10 and JBOD), NCQ, AHCI and “Hot Plug”

functions

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x HDMI_SPDIF header

- 1 x Power LED header

- 1 x CPU Fan connector (4-pin)

- 1 x Chassis Fan connector (4-pin)

- 1 x Power Fan connector (4-pin)

- 24 pin ATX power connector

- 8 pin 12V power connector

- CD in header

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

BIOS Feature - 8Mb AMI Legal BIOS

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU, VCCM, NB Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), AMD

OverDriveTM Utility, CyberLink MediaEspresso 6.5 Trial,

ASRock MAGIX Multimedia Suite - OEM

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU Quiet Fan

- CPU/Chassis/Power Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP

/ XP Media Center / XP 64-bit compliant

Certications - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

ASRock 970 Pro2 Motherboard

English

CAUTION!

1. Whether 1866/1600MHz memory speed is supported depends

on the AM3/AM3+ CPU you adopt. If you want to adopt DDR3

1866/1600 memory module on this motherboard, please refer

to the memory support list on our website for the compatible

memory modules.

ASRock website: http://www.asrock.com

2. Due to the operating system limitation, the actual memory size

may be less than 4GB for the reservation for system usage un-

der Windows® 7 / VistaTM / XP. For Windows® 64-bit OS with 64-

bit CPU, there is no such limitation.

WARNING

Please realize that there is a certain risk involved with overclocking,

including adjusting the setting in the BIOS, applying Untied Overclocking

Technology, or using third-party overclocking tools. Overclocking may

affect your system’s stability, or even cause damage to the components

and devices of your system. It should be done at your own risk and

expense. We are not responsible for possible damage caused by

overclocking.

ASRock 970 Pro2 Motherboard

English

1.3 Unique Features

ASRock OC Tuner

ASRock OC Tuner is a user-friendly overclocking tool which al-

lows you to surveil your system by hardware monitor function

and overclock your hardware devices to get the best system

performance under Windows® environment.

ASRock Intelligent Energy Saver

Featuring an advanced proprietary hardware and software de-

sign, Intelligent Energy Saver is a revolutionary technology that

delivers unparalleled power savings. The voltage regulator can

reduce the number of output phases to improve efciency when

the CPU cores are idle. In other words, it is able to provide ex-

ceptional power saving and improve power efficiency without

sacrificing computing performance. To use Intelligent Energy

Saver function, please enable Cool ‘n’ Quiet option in the BIOS

setup in advance.

ASRock Instant Boot

ASRock Instant Boot allows you to turn on your PC in just a few

seconds, provides a much more efcient way to save energy,

time, money, and improves system running speed for your sys-

tem. It leverages the S3 and S4 ACPI features which normally

enable the Sleep/Standby and Hibernation modes in Windows®

to shorten boot up time. By calling S3 and S4 at specic timing

during the shutdown and startup process, Instant Boot allows

you to enter your Windows® desktop in a few seconds.

ASRock Instant Flash

ASRock Instant Flash is a BIOS ash utility embedded in Flash

ROM. This convenient BIOS update tool allows you to update

system BIOS without entering operating systems rst like MS-

DOS or Windows®. With this utility, you can press the <F6> key

during the POST or the <F2> key to enter into the BIOS setup

menu to access ASRock Instant Flash. Just launch this tool and

save the new BIOS le to your USB ash drive, oppy disk or

hard drive, then you can update your BIOS only in a few clicks

without preparing an additional oppy diskette or other compli-

cated ash utility. Please be noted that the USB ash drive or

hard drive must use FAT32/16/12 le system.

ASRock 970 Pro2 Motherboard

English

ASRock OC DNA

The software name itself – OC DNA literally tells you what it

is capable of. OC DNA, an exclusive utility developed by AS-

Rock, provides a convenient way for the user to record the OC

settings and share with others. It helps you to save your over-

clocking record under the operating system and simplies the

complicated recording process of overclocking settings. With

OC DNA, you can save your OC settings as a prole and share

with your friends! Your friends then can load the OC prole to

their own system to get the same OC settings as yours! Please

be noticed that the OC prole can only be shared and worked

on the same motherboard.

ASRock APP Charger

If you desire a faster, less restricted way of charging your

Apple devices, such as iPhone/iPad/iPod Touch, ASRock has

prepared a wonderful solution for you - ASRock APP Charger.

Simply install the APP Charger driver, it makes your iPhone

charge much quickly from your computer and up to 40% faster

than before. ASRock APP Charger allows you to quickly charge

many Apple devices simultaneously and even supports continu-

ous charging when your PC enters into Standby mode (S1),

Suspend to RAM (S3), hibernation mode (S4) or power off (S5).

With APP Charger driver installed, you can easily enjoy the

marvelous charging experience.

ASRock XFast USB

ASRock XFast USB can boost USB storage device perfor-

mance. The performance may depend on the properties of the

device.

ASRock XFast LAN

ASRock XFast LAN provides a faster internet access, which

includes the benefits listed below. LAN Application Prioritiza-

tion: You can congure your application’s priority ideally and/or

add new programs. Lower Latency in Game: After setting online

game’s priority higher, it can lower the latency in games. Trafc

Shaping: You can watch Youtube HD videos and download si-

multaneously. Real-Time Analysis of Your Data: With the status

window, you can easily recognize which data streams you are

transferring currently.

ASRock 970 Pro2 Motherboard

English

ASRock XFast RAM

ASRock XFast RAM fully utilizes the memory space that cannot

be used under Windows® OS 32-bit CPU. ASRock XFast RAM

shortens the loading time of previously visited websites, mak-

ing web surng faster than ever. And it also boosts the speed of

Adobe Photoshop 5 times faster. Another advantage of ASRock

XFast RAM is that it reduces the frequency of accessing your

SSDs or HDDs in order to extend their lifespan.

Andere Handbücher für 970 Pro2

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK 785GM-S3 Bedienungsanleitung

ASROCK

ASROCK P55M PRO - Bedienungsanleitung

ASROCK

ASROCK FM2A75M-DGS R2.0 Bedienungsanleitung

ASROCK

ASROCK H55 EXTREME3 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X299 Professional Gaming i9 XE... Bedienungsanleitung

ASROCK

ASROCK P67 TRANSFORMER - Bedienungsanleitung

ASROCK

ASROCK 880GMH USB3 R2.0 Bedienungsanleitung

ASROCK

ASROCK Z87 Extreme4 TB4 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X470 Gaming K4 Series Bedienungsanleitung

ASROCK

ASROCK 880GMH-LE USB3 - NOTICE 2 Bedienungsanleitung

ASROCK

ASROCK WHLM-STX Bedienungsanleitung

ASROCK

ASROCK H61TM-ITX Bedienungsanleitung

ASROCK

ASROCK Fatal1ty Z97 Bedienungsanleitung

ASROCK

ASROCK FM2A75M-ITX R2.0 Bedienungsanleitung

ASROCK

ASROCK QC5000M Bedienungsanleitung

ASROCK

ASROCK H67M-GE Bedienungsanleitung

ASROCK

ASROCK H61DE-S3 Bedienungsanleitung

ASROCK

ASROCK H110M-DVP Bedienungsanleitung

ASROCK

ASROCK Z690 Extreme Bedienungsanleitung

ASROCK

ASROCK H110M-STX Bedienungsanleitung

ASROCK

ASROCK 880GM-LE FX Bedienungsanleitung

ASROCK

ASROCK 970 Pro3 Bedienungsanleitung

ASROCK

ASROCK IMB-148 Bedienungsanleitung

ASROCK

ASROCK H81M-HG4 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
