English

A520M Pro4

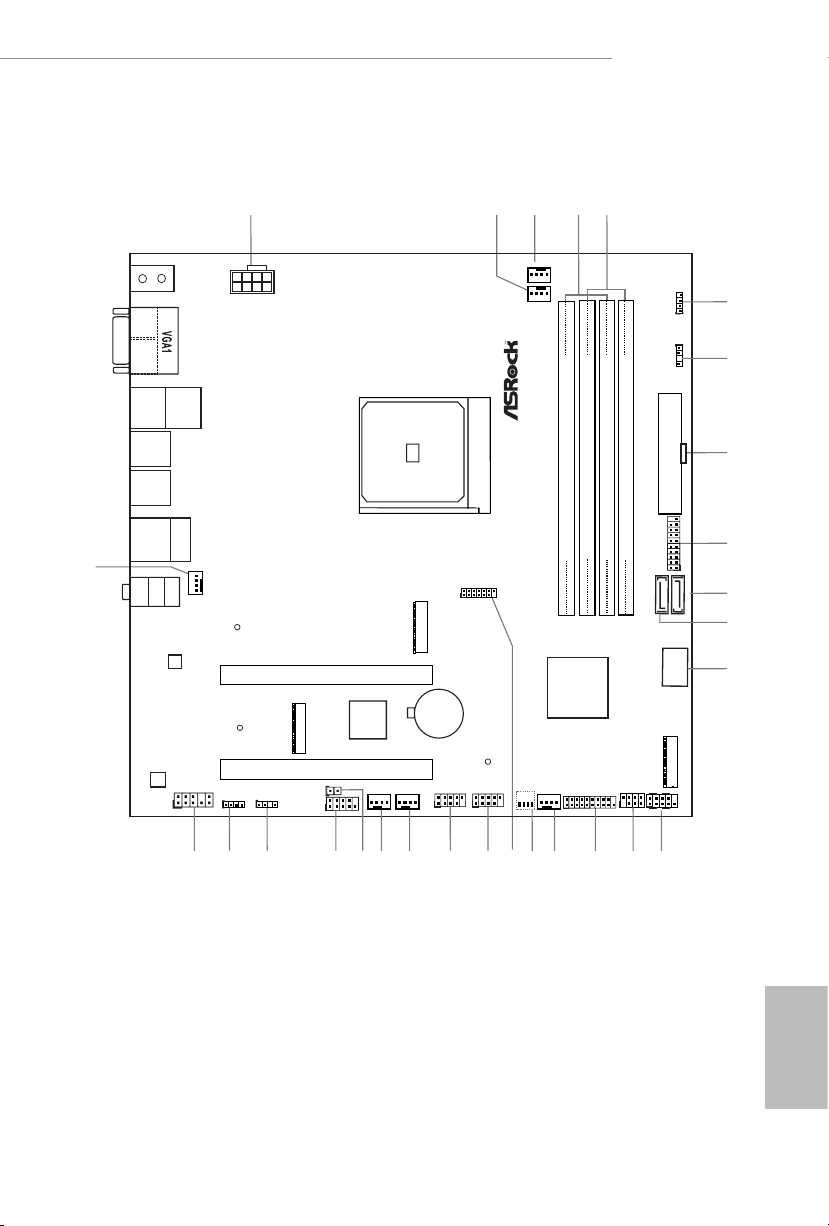

Motherboard Layout

16 13

19 14

ATXPWR1

Super

I/O

CLRCMOS1

HD_AUDIO1

CPU_FAN2/WP

SOCKETAM4

F_USB3_1_2

CHA_FAN1/WP

RoHS

SPK_PLED1

DDR4_A1 (64 bit, 288-pin module)

DDR4_A2 (64 bit, 288-pin module)

DDR4_B1 (64 bit, 288-pin module)

DDR4_B2 (64 bit, 288-pin module)

PCIE2

HDLED RESET

PLED PWRBTN

PANEL1

M2_2

M2_1

AMD

Promontory

A520

USB_3_4

SATA3_4

SATA3_3

CPU_FAN1

CHA_FAN4/WP

USB_5_6

ATX12V1

ADDR_LED1

RGB_LED1

SATA3_1

SATA3_2

SPI_TPM_J1

F_USB3_3_4

CHA_FAN2

/WP

CHA_FAN3

/WP

RGB_LED2

ADDR_LED2

CMOS

Battery

LAN

AUDIO

CODEC

24 18

PCIE1

CPU

DRAM

VGA

BOOT

M2_3

NUT1

COM1

A520M Pro4

Top:

LIN E IN

Center:

FRONT

Bottom:

MIC IN

RJ-45 LAN

USB 3.2 Gen1

T: USB3

B: USB4

USB 3.2 Gen1

T: USB1

B: USB2

USB 3.2 Gen1

T: USB31_TA_1

B: USB31_TC_1

USB 2.0

T: USB1

B: USB2

PS2

Keyboard/

Mouse

DISPLAY1

HDMI1

Ultra M.2

PCIe Gen3 x4

English

No. Description

1 8 pin 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 CPU/Water Pump Fan Connector (CPU_FAN2/WP)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

5 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

6 RGB LED Header (RGB_LED1)

7 Addressable LED Header (ADDR_LED1)

8 ATX Power Connector (ATXPWR1)

9 USB 3.2 Gen1 Header (F_USB3_1_2)

10 SATA3 Connector (SATA3_2)

11 SATA3 Connector (SATA3_1)

12 SATA3 Connector (SATA3_4) (Upper), SATA3 Connector (SATA3_3) (Lower)

13 System Panel Header (PANEL1)

14 Power LED and Speaker Header (SPK_PLED1)

15 USB 3.2 Gen1 Header (F_USB3_3_4)

16 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)

17 Post Status Checker (PSC)

18 SPI TPM Header (SPI_TPM_J1)

19 USB 2.0 Header (USB_3_4)

20 USB 2.0 Header (USB_5_6)

21 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)

22 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)

23 Clear CMOS Jumper (CLRCMOS1)

24 COM Port Header (COM1)

25 Addressable LED Header (ADDR_LED2)

26 RGB LED Header (RGB_LED2)

27 Front Panel Audio Header (HD_AUDIO1)

28 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

English

A520M Pro4

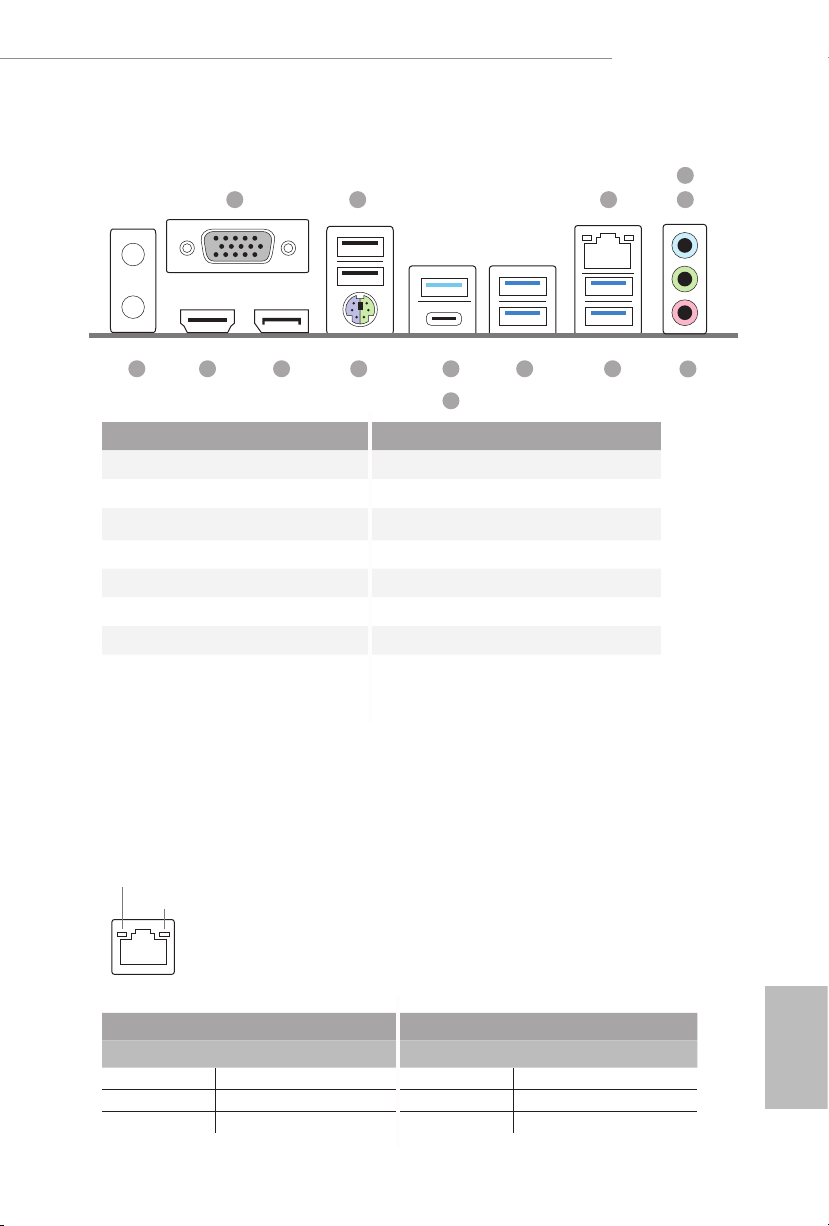

1.4 I/O Panel

No. Description No. Description

1D-Sub Port 9 USB 3.2 Gen1 Type-A Port

2 USB 2.0 Ports (USB_12)* (USB3_TA_1)

3 LAN RJ-45 Port** 10 USB 3.2 Gen1 Type-C Port

4 Line In (Light Blue)*** (USB3_TC_1)

5 Front Speaker (Lime)*** 11 PS/2 Mouse/Keyboard Port

6Microphone (Pink)*** 12 DisplayPort 1.4

7 USB 3.2 Gen1 Ports (USB3_34) 13 HDMI Port

8 USB 3.2 Gen1 Ports (USB3_12) 14 Antenna Bracket

* Please note that the USB_2 consumes auxiliary power (+5VSB) while the other USB ports consume DUAL

Power (+5VDUAL). e USB_2 is optimal for connecting the USB Type speaker and headset.

** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

78913 12

1 2 3 5

14 6

English

*** Function of the Audio Ports in 7.1-channel Conguration:

Port Function

Light Blue (Rear panel) Rear Speaker Out

Lime (Rear panel) Front Speaker Out

Pink (Rear panel) Central /Subwoofer Speaker Out

Lime (Front panel) Side Speaker Out

Chapter 1 Introduction

ank you for purchasing ASRock A520M Pro4 motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock A520M Pro4 Motherboard (Micro ATX Form Factor)

• ASRock A520M Pro4 Quick Installation Guide

• ASRock A520M Pro4 Support CD

• 1 x I/O Panel Shield

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 2 x Screws for M.2 Socket (Optional)

English

A520M Pro4

Chapter 1 Introduction

ank you for purchasing ASRock A520M Pro4 motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock A520M Pro4 Motherboard (Micro ATX Form Factor)

• ASRock A520M Pro4 Quick Installation Guide

• ASRock A520M Pro4 Support CD

• 1 x I/O Panel Shield

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 2 x Screws for M.2 Socket (Optional)

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this documentation occur, the updated version will be available on ASRock’s

website without further notice. If you require technical support related to this mother-

board, please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com.

English

1.2 Specications

Platform • Micro ATX Form Factor

• Solid Capacitor design

• 2oz Copper PCB

CPU • Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™

Processors (3000 and 4000 Series Processors)*

* Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3

3200G.

• Digi Power design

• 8 Power Phase design

Chipset • AMD A520

Memory • Dual Channel DDR4 Memory Technology

• 4 x DDR4 DIMM Slots

• AMD Ryzen series CPUs (Matisse) support DDR4

4533+(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/

4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733

(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC

& non-ECC, un-buered memory*

• AMD Ryzen series APUs (Renoir) support DDR4 4733+

(OC)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/

4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/

4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/

3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-

buered memory*

* Please refer to Memory Support List on ASRock’s website for

more information. (http://www.asrock.com/)

* Please refer to page 22 for DDR4 UDIMM maximum

frequency support.

• Max. capacity of system memory: 128GB

• Supports Extreme Memory Prole (XMP) memory modules

• 15μ Gold Contact in DIMM Slots

Expansion

Slot

• 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE3: x2

mode)*

* Supports NVMe SSD as boot disks

• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT

module

English

A520M Pro4

Graphics • Integrated AMD RadeonTM Vega Series Graphics in Ryzen

Series APU*

* Actual support may vary by CPU

• DirectX 12, Pixel Shader 5.0

• Shared memory default 2GB. Max Shared memory supports

up to 16GB.

* e Max shared memory 16GB requires 32GB system

memory installed.

• ree graphics output options: D-Sub, HDMI and

DisplayPort 1.4

• Supports Triple Monitor

• Supports HDMI 2.1 with max. resolution up to 4K x 2K

(4096x2160) @ 60Hz

• Supports DisplayPort 1.4 with max. resolution up to 5K

(5120x2880)@120Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant

HDMI monitor is required)

• Supports HDR (High Dynamic Range) with HDMI 2.1

• Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4

Ports

• Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and

DisplayPort 1.4 Ports

• Supports Microso PlayReady®

Audio • 7.1 CH HD Audio with Content Protection (Realtek

ALC1200 Audio Codec)

• Premium Blu-ray Audio support

• Supports Surge Protection

• PCB Isolate Shielding

• Individual PCB Layers for R/L Audio Channel

• Nahimic Audio

English

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111H

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• Antenna Bracket

• 1 x PS/2 Mouse/Keyboard Port

• 1 x D-Sub Port

• 1 x HDMI Port

• 1 x DisplayPort 1.4

• 1 x USB 3.2 Gen1 Type-A Port (Supports ESD Protection)

• 4 x USB 3.2 Gen1 Type-A Ports (ASMedia ASM1074 hub)

(Supports ESD Protection)

• 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)

• 2 x USB 2.0 Ports (Supports ESD Protection)

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage • 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*

* M2_2 and SATA3_3_4 share lanes. If either one of them is in

use, the other one will be disabled.

• 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2

PCI Express module up to Gen3 x4 (32 Gb/s)**

• 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2

SATA3 6.0 Gb/s module and M.2 PCI Express module up to

Gen3 x2 (16 Gb/s)**

** Supports NVMe SSD as boot disks

** Supports ASRock U.2 Kit

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK H61 Pro BTC Bedienungsanleitung

ASROCK

ASROCK P67 EXTREME6 - Bedienungsanleitung

ASROCK

ASROCK Q1900DC-ITX Bedienungsanleitung

ASROCK

ASROCK Z97M OC Formula Bedienungsanleitung

ASROCK

ASROCK ROMED4ID-2T Bedienungsanleitung

ASROCK

ASROCK C236M WS Bedienungsanleitung

ASROCK

ASROCK EP2C612D8 Bedienungsanleitung

ASROCK

ASROCK H61M-HP4 Bedienungsanleitung

ASROCK

ASROCK Z790 Series Bedienungsanleitung

ASROCK

ASROCK 775Twins-PT890 Bedienungsanleitung

ASROCK

ASROCK G41M-GS Bedienungsanleitung

ASROCK

ASROCK Z87 Pro4 Bedienungsanleitung

ASROCK

ASROCK H61M-VG3 Bedienungsanleitung

ASROCK

ASROCK 775V88 Bedienungsanleitung

ASROCK

ASROCK H610M-ITX/ac Bedienungsanleitung

ASROCK

ASROCK IMB-391 Service-Handbuch

ASROCK

ASROCK Z87 Extreme4 TB4 Bedienungsanleitung

ASROCK

ASROCK K10N780SLIX3-WIFI Bedienungsanleitung

ASROCK

ASROCK P67 Pro Bedienungsanleitung

ASROCK

ASROCK Z590 PG Velocita Bedienungsanleitung

ASROCK

ASROCK M3A770DE Bedienungsanleitung

ASROCK

ASROCK 4Core1333-GLAN Bedienungsanleitung

ASROCK

ASROCK Z77 Pro4-M Bedienungsanleitung

ASROCK

ASROCK NAB-9602 Service-Handbuch

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
