2ASRock A55iCafe Motherboard

English

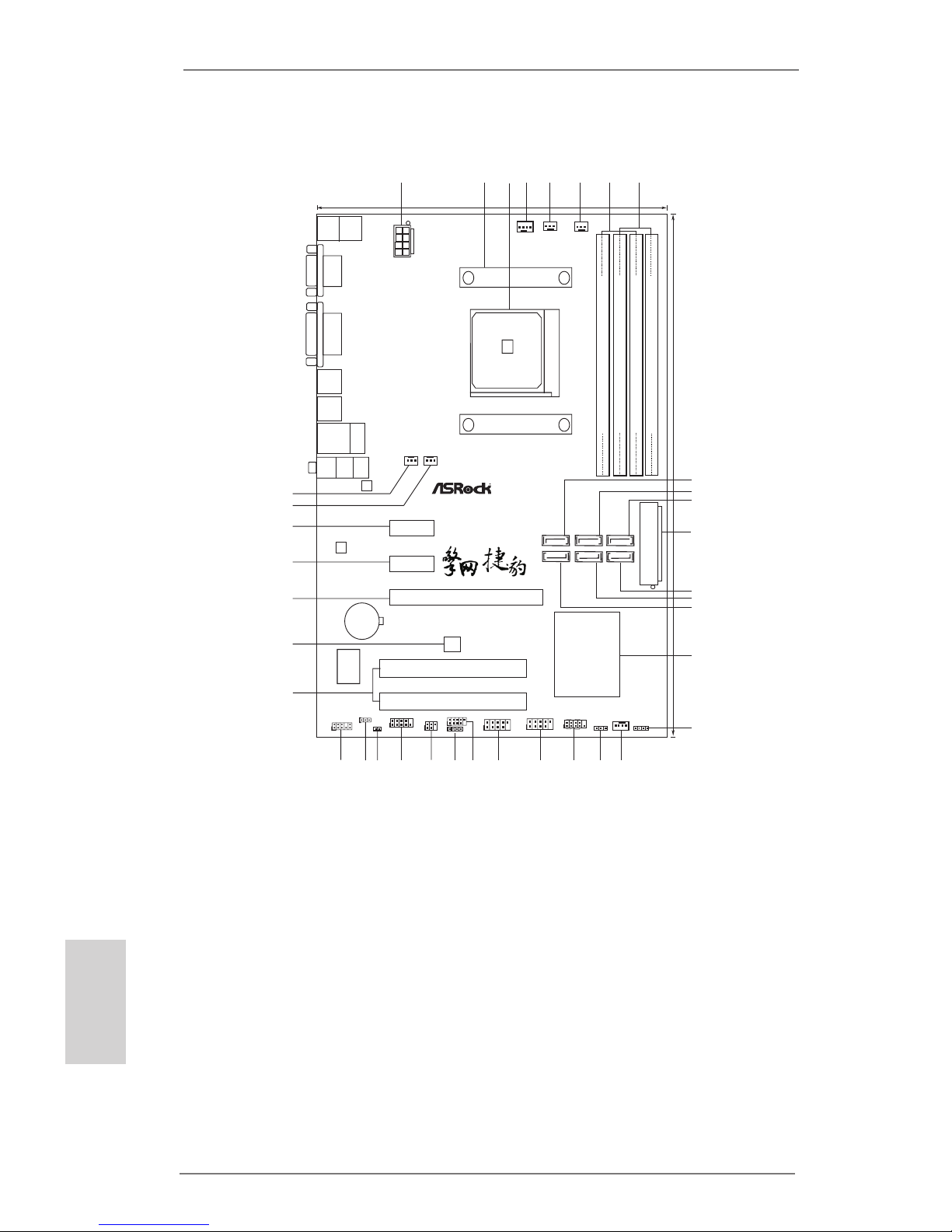

Motherboard Layout

1 ATX 12V Power Connector (ATX12V1) 18 Chassis Fan Connector (CHA_FAN1)

2 CPU Heatsink Retention Module 19 Power LED Header (PLED1)

3 CPU Socket 20 System Panel Header (PANEL1, White)

4 CPU Fan Connector (CPU_FAN1) 21 USB 2.0 Header (USB10_11, Blue)

5 CPU Fan Connector (CPU_FAN2) 22 USB 2.0 Header (USB8_9, Blue)

6 Power Fan Connector (PWR_FAN1) 23 USB 2.0 Header (USB6_7, Blue)

7 2 x 240-pin DDR3 DIMM Slots 24 Consumer Infrared Module Header (CIR1)

(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 25 Infrared Module Header (IR1)

8 2 x 240-pin DDR3 DIMM Slots 26 COM Port Header (COM1)

(Dual Channel B: DDR3_A2, DDR3_B2; White) 27 HDMI_SPDIF Header (HDMI_SPDIF1, White)

9 SATA2 Connector (SATA2_1, Blue) 28 Clear CMOS Jumper (CLRCMOS1)

10 SATA2 Connector (SATA2_2, Blue) 29 Front Panel Audio Header (HD_AUDIO1, White)

11 SATA2 Connector (SATA2_4, Blue) 30 PCI Slots (PCI1-2)

12 ATX Power Connector (ATXPWR1) 31 SPI Flash Memory (32Mb)

13 SATA2 Connector (SATA2_5, Blue) 32 PCI Express 2.0 x16 Slot (PCIE3; Blue)

14 SATA2 Connector (SATA2_3, Blue) 33 PCI Express 2.0 x1 Slot (PCIE2; White)

15 SATA2 Connector (SATA2_6, Blue) 34 PCI Express 2.0 x1 Slot (PCIE1; White)

16 Southbridge Controller 35 Chassis Fan Connector (CHA_FAN3)

17 Chassis Speaker Header (SPEAKER 1, White) 36 Chassis Fan Connector (CHA_FAN2)

20.3cm (8.0-in)

30.5cm (12.0-in)

SOCKET FM1

ATXPWR1

DDR3_A1 (64 bit, 240-pin module)

DDR3_A2 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

DDR3_B2 (64 bit, 240-pin module)

AMD

A55 FCH

(Hudson-D2)

Chipset

A55iCafe

CMOS

BATTERY

ATX1 2V 1

CPU_FAN1

CPU_FAN2 PWR_FAN1

CHA_FAN3

CHA_FAN2

Dual Graphics

32Mb

BIOS

Fast USB

Fast LAN

ErP/EuP Ready

Supe r

I/O

AUDIO

CODEC

LAN

PCIE1

PCIE2

PCIE3

PCI1

PCI2

RoHS

DX11

DDR3 2400+

Designed in Taipei

SATA2_6 SATA2_3 SATA2_5

SATA2_2 SATA2_4

SATA2_1

HDLED RESET

PLED PWRBTN

PANEL 1

SPEAKER1

PLED1

CHA_FAN1

USB8_9

USB10_11

USB6_7

CIR1

COM1

CLRCMOS1

HD_AUDIO1

IR1

HDMI_SPDIF1

Gigabit LAN

VGA1

PS2

Mous e

PS2

Keyboard

DVI1

USB 2.0

T: USB2

B: USB3

Top:

RJ-45

USB 2.0

T: USB0

B: USB1

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

124

358

USB 2.0

T: USB4

B: USB5

ASRock A55iCafe Motherboard

English

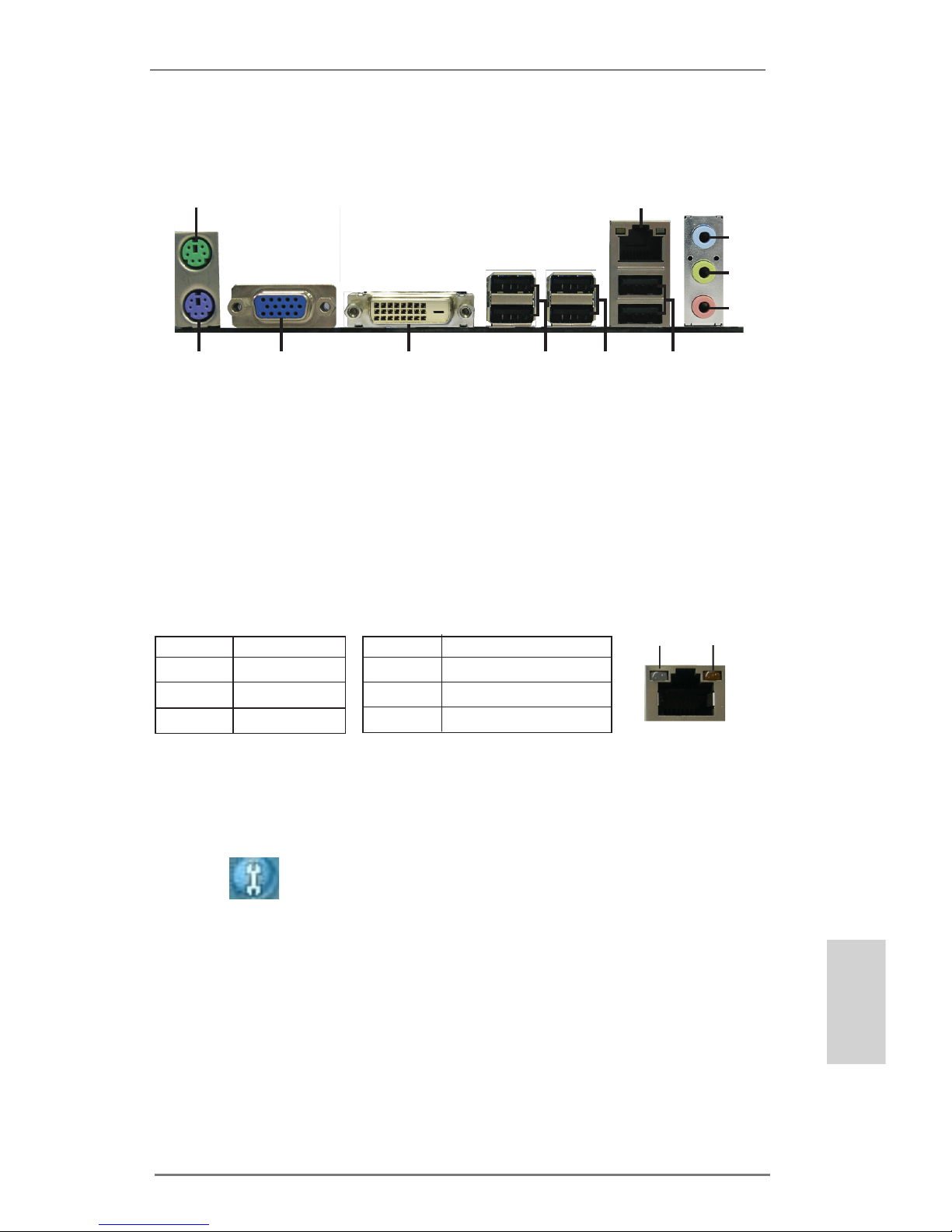

I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection LAN Port

ACT/LINK

LED

SPEED

LED

1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB23)

* 2 LAN RJ-45 Port 8 USB 2.0 Ports (USB45)

3 Line In (Light Blue) 9 DVI-D Port

** 4 Front Speaker (Lime) 10 D-Sub Port

5 Microphone (Pink) 11 PS/2 Keyboard Port (Purple)

6 USB 2.0 Ports (USB01)

1011

** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows® XP:

After restarting your computer, you will nd “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows® 7 / VistaTM:

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Conguration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

4ASRock A55iCafe Motherboard

English

1. Introduction

Thank you for purchasing ASRock A55iCafe motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock A55iCafe Motherboard

(ATX Form Factor: 12.0-in x 8.0-in, 30.5 cm x 20.3 cm)

ASRock A55iCafe Quick Installation Guide

ASRock A55iCafe Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-

bit, it is recommended to set the BIOS option in Storage Conguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

ASRock A55iCafe Motherboard

English

1.2 Specifications

Platform - ATX Form Factor: 12.0-in x 8.0-in, 30.5 cm x 20.3 cm

- All Solid Capacitor design

CPU - Support for Socket FM1 100W processors

- V4 + 1 Power Phase Design

- Supports AMD’s Cool ‘n’ QuietTM Technology

- UMI-Link GEN2

Chipset - AMD A55 FCH (Hudson-D2)

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 1)

- 4 x DDR3 DIMM slots

- Support DDR3 2400+(OC)/1866/1600/1333/1066/

800 non-ECC, un-buffered memory (see CAUTION 2)

- Max. capacity of system memory: 32GB (see CAUTION 3)

Expansion Slot - 1 x PCI Express 2.0 x16 slot (PCIE3 @ x16 mode)

- 2 x PCI Express 2.0 x1 slots

- 2 x PCI slots

- Supports AMD Dual Graphics

Graphics - AMD Radeon HD 65XX/64XX graphics

- DirectX 11, Pixel Shader 5.0

- Max. shared memory 512MB (see CAUTION 4)

- Dual VGA Output: support D-Sub and DVI-D ports by

independent display controllers

- Supports DVI with max. resolution up to 1920x1200 @ 75Hz

- Supports D-Sub with max. resolution up to 1920x1600 @

60Hz

- Supports AMD Steady VideoTM: New video post processing

capability for automatic jutter reduction on home/online

video

- Supports HDCP function with DVI port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI port

Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

- Premium Blu-ray audio support

- Supports THX TruStudioTM

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efcient Ethernet 802.3az

- Supports PXE

6ASRock A55iCafe Motherboard

English

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Line in/Front Speaker/Microphone

Connector - 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and “Hot Plug” functions

- 1 x IR header

- 1 x CIR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x Power LED header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

BIOS Feature - 32Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- DRAM, VDDP, VDDR, SB Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial

Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 5)

- ASRock Instant Boot

- ASRock Instant Flash (see CAUTION 6)

- ASRock APP Charger (see CAUTION 7)

- ASRock XFast USB (see CAUTION 8)

- ASRock XFast LAN (see CAUTION 9)

- Hybrid Booster:

- ASRock U-COP (see CAUTION 10)

ASRock A55iCafe Motherboard

English

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU/Chassis Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP

SP3 / XP 64-bit compliant

Certications - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 11)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting the

setting in the BIOS, applying Untied Overclocking Technology, or using the third-party over-

clocking tools. Overclocking may affect your system stability, or even cause damage to the

components and devices of your system. It should be done at your own risk and expense.

We are not responsible for possible damage caused by overclocking.

8ASRock A55iCafe Motherboard

English

CAUTION!

1. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 12 for proper installation.

2. Whether 2400/1866/1600MHz memory speed is supported depends on

the CPU you adopt. If you want to adopt DDR3 2400/1866/1600 memory

module on this motherboard, please refer to the memory support list on

our website for the compatible memory modules.

ASRock website http://www.asrock.com

3. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows® 7 /

VistaTM / XP. For Windows® 64-bit OS with 64-bit CPU, there is no such

limitation.

4. The maximum shared memory size is dened by the chipset vendor and

is subject to change. Please check AMD website for the latest informa-

tion.

5. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ne-tune

different system functions in a user-friendly interface, which is including

Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hard-

ware Monitor, it shows the major readings of your system. In Fan Control,

it shows the fan speed and temperature for you to adjust. In Overclock-

ing, you are allowed to overclock CPU frequency for optimal system

performance. In OC DNA, you can save your OC settings as a prole

and share with your friends. Your friends then can load the OC prole to

their own system to get the same OC settings. In IES (Intelligent Energy

Saver), the voltage regulator can reduce the number of output phases to

improve efciency when the CPU cores are idle without sacricing com-

puting performance. Please visit our website for the operation procedures

of ASRock Extreme Tuning Utility (AXTU).

ASRock website: http://www.asrock.com

6. ASRock Instant Flash is a BIOS ash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems rst like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS le to your USB ash drive, oppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional oppy diskette or other complicated ash utility. Please

be noted that the USB ash drive or hard drive must use FAT32/16/12 le

system.

ASRock A55iCafe Motherboard

English

7. If you desire a faster, less restricted way of charging your Apple devices,

such as iPhone/iPod/iPad Touch, ASRock has prepared a wonderful so-

lution for you - ASRock APP Charger. Simply installing the APP Charger

driver, it makes your iPhone charged much quickly from your computer

and up to 40% faster than before. ASRock APP Charger allows you to

quickly charge many Apple devices simultaneously and even supports

continuous charging when your PC enters into Standby mode (S1), Sus-

pend to RAM (S3), hibernation mode (S4) or power off (S5). With APP

Charger driver installed, you can easily enjoy the marvelous charging

experience than ever.

ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp

8. ASRock XFast USB can boost USB storage device performance. The

performance may depend on the property of the device.

9. ASRock XFast LAN provides a faster internet access, which includes

below benefits. LAN Application Prioritization: You can configure your

application priority ideally and/or add new programs. Lower Latency in

Game: After setting online game priority higher, it can lower the latency in

game. Trafc Shaping: You can watch Youtube HD video and download

les simultaneously. Real-Time Analysis of Your Data: With the status

window, you can easily recognize which data streams you are currently

transferring.

10. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug

it back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC sys-

tem.

11. EuP, stands for Energy Using Product, was a provision regulated by Eu-

ropean Union to dene the power consumption for the completed system.

According to EuP, the total AC power of the completed system shall be

under 1.00W in off mode condition. To meet EuP standard, an EuP ready

motherboard and an EuP ready power supply are required. According to

Intel’s suggestion, the EuP ready power supply must meet the standard

of 5v standby power efciency is higher than 50% under 100 mA current

consumption. For EuP ready power supply selection, we recommend you

checking with the power supply manufacturer for more details.

10 ASRock A55iCafe Motherboard

2. Installation

This is an ATX form factor (12.0-in x 8.0-in, 30.5 cm x 20.3 cm) motherboard.

Before you install the motherboard, study the conguration of your chassis to ensure

that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static elec-

tricity, NEVER place your motherboard directly on the carpet or the

like. Also remember to use a grounded wrist strap or touch a safety

grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the mother-

board to the chassis, please do not over-tighten the screws! Doing

so may damage the motherboard.

English

Andere Handbücher für A55iCafe

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK H61M-GE Bedienungsanleitung

ASROCK

ASROCK A780FULLDISPLAYPORT Bedienungsanleitung

ASROCK

ASROCK G41C-VS Bedienungsanleitung

ASROCK

ASROCK M3A770DE Bedienungsanleitung

ASROCK

ASROCK H81M Bedienungsanleitung

ASROCK

ASROCK K8NF4G-SATA2 Bedienungsanleitung

ASROCK

ASROCK M3A785GM-LE/128M Bedienungsanleitung

ASROCK

ASROCK B75M-GL Bedienungsanleitung

ASROCK

ASROCK P45R2000-WiFi Bedienungsanleitung

ASROCK

ASROCK AD2700-ITX Bedienungsanleitung

ASROCK

ASROCK H81 Pro-G Bedienungsanleitung

ASROCK

ASROCK Z390 Extreme4 Bedienungsanleitung

ASROCK

ASROCK X533 Bedienungsanleitung

ASROCK

ASROCK Z68M-ITX/HT Bedienungsanleitung

ASROCK

ASROCK ConRoe945GZ-DVI Bedienungsanleitung

ASROCK

ASROCK N68PV-GS Bedienungsanleitung

ASROCK

ASROCK H67M-GE Bedienungsanleitung

ASROCK

ASROCK K8UPGRADE-NF3 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X299 Professional Gaming i9 XE... Bedienungsanleitung

ASROCK

ASROCK 4CORE1333-FULLHD - V1.1 Bedienungsanleitung

ASROCK

ASROCK X299 TAICHI CLX Bedienungsanleitung

ASROCK

ASROCK IMB-153 Bedienungsanleitung

ASROCK

ASROCK 939Dual-VSTA Bedienungsanleitung

ASROCK

ASROCK B85iCafe4 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
